All parts of Makita DPC7301: 246 positions on 8 sheets

Sheet 1: Makita DPC7301 parts diagram

Makita DPC7301 parts diagram, sheet 1
No.Part numberPart name
2963230031Makita 963230031 O-RENGAS
4963601240Makita 963601240 FELT FOR SUCTION HEAD
5965404911Makita 965404911 PA-LETKU
6913455454Makita 913455454 RUUVI 5,5X45
7924405500Makita 924405500 LEVY
8965403532Makita 965403532 KUMIVAIMENNIN
9394114031Makita 394114031 AKSELI
11394114070Makita 394114070 KUMI JALKA
12010175050Makita 010175050 ILM. VENTTIILI TÄYD
13394114100Makita 394114100 RUUVI TULPPA
14957117030Makita 957117030 HALF-KAASU LUKITUS CPL.
16394117011Makita 394117011 KAASU KAMPI
17394114050Makita 394114050 POT
18965403532Makita 965403532 KUMIVAIMENNIN
19394114031Makita 394114031 AKSELI
20908305405Makita 908305405 KUPUKANTA RUUVI 5X10X40
21394114640Makita 394114640 KIINNITYSLEVY
22913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
23913455454Makita 913455454 RUUVI 5,5X45
24924405500Makita 924405500 LEVY
25965403532Makita 965403532 KUMIVAIMENNIN
26394114031Makita 394114031 AKSELI
27913455454Makita 913455454 RUUVI 5,5X45
28965403532Makita 965403532 KUMIVAIMENNIN
29394310100Makita 394310100 WRAP AROUND KAHVA
30010114081Makita 010114081 KULMA YHDE SARJA
32913455454Makita 913455454 RUUVI 5,5X45
33394114060Makita 394114060 JALKA

Sheet 2: Makita DPC7301 parts diagram

Makita DPC7301 parts diagram, sheet 2
No.Part numberPart name
36980114755
37394118010Makita 394118010 BAJONETTI KIINNIKE
38394118060Makita 394118060 INSERT
39394173030
40394118020Makita 394118020 TIIVISTE RENGAS
41980114498Makita 980114498 KILPI
43908505555Makita 908505555 SCREW
44394173010Makita 394173010 air filter dpc6410
45394173020Makita 394173020 SISEMPI SUODIN
46394174050Makita 394174050 KANSI LEVY
47965531130Makita 965531130 TIIVISTE
48394174010Makita 394174010 PAKOPUTKI
49908405205Makita 908405205 SCREW
50908005095Makita 908005095 SCREW111.115.PS-43/52/540
51921905004Makita 921905004 NELIÖMUTTERI 109.111110I.115.PS-43/52
52965603050Makita 965603050 LETKU KIINNITIN
53394131100Makita 394131100 IMU LETKU
54024131031Makita 024131031 INSERT FOR IMU HOSE
56965401016Makita 965401016 KUMI PUSSLA
57965452380Makita 965452380 BENSALETKU 1M 5,5/3
58965518120Makita 965518120 TIIVISTE
59970502050Makita 970502050 SUOJAPUTKI SÄHKÖ 1M109.110I.115.PS43/52
60394150042Makita 394150042 RYYPPY VARSI
61394150030Makita 394150030 RYYPPY VARSI
62908204555Makita 908204555 RUUVI
176965402870Makita 965402870 LEVY
177980114762Makita 980114762 KILPI

Sheet 3: Makita DPC7301 parts diagram

Makita DPC7301 parts diagram, sheet 3
No.Part numberPart name
64394150170Makita 394150170 KUPUKANTA PÄÄ RUUVI
65394150160Makita 394150160 PUMPPU KANSI TÄYD
67113150150Makita 113150150 PUMPPU KALVO
68394150180Makita 394150180 SIHTI
69122151400Makita 122151400 LEVY
70100150350Makita 100150350 LUKKORENGAS 110I.115I.
71394150250Makita 394150250 RYYPPY VARSI
72001150650Makita 001150650 RUUVI 110I.115I.
73113150261Makita 113150261 RYYPPY LÄPPÄ
74113150380Makita 113150380 KUULA
75101150080Makita 101150080 JOUSI
76957150160Makita 957150160 SARJA OF SÄÄTÖ OSAT
77144151320Makita 144151320 KAASU SULKIJA
78001150650Makita 001150650 RUUVI 110I.115I.
79144151315Makita 144151315 PUSSLA
80394150310Makita 394150310 JOUSI
81144151315Makita 144151315 PUSSLA
82394150300Makita 394150300 KAASU VARSI
83001150510Makita 001150510 KUULA
84394150570Makita 394150570 IDLE STOP RUUVI
85394150500Makita 394150500 TIIVISTE RENGAS
86144151480Makita 144151480 JOUSI
87394150470Makita 394150470 IDLE SÄÄTÖ SCREW
88394150510Makita 394150510 MAIN SÄÄTÖM. RUUVI
89144151480Makita 144151480 JOUSI
90394150500Makita 394150500 TIIVISTE RENGAS
91113150040Makita 113150040 NAPPI
93394150120Makita 394150120 KALVO KANSI
94965402970Makita 965402970 TIIVISTE
95001150520Makita 001150520 RUUVI 110I.115I.

Sheet 4: Makita DPC7301 parts diagram

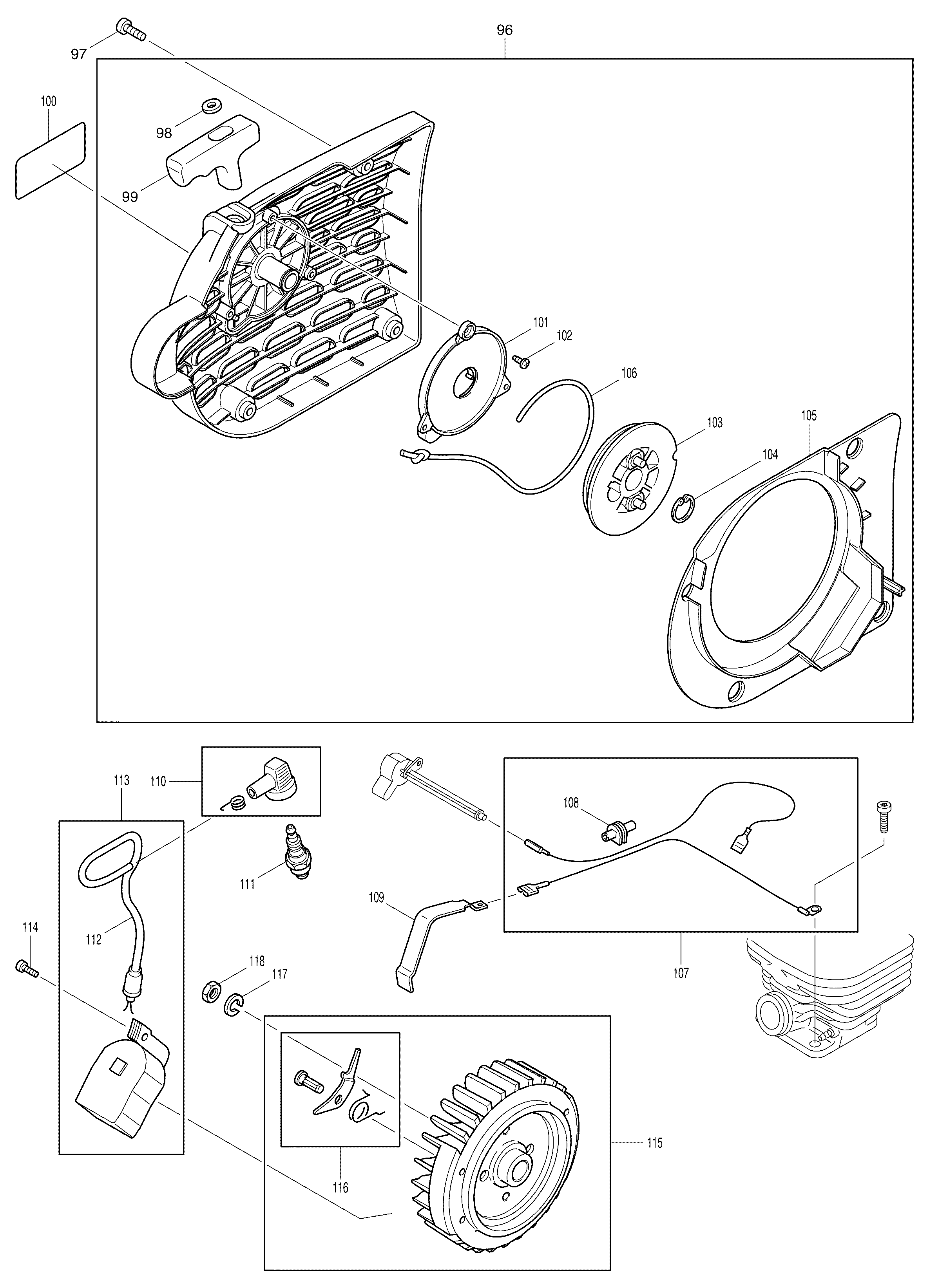

Makita DPC7301 parts diagram, sheet 4
No.Part numberPart name
97908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
98928405000Makita 928405000 DISC
99965402262Makita 965402262 KÄYNNISTIN KAHVA 109110I.115.PS43/52
100980114217Makita 980114217 STICKER MAKITA
101020163031Makita 020163031 REWIND SPRING 109110I.115.PS-43/52
102915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
103024162081Makita 024162081 NARU RUMPU
104929314100Makita 929314100 LUKKO RENGAS A14X1V
105394112020Makita 394112020 ILM. OHJAIN LEVY
106108164020Makita 108164020 KÄYNNISTIN NARU 109110I.115.PS43/52
108965401016Makita 965401016 KUMI PUSSLA
109394146011Makita 394146011 CONTACT JOUSI
110957604240Makita 957604240 TULPPA KORKKI TÄYD
111965603021Makita 965603021 SYTYTYSTULPPA BPMR7A
112970310200Makita 970310200 SYTYTYSJOHTO (1M)109110I.115.PS-43/52
114908605205Makita 908605205 RUUVI 5X20 109.110I111.115.PS-43/52/540
116031166010Makita 031166010 STARTER RATCHET CPL. PC-7414 / 8216
117920308024Makita 920308024 KUUSIOMUTTERI M8 109110I.111.115.PS43/52
118926208001Makita 926208001 JOUSI LEVY B8

Sheet 5: Makita DPC7301 parts diagram

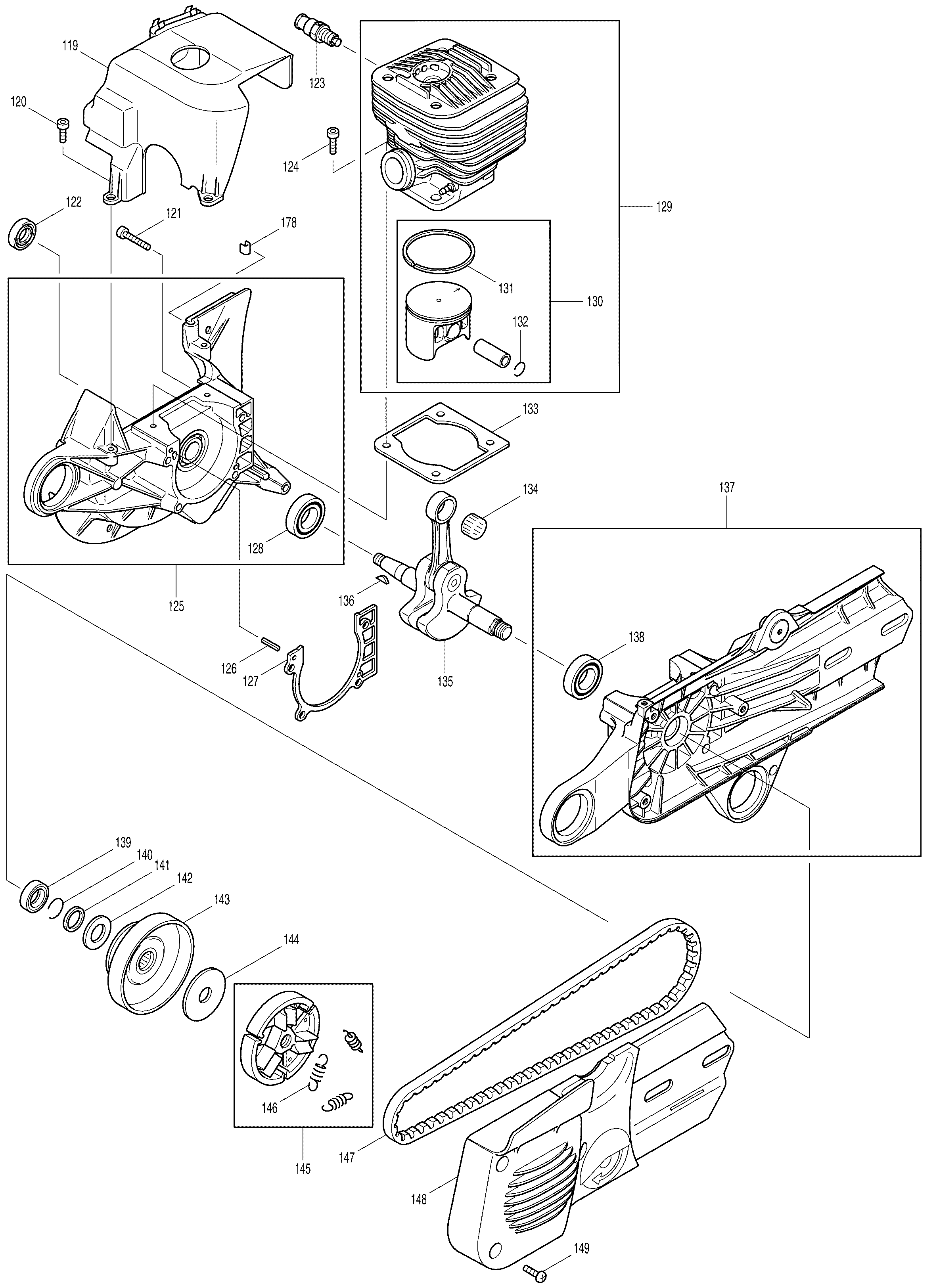

Makita DPC7301 parts diagram, sheet 5
No.Part numberPart name
119394131040Makita 394131040 KOPPA
120908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
121908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
122962900052Makita 962900052 RADIAL RING , D:15/24x7mm
123001131150Makita 001131150 PUOLIPURISTIN VENTTIILI PS5000
124908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
126936430160Makita 936430160 SPIRAL CLAMPING PIN3X16
127965531110Makita 965531110 TIIVISTE
128960102159Makita 960102159 BALL BEARING ( 6202 )
131394132020Makita 394132020 PISTON RING, Ø50 FOR POWER CUTTER
132119132060Makita 119132060 SPRING RING, C12X1
133965531120Makita 965531120 TIIVISTE
134962210015Makita 962210015 NEULA KEHIKKO TORR.116X13
135394120010Makita 394120010 KAMPIAKSELI TÄYD
136939630370Makita 939630370 KEY 3.0X3.7REPAIR
138960102159Makita 960102159 BALL BEARING ( 6202 )
139962900052Makita 962900052 RADIAL RING , D:15/24x7mm
140930916160Makita 930916160 SPRING RING
141001245321
142394182020Makita 394182020 GUIDE DISC
143394223021Makita 394223021 KYTKIN RUMPU SARJA
144024182060Makita 024182060 OHJAIN LEVY
146024184021Makita 024184021 KIRISTYSJOUSI 109110I.111.115.PS-43YM
147965300470
148394213010Makita 394213010 KANSI
149908605145Makita 908605145 RUUVI 5X14 109.110I.111.115.PS-43/52/540
178394118050Makita 394118050 BAJONETTI LUKITUS

Sheet 6: Makita DPC7301 parts diagram

Makita DPC7301 parts diagram, sheet 6
No.Part numberPart name
151394341010Makita 394341010 SUOJA KOPPA 14"
152394342011Makita 394342011 LUKITUSING LEVY
154394228061Makita 394228061 PAINE LEVY
155394228100Makita 394228100 AKSELI
156394228061Makita 394228061 PAINE LEVY
157994280250Makita 994280250 RUUVI
158394228020
159394342201Makita 394342201 PAINE RENGAS TÄYD
161929240180Makita 929240180 LUKKO RENGAS 40X1,75
162960102176Makita 960102176 KUULA LAAKERI 6203 LU
163929240180Makita 929240180 LUKKO RENGAS 40X1,75
164394211090Makita 394211090 RUUVI
165957211020Makita 957211020 PULTTI TÄYD
166394228020
167960102176Makita 960102176 KUULA LAAKERI 6203 LU
168900006179Makita 900006179 LEVY
169394221010Makita 394221010 V-HIHNA PULLEY
170994280250Makita 994280250 RUUVI
172394213031Makita 394213031 KIRISTYS RUUVI
173394342120Makita 394342120 PAINE JOUSI
174921906004Makita 921906004 NELIÖMUTTERI
175923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM

Sheet 7: Makita DPC7301 parts diagram

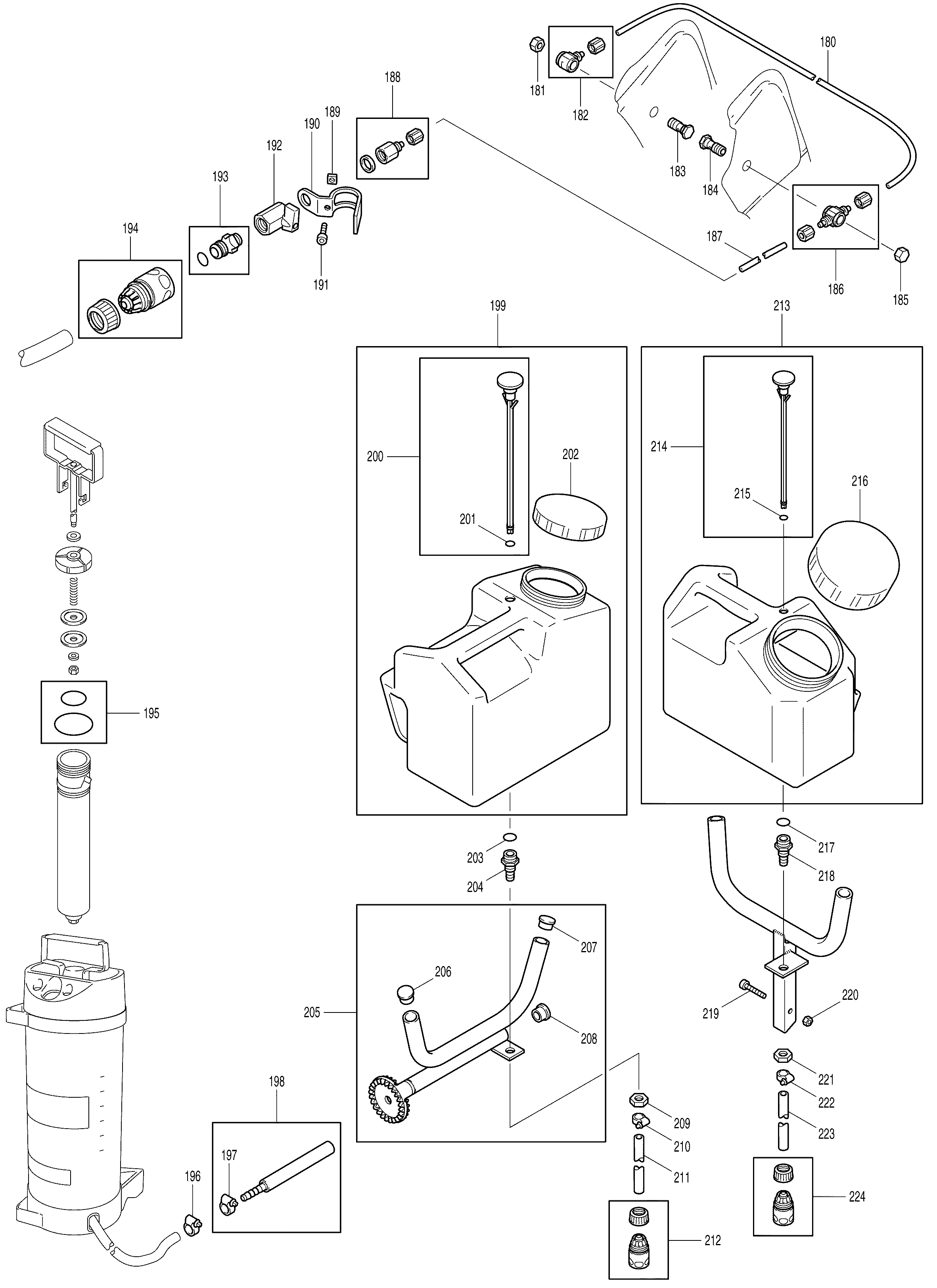

Makita DPC7301 parts diagram, sheet 7
No.Part numberPart name
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
201
202
203
204
206
207
208
209
210
211
212
215
216
217
218
219
220
221
222
223
224

Sheet 8: Makita DPC7301 parts diagram

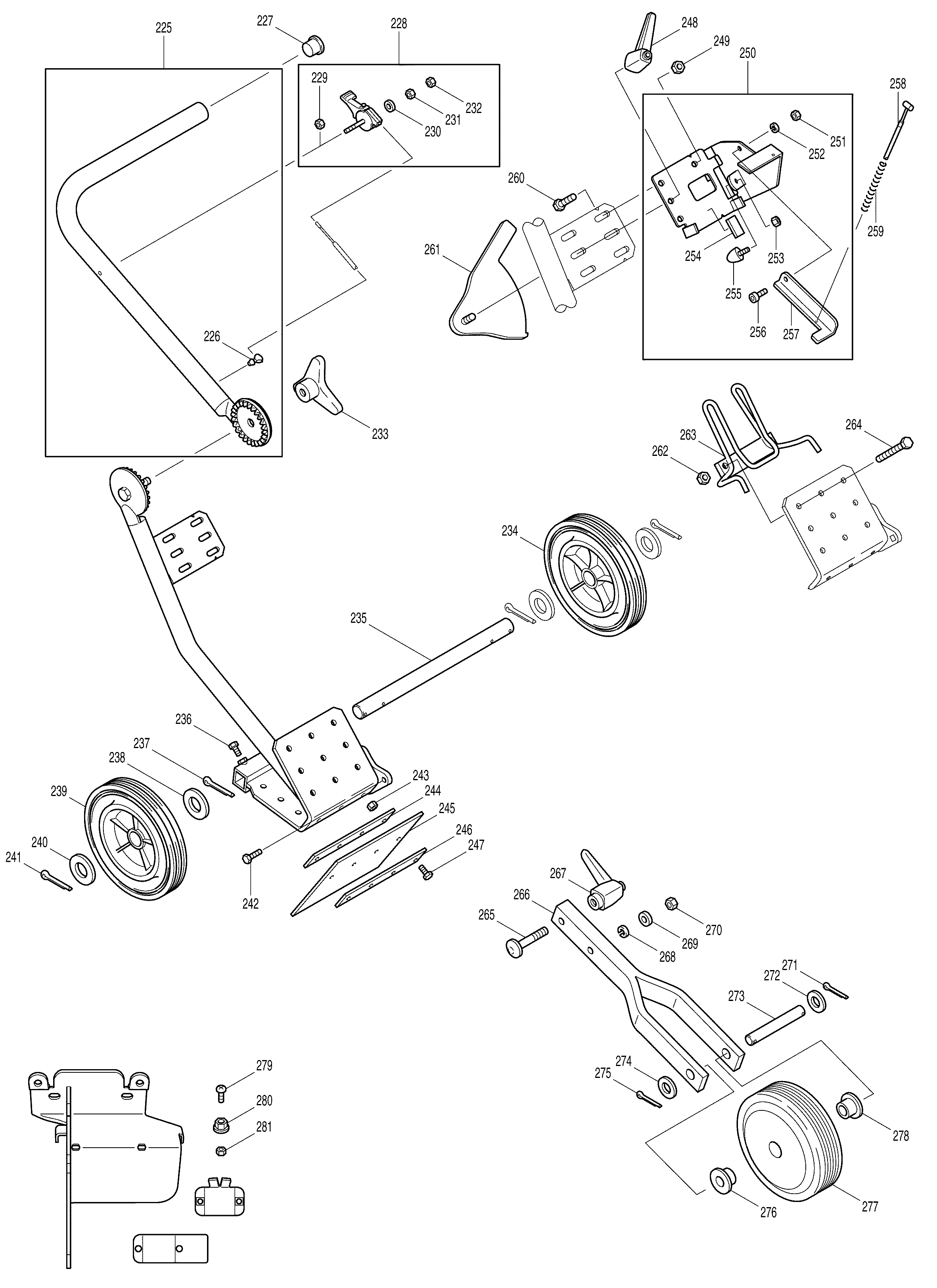

Makita DPC7301 parts diagram, sheet 8
No.Part numberPart name
226
227
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
