Makita DPC7000

Makita DPC7000: exploded parts diagram, 7 sheets, 192 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DPC7000: 192 positions on 7 sheets

Sheet 1: Makita DPC7000 parts diagram

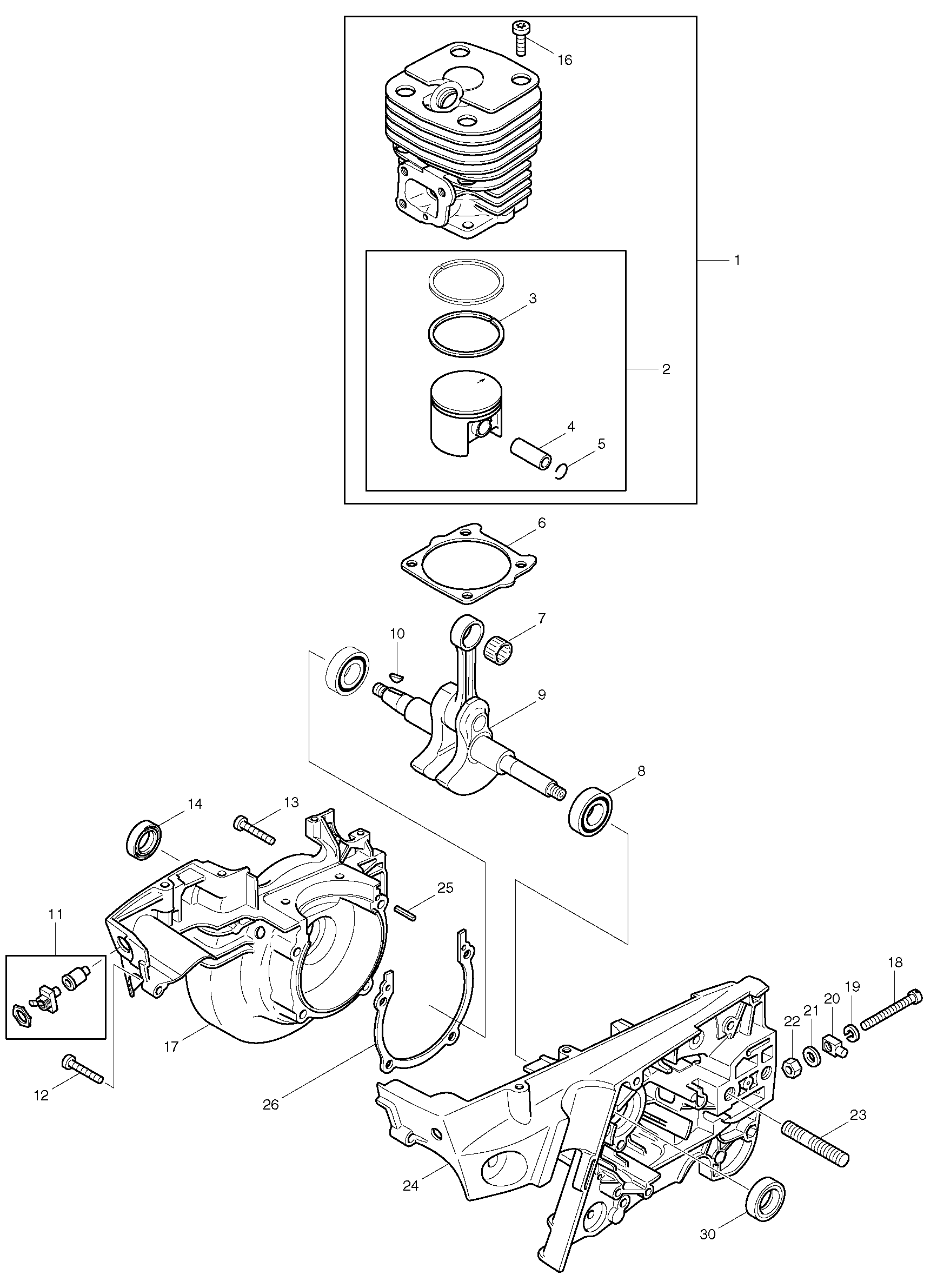

Makita DPC7000 parts diagram, sheet 1
No.Part numberPart name
3123132020Makita 123132020 MÄNTÄ RENGAS
4031132020Makita 031132020 MÄNTÄ TAPPI
5119132060Makita 119132060 SPRING RING, C12X1
6965521023Makita 965521023 TIIVISTE
7962210015Makita 962210015 NEULA KEHIKKO TORR.116X13
8960102179Makita 960102179 KUULA LAAKERI FAG 1740X12
9133120301Makita 133120301 KAMPIAKSELI
10939630370Makita 939630370 KEY 3.0X3.7REPAIR
11957605112Makita 957605112 KYTKIN 109.110I.111.115.PS-43/52/540
12908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
13908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
14962900054Makita 962900054 STEFA
16908006205Makita 908006205 SCREW
17031111630Makita 031111630 KAMPIKOTELO-MS
18965551051Makita 965551051 KUPUKANTA RUUVI 6X70
19926206000Makita 926206000 JOUSI LEVY A6
20123213010Makita 123213010 NELIÖMUTTERI
21924306400Makita 924306400 LEVY 6,4
22922606000Makita 922606000 HEXAHONAL MUTTERI M6
23905810354Makita 905810354 MÄNNÄNTAPPI 10X35
24031111650Makita 031111650 KAMPIKOTELO CL. PUOLI
25936430160Makita 936430160 SPIRAL CLAMPING PIN3X16
26965518013Makita 965518013 TIIVISTE
30962900051Makita 962900051 STEFA

Sheet 2: Makita DPC7000 parts diagram

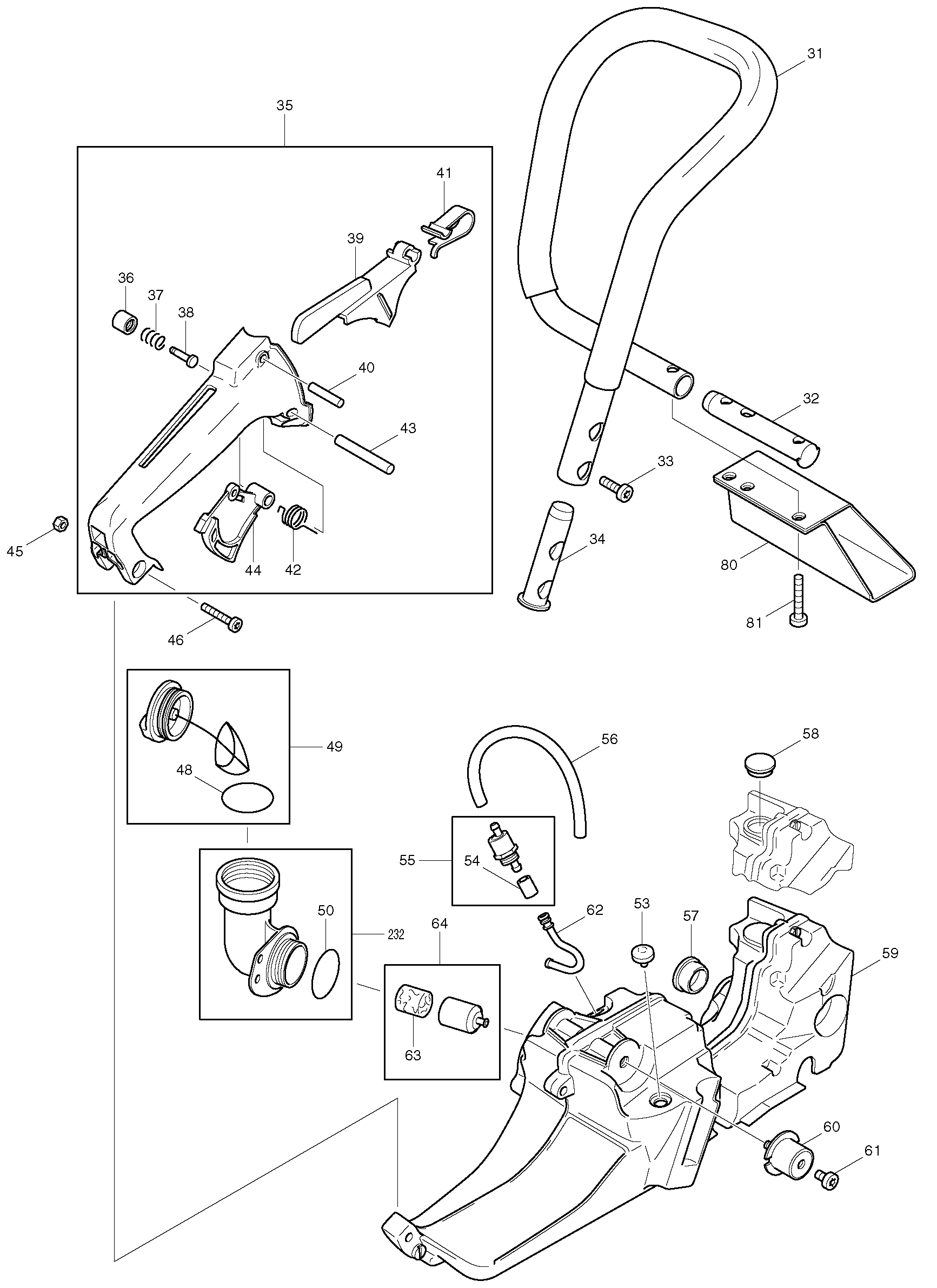

Makita DPC7000 parts diagram, sheet 2
No.Part numberPart name
31123310011Makita 123310011 ETUKAHVA
32144310072Makita 144310072 VAHVISTUS PALA
33908006205Makita 908006205 SCREW
34122310051Makita 122310051 VAHVISTUS PALA
36965451750Makita 965451750 NAPPI
37965551160Makita 965551160 PAINE SPRIN
38965551150Makita 965551150 STOP TAPPI
39119117030Makita 119117030 KAASUN VARM. VIPU
40935940240Makita 935940240 CYL.TAPPI 4M6X24
41119117052Makita 119117052 JOUSI
42119117041Makita 119117041 JOUSI
43935950400Makita 935950400 CYL.TAPPI 5M6X40
44119117021Makita 119117021 KAASU VIPU
45920205000Makita 920205000 MUTTERI M5 110I.115115I.
46908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
48965402750Makita 965402750 TIIVISTE
50963232045Makita 963232045 O-RENGAS 109.110I.111.115.PS43/52/540
53965402360Makita 965402360 BUFFER
54965452490Makita 965452490 PUTKI 8,5/14
56965452480Makita 965452480 LETKU 4X2
57965451560Makita 965451560 STOPPARI
58965451710Makita 965451710 STOPPARI
59123114600Makita 123114600 TANKKI TÄYD
60965403131Makita 965403131 KUMIVAIMENNIN
61908006105Makita 908006105 KUPUKANTA RUUVI 6X10 T27
62965450200Makita 965450200 IMU LETKU
63963601240Makita 963601240 FELT FOR SUCTION HEAD
80392320100Makita 392320100 JALKA
81908006355Makita 908006355 RUUVI

Sheet 3: Makita DPC7000 parts diagram

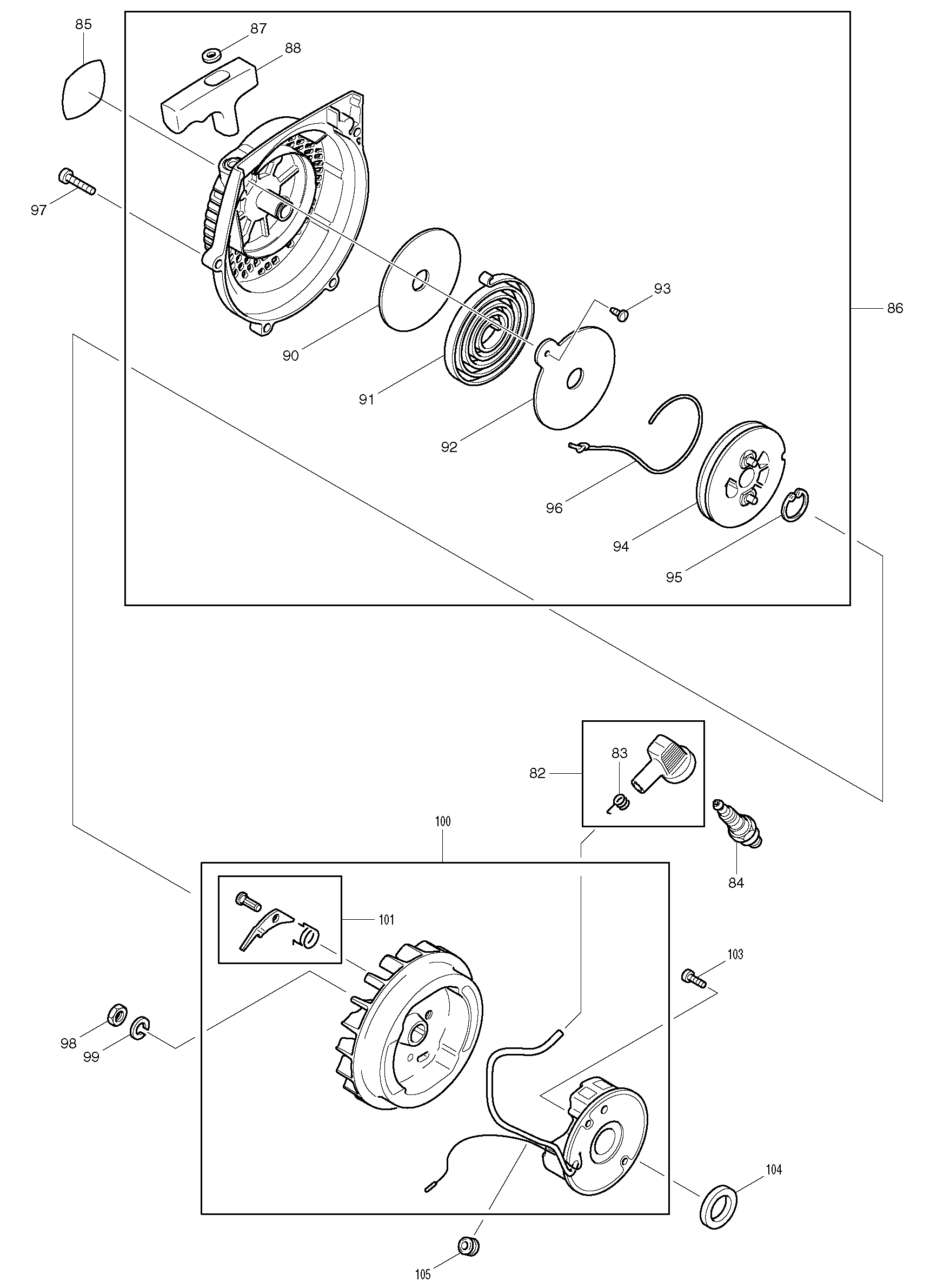

Makita DPC7000 parts diagram, sheet 3
No.Part numberPart name
83965604230Makita 965604230 JOUSI
84965603021Makita 965603021 SYTYTYSTULPPA BPMR7A
85980114094Makita 980114094 KILPI
87928405000Makita 928405000 DISC
88965402262Makita 965402262 KÄYNNISTIN KAHVA 109110I.115.PS43/52
90900004363Makita 900004363 VÄLILEVY 15X74,5X0,5
91123163013Makita 123163013 KÄYNNISTYSJOUSI
92123163020Makita 123163020 JOUSI KANSI
93907204102Makita 907204102 THREAD FORMING RUUVI
94123162031Makita 123162031 NARU RUMPU
95929314100Makita 929314100 LUKKO RENGAS A14X1V
96985000165Makita 985000165 NARU 4,0 MM - 100 METER
97908005255Makita 908005255 RUUVI
98920308024Makita 920308024 KUUSIOMUTTERI M8 109110I.111.115.PS43/52
99928308001Makita 928308001 JOUSI LEVY 109.110I111.115.PS-43/52/540
101031166010Makita 031166010 STARTER RATCHET CPL. PC-7414 / 8216
103908004125Makita 908004125 KUPUKANTA RUUVI 4X12 T27
104900003050Makita 900003050 FELT LEVY 17X27X5
105965401015Makita 965401015 KUMI PUSSLA

Sheet 4: Makita DPC7000 parts diagram

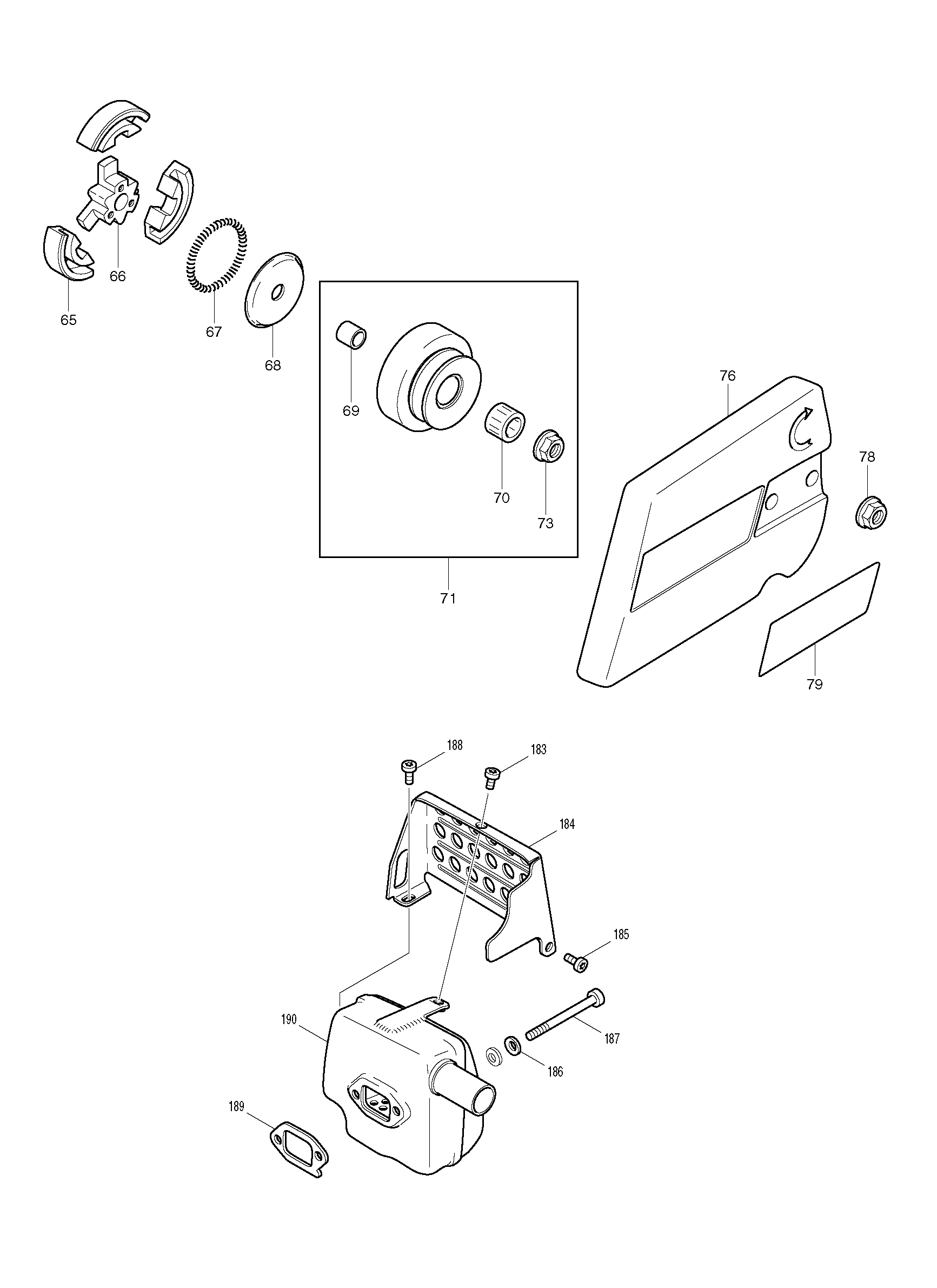

Makita DPC7000 parts diagram, sheet 4
No.Part numberPart name
65123181010Makita 123181010 KYTKIN KENKÄ (SARJA)
66122182011Makita 122182011 HUB
67122184011Makita 122184011 JOUSI
68122182030Makita 122182030 OHJAIN LEVY
69962200006Makita 962200006 SISEMPI RENGAS
70962210027Makita 962210027 NEULA KEHIKKO TORR.118X14
73923210003Makita 923210003 HEX MUTTERI M10 VASE
76398213600Makita 398213600 KETJUPYÖRÄSUOJA
78923210002Makita 923210002 KUUSIO MUTTERI
79980114078Makita 980114078 KILPI MAKITA PC 700
183908005095Makita 908005095 SCREW111.115.PS-43/52/540
184398174600Makita 398174600 HEAT SHIELD
185908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
186928406000Makita 928406000 JOUSI LEVY
187908006655
188908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
189965518052Makita 965518052 TIIVISTE
190123174159Makita 123174159 PAKOPUTKI

Sheet 5: Makita DPC7000 parts diagram

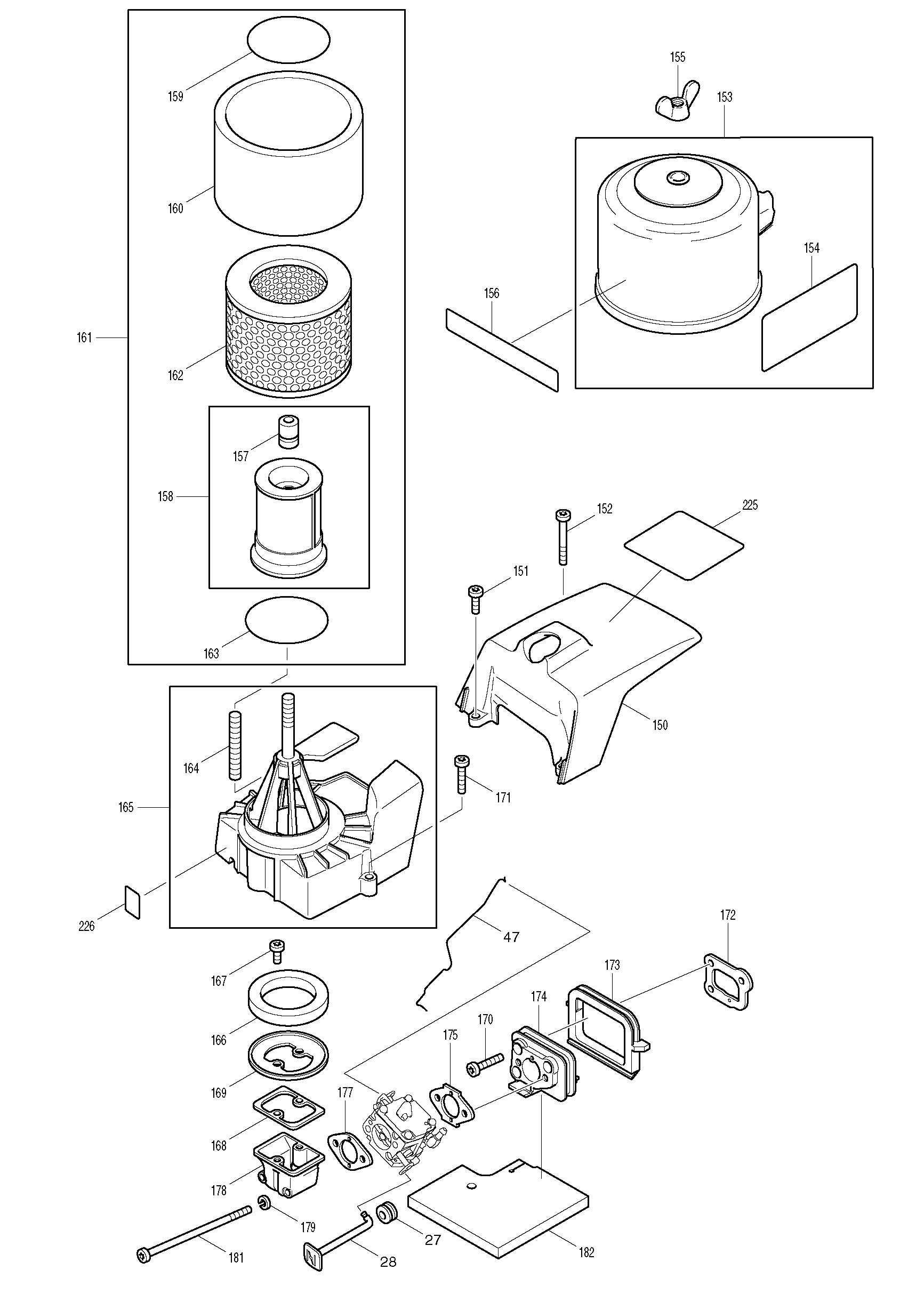

Makita DPC7000 parts diagram, sheet 5
No.Part numberPart name
27965401011Makita 965401011 KUMIPUSLA 109.110I111.115.PS-43/52/540
28031150730Makita 031150730 RYYPPY VARSI
47122117054Makita 122117054 KAASU KAMPI
150392118010Makita 392118010 KOPPA
151908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
152908305405Makita 908305405 KUPUKANTA RUUVI 5X10X40
154980113480
155921708000Makita 921708000 WING MUTTERI M8
156980114237Makita 980114237 KÄSISUOJ.SYMB.KILPI109.110I.115.PS-43YM
157965401025Makita 965401025 KUMI PUSSLA
159963257070Makita 963257070 TIIVISTE RENGAS
160001173000Makita 001173000 ESI-SUODIN
162122173140Makita 122173140 SUODIN
163963257070Makita 963257070 TIIVISTE RENGAS
164905808555Makita 905808555 RUUVI M 8X55
166965402960Makita 965402960 TIIVISTE
167908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
168965516090Makita 965516090 TIIVISTE
169144171040Makita 144171040 LEVY
170991105257
171908005255Makita 908005255 RUUVI
172965518111Makita 965518111 TIIVISTE
173133131041Makita 133131041 TIIVISTE
174133131051Makita 133131051 VÄLI LAIPPA
175965518031Makita 965518031 TIIVISTE
177965518090Makita 965518090 TIIVISTE
178144171030Makita 144171030 LIITOSMUHVI
179926105001Makita 926105001 JOUSI ALUSLEVY 5
181908205805Makita 908205805 KUPUKANTA RUUVI 5X80
182965402851Makita 965402851 LEVY
225980114340Makita 980114340 KILPI
226980113841Makita 980113841 KILPI ''I-0''

Sheet 6: Makita DPC7000 parts diagram

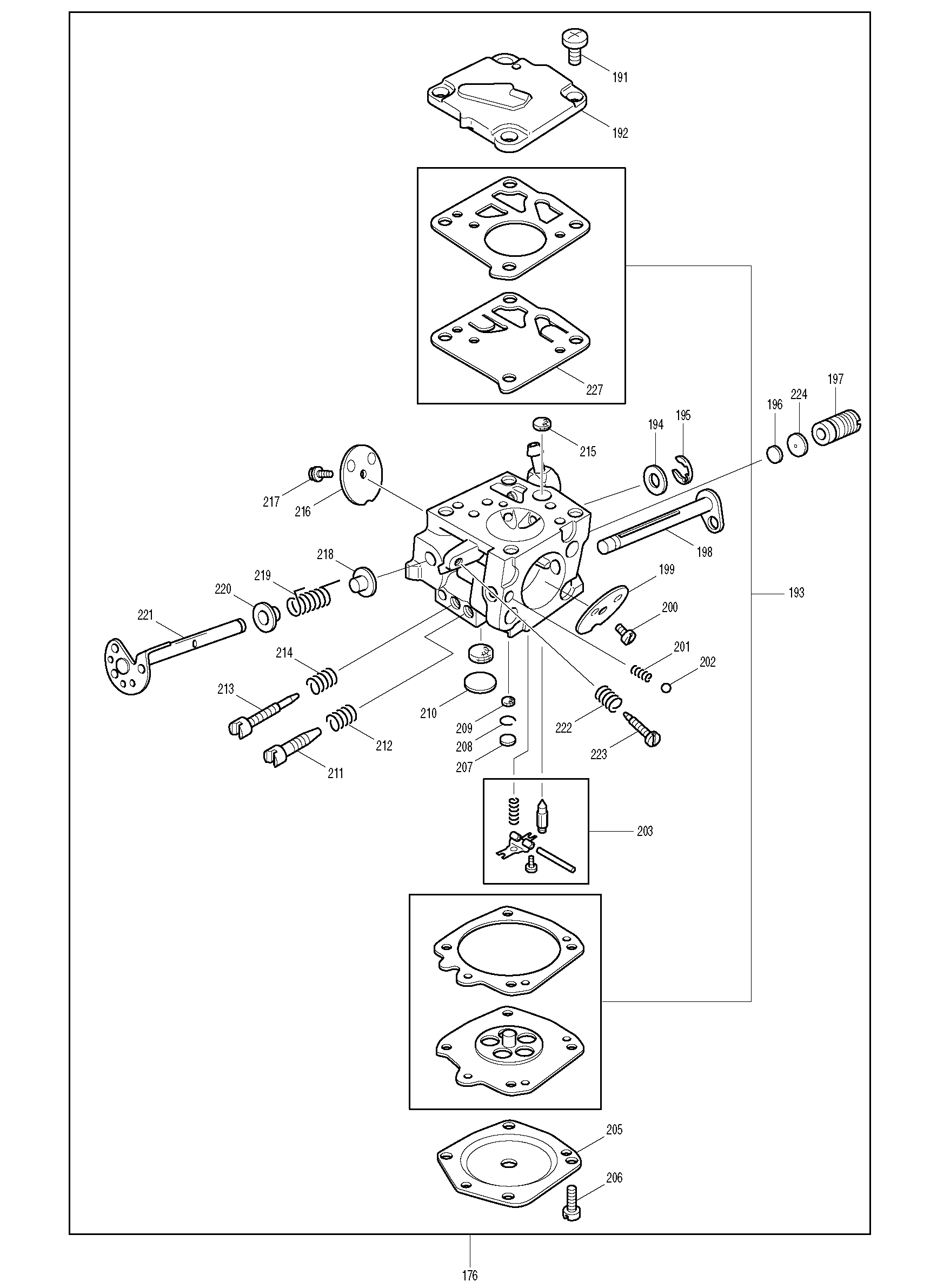

Makita DPC7000 parts diagram, sheet 6
No.Part numberPart name
191113150170Makita 113150170 RUUVI JA LUKITUS WASER
192113150160
194122151400Makita 122151400 LEVY
195100150350Makita 100150350 LUKKORENGAS 110I.115I.
196115150560Makita 115150560 TIIVISTE
197122151551Makita 122151551 GOVERNOR VENTTIILI
198031150020Makita 031150020 RYYPPY VARSI
199113150261Makita 113150261 RYYPPY LÄPPÄ
200113150370Makita 113150370 RUUVI JA LUKITUS WASER
201101150080Makita 101150080 JOUSI
202113150380Makita 113150380 KUULA
203957150010Makita 957150010 SARJA CARB SPARES TI HS
205122151121Makita 122151121 KALVO KANSI
206001150140Makita 001150140 RUUVI
207113150030Makita 113150030 KANSI LEVY
208107150240Makita 107150240 RENGAS
209107150230Makita 107150230 STRAINER SIHTI
210113150040Makita 113150040 NAPPI
211122151510Makita 122151510 MAIN SÄÄTÖ RUUVI
212101150480Makita 101150480 JOUSI
213122151470Makita 122151470 IDLE SÄÄTÖ RUUVI
214144151480Makita 144151480 JOUSI
215020150180Makita 020150180 LIITOSVASTE
216144151320Makita 144151320 KAASU SULKIJA
217113150370Makita 113150370 RUUVI JA LUKITUS WASER
218144151315Makita 144151315 PUSSLA
219144151310Makita 144151310 JOUSI
220144151315Makita 144151315 PUSSLA
221122151302Makita 122151302 KAASU VARSI
222113150230Makita 113150230 JOUSI
223144151480Makita 144151480 JOUSI
224001150060Makita 001150060 LEVY D=0,7 MM
227113150150Makita 113150150 PUMPPU KALVO

Sheet 7: Makita DPC7000 parts diagram

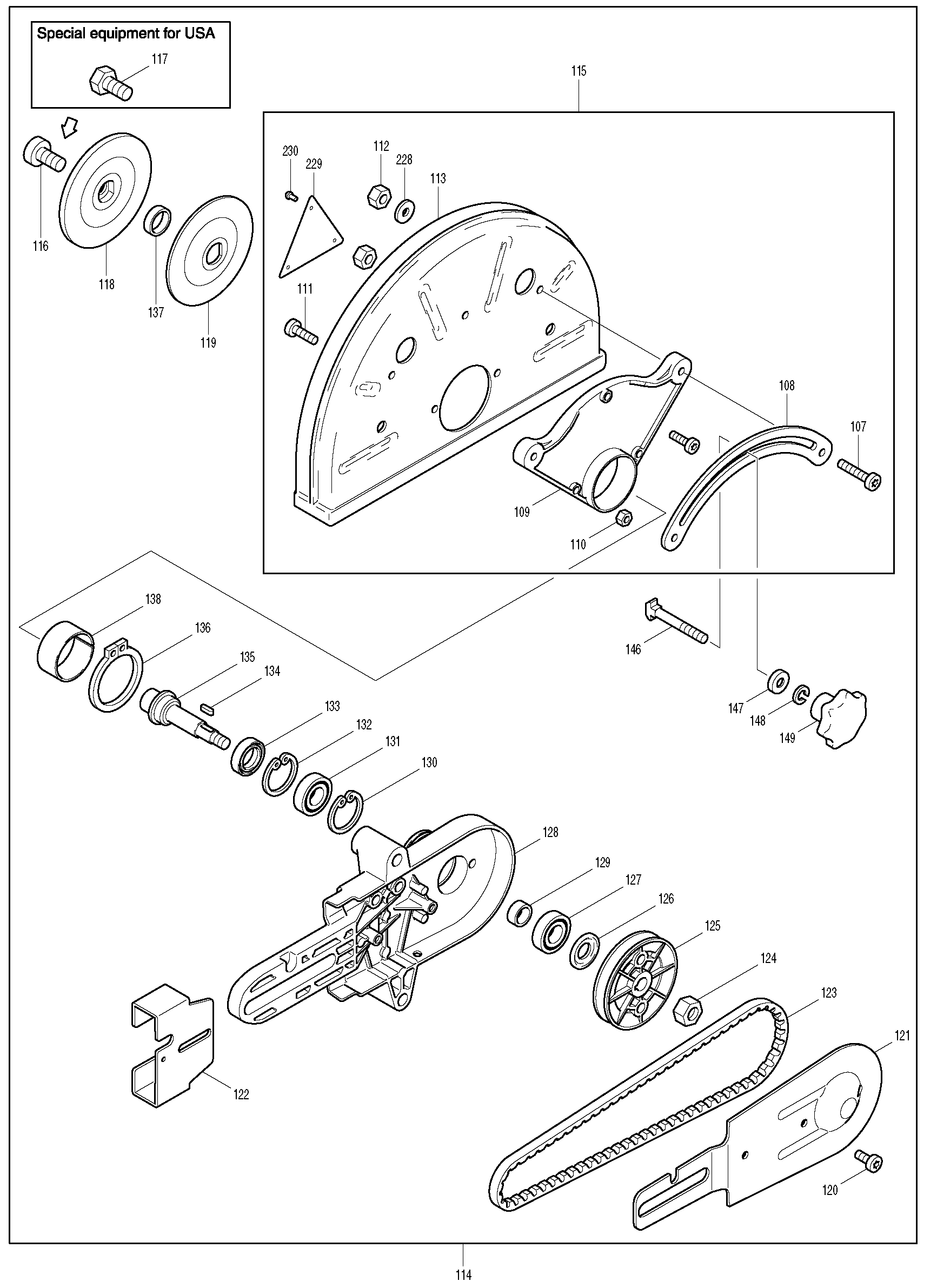

Makita DPC7000 parts diagram, sheet 7
No.Part numberPart name
107908006255Makita 908006255 RUUVI
108392341040Makita 392341040 KIINNITIN
109395341600Makita 395341600 KÄÄNTÖ PÖYTÄ
110920406000Makita 920406000 KUUSIO MUTTERI M6
111908006205Makita 908006205 SCREW
112920406000Makita 920406000 KUUSIO MUTTERI M6
113398341610Makita 398341610 SUOJA KOPPA
116907310204Makita 907310204 TERÄKIIN. PULTTIM10X1X20 LEFT THREAD
117
118398228042Makita 398228042 LAIPPA DPC7301
119395228053Makita 395228053 ALUSLAIPPA DPC7301
120908006145Makita 908006145 KUPUKANTA RUUVI 6X14 T27
121398410600Makita 398410600 SUOJA LEVY
122398211610Makita 398211610 KÄSI SUOJA - SININ.
123965300450Makita 965300450 V-HIHNA FO-Z XPZ 765MM
124920410000Makita 920410000 KUUSIO MUTTERI M10
125397221090Makita 397221090 V-HIHNA PULLEY
126963815320Makita 963815320 RENGAS
127960102155Makita 960102155 KUULA LAAKERI FAG 1535X11
128398211600
129900005009Makita 900005009 VÄLI RENGAS
130929235150Makita 929235150 LUKKO RENGAS 35X1.5
131960102155Makita 960102155 KUULA LAAKERI FAG 1535X11
132929235150Makita 929235150 LUKKO RENGAS 35X1.5
133962900036
134939144140Makita 939144140 KEY A4X4X14REPAIR
135398228013Makita 398228013 VARSI 20,0 MM
136929145175Makita 929145175 LUKKO RENGAS 45X1.75
137392228040Makita 392228040 ADAPTOR
138398211090Makita 398211090 PUSSLA
146910308601Makita 910308601 SÄÄTÖ RUUVI
147900005075Makita 900005075 VÄLI RENGAS
148926208001Makita 926208001 JOUSI LEVY B8
149985000560Makita 985000560 NUPPI M 8
228924806400Makita 924806400 LEVY 6.4
229980114330
230938232483Makita 938232483 CHOBERT-TULPPA 3,2X,8
