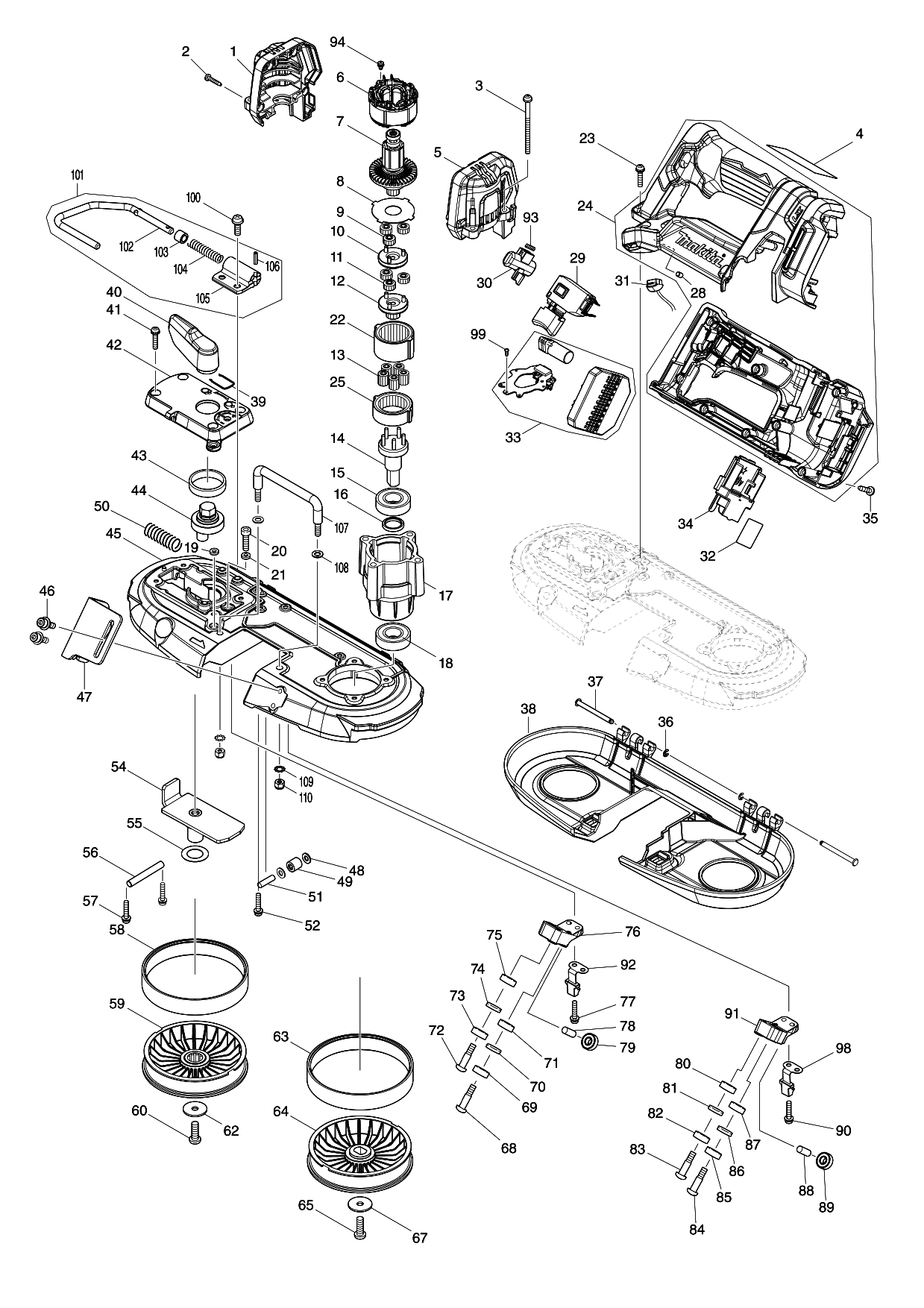

Sheet 1: Makita DPB184 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183P68-8 | Makita 183P68-8 MOTOR HOUSING SET, DPB184 |
| 2 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 3 | 911188-0 | Makita 911188-0 PAN HEAD SCREW M4X60 |
| 4 | 857F40-3 | |
| 5 | 183P68-8 | Makita 183P68-8 MOTOR HOUSING SET, DPB184 |
| 6 | 629482-3 | |
| 7 | 619628-9 | |
| 8 | 253474-6 | |
| 9 | 226923-6 | |
| 10 | 140M80-3 | |
| 11 | 226923-6 | |
| 12 | 140M81-1 | |
| 13 | 226924-4 | |
| 14 | 140T74-0 | |
| 15 | 211247-3 | Makita 211247-3 BALL BEARING 6002DDW |
| 16 | 257348-3 | Makita 257348-3 RING 15 |
| 17 | 319980-2 | |
| 18 | 211247-3 | Makita 211247-3 BALL BEARING 6002DDW |
| 19 | 262130-7 | Makita 262130-7 URETHANE RING 4AN911H |
| 20 | 265382-9 | Makita 265382-9 HEX. SOCKET HEAD BOL2704 |
| 21 | 262130-7 | Makita 262130-7 URETHANE RING 4AN911H |
| 22 | 226921-0 | |
| 23 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 25 | 226922-8 | |
| 28 | 263027-3 | Makita 263027-3 RUBBER PIN 4 HR4001C |
| 29 | 651486-7 | |
| 30 | 412551-5 | |
| 31 | 620521-2 | Makita 620521-2 LED CIRCUIT |
| 32 | 857F47-9 | |
| 33 | 620D05-4 | |
| 34 | 643874-2 | Makita 643874-2 Terminal |
| 35 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 36 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 37 | 256689-4 | Makita 256689-4 PIN 4 |
| 38 | 412550-7 | |
| 39 | 231955-0 | Makita 231955-0 RING SPRING 12, N5900B |
| 40 | 271462-1 | |
| 41 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 42 | 459084-9 | |
| 43 | 214408-4 | |
| 44 | 326351-6 | Makita 326351-6 LEVER SHAFT |
| 45 | 140V76-8 | |
| 46 | 922224-7 | |
| 47 | 347696-9 | |
| 48 | 267010-2 | Makita 267010-2 FLAT WASHER 5, LS1016L |
| 49 | 212199-1 | |
| 50 | 234313-9 | |
| 51 | 256155-1 | Makita 256155-1 PIN 5 |
| 52 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 54 | 162564-3 | |
| 55 | 267164-5 | Makita 267164-5 FLAT WASHER 4, N5900B |
| 56 | 268241-6 | Makita 268241-6 PIN 6HM1317CB |
| 57 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 58 | 424589-8 | Makita 424589-8 RUBBER TIRE |
| 59 | 140J07-5 | |
| 60 | 265484-1 | Makita 265484-1 HEX SOCKET HEAD BOLT M6X |
| 62 | 267173-4 | Makita 267173-4 FLAT WASHER 6 |
| 63 | 424589-8 | Makita 424589-8 RUBBER TIRE |
| 64 | 459087-3 | |
| 65 | 265484-1 | Makita 265484-1 HEX SOCKET HEAD BOLT M6X |
| 67 | 267173-4 | Makita 267173-4 FLAT WASHER 6 |
| 68 | 251337-0 | Makita 251337-0 + PAN HEAD SCREW M5 |
| 69 | 210187-2 | Makita 210187-2 BALL BEARING 696ZZ, DPB182D |
| 70 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 71 | 210187-2 | Makita 210187-2 BALL BEARING 696ZZ, DPB182D |
| 72 | 251337-0 | Makita 251337-0 + PAN HEAD SCREW M5 |
| 73 | 210187-2 | Makita 210187-2 BALL BEARING 696ZZ, DPB182D |
| 74 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 75 | 210187-2 | Makita 210187-2 BALL BEARING 696ZZ, DPB182D |
| 76 | 319993-3 | |
| 77 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 78 | 256033-5 | Makita 256033-5 PIN 6 |
| 79 | 210187-2 | Makita 210187-2 BALL BEARING 696ZZ, DPB182D |
| 80 | 210187-2 | Makita 210187-2 BALL BEARING 696ZZ, DPB182D |
| 81 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 82 | 210187-2 | Makita 210187-2 BALL BEARING 696ZZ, DPB182D |
| 83 | 251337-0 | Makita 251337-0 + PAN HEAD SCREW M5 |
| 84 | 251337-0 | Makita 251337-0 + PAN HEAD SCREW M5 |
| 85 | 210187-2 | Makita 210187-2 BALL BEARING 696ZZ, DPB182D |
| 86 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 87 | 210187-2 | Makita 210187-2 BALL BEARING 696ZZ, DPB182D |
| 88 | 256033-5 | Makita 256033-5 PIN 6 |
| 89 | 210187-2 | Makita 210187-2 BALL BEARING 696ZZ, DPB182D |
| 90 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 91 | 319992-5 | |
| 92 | 162815-4 | |
| 93 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 94 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 98 | 162815-4 | |
| 99 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 100 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 102 | 281028-9 | |
| 103 | 262561-0 | Makita 262561-0 SLEEVE 6, JR181D |
| 104 | 233455-6 | Makita 233455-6 COMPRESSION SPRING 7, JR181D |
| 105 | 313127-0 | Makita 313127-0 JOINT, JR181D |
| 106 | 951057-3 | Makita 951057-3 SPRING PIN 3-12 |
| 107 | 327638-9 | |
| 108 | 941102-2 | Makita 941102-2 FLAT WASHER 5, 4100NH |
| 109 | 253484-3 | |
| 110 | 264013-7 |
