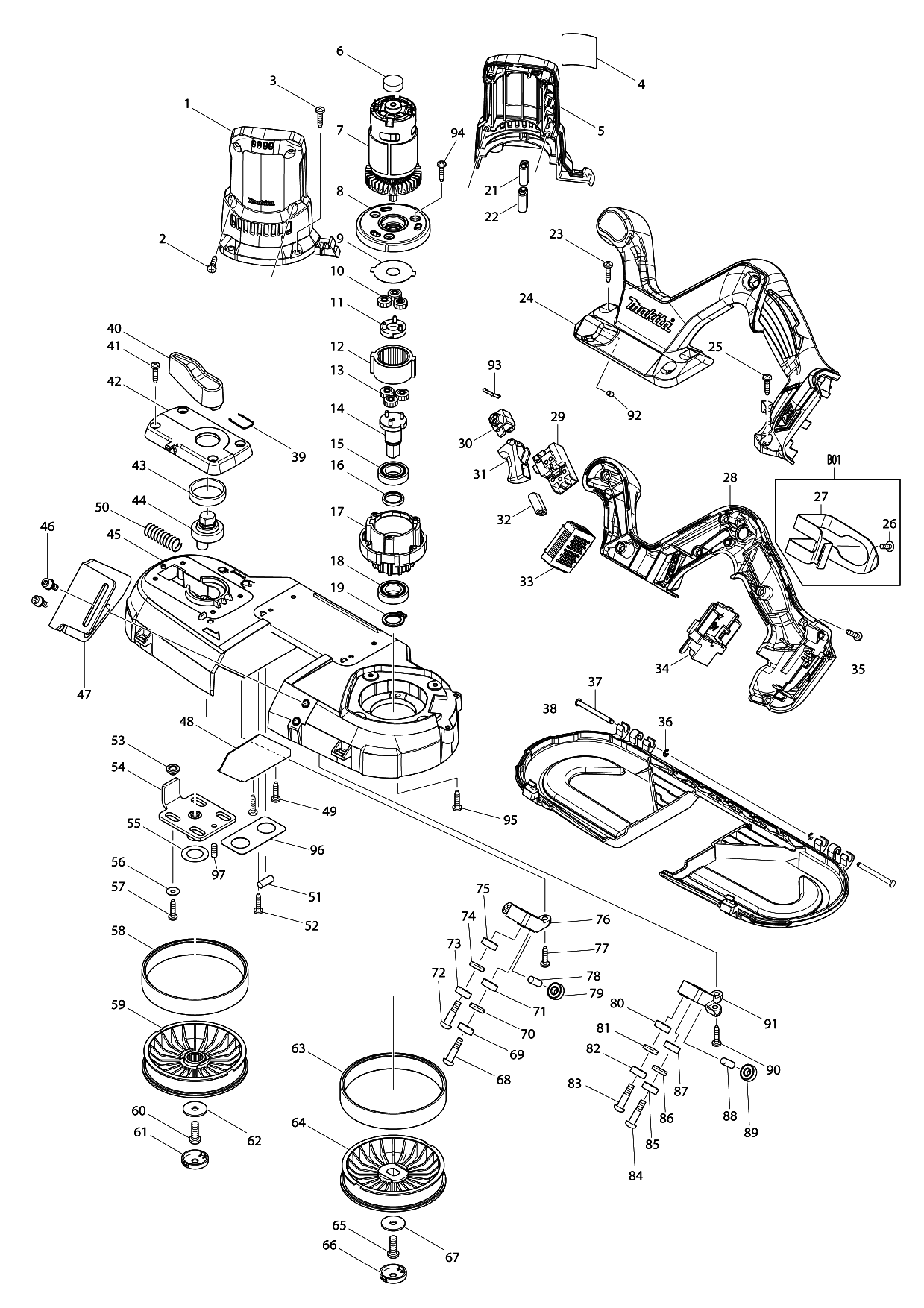

Sheet 1: Makita DPB181 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 187711-5 | Makita 187711-5 MOTOR HOUSING SET |
| 2 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 3 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 4 | 814X89-4 | |
| 5 | 187711-5 | Makita 187711-5 MOTOR HOUSING SET |
| 6 | 421940-3 | Makita 421940-3 CAP, 8390D |
| 7 | 629992-0 | Makita 629992-0 DC MOTOR |
| 8 | 454650-7 | |
| 9 | 267855-8 | |
| 10 | 227331-4 | Makita 227331-4 SPUR GEAR 14 |
| 11 | 142355-8 | Makita 142355-8 SPUR GEAR 7 COMPLETE |
| 12 | 227332-2 | Makita 227332-2 INTERNAL GEAR 36 |
| 13 | 227331-4 | Makita 227331-4 SPUR GEAR 14 |
| 14 | 142356-6 | Makita 142356-6 SPINDLE COMPLETE |
| 15 | 211242-3 | Makita 211242-3 BALL BEARING 6902ZZ, MT602 |
| 16 | 257348-3 | Makita 257348-3 RING 15 |
| 17 | 454649-2 | |
| 18 | 211242-3 | Makita 211242-3 BALL BEARING 6902ZZ, MT602 |
| 19 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 21 | 688172-7 | Makita 688172-7 Line Filter for JR181D |
| 22 | 688172-7 | Makita 688172-7 Line Filter for JR181D |
| 23 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 24 | 187762-8 | Makita 187762-8 HANDLE SET |
| 25 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 26 | ||
| 27 | ||
| 28 | 187762-8 | Makita 187762-8 HANDLE SET |
| 29 | 650705-8 | Makita 650705-8 SWITCH |
| 30 | 419504-5 | Makita 419504-5 LOCK OFF BUTTONBPB180 |
| 31 | 454651-5 | |
| 32 | 688172-7 | Makita 688172-7 Line Filter for JR181D |
| 33 | 539219-9 | Makita 539219-9 CONTROLLER ASS'Y |
| 34 | 643899-6 | Makita 643899-6 TERMINAL BCV01 |
| 35 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 36 | ||
| 37 | ||
| 38 | ||
| 39 | 231955-0 | Makita 231955-0 RING SPRING 12, N5900B |
| 40 | 272230-5 | Makita 272230-5 Lever 54 for N5900B |
| 41 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 42 | 454614-1 | |
| 43 | 214408-4 | |
| 44 | 326351-6 | Makita 326351-6 LEVER SHAFT |
| 45 | 454615-9 | Makita 454615-9 FLAME |
| 46 | 922218-2 | Makita 922218-2 HEX SOCKET HEAD BOLT M5*14, MEM427 |
| 47 | 346728-9 | Makita 346728-9 STOPPER PLATE |
| 48 | 346729-7 | Makita 346729-7 PLATE |
| 49 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 50 | 234313-9 | |
| 51 | 256033-5 | Makita 256033-5 PIN 6 |
| 52 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 53 | 343494-9 | Makita 343494-9 SLEEVE 5 |
| 54 | 165738-5 | Makita 165738-5 SLIDER PLATE |
| 55 | 267164-5 | Makita 267164-5 FLAT WASHER 4, N5900B |
| 56 | 253874-0 | Makita 253874-0 Flat Washer 4 for UC3020A LS1016 |
| 57 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 58 | 424589-8 | Makita 424589-8 RUBBER TIRE |
| 59 | 142358-2 | Makita 142358-2 WHEEL COMPLETE B |
| 60 | 265484-1 | Makita 265484-1 HEX SOCKET HEAD BOLT M6X |
| 61 | 454730-9 | |
| 62 | 253010-8 | Makita 253010-8 FLAT WASHER 6 |
| 63 | 424589-8 | Makita 424589-8 RUBBER TIRE |
| 64 | 142357-4 | Makita 142357-4 WHEEL COMPLETE A |
| 65 | 265484-1 | Makita 265484-1 HEX SOCKET HEAD BOLT M6X |
| 66 | 454730-9 | |
| 67 | 253010-8 | Makita 253010-8 FLAT WASHER 6 |
| 68 | 251337-0 | Makita 251337-0 + PAN HEAD SCREW M5 |
| 69 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 70 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 71 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 72 | 251337-0 | Makita 251337-0 + PAN HEAD SCREW M5 |
| 73 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 74 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 75 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 76 | 319075-1 | Makita 319075-1 UPPER HOLDER 42 |
| 77 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 78 | 256033-5 | Makita 256033-5 PIN 6 |
| 79 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 80 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 81 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 82 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 83 | 251337-0 | Makita 251337-0 + PAN HEAD SCREW M5 |
| 84 | 251337-0 | Makita 251337-0 + PAN HEAD SCREW M5 |
| 85 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 86 | 941152-7 | Makita 941152-7 FLAT WASHER, EM2650U |
| 87 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 88 | 256033-5 | Makita 256033-5 PIN 6 |
| 89 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 90 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 91 | 319074-3 | Makita 319074-3 LOWER HOLDER 42 |
| 92 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 93 | 232201-4 | Makita 232201-4 LEAF SPRING |
| 94 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 95 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 96 | 346798-8 | Makita 346798-8 PROTECTION PLATE |
| 97 | 266213-5 | Makita 266213-5 H.S.HEAD SET SCREW M5*12, 5007NB |
