Makita DP4011
Makita DP4011: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DP4011: 51 positions on 1 sheet

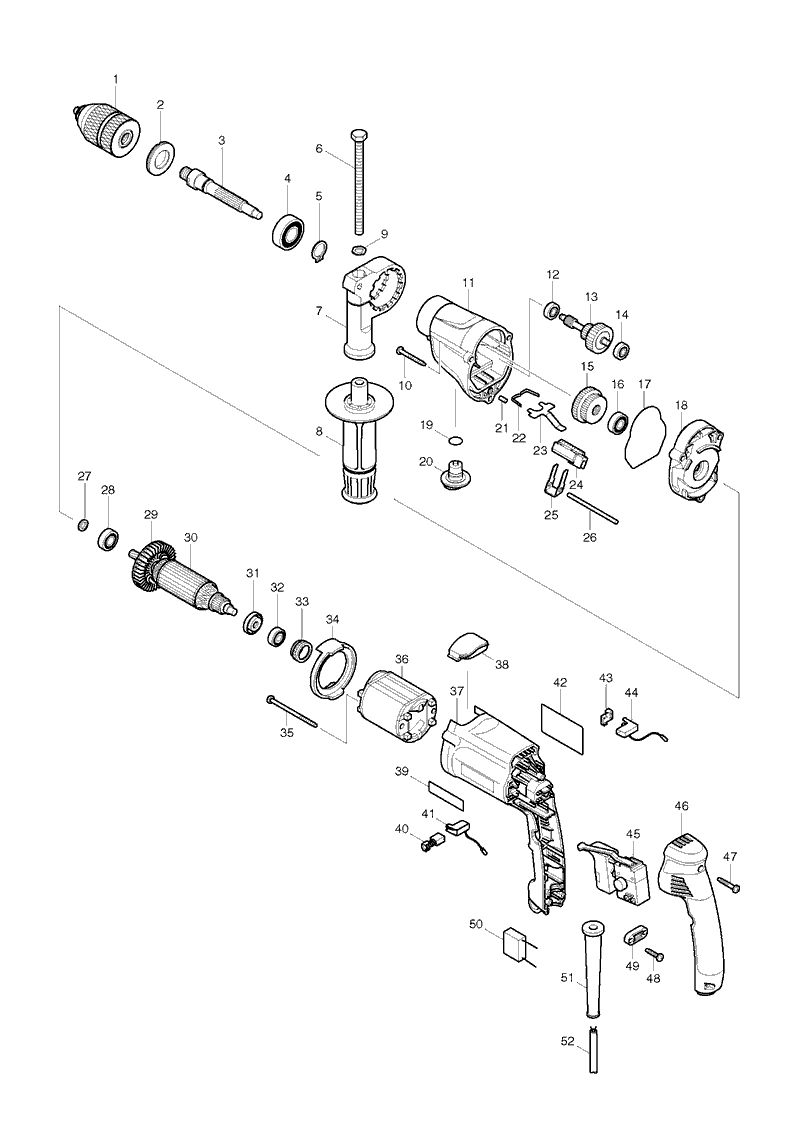

Sheet 1: Makita DP4011 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 192664-5 | |
| 2 | 285806-9 | Makita 285806-9 BEARING RETAINER, DP4010 |
| 3 | 324835-8 | Makita 324835-8 SPINDLE, DP4010 |
| 4 | 211206-7 | Makita 211206-7 BALL BEARING 6202LLB, LS1040 |
| 5 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 6 | 921923-8 | Makita 921923-8 HEX.BOLT M8X120, HR2020 |
| 7 | 417630-4 | Makita 417630-4 GRIP BASE, HR2020 |
| 8 | 152521-9 | Makita 152521-9 GRIP 36 COMPLETE HP2041 |
| 9 | 345280-4 | Makita 345280-4 HEX.WASHER, HR2020 |
| 10 | 266351-3 | Makita 266351-3 TAPPING SCREW 4*35, 9556PB |
| 11 | 318187-7 | Makita 318187-7 GEAR HOUSING, DP4011 |
| 12 | 210028-2 | Makita 210028-2 BALL BEARING 606ZZ, MT410 |
| 13 | 153622-6 | Makita 153622-6 Gear Complete HP2050 HP2051 HP2051F HP2070 HP2071 HP2071F |
| 14 | 210028-2 | Makita 210028-2 BALL BEARING 606ZZ, MT410 |
| 15 | 227030-8 | Makita 227030-8 SPUR GEAR 29-37, HP2050 |
| 16 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 17 | 421810-6 | Makita 421810-6 SEAL RING HP2051F |
| 18 | 158412-2 | Makita 158412-2 GEAR HOUSING COVER COMPLETE, DP4010 |
| 19 | 213122-9 | Makita 213122-9 O RING 12, HP2070 |
| 20 | 417805-5 | Makita 417805-5 CHANGE LEVER B, HP2050 |
| 21 | 256251-5 | Makita 256251-5 PIN 4, 6409 |
| 22 | 232143-2 | Makita 232143-2 LEAF SPRING, HP2050 |
| 23 | 345225-2 | Makita 345225-2 LOCK PLATE, HP2050 |
| 24 | 417804-7 | Makita 417804-7 RACK 12, HP2050 |
| 25 | 345223-6 | Makita 345223-6 CHANGE PLATE B, HP2050 |
| 26 | 268092-7 | Makita 268092-7 PIN 4, HR2020 |
| 27 | 262087-2 | Makita 262087-2 RING 8, 6825 |
| 28 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 30 | 517414-1 | Makita 517414-1 Armature HP2050 HP2051 DP4011 DP4010 |
| 31 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 32 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 33 | 421494-0 | Makita 421494-0 Labyrinthhian Rubber Ring 9, 4304Z |
| 34 | 417803-9 | Makita 417803-9 BAFFLE PLATE, HP2050 |
| 35 | 266340-8 | Makita 266340-8 TAPPING SCREW 4*65, MT370 |
| 36 | 633528-9 | Makita 633528-9 Field 220-240V 135T for HP2050 HP2051 DP4011 |
| 37 | 417807-1 | Makita 417807-1 MOTOR HOUSING, HP2050 |
| 38 | 450179-1 | Makita 450179-1 CAP, DP4010 |
| 39 | ||
| 40 | 191962-4 | Old code CB-419 = CB-407 |
| 41 | 643989-5 | Makita 643989-5 BRUSH HOLDER, HR2020 |
| 42 | 864033-7 | Makita 864033-7 DP4011 NAME PLATEDP4011 |
| 43 | 689111-0 | Makita 689111-0 SPACER, HR2020 |
| 44 | 643988-7 | Makita 643988-7 BRUSH HOLDER, HP2050 |
| 45 | 650524-2 | Makita 650524-2 Switch TG813ALB-2 for DP4011 HP2050 HP2051 |
| 46 | 153284-0 | Makita 153284-0 HANDLE COVER COMPLETE, HR2440 |
| 47 | 266374-1 | Makita 266374-1 TAPPING SCREW 4*25, GA9020 |
| 48 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 49 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 50 | 645200-1 | Makita 645200-1 Capacitor for 9523NB 9227CB 9237CB |
| 51 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 52 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
