Makita DP2010
Makita DP2010: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DP2010: 24 positions on 1 sheet

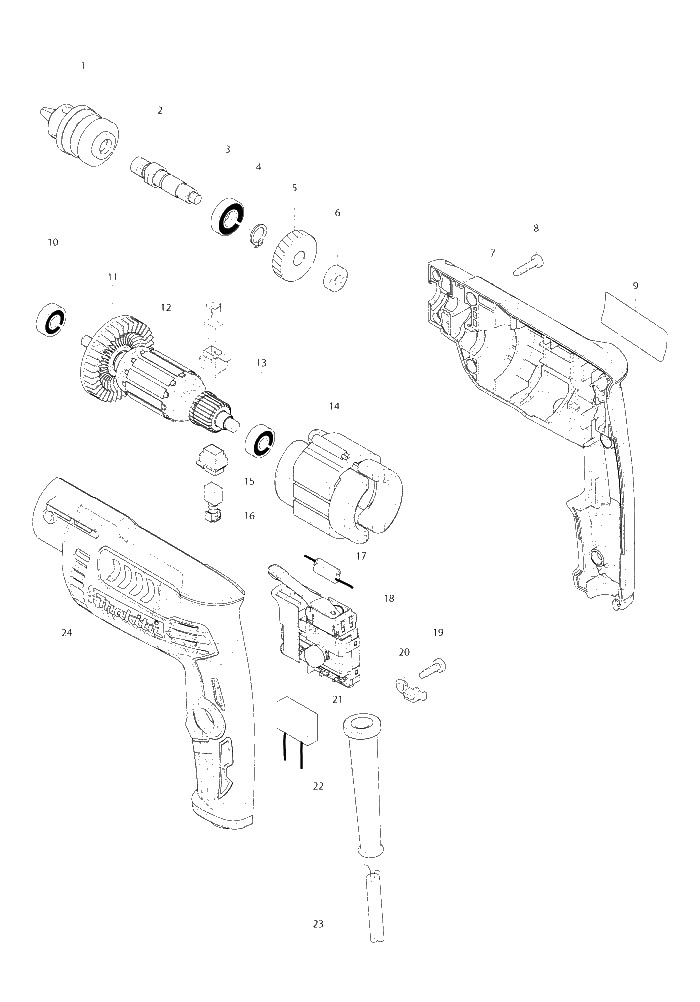

Sheet 1: Makita DP2010 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 763077-3 | |
| 2 | 326280-3 | Makita 326280-3 SPINDLE |
| 3 | 210087-6 | Makita 210087-6 BALL BEARING 6900LLB |
| 4 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 5 | 227776-6 | Makita 227776-6 HELICAL GEAR 34 |
| 6 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 7 | 187620-8 | Makita 187620-8 HOUSING SET |
| 8 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 9 | 814K58-7 | |
| 10 | 210017-7 | Makita 210017-7 BALL BEARING 607DDW, 9528B |
| 12 | 517694-9 | Makita 517694-9 ARMATURE ASSY 240V |
| 13 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 14 | 521769-8 | Makita 521769-8 FIELD ASSY 240V |
| 15 | 643936-6 | Makita 643936-6 BRUSH HOLDER 6*9, HP1500 |
| 16 | 191962-4 | Old code CB-419 = CB-407 |
| 17 | 646047-6 | Makita 646047-6 CHOKE COIL, 6410 |
| 18 | 650706-6 | Makita 650706-6 SWITCH DP2011 |
| 19 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 20 | 687681-3 | Makita 687681-3 CORD CLAMP, GA4030 |
| 21 | 645190-8 | Makita 645190-8 CAPACITOR, MT950 |
| 22 | 682569-2 | Makita 682569-2 Cord Guard |
| 23 | 665383-1 | Makita 665383-1 POWER S.CORD CEE, 4329 |
| 24 | 187620-8 | Makita 187620-8 HOUSING SET |
| 11 | 240066-0 | Makita 240066-0 FAN 52, MT602 |
