All parts of Makita DML814: 112 positions on 2 sheets

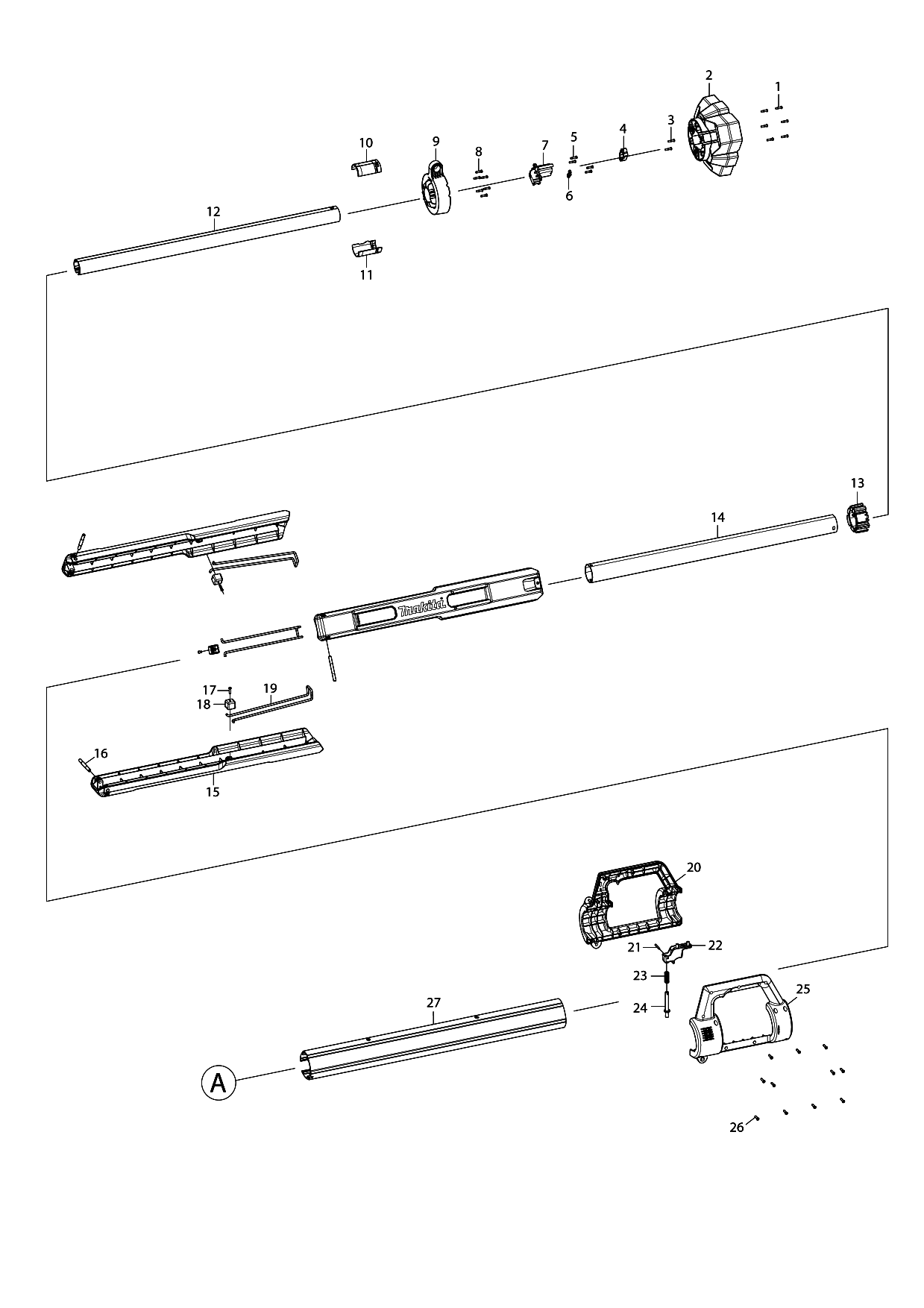

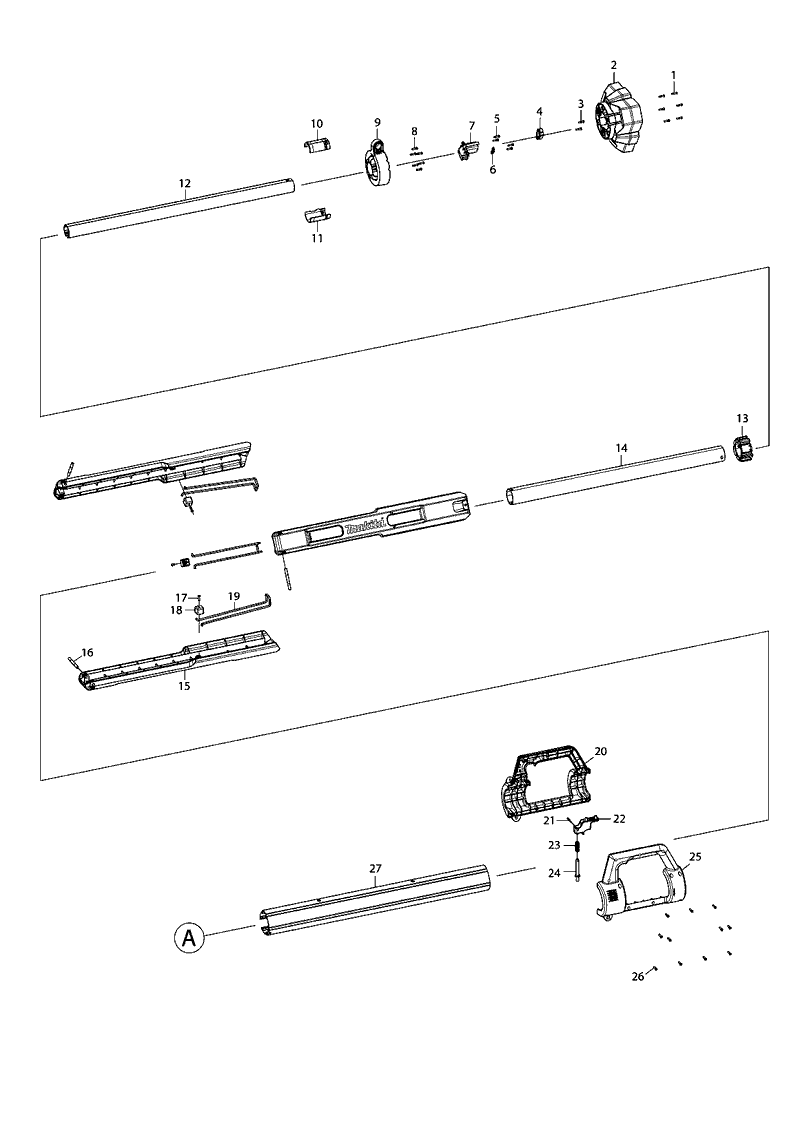

Sheet 1: Makita DML814 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 2 | TD00000016 | |
| 3 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 4 | TD00000017 | |
| 5 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 6 | TD00000018 | |
| 7 | TD00000019 | |
| 8 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 9 | TD00000020 | |
| 10 | TD00000021 | |
| 11 | TD00000022 | |
| 12 | TD00000023 | |
| 13 | TD00000024 | |
| 14 | TD00000025 | |
| 15 | TD00000026 | |
| 16 | TD00000027 | |
| 17 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 18 | TD00000028 | |
| 19 | TD00000029 | |
| 20 | TD00000109 | |
| 21 | TD00000031 | Makita TD00000031 PIN, DML813 |
| 22 | TD00000032 | |
| 23 | TD00000033 | |
| 24 | TD00000034 | |
| 25 | TD00000109 | |
| 26 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 27 | TD00000036 |

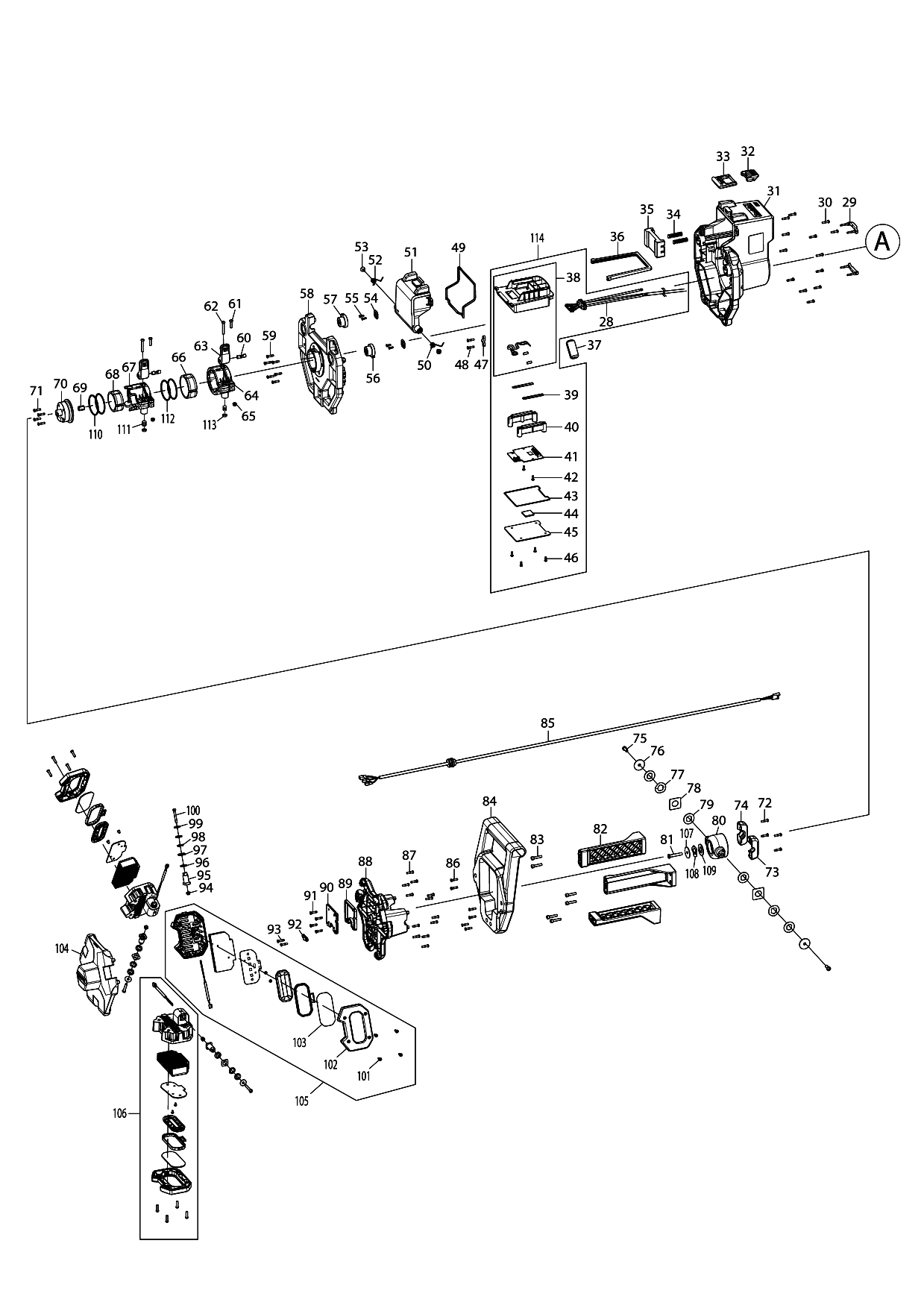

Sheet 2: Makita DML814 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 28 | TD00000037 | |
| 29 | TD00000038 | |
| 30 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 31 | TD00000039 | |
| 32 | TD00000040 | Makita TD00000040 LATCH, DML813 |
| 33 | TD00000041 | Makita TD00000041 CLIP, DML813 |
| 34 | TD00000042 | |
| 35 | TD00000043 | |
| 36 | TD00000044 | |
| 37 | TD00000045 | |
| 38 | TD00000046 | |
| 39 | TD00000047 | |
| 40 | TD00000048 | |
| 41 | TD00000049 | |
| 42 | TD00000050 | Makita TD00000050 TAPPING SCREW PB3X8, DML813 |
| 43 | TD00000051 | |
| 44 | TD00000052 | |
| 45 | TD00000053 | |
| 46 | TD00000050 | Makita TD00000050 TAPPING SCREW PB3X8, DML813 |
| 47 | TD00000018 | |
| 48 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 49 | TD00000054 | |
| 50 | TD00000055 | |
| 51 | TD00000056 | |
| 52 | TD00000057 | |
| 53 | TD00000058 | Makita TD00000058 TAPPING SCREW PWB3X8, DML813 |
| 54 | TD00000059 | Makita TD00000059 KEY PCBA, DLM813 |
| 55 | TD00000050 | Makita TD00000050 TAPPING SCREW PB3X8, DML813 |
| 56 | TD00000060 | |
| 57 | TD00000061 | |
| 58 | TD00000062 | |
| 59 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 60 | TD00000138 | |
| 61 | TD00000064 | Makita TD00000064 SCREW PM4.0 |
| 62 | TD00000136 | |
| 63 | TD00000066 | |
| 64 | TD00000134 | |
| 65 | TD00000068 | Makita TD00000068 NUT M4, DLM813 |
| 66 | TD00000132 | |
| 67 | TD00000135 | |
| 68 | TD00000133 | |
| 69 | TD00000072 | |
| 70 | TD00000073 | |
| 71 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 72 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 73 | TD00000074 | |
| 74 | TD00000075 | |
| 75 | TD00000076 | |
| 76 | TD00000077 | |
| 77 | TD00000078 | |
| 78 | TD00000079 | |
| 79 | TD00000080 | |
| 80 | TD00000081 | |
| 81 | TD00000082 | |
| 82 | TD00000083 | |
| 83 | TD00000084 | |
| 84 | TD00000085 | |
| 85 | TD00000095 | |
| 86 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 87 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 88 | TD00000096 | |
| 89 | TD00000097 | |
| 90 | TD00000098 | |
| 91 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 92 | TD00000018 | |
| 93 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 94 | TD00000068 | Makita TD00000068 NUT M4, DLM813 |
| 95 | TD00000099 | |
| 96 | TD00000100 | |
| 97 | TD00000101 | |
| 98 | TD00000102 | |
| 99 | TD00000103 | |
| 100 | TD00000065 | Makita TD00000065 SCREW PM4X28, DML813 |
| 101 | TD00000015 | Makita TD00000015 TAPPING SCREW PB3.5X14, DML813 |
| 102 | TD00000104 | |
| 103 | TD00000105 | |
| 104 | TD00000106 | Makita TD00000106 FRONT HOUSING, DML814 |
| 106 | TD00000108 | Makita TD00000108 LED ASSEMBLY, B DML814 |
| 107 | TD00000077 | |
| 108 | TD00000078 | |
| 109 | TD00000080 | |
| 110 | TD00000141 | Makita TD00000141 RING, DML813 |
| 111 | TD00000139 | |
| 112 | TD00000140 | Makita TD00000140 RING, DML813 |
| 113 | TD00000137 | Makita TD00000137 LOCK NUT, DML813 |
