Bosch DMF 10 Zoom

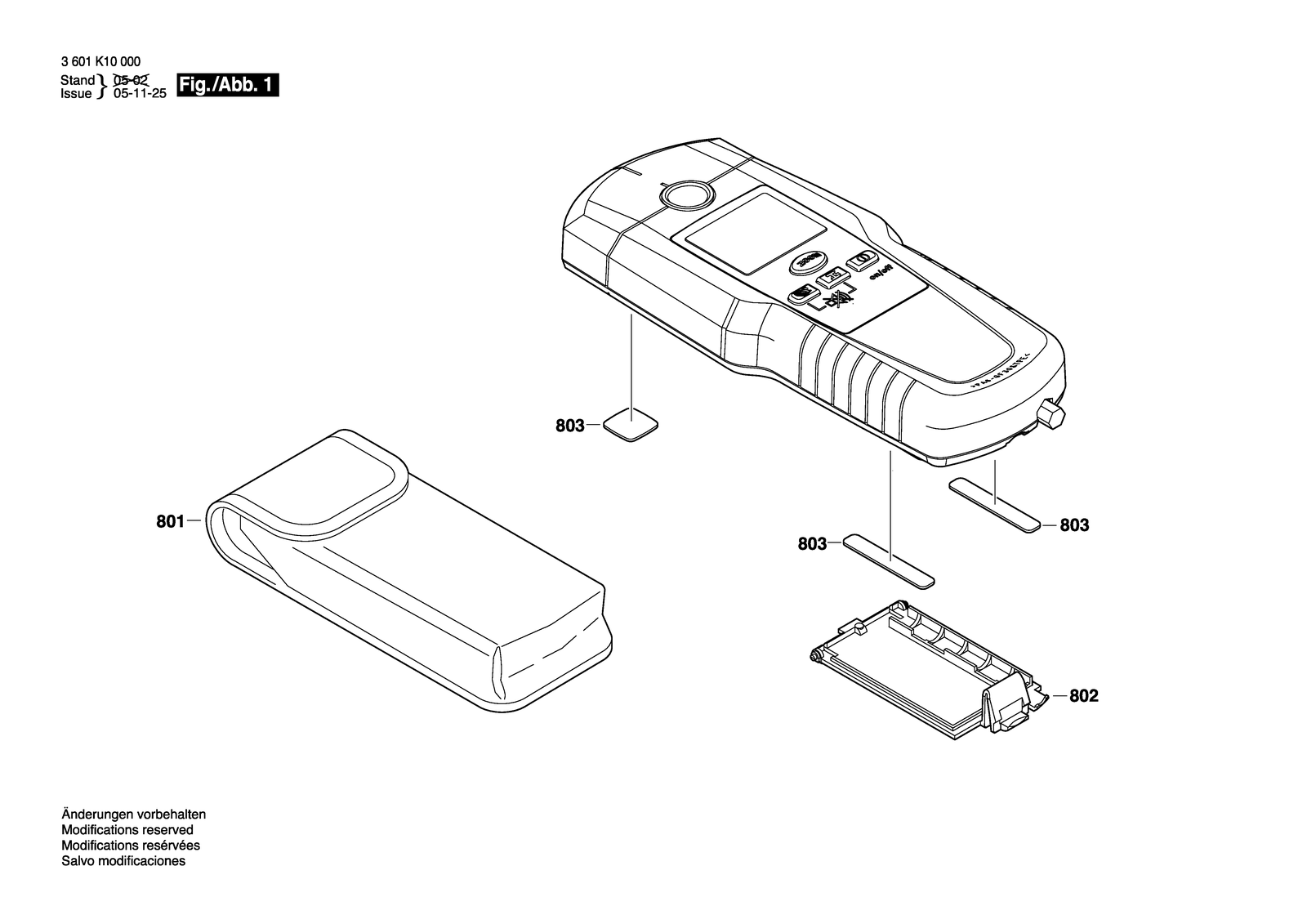

Bosch DMF 10 Zoom univ detection device: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DMF 10 Zoom: 21 positions on 1 sheet
Bosch DMF 10 Zoom parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 801 | 1609203U05 | Bag |
| 801 | 1609203S06 | Bag |
| 801 | 1609203S05 | Bag |
| 801 | 1609203S09 | Bag |
| 801 | 1609203U05 | Bag |
| 801 | 1609203U05 | Bag |
| 801 | 1609203U05 | Bag |
| 802 | 1609203P20 | Battery Cover |
| 802 | 1609203S08 | Battery Cover |
| 802 | 1609203S07 | Battery Cover |
| 802 | 1609203S10 | Battery Cover |
| 802 | 1609203W19 | Battery Cover |
| 802 | 1609203P20 | Battery Cover |
| 802 | 1609203W19 | Battery Cover |
| 803 | 1609203P21 | Felt |
| 803 | 1609203P21 | Felt |
| 803 | 1609203P21 | Felt |
| 803 | 1609203P21 | Felt |
| 803 | 1609203P21 | Felt |
| 803 | 1609203P21 | Felt |
| 803 | 1609203P21 | Felt |
