All parts of Makita DLM532: 209 positions on 4 sheets

Sheet 1: Makita DLM532 parts diagram

Makita DLM532 parts diagram, sheet 1
No.Part numberPart name
1327425-6
2459859-6
3232566-4
4911138-5Makita 911138-5 P.H.SCREW M4*20, M442
5459864-3
6267136-0Makita 267136-0 FLAT WASHER 5, LS1040
7266424-2Makita 266424-2 TAPPING SCREW 4X20
8266424-2Makita 266424-2 TAPPING SCREW 4X20
9267136-0Makita 267136-0 FLAT WASHER 5, LS1040
10459858-8
11911138-5Makita 911138-5 P.H.SCREW M4*20, M442
12459859-6
13266424-2Makita 266424-2 TAPPING SCREW 4X20
14183N90-3
15140F09-7Makita 140F09-7 POWER SUPPLY CORD UNIT, DLM460
16140F10-2
17232575-3
18266424-2Makita 266424-2 TAPPING SCREW 4X20
19687124-5Makita 687124-5 CORD CLAMP, MT951
20459860-1
21620C48-0
22620415-1Makita 620415-1 SUB CONTROLLER
23651083-9Makita 651083-9 SWITCH
24459866-9
25213897-0Makita 213897-0 O-RING 26, DLM530 SERIES
26183N90-3
27266424-2Makita 266424-2 TAPPING SCREW 4X20
28459865-1
29266424-2Makita 266424-2 TAPPING SCREW 4X20
30911138-5Makita 911138-5 P.H.SCREW M4*20, M442
31459863-5
32327424-8
33459856-2
34911138-5Makita 911138-5 P.H.SCREW M4*20, M442
35183P40-0
36459857-0
37231227-3Makita 231227-3 COMPRESSION SPRING 15
38632E26-0Makita 632E26-0 SWITCH UNIT
39687124-5Makita 687124-5 CORD CLAMP, MT951
40266424-2Makita 266424-2 TAPPING SCREW 4X20
41183P40-0
42266424-2Makita 266424-2 TAPPING SCREW 4X20
43699143-9
44327421-4
45252278-3
46327422-2
47265A62-3
48265A62-3
49252278-3
50459905-5
51921451-3Makita 921451-3 HEX. BOLT M8X30
52459905-5
53921451-3Makita 921451-3 HEX. BOLT M8X30
54699142-1

Sheet 2: Makita DLM532 parts diagram

Makita DLM532 parts diagram, sheet 2
No.Part numberPart name
56140S03-7
57961018-5Makita 961018-5 STOP RING(EXT)E-5, 4304Z
58327536-7
59643535-4Makita 643535-4 CONTROL CABLE
60266404-8Makita 266404-8 TAPPING SCREW 3*14, TD020D
61459851-2
62213896-2
63459852-0
64231037-8Makita 231037-8 COMPRESSION SPRING 7, 3612BR
65266424-2Makita 266424-2 TAPPING SCREW 4X20
66459847-3
67856R09-6
68183N78-3
69266424-2Makita 266424-2 TAPPING SCREW 4X20
70856R18-5
71644809-6Makita 644809-6 TERMINAL
72266424-2Makita 266424-2 TAPPING SCREW 4X20
73183N78-3
77266424-2Makita 266424-2 TAPPING SCREW 4X20
78687124-5Makita 687124-5 CORD CLAMP, MT951
79687051-6Makita 687051-6 STRAIN RELIEF
80266424-2Makita 266424-2 TAPPING SCREW 4X20
81687124-5Makita 687124-5 CORD CLAMP, MT951
82687051-6Makita 687051-6 STRAIN RELIEF
83620C45-6
84266424-2Makita 266424-2 TAPPING SCREW 4X20
85632P74-5
86422529-0
87620C47-2
88422528-2
89651444-3
90699145-5
91266424-2Makita 266424-2 TAPPING SCREW 4X20
92687124-5Makita 687124-5 CORD CLAMP, MT951
93687051-6Makita 687051-6 STRAIN RELIEF
94911233-1Makita 911233-1 PAN HEAD SCREW M5X20, EBH251
95459848-1
96319869-4
97253455-0
98210141-6
99519606-8
100211387-7Makita 211387-7 BALL BEARING 6004LLU
101265B29-7
102620B88-2
103629465-3
104319870-9
105911691-1Makita 911691-1 PAN HEAD SCREW M5X70
106652031-1
107911233-1Makita 911233-1 PAN HEAD SCREW M5X20, EBH251
108922441-9Makita 922441-9 H.S.H BOLT M8*25, PC5001C
109319867-8
110459853-8
111911126-2Makita 911126-2 PAN HEAD SCREW M4X16, 5900B
112240205-2
113319868-6
114266424-2Makita 266424-2 TAPPING SCREW 4X20
115191D52-7Makita 191D52-7 Lawn Mover Blade 53cm
116265A69-9
223NULL

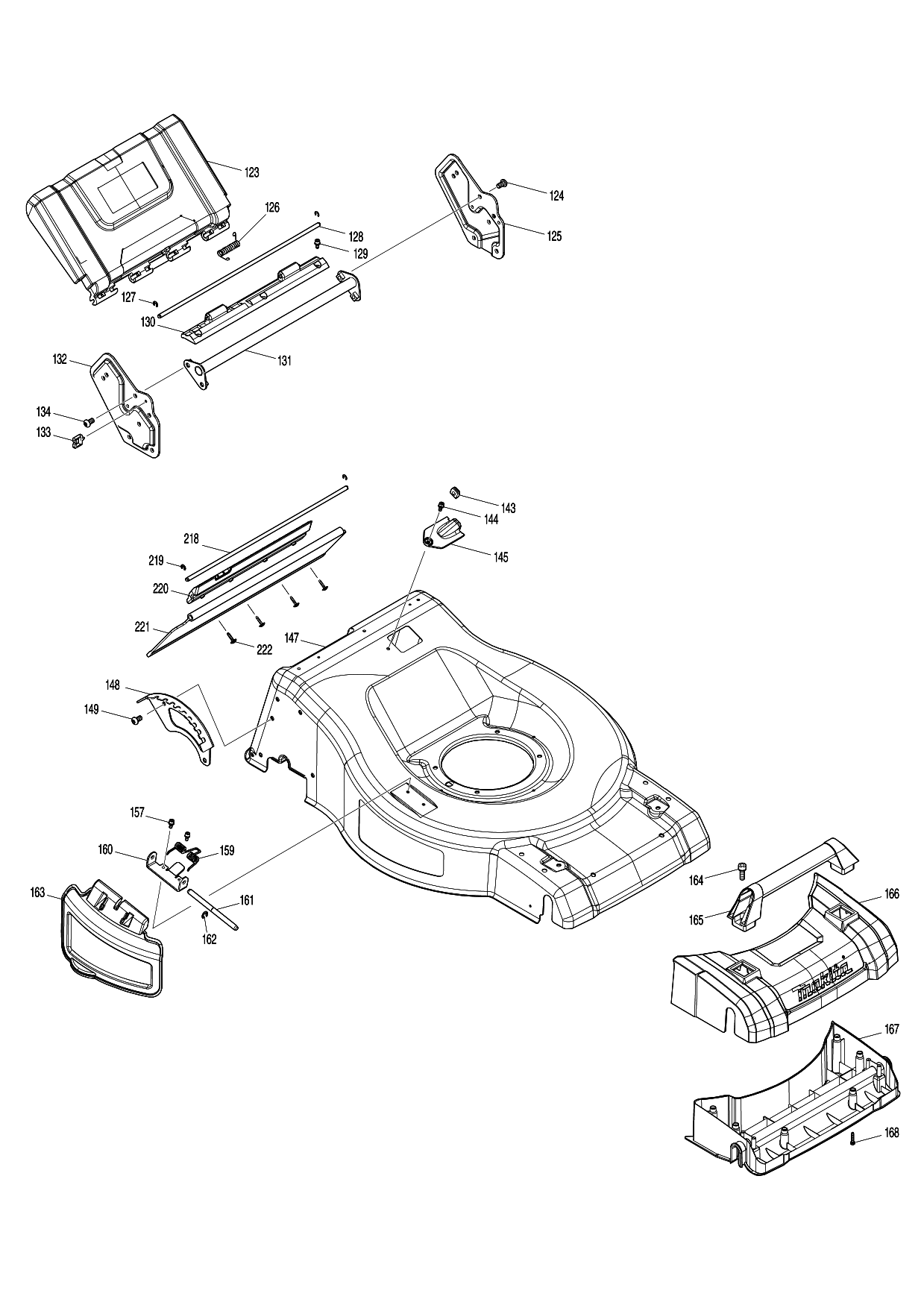

Sheet 3: Makita DLM532 parts diagram

Makita DLM532 parts diagram, sheet 3
No.Part numberPart name
123140R96-8
124265B20-5
125347579-3
126233597-6Makita 233597-6 TORSION SPRING 8
127961018-5Makita 961018-5 STOP RING(EXT)E-5, 4304Z
128327418-3
129922213-2Makita 922213-2 HEX SOCKET HEAD BOLT M5*12, MEM427
130459877-4
131162692-4
132347578-5
133451825-9Makita 451825-9 CLAMP
134265B20-5
143422526-6
144922213-2Makita 922213-2 HEX SOCKET HEAD BOLT M5*12, MEM427
145459880-5
147347559-9
148347582-4
149265B20-5
157922213-2Makita 922213-2 HEX SOCKET HEAD BOLT M5*12, MEM427
159232567-2
160347584-0
161327420-6
162961013-5Makita 961013-5 STOP RING E-7, LS1016
163459886-3
164922441-9Makita 922441-9 H.S.H BOLT M8*25, PC5001C
165459870-8
166459871-6
167459872-4
168266424-2Makita 266424-2 TAPPING SCREW 4X20
218NULL
219NULL
220NULL
221NULL
222NULL

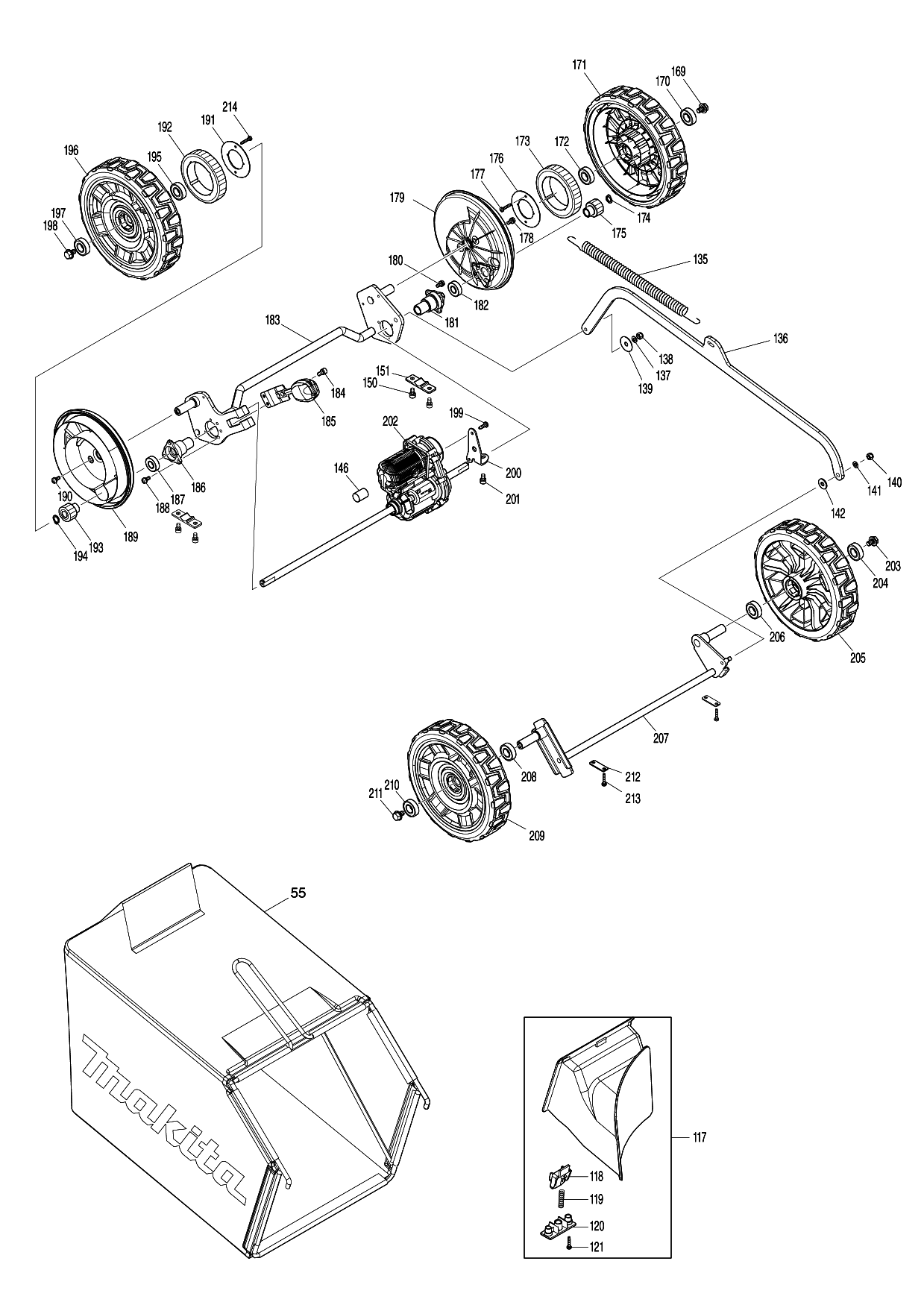

Sheet 4: Makita DLM532 parts diagram

Makita DLM532 parts diagram, sheet 4
No.Part numberPart name
55127412-3
118459884-7
119231401-3Makita 231401-3 COMPRESSION SPRING 3 FOR HK1800
120459885-5
121266424-2Makita 266424-2 TAPPING SCREW 4X20
135232628-8
136347580-8
137941151-9Makita 941151-9 WASHER 6, 5806B
138252014-7Makita 252014-7 HEX LOCK NUT M6*10, N5900B
139267216-2Makita 267216-2 FLAT WASHER 8, BO3700
140252014-7Makita 252014-7 HEX LOCK NUT M6*10, N5900B
141941151-9Makita 941151-9 WASHER 6, 5806B
142253762-1Makita 253762-1 FLAT WASHER 8, LS1045
146683A20-1
150922311-2Makita 922311-2 HEX. SOCKET HEAD BOLT M6X
151313290-9
169265324-3Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040
170211247-3Makita 211247-3 BALL BEARING 6002DDW
171127513-7
172211247-3Makita 211247-3 BALL BEARING 6002DDW
173226941-4
174961052-5Makita 961052-5 RETAINING RING S-12, 4100NH
175226940-6
176347586-6
177266424-2Makita 266424-2 TAPPING SCREW 4X20
178911213-7Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013
179459867-7
180911213-7Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013
181327426-4
182210163-6Makita 210163-6 BALL BEARING 6001DDW
183162689-3
184922311-2Makita 922311-2 HEX. SOCKET HEAD BOLT M6X
185162694-0
186327426-4
187210163-6Makita 210163-6 BALL BEARING 6001DDW
188911213-7Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013
189459867-7
190911213-7Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013
191347586-6
192226941-4
193226940-6
194961052-5Makita 961052-5 RETAINING RING S-12, 4100NH
195211247-3Makita 211247-3 BALL BEARING 6002DDW
196127513-7
197211247-3Makita 211247-3 BALL BEARING 6002DDW
198265324-3Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040
199266388-0Makita 266388-0 TAPPING SCREW 5*70, UC3020A
200347585-8
201922311-2Makita 922311-2 HEX. SOCKET HEAD BOLT M6X
202127510-3
203265324-3Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040
204211247-3Makita 211247-3 BALL BEARING 6002DDW
205127514-5
206211247-3Makita 211247-3 BALL BEARING 6002DDW
207162688-5
208211247-3Makita 211247-3 BALL BEARING 6002DDW
209127514-5
210211247-3Makita 211247-3 BALL BEARING 6002DDW
211265324-3Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040
212341462-6Makita 341462-6 PLATE, JR300VT
213266424-2Makita 266424-2 TAPPING SCREW 4X20
214266424-2Makita 266424-2 TAPPING SCREW 4X20
