Makita DLM481
Makita DLM481: exploded parts diagram, 4 sheets, 154 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DLM481: 154 positions on 4 sheets

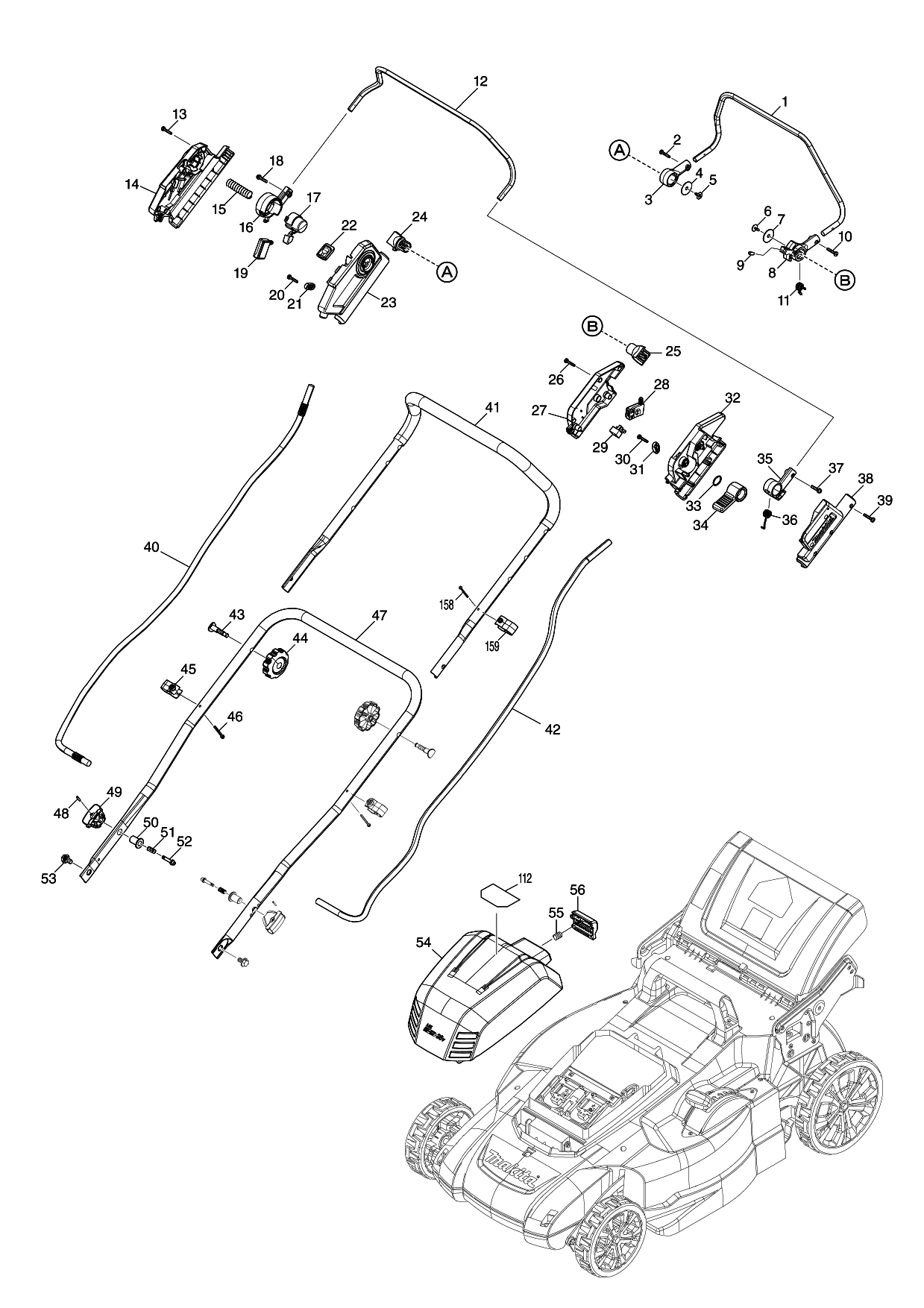

Sheet 1: Makita DLM481 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 327425-6 | |
| 2 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 3 | 459858-8 | |
| 4 | 253814-8 | Makita 253814-8 FLAT WASHER 8 |
| 5 | 265620-9 | |
| 6 | 265620-9 | |
| 7 | 253814-8 | Makita 253814-8 FLAT WASHER 8 |
| 8 | 413B10-4 | |
| 9 | 268225-4 | Makita 268225-4 PIN 5 |
| 10 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 11 | 232566-4 | |
| 12 | 327424-8 | |
| 13 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 14 | 183V30-9 | |
| 15 | 231227-3 | Makita 231227-3 COMPRESSION SPRING 15 |
| 16 | 413A99-6 | |
| 17 | 413B00-7 | |
| 18 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 19 | 651083-9 | Makita 651083-9 SWITCH |
| 20 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 21 | 687123-7 | Makita 687123-7 CORD CLAMP, MT952 |
| 22 | 141H35-1 | |
| 23 | 183V30-9 | |
| 24 | 413A98-8 | |
| 25 | 413A98-8 | |
| 26 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 27 | 183U35-3 | |
| 28 | 651083-9 | Makita 651083-9 SWITCH |
| 29 | 620415-1 | Makita 620415-1 SUB CONTROLLER |
| 30 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 31 | 687123-7 | Makita 687123-7 CORD CLAMP, MT952 |
| 32 | 413A95-4 | |
| 33 | 213A12-2 | |
| 34 | 413B01-5 | |
| 35 | 459863-5 | |
| 36 | 232575-3 | |
| 37 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 38 | 183U35-3 | |
| 39 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 40 | 699184-5 | |
| 41 | 327871-3 | |
| 42 | 699185-3 | |
| 43 | 265C08-1 | |
| 44 | 265C06-5 | |
| 45 | 413944-9 | |
| 46 | 911163-6 | Makita 911163-6 PAN HEAD SCREW M4X35 |
| 47 | 122A73-0 | |
| 48 | 258004-8 | Makita 258004-8 SPRING PIN 2.5-16 |
| 49 | 413943-1 | |
| 50 | 327877-1 | |
| 51 | 234121-8 | Makita 234121-8 COMPRESSION SPRING 8, FS4300 |
| 52 | 327876-3 | |
| 53 | 265C07-3 | |
| 54 | 141F56-1 | |
| 55 | 231037-8 | Makita 231037-8 COMPRESSION SPRING 7, 3612BR |
| 56 | 413B03-1 | |
| 112 | 8046H7-8 | |
| 158 | 911163-6 | Makita 911163-6 PAN HEAD SCREW M4X35 |
| 159 | 413944-9 |

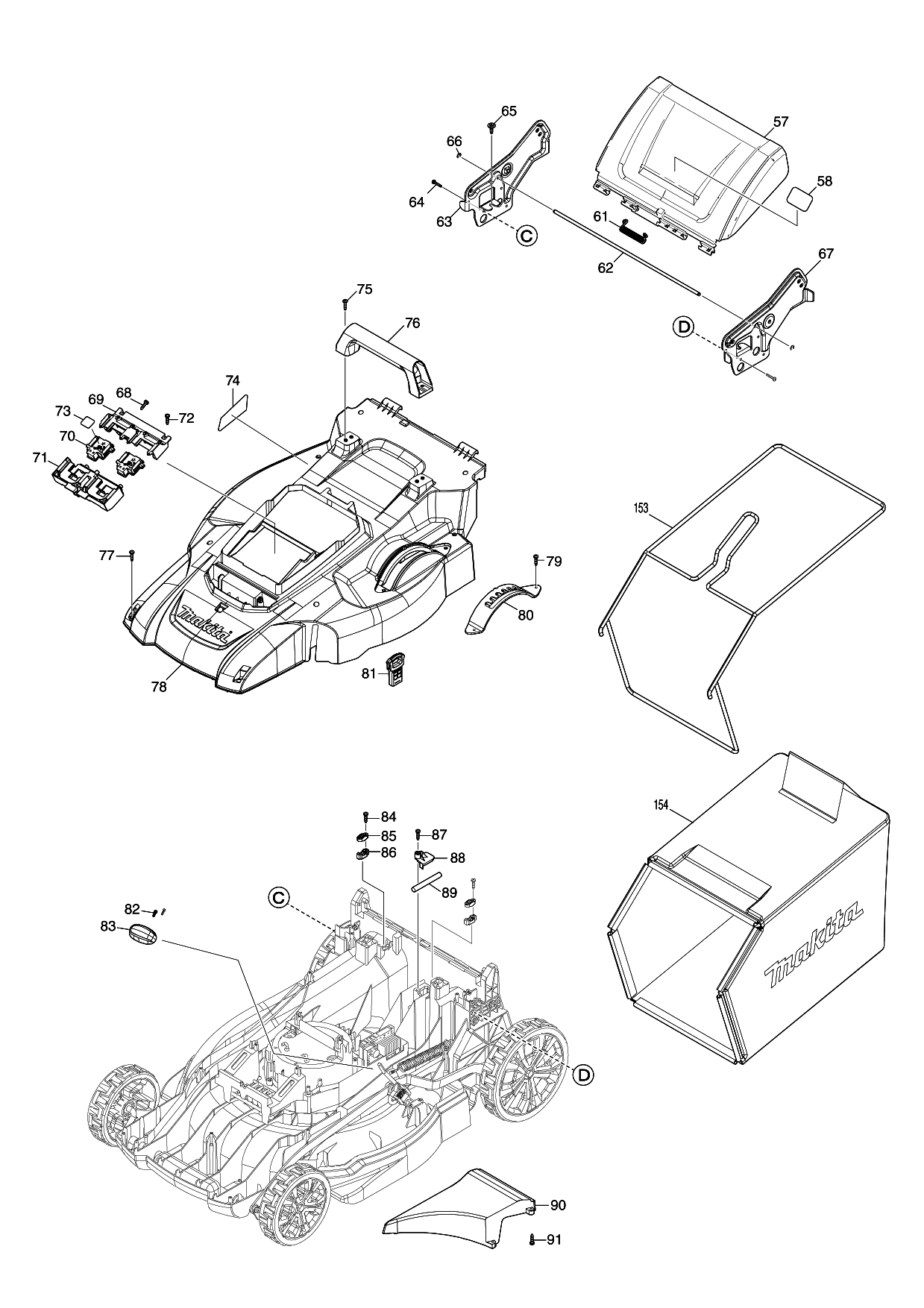

Sheet 2: Makita DLM481 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 57 | 141J54-9 | |
| 58 | 8047H5-8 | |
| 61 | 232721-8 | |
| 62 | 327874-7 | |
| 63 | 347867-8 | |
| 64 | 266553-1 | |
| 65 | 265C05-7 | |
| 66 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 67 | 347866-0 | |
| 68 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 69 | 183N35-1 | |
| 70 | 644809-6 | Makita 644809-6 TERMINAL |
| 71 | 183N35-1 | |
| 72 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 73 | 8114F4-1 | |
| 74 | 8114F1-7 | |
| 75 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 76 | 413938-4 | |
| 77 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 78 | 141J45-0 | |
| 79 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 80 | 162993-0 | |
| 81 | 643535-4 | Makita 643535-4 CONTROL CABLE |
| 82 | 266816-5 | |
| 83 | 413939-2 | |
| 84 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 85 | 687123-7 | Makita 687123-7 CORD CLAMP, MT952 |
| 86 | 687051-6 | Makita 687051-6 STRAIN RELIEF |
| 87 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 88 | 413B08-1 | |
| 89 | 699182-9 | |
| 90 | 413924-5 | |
| 91 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 153 | 162A29-1 | |
| 154 | 162A28-3 |
Sheet 3: Makita DLM481 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 92 | 620G77-7 | |
| 93 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 94 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 95 | 413B05-7 | |
| 96 | 629A90-6 | |
| 97 | 141H61-0 | |
| 98 | 922422-3 | Makita 922422-3 HEX. SOCKET HEAD BOLT M8X |
| 99 | 459853-8 | |
| 100 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 101 | 265C22-7 | |
| 102 | 240229-8 | Makita 240229-8 FAN 170, LM001J |
| 103 | 313393-9 | |
| 104 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 105 | 191V97-3 | |
| 106 | 265A69-9 |

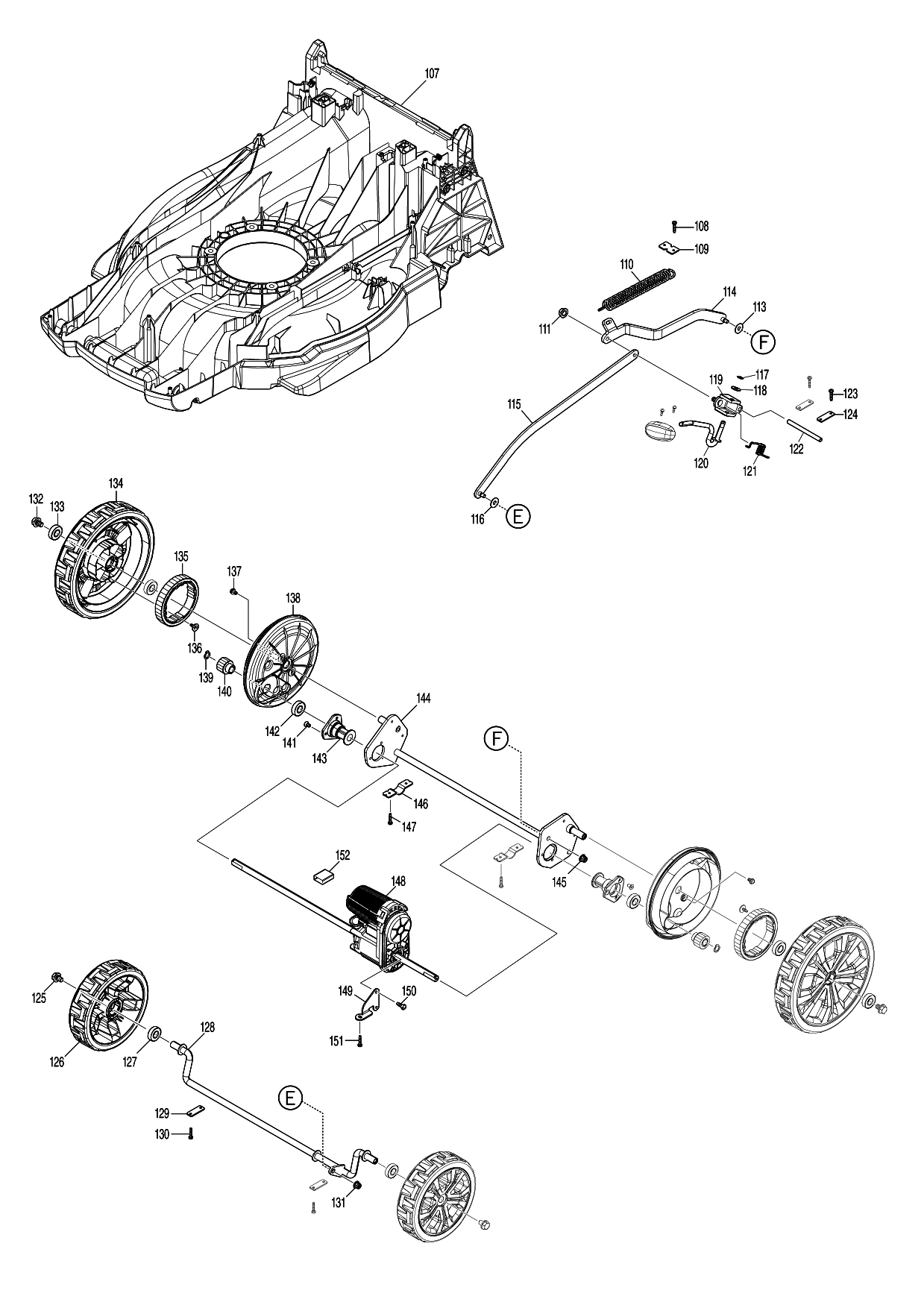

Sheet 4: Makita DLM481 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 107 | 413A61-1 | |
| 108 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 109 | 347870-9 | |
| 110 | 232717-9 | |
| 111 | 252301-4 | |
| 113 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 114 | 347873-3 | |
| 115 | 347872-5 | |
| 116 | 253731-2 | Makita 253731-2 FLAT WASHER 8, 2414NB |
| 117 | 961012-7 | Makita 961012-7 STOP RING, JR307CT |
| 118 | 267281-1 | Makita 267281-1 FLAT WASHER 15, GA9010C |
| 119 | 313389-0 | |
| 120 | 327872-1 | |
| 121 | 232715-3 | |
| 122 | 327873-9 | |
| 123 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 124 | 347869-4 | |
| 125 | 265324-3 | Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040 |
| 126 | 141E34-5 | |
| 127 | 210163-6 | Makita 210163-6 BALL BEARING 6001DDW |
| 128 | 162991-4 | |
| 129 | 347869-4 | |
| 130 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 131 | 252301-4 | |
| 132 | 265324-3 | Makita 265324-3 HEX.FLANGE HEAD BOLT M8*12, LS1040 |
| 133 | 210163-6 | Makita 210163-6 BALL BEARING 6001DDW |
| 134 | 141F63-4 | |
| 135 | 227913-2 | |
| 136 | 265B00-1 | |
| 137 | 911208-0 | Makita 911208-0 PAN HEAD SCREW M5*10, UH4570 |
| 138 | 413B06-5 | |
| 139 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 140 | 227912-4 | |
| 141 | 251951-2 | Makita 251951-2 HEX. SOCKET HEAD BOLT M5X |
| 142 | 210163-6 | Makita 210163-6 BALL BEARING 6001DDW |
| 143 | 313390-5 | |
| 144 | 162992-2 | |
| 145 | 252301-4 | |
| 146 | 347865-2 | |
| 147 | 266553-1 | |
| 148 | 122B04-5 | |
| 149 | 347887-2 | |
| 150 | 266388-0 | Makita 266388-0 TAPPING SCREW 5*70, UC3020A |
| 151 | 266553-1 | |
| 152 | 683A20-1 |
