Makita DLM382

Makita DLM382: exploded parts diagram, 4 sheets, 99 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DLM382: 99 positions on 4 sheets

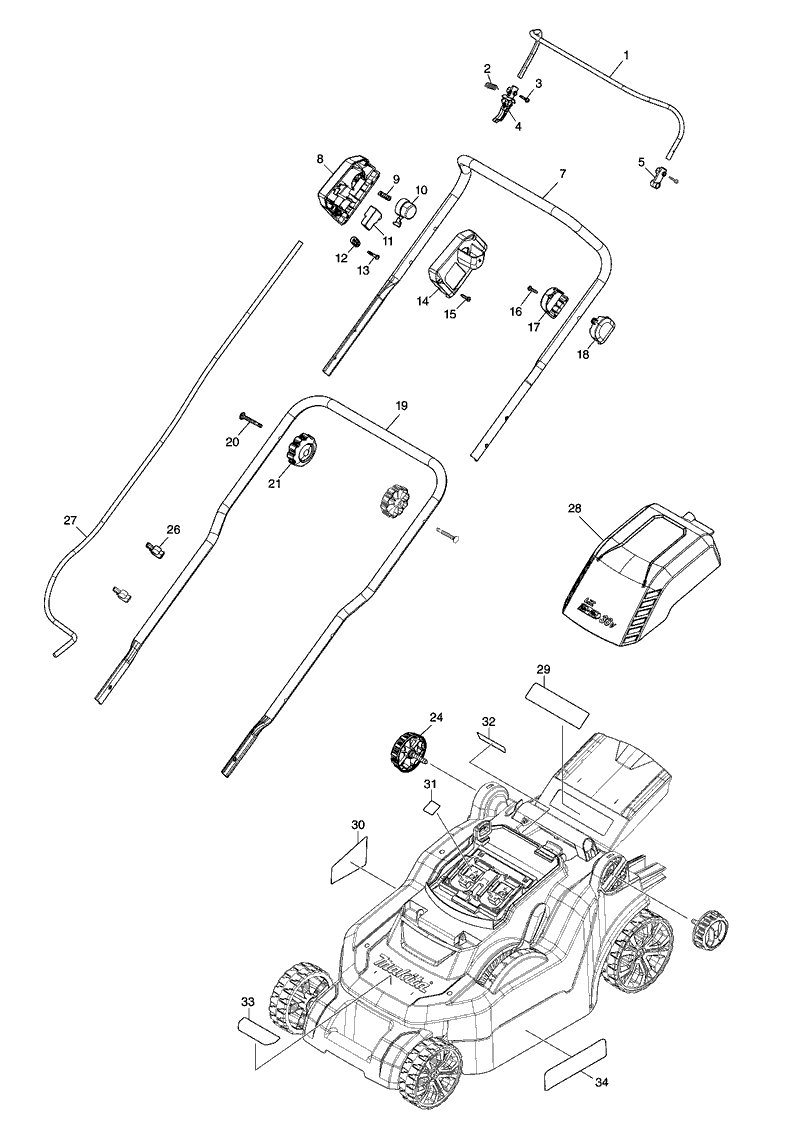

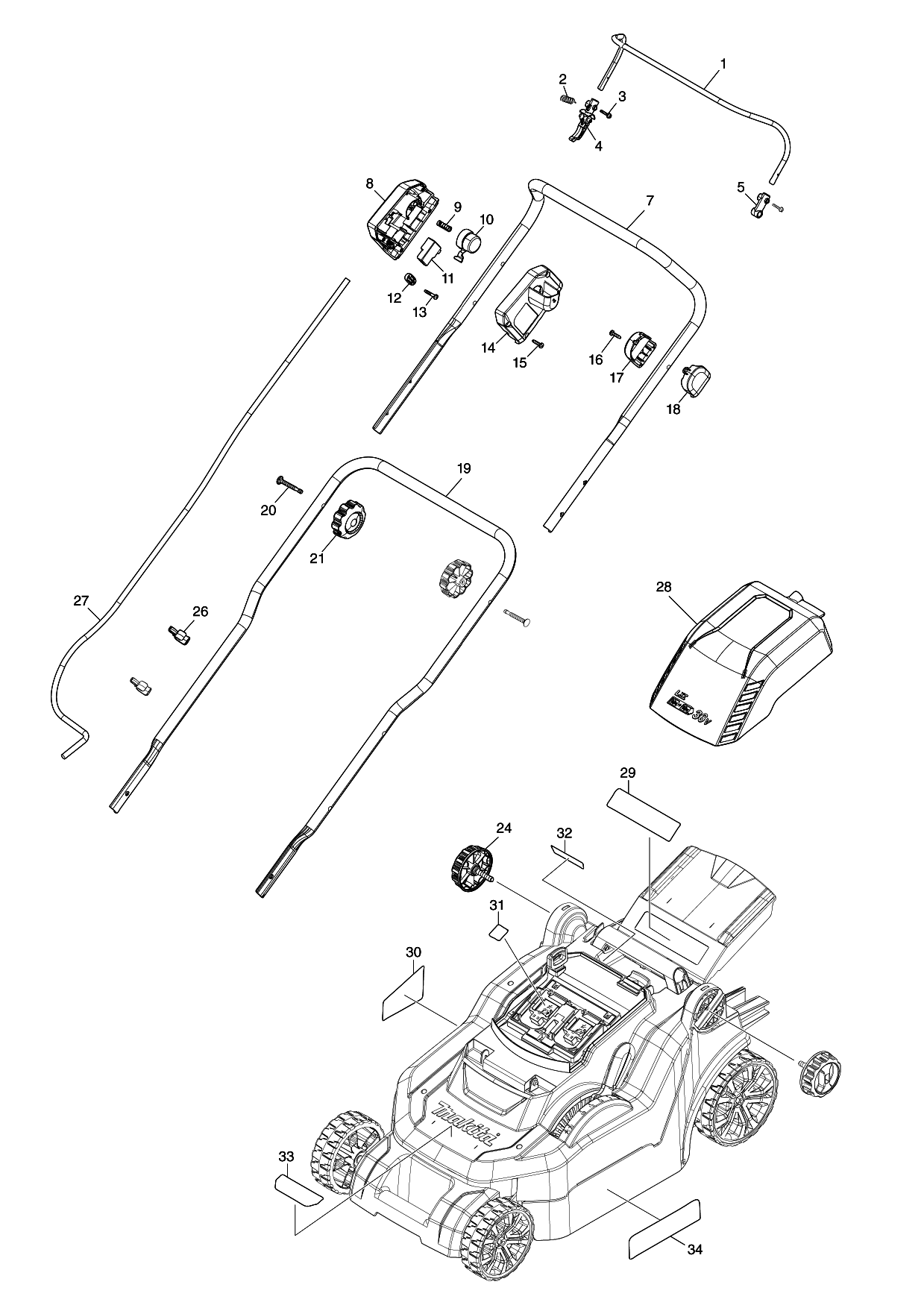

Sheet 1: Makita DLM382 parts diagram

Makita DLM382 parts diagram, sheet 1
No.Part numberPart name
1326636-0Makita 326636-0 SWITCH LEVER
2231876-6Makita 231876-6 TENSION SPRING 9
3911138-5Makita 911138-5 P.H.SCREW M4*20, M442
4455075-8Makita 455075-8 LEVER
5455078-2Makita 455078-2 ARM
7143510-5Makita 143510-5 UPPER PIPE COMPLETE LM431D
8459804-1
9233068-3Makita 233068-3 COMPRESSION SPRING 6
10455074-0Makita 455074-0 SWITCH BUTTON
11650730-9Makita 650730-9 SWITCH TG72BD-6
12687124-5Makita 687124-5 CORD CLAMP, MT951
13265999-8Makita 265999-8 TAPPING SCREW 4*25, 6827
14140N15-0
15266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
16266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
17456352-1Makita 456352-1 SWITCH LEVER CASE COVER
18456351-3Makita 456351-3 SWITCH LEVER CASE
19327413-3
20265A14-4Makita 265A14-4 HEAD SQUARED NECK BOLT M6*50
21264070-5Makita 264070-5 THUMB NUT M6
24266729-0Makita 266729-0 THUMB SCREW M8X38
26459809-1
27660393-3
28140N21-5
29890375-3
30856L30-9
31856L35-9
328005W9-1
338005W7-5
348005W8-3

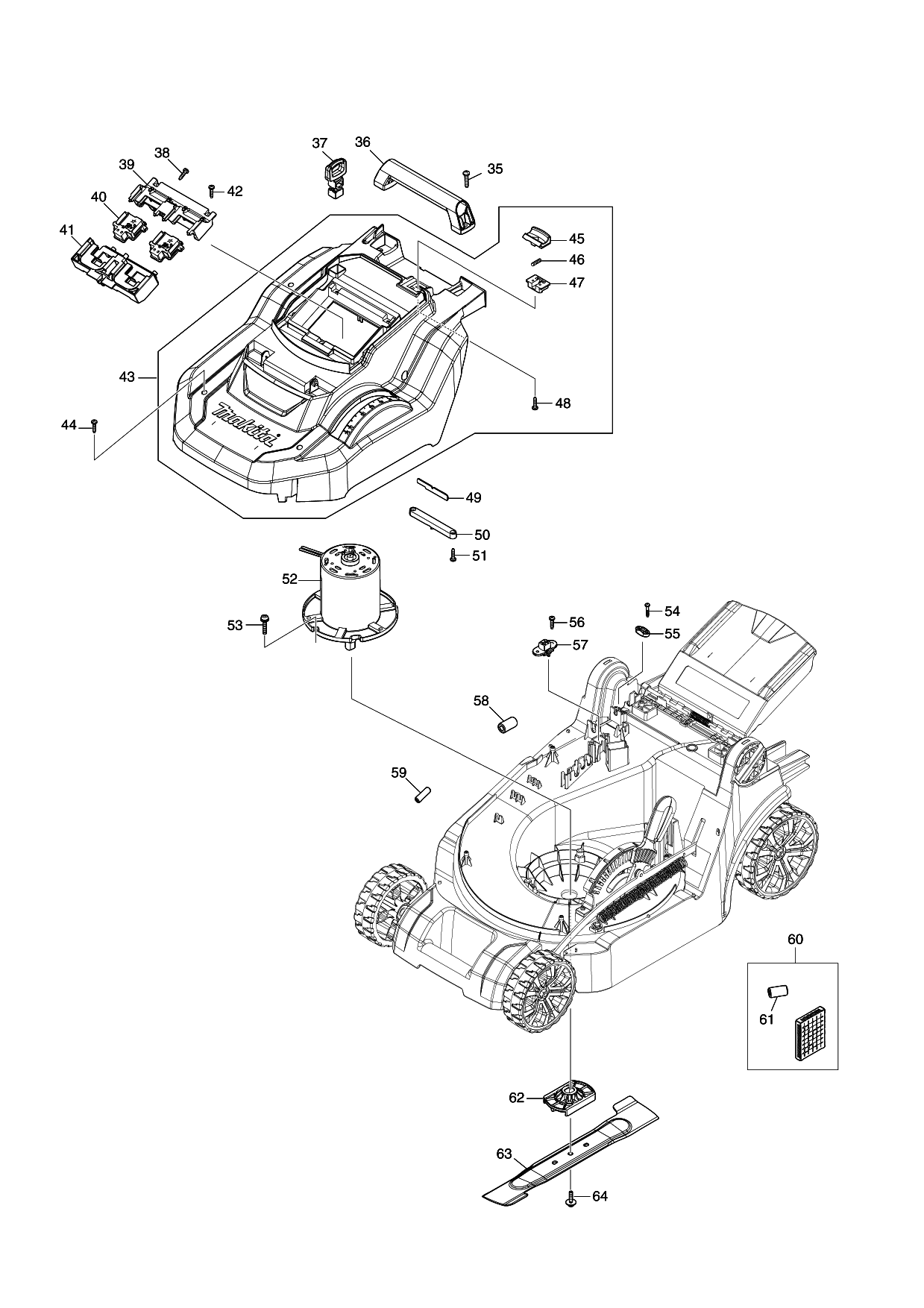

Sheet 2: Makita DLM382 parts diagram

Makita DLM382 parts diagram, sheet 2
No.Part numberPart name
35266459-3Makita 266459-3 TAPPING SCREW 5*25, 5477NB
36273675-0Makita 273675-0 GRIP A
37643890-4Makita 643890-4 KEY, LM430D
38266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
39183N35-1
40644809-6Makita 644809-6 TERMINAL
41183N35-1
42266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
44266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
45453250-0Makita 453250-0 LOCK LEVER
46233173-6Makita 233173-6 COMPRESSION SPRING 4, UC3020A
47453251-8Makita 453251-8 LOCK LEVER SUPPORT
48266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
49620B91-3
50455070-8Makita 455070-8 LED COVER
51266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
52629A17-6
53266774-5Makita 266774-5 + PAN HEAD SCREW M6X30 WITH WR
54265999-8Makita 265999-8 TAPPING SCREW 4*25, 6827
55687124-5Makita 687124-5 CORD CLAMP, MT951
56266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
57638946-6Makita 638946-6 LEAD UNIT, LM430D
58688162-0Makita 688162-0 LINE FILTER
59688165-4Makita 688165-4 Line Filter 30*5*10 for DF457D
61688162-0Makita 688162-0 LINE FILTER
62459811-4
63191D41-2Makita 191D41-2 Blade 380mm for Lawn Mover DLM382
64256933-9

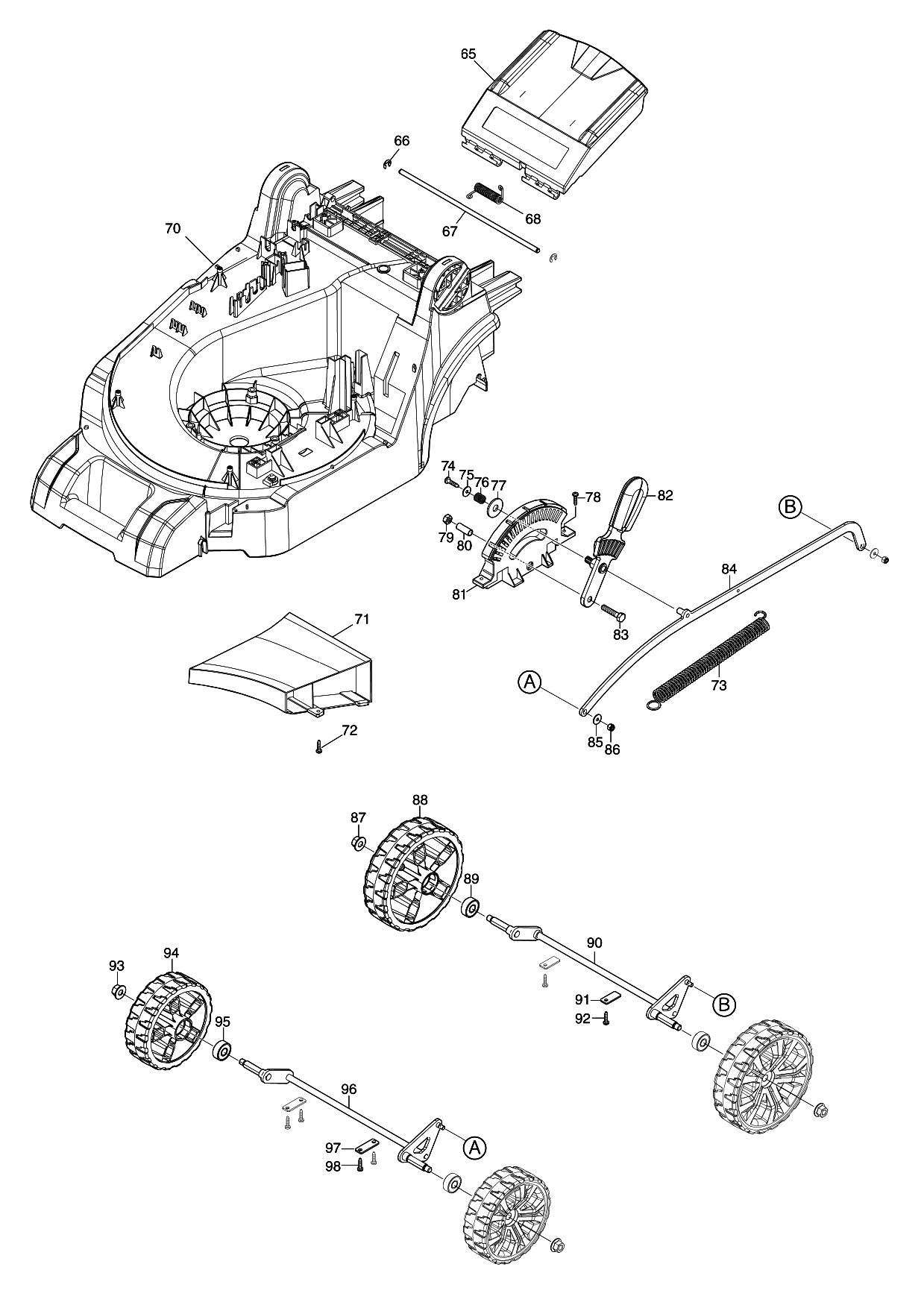

Sheet 3: Makita DLM382 parts diagram

Makita DLM382 parts diagram, sheet 3
No.Part numberPart name
65140S15-0
66LC961018-5
67259068-5
68LC233597-6
70459777-8
71412272-9
72266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
73LC231875-8
74266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
75LC267102A7
76LC231297-2
77LC253808A3
78266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
79931302-2Makita 931302-2 HEX NUT M6, 2414NB
80LC257670A8
81453255-0Makita 453255-0 ADJUST PLATE
82459099-6Makita 459099-6 CHANGE LEVER, DML431
83LC921352-5
84347571-9
85LC941101-4
86252103-8Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R
87LC252145-2
88459101-5
89LC210070-3
90162683-5
91LC346545-7
92266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
93LC252145-2
94459100-7Makita 459100-7 FRONT WHEEL , DLM431
95LC210070-3
96162682-7
97341462-6Makita 341462-6 PLATE, JR300VT
98266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951

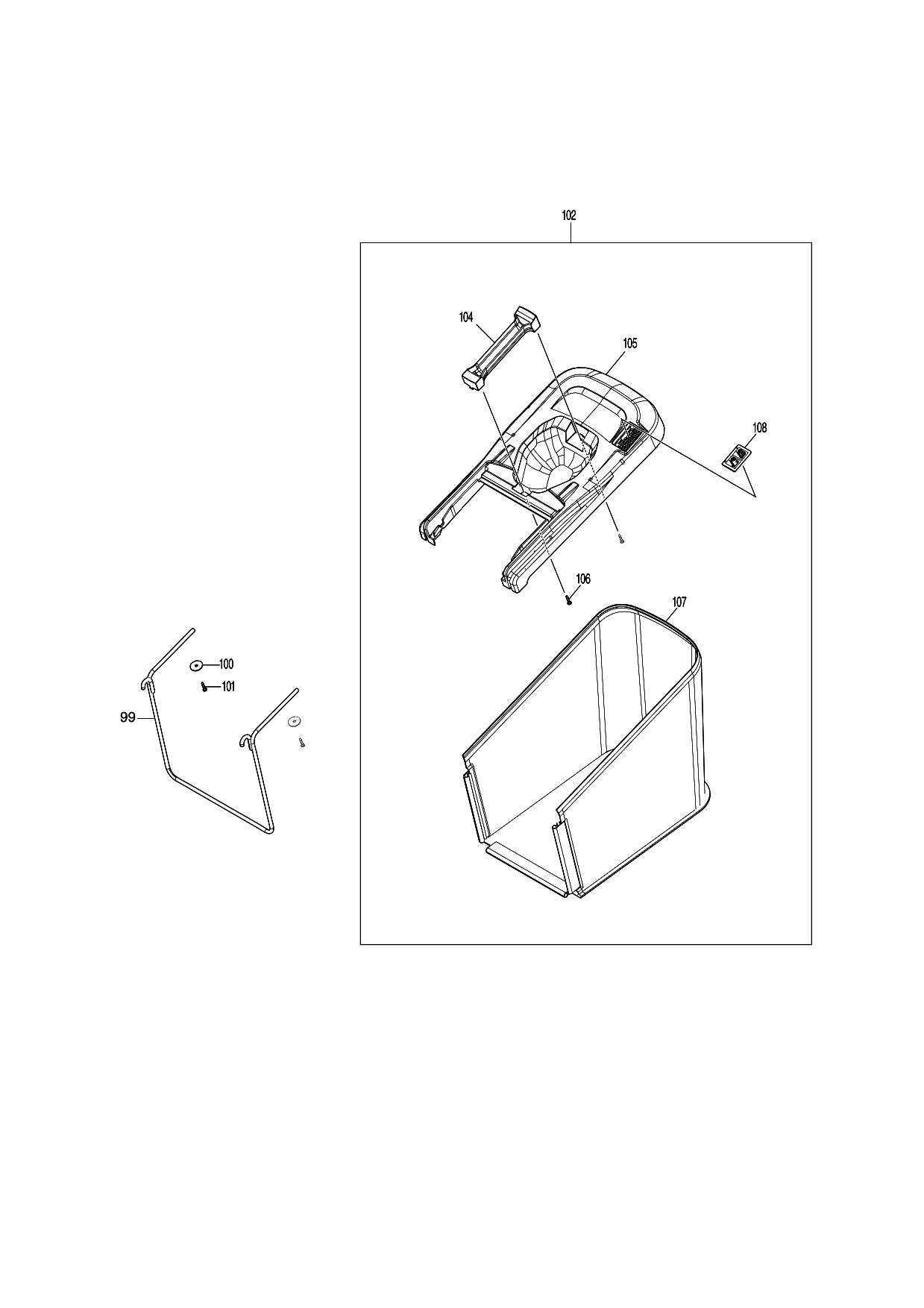

Sheet 4: Makita DLM382 parts diagram

Makita DLM382 parts diagram, sheet 4
No.Part numberPart name
99327411-7
100267438-4Makita 267438-4 FLAT WASHER 5
101266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
104273676-8
105459812-2
106266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
107162684-3
108459806-7
