Makita DLM380
Makita DLM380: exploded parts diagram, 4 sheets, 115 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DLM380: 115 positions on 4 sheets

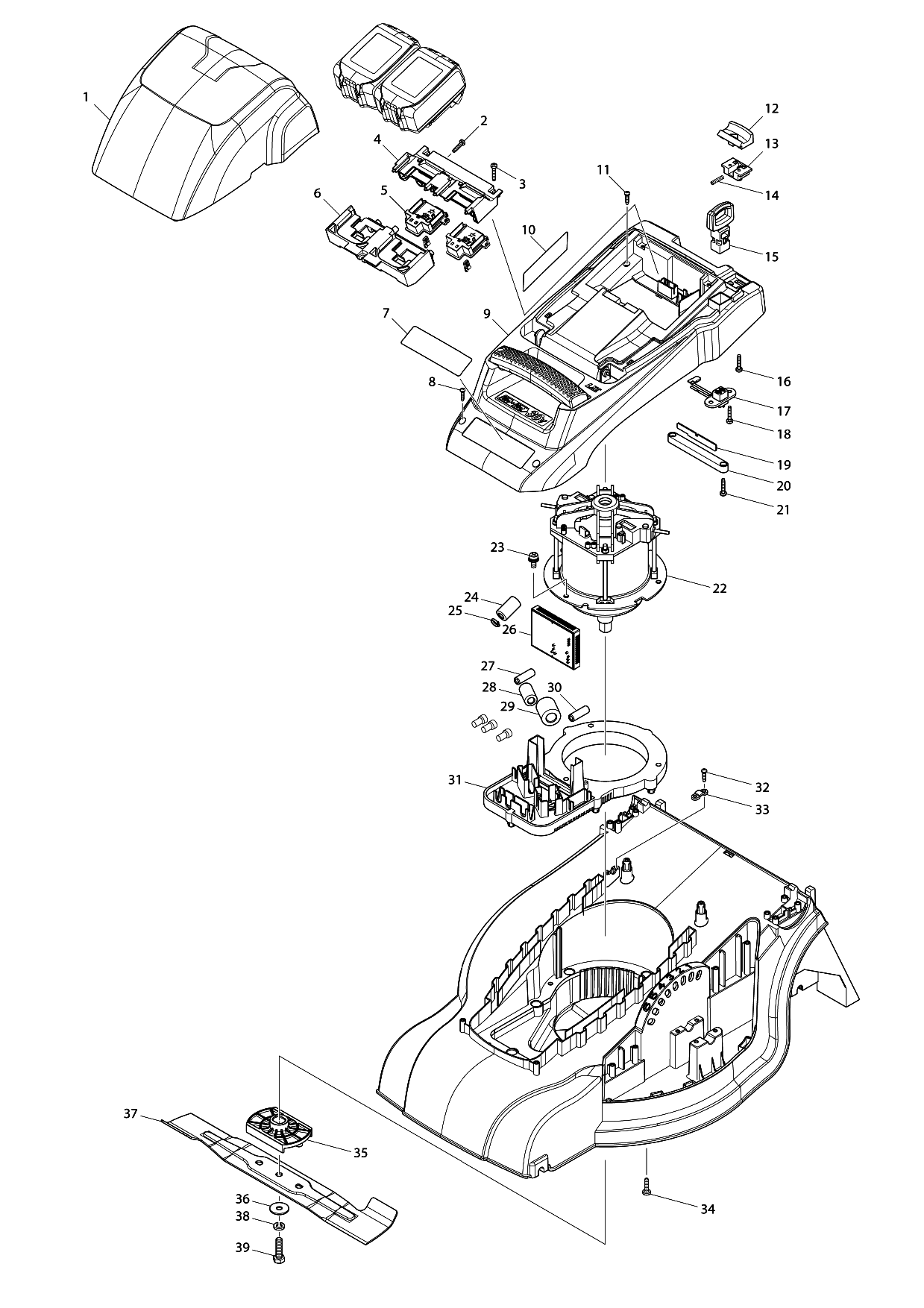

Sheet 1: Makita DLM380 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 142585-1 | Makita 142585-1 BATTERY COVER COMPLETE E |
| 2 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 3 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 4 | 187926-4 | Makita 187926-4 TERMINAL HOUSING SET |
| 5 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 6 | 187926-4 | Makita 187926-4 TERMINAL HOUSING SET |
| 7 | 803J08-1 | |
| 8 | 266890-3 | Makita 266890-3 TAPPING SCREW M4*16 |
| 9 | 142591-6 | Makita 142591-6 COWLING COMPLETE |
| 10 | 815M03-7 | |
| 11 | 266890-3 | Makita 266890-3 TAPPING SCREW M4*16 |
| 12 | 453250-0 | Makita 453250-0 LOCK LEVER |
| 13 | 453251-8 | Makita 453251-8 LOCK LEVER SUPPORT |
| 14 | 233173-6 | Makita 233173-6 COMPRESSION SPRING 4, UC3020A |
| 15 | 643890-4 | Makita 643890-4 KEY, LM430D |
| 16 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 17 | 638946-6 | Makita 638946-6 LEAD UNIT, LM430D |
| 18 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 19 | 620278-5 | Makita 620278-5 LED CIRCUIT |
| 20 | 455070-8 | Makita 455070-8 LED COVER |
| 21 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 22 | 629118-4 | Makita 629118-4 DC MOTOR 36V |
| 23 | 266892-9 | Makita 266892-9 PAN HEAD SCREW M6*16 WITH WR |
| 24 | 688162-0 | Makita 688162-0 LINE FILTER |
| 25 | 687010-0 | Makita 687010-0 BAND, 5704R |
| 26 | 620277-7 | Makita 620277-7 CONTROLLER |
| 27 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
| 28 | 688162-0 | Makita 688162-0 LINE FILTER |
| 29 | 688140-0 | |
| 30 | 688165-4 | Makita 688165-4 Line Filter 30*5*10 for DF457D |
| 31 | 455064-3 | Makita 455064-3 MOTOR BRACKET |
| 32 | 266890-3 | Makita 266890-3 TAPPING SCREW M4*16 |
| 33 | 687A88-9 | Makita 687A88-9 CORD CLAMP |
| 34 | 266420-0 | Makita 266420-0 TAPPING SCREW 5*20, HR2810 |
| 35 | 455130-6 | Makita 455130-6 BLADE SUPPORT |
| 36 | 253852-0 | Makita 253852-0 FLAT WASHER 8, LS1013 |
| 37 | 196863-1 | |
| 38 | 942201-3 | Makita 942201-3 SPRING WASHER 8, 2414NB |
| 39 | 266889-8 | Makita 266889-8 HEX BOLT M8*30 |

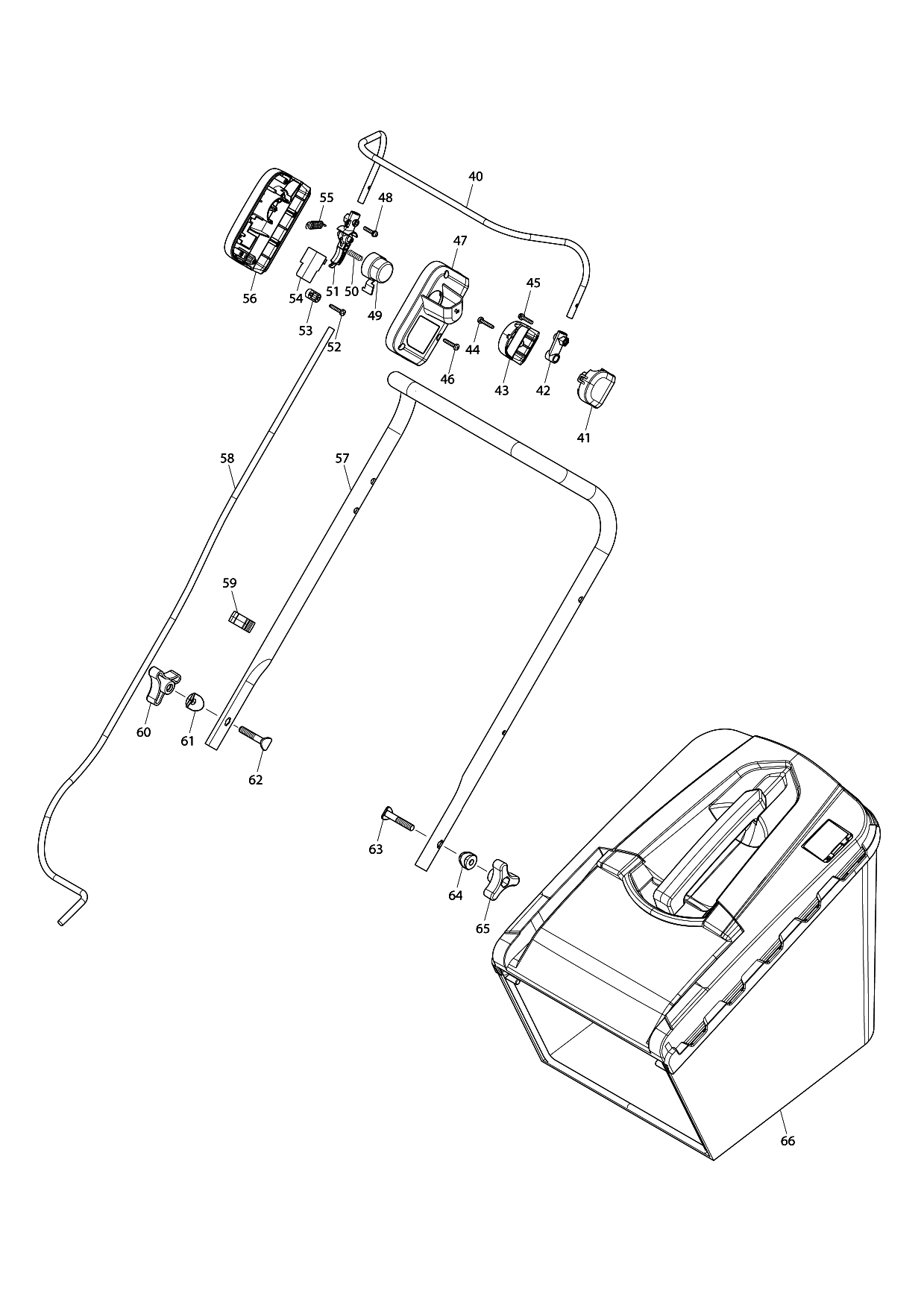

Sheet 2: Makita DLM380 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 40 | 332106-9 | Makita 332106-9 SWITCH LEVER |
| 41 | 455076-6 | Makita 455076-6 SWITCH LEVER CASE |
| 42 | 455078-2 | Makita 455078-2 ARM |
| 43 | 455077-4 | Makita 455077-4 SWITCH LEVER CASE COVER |
| 44 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 45 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 46 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 47 | 455073-2 | Makita 455073-2 SWITCH BOX COVER |
| 48 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 49 | 455074-0 | Makita 455074-0 SWITCH BUTTON |
| 50 | 233068-3 | Makita 233068-3 COMPRESSION SPRING 6 |
| 51 | 455075-8 | Makita 455075-8 LEVER |
| 52 | 266424-2 | Makita 266424-2 TAPPING SCREW 4X20 |
| 53 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 54 | 650730-9 | Makita 650730-9 SWITCH TG72BD-6 |
| 55 | 231876-6 | Makita 231876-6 TENSION SPRING 9 |
| 56 | 455072-4 | Makita 455072-4 SWITCH BOX |
| 57 | 332109-3 | Makita 332109-3 UPPER HANDLE |
| 58 | 660480-8 | Makita 660480-8 POWER SUPPLY CORD |
| 59 | 455071-6 | Makita 455071-6 CORD HOLDER |
| 60 | 252657-5 | Makita 252657-5 THUMB NUT M8 |
| 61 | 455131-4 | Makita 455131-4 CURL WASHER 8 |
| 62 | 266893-7 | Makita 266893-7 FLAT HEAD BOLT M8*45 |
| 63 | 266893-7 | Makita 266893-7 FLAT HEAD BOLT M8*45 |
| 64 | 455131-4 | Makita 455131-4 CURL WASHER 8 |
| 65 | 252657-5 | Makita 252657-5 THUMB NUT M8 |
| 66 | 126429-3 | Makita 126429-3 GRASS CATCHER ASS M DLM380Z |

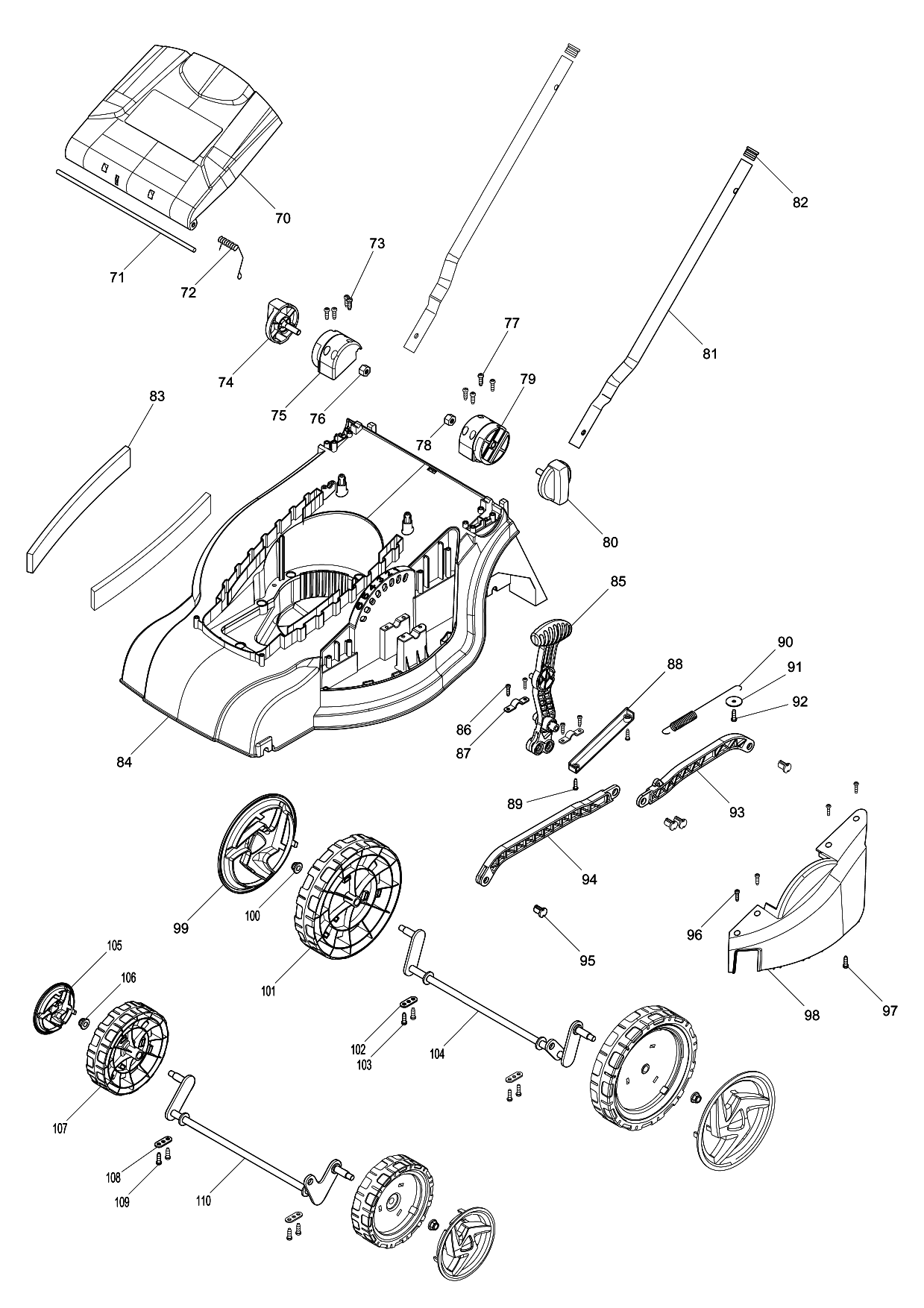

Sheet 3: Makita DLM380 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 70 | DA00000348 | Makita DA00000348 REAR COVER ASSEMBLY |
| 71 | DA00000332 | Makita DA00000332 AXIS |
| 72 | DA00000352 | Makita DA00000352 SPRING |
| 73 | DA00000326 | Makita DA00000326 SELF DRIVING SCREW 5X16 |
| 74 | DA00000327 | Makita DA00000327 THUMB SCREW M8 (SET TEC Y07499) |
| 75 | DA00000350 | Makita DA00000350 RIGHT FIXING BOARD OF HANDLE |
| 76 | DA00000343 | Makita DA00000343 HEXAGON NUT |
| 77 | DA00000326 | Makita DA00000326 SELF DRIVING SCREW 5X16 |
| 78 | DA00000343 | Makita DA00000343 HEXAGON NUT |
| 79 | DA00000344 | Makita DA00000344 LEFT FIXING BOARD OF HANDLE |
| 80 | DA00000327 | Makita DA00000327 THUMB SCREW M8 (SET TEC Y07499) |
| 81 | DA00000345 | Makita DA00000345 LOWER HANDLE BAR |
| 82 | DA00000346 | Makita DA00000346 PIPE PLUG |
| 83 | DA00000354 | Makita DA00000354 WATER PROOF STRIP |
| 84 | DA00000334 | Makita DA00000334 DECK |
| 85 | DA00000339 | Makita DA00000339 HEIGHT ADJUSTMENT HANDLE |
| 86 | 266890-3 | Makita 266890-3 TAPPING SCREW M4*16 |
| 87 | DA00000338 | Makita DA00000338 HANDLE OF PRESSING BOARD |
| 88 | DA00000337 | Makita DA00000337 GRASS-PROOF STRAP |
| 89 | 266890-3 | Makita 266890-3 TAPPING SCREW M4*16 |
| 90 | DA00000353 | Makita DA00000353 SPRING OF CONNECTING ROD |
| 91 | DA00000347 | Makita DA00000347 PRESSING PLATE |
| 92 | DA00000326 | Makita DA00000326 SELF DRIVING SCREW 5X16 |
| 93 | DA00000341 | Makita DA00000341 HEIGHT ADJUSTMENT POLE 2 |
| 94 | DA00000340 | Makita DA00000340 HEIGHT ADJUSTMENT POLE 1 |
| 95 | DA00000333 | Makita DA00000333 CONNECTION ROD PIN |
| 96 | 266890-3 | Makita 266890-3 TAPPING SCREW M4*16 |
| 97 | DA00000326 | Makita DA00000326 SELF DRIVING SCREW 5X16 |
| 98 | DA00000351 | Makita DA00000351 SIDE DISCHARGE COVER OF DECK |
| 99 | DA00000331 | Makita DA00000331 7.5 WHEEL COVER |
| 100 | DA00000342 | Makita DA00000342 HEXAGON LOCKING NUT |
| 101 | DA00000330 | Makita DA00000330 7.5 WHEEL ASSEMBLY |
| 102 | DA00000335 | Makita DA00000335 FRONT AXLE PLATE |
| 103 | DA00000326 | Makita DA00000326 SELF DRIVING SCREW 5X16 |
| 104 | DA00000349 | Makita DA00000349 REAR WHEEL AXLE ASSEMBLY |
| 105 | DA00000329 | Makita DA00000329 5.5 WHEEL COVER |
| 106 | DA00000342 | Makita DA00000342 HEXAGON LOCKING NUT |
| 107 | DA00000328 | Makita DA00000328 5.5 WHEEL ASSEMBLY |
| 108 | DA00000335 | Makita DA00000335 FRONT AXLE PLATE |
| 109 | DA00000326 | Makita DA00000326 SELF DRIVING SCREW 5X16 |
| 110 | DA00000336 | Makita DA00000336 FRONT WHEEL AXIS ASSEMBLY |

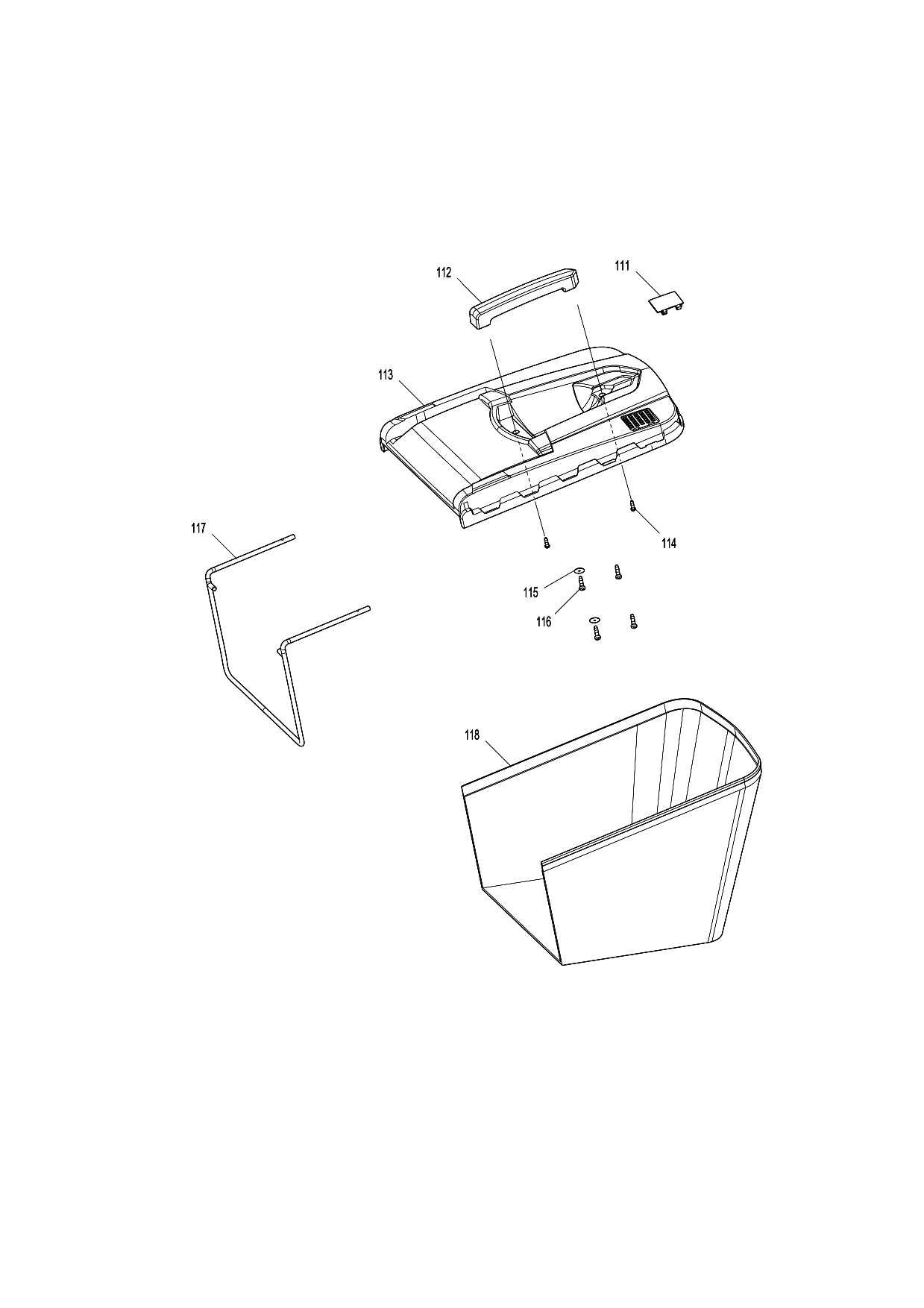

Sheet 4: Makita DLM380 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 111 | DA00000360 | Makita DA00000360 LEVER INDICATOR |
| 112 | DA00000359 | Makita DA00000359 HANDLE OF GRASS CATCHER |
| 113 | DA00000362 | Makita DA00000362 UPPER COVER OF GRASS CATCHER |
| 114 | DA00000326 | Makita DA00000326 SELF DRIVING SCREW 5X16 |
| 115 | DA00000361 | Makita DA00000361 PRESSING PLATE |
| 116 | 266890-3 | Makita 266890-3 TAPPING SCREW M4*16 |
| 117 | DA00000358 | Makita DA00000358 GRASS CATCHER BRACKET |
| 118 | DA00000357 | Makita DA00000357 GRASS CATCHER |
