Makita DKP181: exploded parts diagram, 1 sheet, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DKP181: 65 positions on 1 sheet

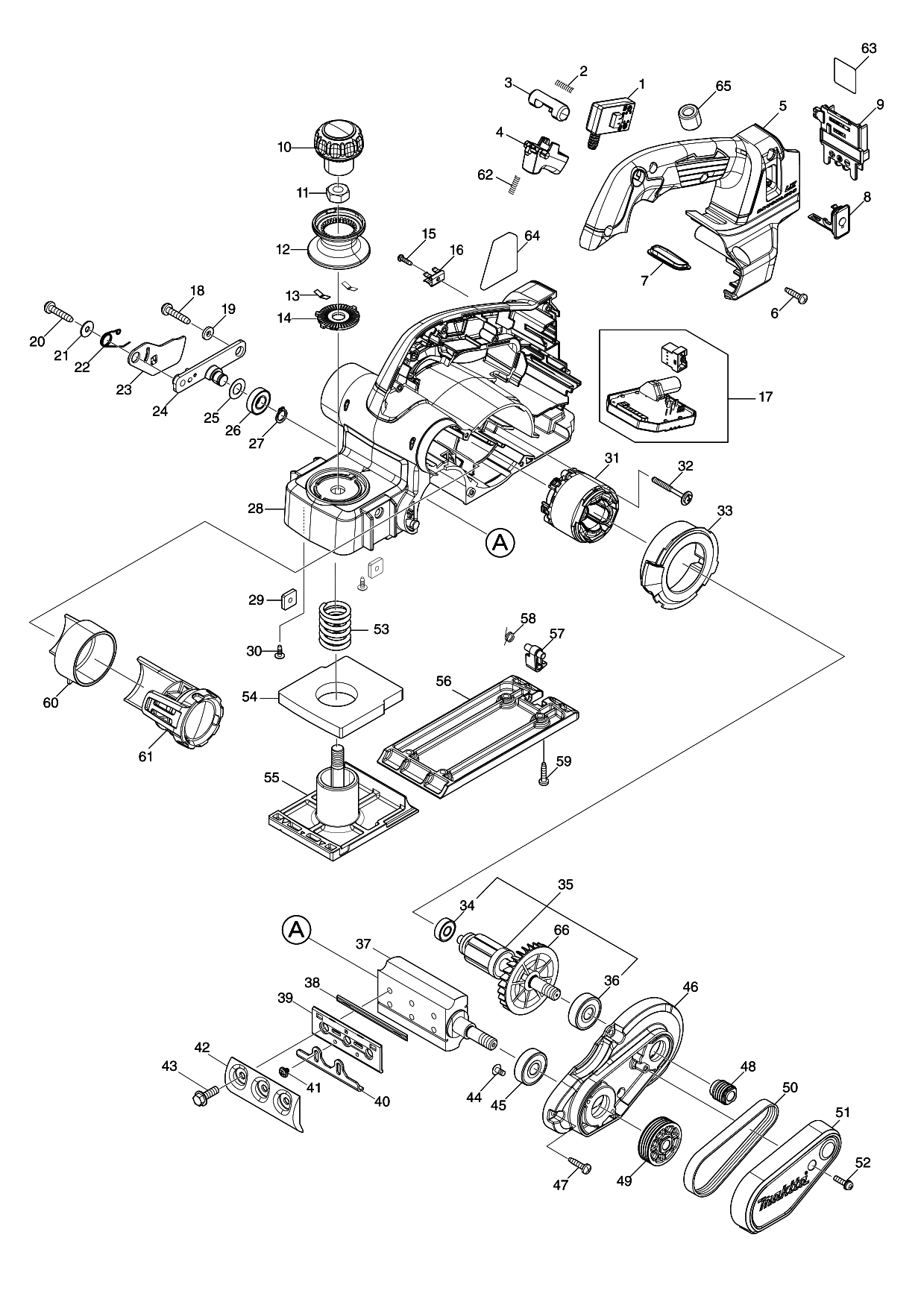

Sheet 1: Makita DKP181 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 651083-9 | Makita 651083-9 SWITCH |
| 2 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 3 | 419704-7 | Makita 419704-7 LOCK OFF BUTTONKP0810C |
| 4 | 457432-6 | |
| 5 | 140N52-4 | |
| 6 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 7 | 142948-1 | Makita 142948-1 INDICATION PLATE COMPLETE |
| 8 | 140F99-0 | |
| 9 | 643874-2 | Makita 643874-2 Terminal |
| 10 | 451328-3 | Makita 451328-3 KNOB COVER, KP0800 |
| 11 | 252276-7 | |
| 12 | 459894-4 | |
| 13 | 232185-6 | Makita 232185-6 LEAF SPRING, KP0800 |
| 14 | 347588-2 | |
| 15 | 266556-5 | Makita 266556-5 TAPPING SCREW 3*12, HR2610 |
| 16 | 232570-3 | |
| 17 | 620B79-3 | Makita 620B79-3 CONTROLLER, DKP181 |
| 18 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 19 | 267012-8 | Makita 267012-8 FLAT WASHER 5KP0810C |
| 20 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 21 | 253194-2 | Makita 253194-2 FLAT WASHER 5, 2012NB |
| 22 | 233521-9 | Makita 233521-9 TORSION SPRING 10KP0810C |
| 23 | 345765-0 | Makita 345765-0 DRUM COVERKP0810C |
| 24 | 158184-9 | Makita 158184-9 DRUM HOLDER COMPLETEKP0810C |
| 25 | 253758-2 | Makita 253758-2 FLAT WASHER 10 |
| 26 | 210057-5 | Makita 210057-5 BALL BEARING 6900LLB |
| 27 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 28 | 140N51-6 | |
| 29 | 264002-2 | Makita 264002-2 SQUARE NUT M5, JR181D |
| 30 | 265A77-0 | |
| 31 | 629453-0 | |
| 32 | 265679-6 | |
| 33 | 459891-0 | |
| 34 | 210034-7 | Makita 210034-7 Ball Bearing for 607LLB BO4556 |
| 35 | 519590-7 | Makita 519590-7 ROTOR ASS'Y, DKP181 |
| 36 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 37 | 158156-4 | Makita 158156-4 DRUM COMPLETEKP0810C |
| 38 | A-82921 | Makita A-82921 T.C.T. MINI PLANER BLADE |
| 39 | 343433-9 | Makita 343433-9 One Plate for MT190 |
| 40 | 345644-2 | Makita 345644-2 Adjust Plate, 1923H |
| 41 | 251246-3 | Makita 251246-3 + PAN HEAD SCREW M4X5 |
| 42 | 187676-1 | Makita 187676-1 DRUM PLATE SET |
| 43 | 251609-3 | Makita 251609-3 Flange Hex.Bolt M6X17 for 2012NB 1100 1125 |
| 44 | 251291-8 | Makita 251291-8 SCREW M4X8 |
| 45 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 46 | 140N50-8 | |
| 47 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 48 | 222193-5 | |
| 49 | 222194-3 | |
| 50 | 225071-8 | Makita Drive Belt for 1901 1902 1923H Elektric Planer 225071-8 |
| 51 | 459893-6 | |
| 52 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 53 | 231004-3 | Makita 231004-3 COMPRESSION SPRING 18, 1900B |
| 54 | 422531-3 | |
| 55 | 319872-5 | |
| 56 | 318499-8 | Makita 318499-8 BASE, KP0800 |
| 57 | 451392-4 | Makita 451392-4 FOOT, KP0800 |
| 58 | 231698-4 | Makita 231698-4 TORSION SPRING 7, KP0810 |
| 59 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 60 | 459892-8 | |
| 61 | 125353-7 | Makita 125353-7 DUCT ASS'YKP0810C |
| 62 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 63 | 856J96-7 | |
| 64 | 856J88-6 | |
| 65 | 688163-8 | Makita 688163-8 Line Filter for BHS630 |
