Makita DJV184: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DJV184: 59 positions on 1 sheet

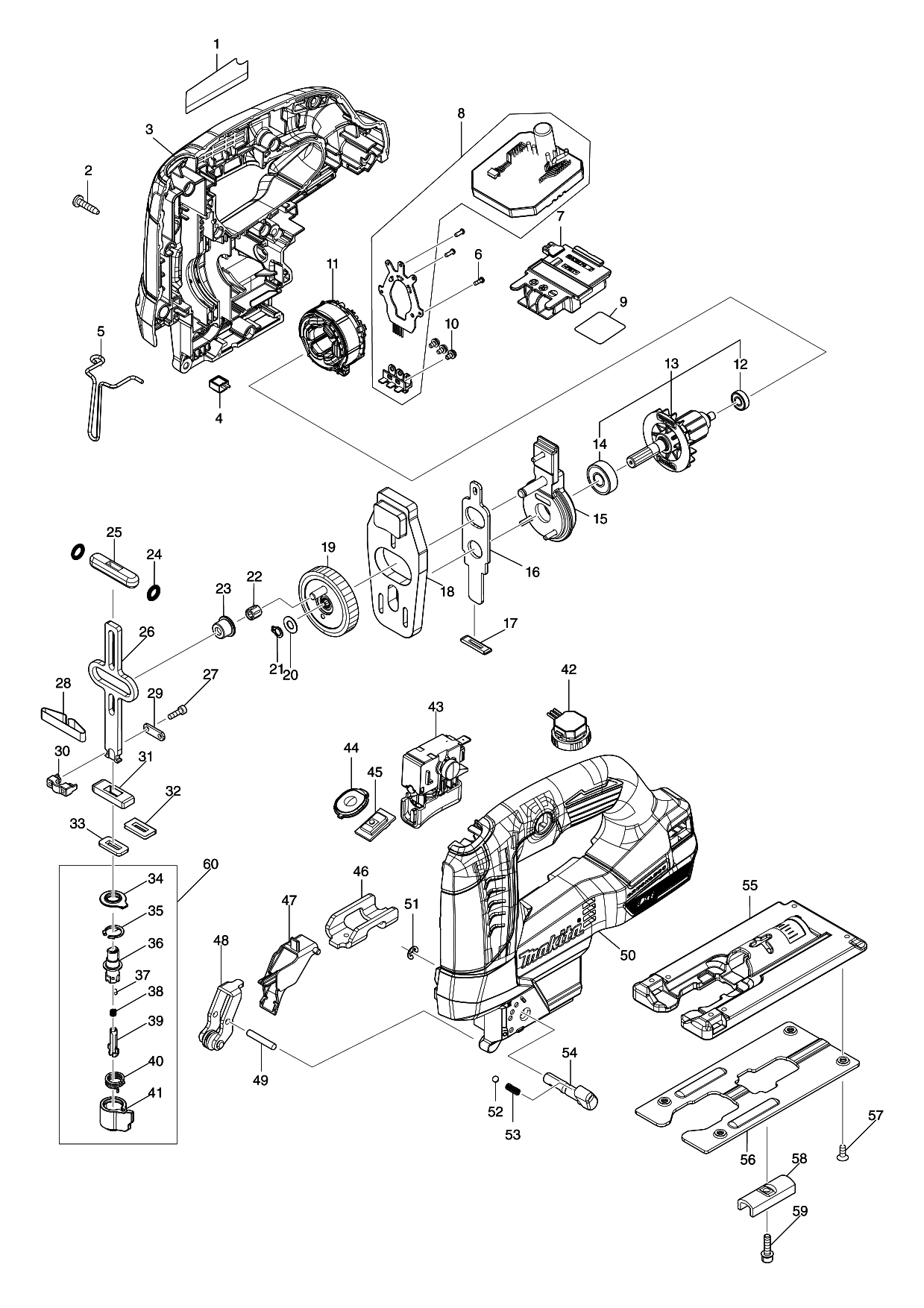

Sheet 1: Makita DJV184 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 8117T5-5 | |
| 2 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 3 | 183V10-5 | |
| 4 | 620713-3 | Makita 620713-3 LED CIRCUITK, JV103D |
| 5 | 323748-0 | Makita 323748-0 Safety Wire for 4324 |
| 6 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 7 | 643874-2 | Makita 643874-2 Terminal |
| 8 | 620H99-3 | |
| 9 | 8117U4-4 | |
| 10 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 11 | 629B14-8 | |
| 12 | 210039-7 | |
| 13 | 510536-6 | |
| 14 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 15 | 144820-3 | Makita 144820-3 BEARING CASE COMPLETE, JV0600 |
| 16 | 347249-4 | Makita 347249-4 PUSH PLATE |
| 17 | 416703-0 | Makita 416703-0 DUST SEAL, 4322 |
| 18 | 310812-6 | Makita 310812-6 BALANCE PLATE |
| 19 | 141H68-6 | |
| 20 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 21 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 22 | 212265-4 | |
| 23 | 257872-6 | |
| 24 | 213038-8 | Makita 213038-8 O RING 5, 4322 |
| 25 | 313082-6 | Makita 313082-6 Slider Guide 4322 4323 4324 4326 4327 4328 4329 JV100D MT431 |
| 26 | 347966-6 | |
| 27 | 266177-3 | Makita 266177-3 Hex Socket Head Bolt M3*10 4322 |
| 28 | 232183-0 | Makita 232183-0 LEAF SPRING, 4322 |
| 29 | 347247-8 | Makita 347247-8 PLATE |
| 30 | 310811-8 | Makita 310811-8 BLADE CLAMP |
| 31 | 313086-8 | Makita 313086-8 SLIDER SUPPORT, 4322 |
| 32 | 344686-3 | Makita 344686-3 SEAL PLATE, 4322 |
| 33 | 423307-1 | Makita 423307-1 POLYURTHAN SPONGESEAL, 4322 |
| 34 | 424437-1 | Makita 424437-1 DUST COVER, JV0600 |
| 35 | 962063-3 | Makita 962063-3 ,RETAINING RING R-B |
| 36 | 310810-0 | Makita 310810-0 BLADE GUIDE |
| 37 | 256528-8 | Makita 256528-8 PIN 2 |
| 38 | 233314-4 | Makita 233314-4 COMPRESSION SPRING 4, 5007MG |
| 39 | 310485-5 | Makita 310485-5 LOCK PIN |
| 40 | 233591-8 | Makita 233591-8 TORSION SPRING 10 |
| 41 | 452850-3 | |
| 42 | 620D30-5 | Makita 620D30-5 DIAL CIRCUIT, GA026G |
| 43 | 650025-0 | |
| 44 | 142303-7 | Makita 142303-7 SWITCH PLATE COMPLETE |
| 45 | 620J21-2 | |
| 46 | 347251-7 | Makita 347251-7 HOLDER |
| 47 | 457866-3 | Makita 457866-3 RETAINER GUIDE |
| 48 | 144629-3 | Makita 144629-3 RETAINER COMPLETE |
| 49 | 256206-0 | Makita 256206-0 PIN 4, JV600 |
| 50 | 183V10-5 | |
| 51 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 52 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 53 | 233151-6 | Makita 233151-6 COMPRESSION SPRING 4, 4322 |
| 54 | 271441-9 | Makita 271441-9 LEVER 19 |
| 55 | 312C90-2 | |
| 56 | 345441-6 | Makita 345441-6 BASE PLATE, 4324 |
| 57 | 912107-9 | Makita 912107-9 Countersunk Head Screw M4X8 5740NB 5037NB |
| 58 | 344685-5 | Makita 344685-5 CLAME PLATE, 4322 |
| 59 | 922128-3 | Makita 922128-3 Hex. Socket Head Bolt M4X16 for 4324 |
