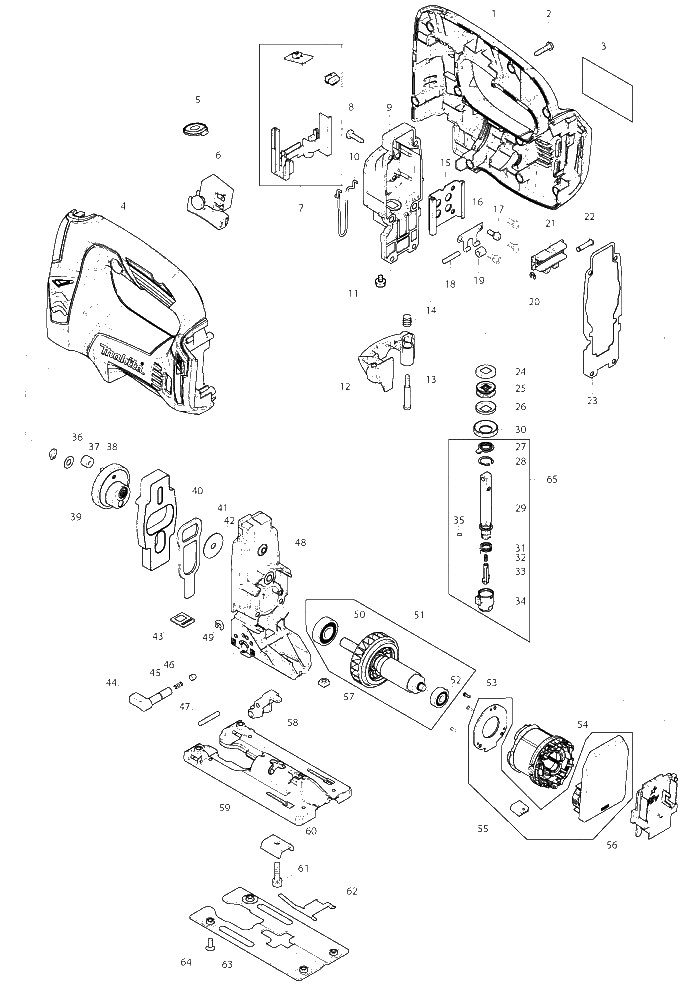

Sheet 1: Makita DJV182 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 187706-8 | Makita 187706-8 HOUSING SET |
| 2 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 3 | 814V65-6 | |
| 4 | 187706-8 | Makita 187706-8 HOUSING SET |
| 5 | 142303-7 | Makita 142303-7 SWITCH PLATE COMPLETE |
| 6 | 650251-1 | Makita 650251-1 SWITCH SGEL 106C-4 |
| 8 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 9 | 142112-4 | Makita 142112-4 GEAR HOUSING COVER COMPLETE |
| 10 | 326302-9 | Makita 326302-9 SAFETY WIRE |
| 11 | 911104-2 | Makita 911104-2 PAN HEAD SCREW M4X6 |
| 12 | 454483-0 | Makita 454483-0 TOOL OPENER |
| 13 | 265026-1 | Makita 265026-1 Pan Head Screw M4 for LS1016L |
| 14 | 231659-4 | Makita 231659-4 Torsion Spring for BJV140, BJV180, 4340CT, 4340FTC |
| 15 | 346687-7 | Makita 346687-7 LINEAR GUIDE |
| 16 | 232207-2 | Makita 232207-2 Leaf Spring for 4340FTC |
| 17 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 18 | 256117-9 | Makita 256117-9 PIN 4, 4322 |
| 19 | 214031-5 | Makita 214031-5 PLANE BEARING 4 |
| 20 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 21 | 310548-7 | Makita 310548-7 SLIDER |
| 22 | 268090-1 | Makita 268090-1 PIN 4, JV0600 |
| 23 | 442195-7 | Makita 442195-7 GASKET |
| 24 | 267854-0 | Makita 267854-0 CAP WASHER |
| 25 | 421815-6 | Makita 421815-6 DUST SEAL 8 |
| 26 | 267854-0 | Makita 267854-0 CAP WASHER |
| 27 | 424569-4 | Makita 424569-4 DUST COVER |
| 28 | 962063-3 | Makita 962063-3 ,RETAINING RING R-B |
| 29 | 165724-6 | Makita 165724-6 ROD |
| 30 | 257347-5 | Makita 257347-5 RING 21 |
| 31 | 233591-8 | Makita 233591-8 TORSION SPRING 10 |
| 32 | 233314-4 | Makita 233314-4 COMPRESSION SPRING 4, 5007MG |
| 33 | 310485-5 | Makita 310485-5 LOCK PIN |
| 34 | 310547-9 | Makita 310547-9 BLADE HOLDER |
| 35 | 256528-8 | Makita 256528-8 PIN 2 |
| 36 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 37 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 38 | 212092-9 | Makita 212092-9 Needle Bearing for DJV180, DJV434 |
| 39 | 142109-3 | Makita 142109-3 GEAR COMPLETE |
| 40 | 313260-8 | Makita 313260-8 BALANCE PLATE |
| 41 | 346688-5 | Makita 346688-5 PUSH PLATE |
| 42 | 253196-8 | Makita 253196-8 FLAT WASHER 6 |
| 43 | 454484-8 | Makita 454484-8 SEAL PLATE |
| 44 | 272280-0 | Makita 272280-0 LEVER 17 |
| 45 | 233139-6 | Makita 233139-6 COMP.SPRING 3 4340FTC |
| 46 | 286032-3 | Makita 286032-3 CAP 5 4340FTC |
| 47 | 268063-4 | Makita 268063-4 PIN 4 4340FTC |
| 48 | 142111-6 | Makita 142111-6 GEAR HOUSING COMPLETE |
| 49 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 50 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 52 | 210022-4 | Makita 210022-4 BALL BEARING 626DDW, 9526NB |
| 53 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 54 | 629998-8 | Makita 629998-8 STATOR |
| 56 | 643899-6 | Makita 643899-6 TERMINAL BCV01 |
| 57 | 252171-1 | Makita 252171-1 SQUARE NUT M5-8 4340FTC |
| 58 | 142110-8 | Makita 142110-8 RETAINER COMPLETE |
| 59 | 319016-7 | Makita 319016-7 BASE |
| 60 | 345237-5 | Makita 345237-5 CRANK PLATE 4340FTC |
| 61 | 922231-0 | Makita 922231-0 HEX. SOCKET HEAD BOLT M5X20, HR2010 |
| 62 | 232208-0 | Makita 232208-0 Leaf Spring for 4340FTC |
| 63 | 346685-1 | Makita 346685-1 BASE PLATE |
| 64 | 265085-5 | Makita 265085-5 HEAD SCREW M4X8 5621RD |
| 7 | 632B56-3 | Makita 632B56-3 SWITCH UNIT (ANTI-STATIC) |
| 51 | 519329-8 | Makita 519329-8 ROTOR ASSY |
| 55 | 620248-4 | OLDN Makita 620248-4 CONTROLLER (ANTI-STATIC) |
| 65 | 135602-4 | Makita 135602-4 ROD ASSY |
