Makita DJV180: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DJV180: 71 positions on 1 sheet

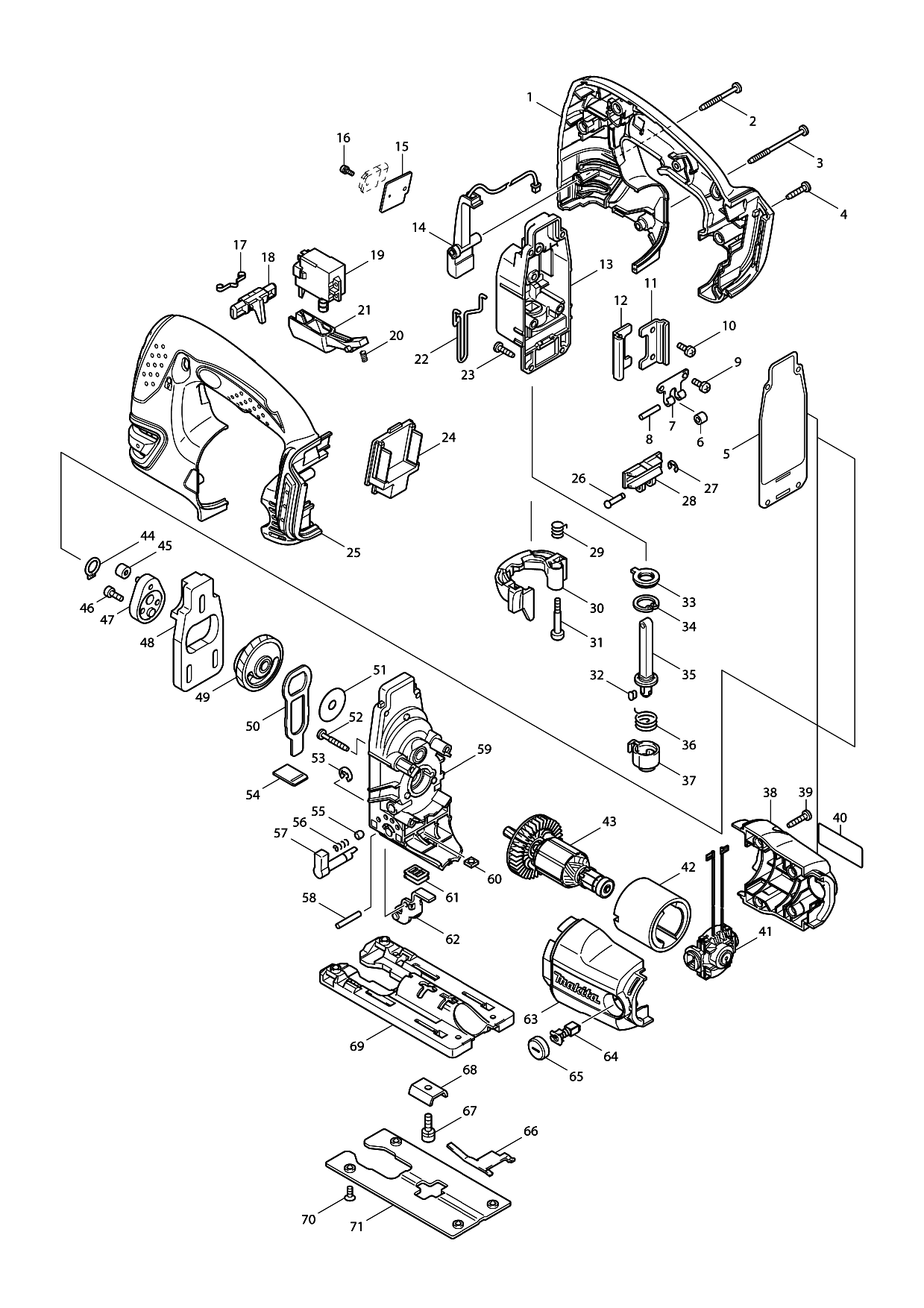

Sheet 1: Makita DJV180 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 187725-4 | Makita 187725-4 HANDLE SET |
| 2 | 266048-4 | Makita 266048-4 TAPPING SCREW 4*40, HR2453 |
| 3 | 266091-3 | Makita 266091-3 TAPPING SCREW 4X50, LS1040F |
| 4 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 5 | 442138-9 | Makita 442138-9 Packing for 4340FTC |
| 6 | 214031-5 | Makita 214031-5 PLANE BEARING 4 |
| 7 | 232207-2 | Makita 232207-2 Leaf Spring for 4340FTC |
| 8 | 256117-9 | Makita 256117-9 PIN 4, 4322 |
| 9 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 10 | 911111-5 | Makita 911111-5 PAN HEAD SCREW M4*10, M926 |
| 11 | 345240-6 | Makita 345240-6 Linear Guide for 4340FTC |
| 12 | 345240-6 | Makita 345240-6 Linear Guide for 4340FTC |
| 13 | 153338-3 | Makita 153338-3 Gear Housing Cover Complete 4340FCT |
| 14 | 631744-7 | Makita 631744-7 LIGHT CIRCUITBJV180 |
| 15 | 689070-8 | Makita 689070-8 HEAT SINK |
| 16 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 17 | 232152-1 | Makita 232152-1 Leaf Spring for JR181D |
| 18 | 419613-0 | Makita 419613-0 LOCK OFF BUTTONBJV180 |
| 19 | 650650-7 | Makita 650650-7 SWITCH |
| 20 | 233118-4 | Makita 233118-4 COMPRESSION SPRING 4BJV180 |
| 21 | 419754-2 | Makita 419754-2 SWITCH LEVERBJV180 |
| 22 | 324233-6 | Makita 324233-6 SAFETY WIRE 4340FTC |
| 23 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 24 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 25 | 187725-4 | Makita 187725-4 HANDLE SET |
| 26 | 268090-1 | Makita 268090-1 PIN 4, JV0600 |
| 27 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 28 | 310134-4 | Makita 310134-4 Slider for BJV140, BJV180, 4340CT, 4340FTC |
| 29 | 231659-4 | Makita 231659-4 Torsion Spring for BJV140, BJV180, 4340CT, 4340FTC |
| 30 | 419820-5 | Makita 419820-5 Tool Opener BJV180-1 |
| 31 | 265026-1 | Makita 265026-1 Pan Head Screw M4 for LS1016L |
| 32 | 310135-2 | Makita 310135-2 PUSH PIN 4340FCT |
| 33 | 421817-2 | Makita 421817-2 Dust Cover for 4340FTC |
| 34 | 962068-3 | Makita 962068-3 RETAINING RING R-18 |
| 35 | 165326-8 | Makita 165326-8 ROD 4340FTC |
| 36 | 231660-9 | Makita 231660-9 Torsion Spring for 4340FTC |
| 37 | 310136-0 | Makita 310136-0 Jigsaw Blade Clamp 4340FCT 4340CT 4341CT 4350CT 4351CT |
| 38 | 188208-7 | Makita 188208-7 MOTOR HOUSING SETBJV180 |
| 39 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 40 | 815K50-6 | |
| 41 | 638504-8 | Makita 638504-8 Brush Holder for BJV180 BJV140 DJV180 DJV140 |
| 42 | 638373-7 | Makita 638373-7 YOKE UNIT, SS520D |
| 43 | 619206-5 | Makita 619206-5 Armature for BJV180 |
| 44 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 45 | 212092-9 | Makita 212092-9 Needle Bearing for DJV180, DJV434 |
| 46 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 47 | 153336-7 | Makita 153336-7 Crank Complete for 4340FTC |
| 48 | 313108-4 | Makita 313108-4 BALANCE PLATE, 4340T |
| 49 | 158168-7 | Makita 158168-7 GEAR COMPLETEBJV180 |
| 50 | 345235-9 | Makita 345235-9 PUSH PLATE 4340FTC |
| 51 | 253877-4 | Makita 253877-4 FLAT WASHER 8 |
| 52 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 53 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 54 | 417839-8 | Makita 417839-8 SEAL PLATE 4340FTC |
| 55 | 286032-3 | Makita 286032-3 CAP 5 4340FTC |
| 56 | 233139-6 | Makita 233139-6 COMP.SPRING 3 4340FTC |
| 57 | 272280-0 | Makita 272280-0 LEVER 17 |
| 58 | 268063-4 | Makita 268063-4 PIN 4 4340FTC |
| 59 | 158169-5 | Makita 158169-5 GEAR HOUSING COMPLETBJV180 |
| 60 | 252171-1 | Makita 252171-1 SQUARE NUT M5-8 4340FTC |
| 61 | 421816-4 | Makita 421816-4 DUST SEAL 4340FTC |
| 62 | 153334-1 | Makita 153334-1 Jigsaw Blade Guide for 4340FCT 4350FCT 4351FCT BJV140 BJV180 |
| 63 | 188208-7 | Makita 188208-7 MOTOR HOUSING SETBJV180 |
| 64 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 65 | 643807-7 | Makita 643807-7 Brush Holder Cap for TD124D |
| 66 | 232208-0 | Makita 232208-0 Leaf Spring for 4340FTC |
| 67 | 922226-3 | Makita 922226-3 HEX.SOCKET HEAD BOLT M5X18, LS1016L |
| 68 | 345237-5 | Makita 345237-5 CRANK PLATE 4340FTC |
| 69 | 317565-8 | Makita 317565-8 Base 4340FTC 4340CT 4341CT BJV180 |
| 70 | 912107-9 | Makita 912107-9 Countersunk Head Screw M4X8 5740NB 5037NB |
| 71 | 345238-3 | Makita 345238-3 Base Plate |
