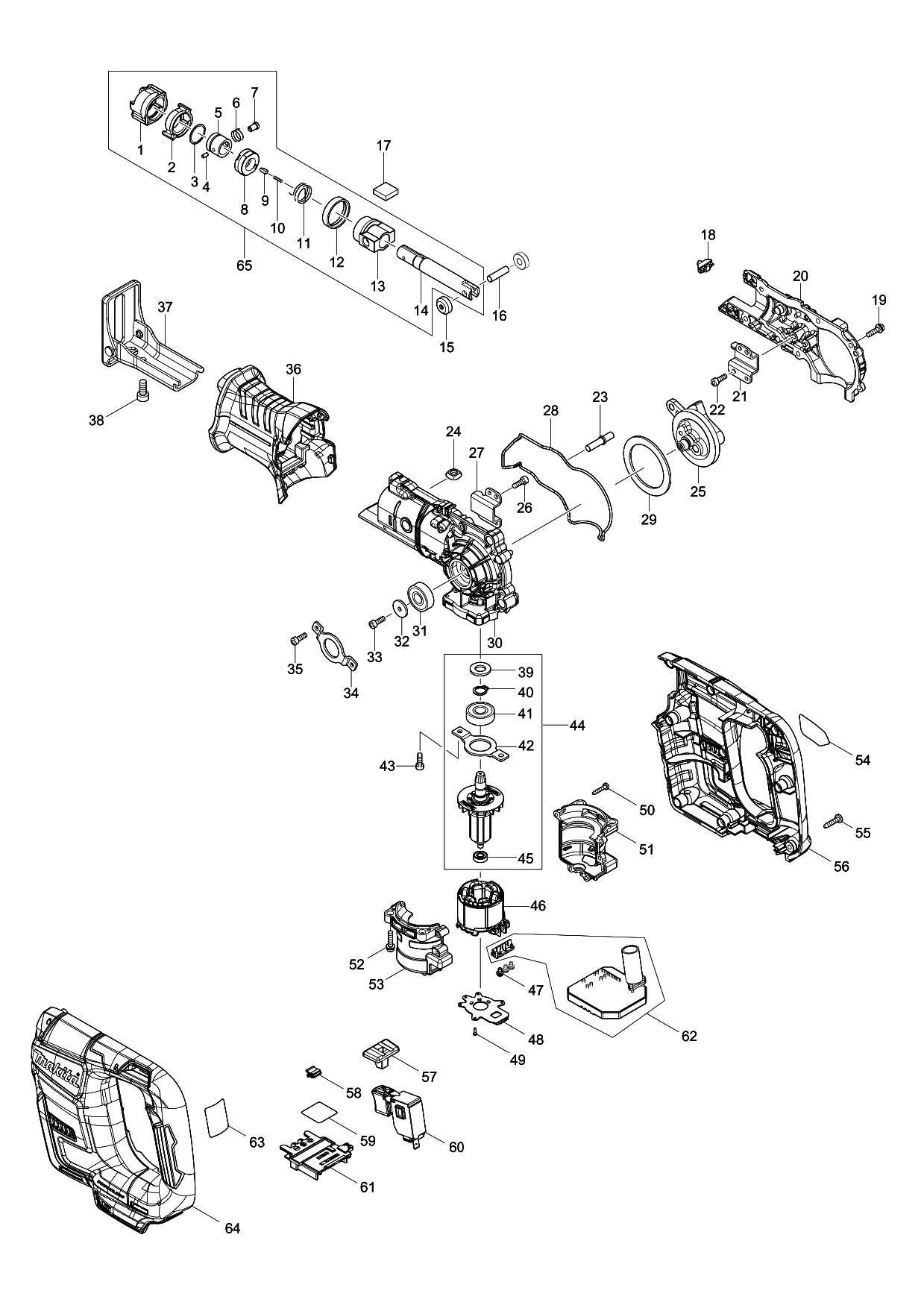

Sheet 1: Makita DJR188 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 422223-4 | |
| 2 | 310848-5 | |
| 3 | 257952-8 | Makita 257952-8 RETAINING RINGSHER, JR3050T |
| 4 | 268094-3 | Makita 268094-3 PIN3, JR300VT |
| 5 | 331720-8 | Makita 331720-8 GUIDE SLEEVE, JR3050T |
| 6 | 234381-2 | Makita 234381-2 COMPRESSION SPRING 6 |
| 7 | 256569-4 | Makita 256569-4 PIN |
| 8 | 458113-5 | |
| 9 | 310859-0 | Makita 310859-0 PUSH PIN, TEC.C0312 |
| 10 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 11 | 233594-2 | Makita 233594-2 TOPSION SPRING 17 |
| 12 | 424762-0 | Makita 424762-0 RUBBER RING |
| 13 | 144012-4 | Makita 144012-4 SLIDER GUIDE COMPLETE |
| 14 | 161796-9 | |
| 15 | 310663-7 | Makita 310663-7 ROLLER |
| 16 | 268341-2 | Makita 268341-2 PIN 6 |
| 17 | 424902-0 | Makita 424902-0 FELT 16X16 |
| 18 | 620434-7 | Makita 620434-7 LED CIRCUIT |
| 19 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 20 | 144809-1 | Makita 144809-1 GEAR HOUSING R COMPLETE |
| 21 | 347303-4 | Makita 347303-4 ROD GUIDE R |
| 22 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 23 | 256567-8 | Makita 256567-8 SHOULDER PIN 6-8 |
| 24 | 252157-5 | Makita 252157-5 SQUARE NUT M6 |
| 25 | 144806-7 | Makita 144806-7 GEAR COMPLETE |
| 26 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 27 | 347302-6 | Makita 347302-6 ROD GUIDE L |
| 28 | 422224-2 | Makita 422224-2 SEAL RING |
| 29 | 267336-2 | Makita 267336-2 FLAT WASHER 45, HR4002 |
| 30 | 144808-3 | Makita 144808-3 GEAR HOUSING L COMPLETE |
| 31 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 32 | 253400-5 | Makita 253400-5 FLAT WASHER 4 |
| 33 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 34 | 285031-2 | Makita 285031-2 BEARRING RETAINER 51 |
| 35 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 36 | 422221-8 | Makita 422221-8 INSULATION COVER |
| 37 | 161795-1 | Makita 161795-1 SHOE |
| 38 | 265531-8 | Makita 265531-8 HEX. SOCKET HEAD BOLT M6X14, JR3060T |
| 39 | 422225-0 | |
| 40 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 41 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 42 | 285032-0 | |
| 43 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 45 | 210039-7 | |
| 46 | 629292-8 | Makita 629292-8 STATOR DC18V |
| 47 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 48 | 620760-4 | Makita 620760-4 CONTROLLER A |
| 49 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 50 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 51 | 183H44-4 | Makita 183H44-4 Motor Housing Set for DJR188 XRJ07 |
| 52 | 911531-3 | Makita 911531-3 P.H.SCREW M4*18 WITH WRM |
| 53 | 183H44-4 | Makita 183H44-4 Motor Housing Set for DJR188 XRJ07 |
| 54 | 853U83-3 | |
| 55 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 56 | 183H42-8 | Makita 183H42-8 HANDLE SET COMPLETE |
| 57 | 458114-3 | Makita 458114-3 LOCK OFF BUTTON |
| 58 | 424517-3 | Makita 424517-3 CUSHION |
| 59 | 853U91-4 | |
| 60 | 650710-5 | Makita 650710-5 Switch C3JW-4B for HP480D HP481D |
| 61 | 643874-2 | Makita 643874-2 Terminal |
| 62 | 620759-9 | Makita 620759-9 CONTROLLER A |
| 63 | ||
| 64 | 183H42-8 | Makita 183H42-8 HANDLE SET COMPLETE |
