Makita DJR187
Makita DJR187: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DJR187: 71 positions on 1 sheet

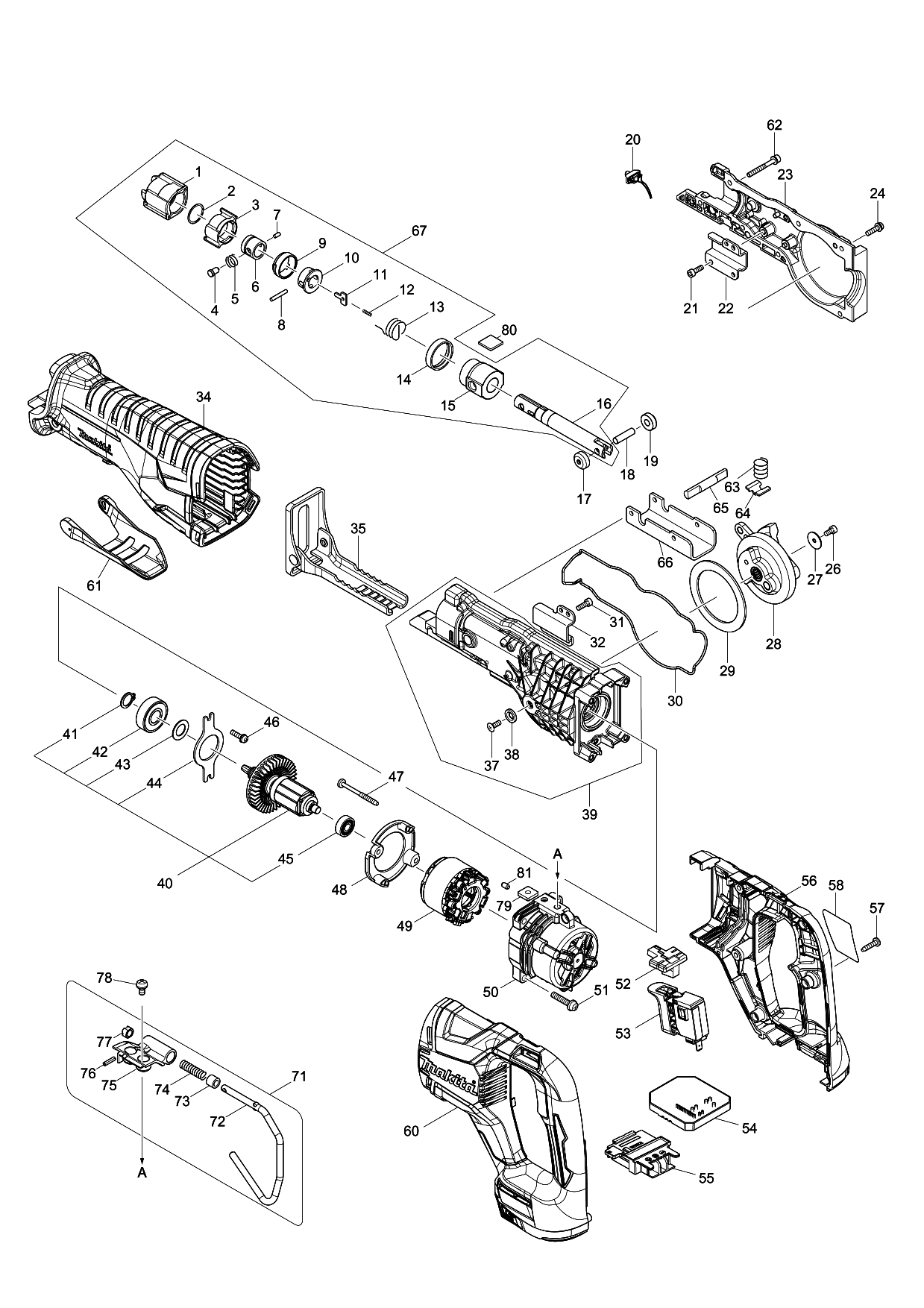

Sheet 1: Makita DJR187 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 424763-8 | Makita 424763-8 PROTECTOR |
| 2 | 257952-8 | Makita 257952-8 RETAINING RINGSHER, JR3050T |
| 3 | 310662-9 | Makita 310662-9 DRIVING SLEEVE |
| 4 | 256569-4 | Makita 256569-4 PIN |
| 5 | 234381-2 | Makita 234381-2 COMPRESSION SPRING 6 |
| 6 | 331720-8 | Makita 331720-8 GUIDE SLEEVE, JR3050T |
| 7 | 268094-3 | Makita 268094-3 PIN3, JR300VT |
| 8 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 9 | 417791-0 | Makita 417791-0 DRIVING SLEEVE GUIDE, JR181D |
| 10 | 418311-3 | Makita 418311-3 SLEEVE, JR181D |
| 11 | 345214-7 | Makita 345214-7 PUSH PLATE, JR300VT |
| 12 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 13 | 231687-9 | Makita 231687-9 Torsion Spring 17 for JR300VT |
| 14 | 424762-0 | Makita 424762-0 RUBBER RING |
| 15 | 143365-8 | Makita 143365-8 SLIDER GUIDE COMPLETE |
| 16 | 161376-1 | Makita 161376-1 SLIDER |
| 17 | 310663-7 | Makita 310663-7 ROLLER |
| 18 | 268341-2 | Makita 268341-2 PIN 6 |
| 19 | 310663-7 | Makita 310663-7 ROLLER |
| 20 | 620434-7 | Makita 620434-7 LED CIRCUIT |
| 21 | 922117-8 | Makita 922117-8 HEX. SOCKET HEAD BOLT M4X |
| 22 | 346936-2 | Makita 346936-2 ROD GUIDE R |
| 23 | 143362-4 | Makita 143362-4 GEAR HOUSING R COMPLETE |
| 24 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 26 | 922107-1 | Makita 922107-1 Hex. Socket Head Bolt for LC1230 |
| 27 | 267491-0 | Makita 267491-0 FLAT WASHER 4 |
| 28 | 143359-3 | Makita 143359-3 GEAR COMPLETE |
| 29 | 267490-2 | Makita 267490-2 FLAT WASHER 54 |
| 30 | 424764-6 | Makita 424764-6 SEAL RING |
| 31 | 922117-8 | Makita 922117-8 HEX. SOCKET HEAD BOLT M4X |
| 32 | 346935-4 | Makita 346935-4 ROD GUIDE L |
| 34 | 424765-4 | Makita 424765-4 INSULATION COVER |
| 35 | 161374-5 | Makita 161374-5 SHOE |
| 37 | 912112-6 | Makita 912112-6 Countersunk Screw M4X10 for RP0900 |
| 38 | 253825-3 | Makita 253825-3 FLAT WASHER 6 |
| 40 | 519391-3 | Makita 519391-3 ROTOR ASS'Y |
| 41 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 42 | 210118-1 | Makita 210118-1 BALL BEARING 6201DDW |
| 43 | 253744-3 | Makita 253744-3 FLAT WASHER 12, HR2410 |
| 44 | 285740-3 | Makita 285740-3 BEARING RETAINER 64 |
| 45 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 46 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 47 | 266069-6 | Makita 266069-6 TAPPING SCREW, UB1101 |
| 48 | 456178-1 | Makita 456178-1 BAFFLE PLATE |
| 49 | 629179-4 | Makita 629179-4 Stator for DJR187 20R0612F |
| 50 | 456179-9 | Makita 456179-9 MOTOR HOUSING |
| 51 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 52 | 456177-3 | Makita 456177-3 CHANGE BUTTON |
| 53 | 650759-5 | Makita 650759-5 Switch C3JW-6B-2 for DJR187, DJR360 |
| 54 | 620432-1 | Makita 620432-1 CONTROLLER A |
| 55 | 643899-6 | Makita 643899-6 TERMINAL BCV01 |
| 56 | 183C47-8 | Makita 183C47-8 HANDLE SET |
| 57 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 58 | 851P12-0 | |
| 60 | 183C47-8 | Makita 183C47-8 HANDLE SET |
| 61 | 456176-5 | Makita 456176-5 LOCK LEVER |
| 62 | 266979-7 | Makita 266979-7 HEX.SOCKET HEAD BOLT M4X35 WR |
| 63 | 231231-2 | Makita 231231-2 COMPRESSION SPRING 12 |
| 64 | 346938-8 | Makita 346938-8 SHOE LOCK PLATE |
| 65 | 326599-0 | Makita 326599-0 LOCK PIN |
| 66 | 346937-0 | Makita 346937-0 SHOE GUIDE PLATE |
| 72 | 281223-1 | Makita 281223-1 HOOK |
| 73 | 262561-0 | Makita 262561-0 SLEEVE 6, JR181D |
| 74 | 233455-6 | Makita 233455-6 COMPRESSION SPRING 7, JR181D |
| 75 | 319344-0 | Makita 319344-0 JOINT |
| 76 | 951057-3 | Makita 951057-3 SPRING PIN 3-12 |
| 77 | 310661-1 | Makita 310661-1 LOCK SLEEVE |
| 78 | 911206-4 | Makita 911206-4 Pan Head Screw M5*10 for 3612BR |
| 79 | 264002-2 | Makita 264002-2 SQUARE NUT M5, JR181D |
| 80 | 424858-7 | Makita 424858-7 FELT 16X16 |
| 81 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
