Makita DJR181
Makita DJR181: exploded parts diagram, 1 sheet, 82 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DJR181: 82 positions on 1 sheet

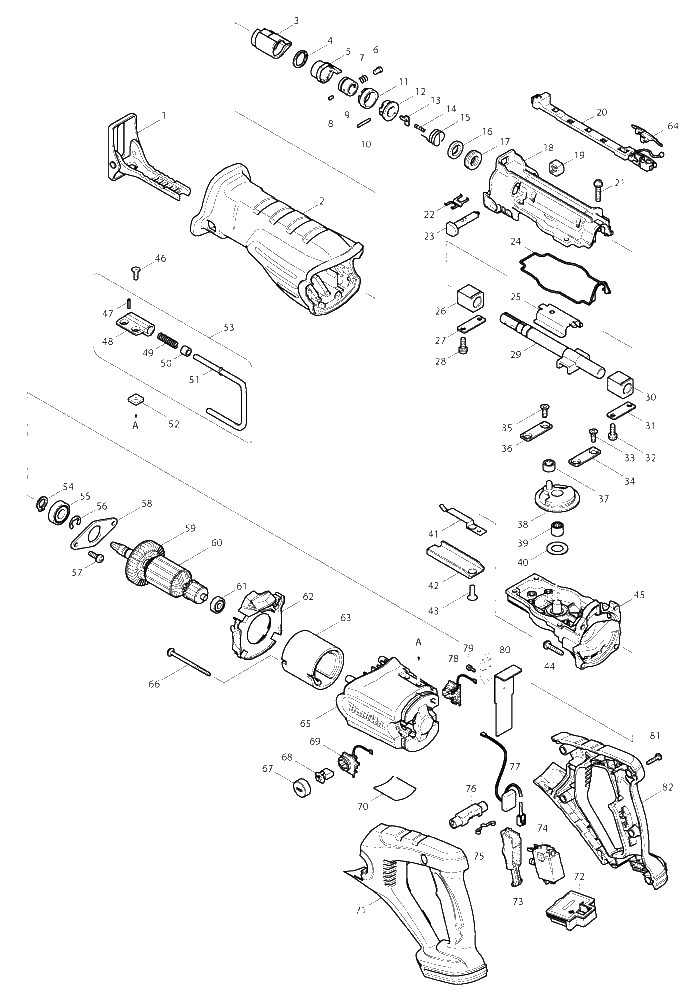

Sheet 1: Makita DJR181 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 165406-0 | Makita 165406-0 Reciprocating Shoe for JR307CT BJR181 |
| 2 | 421945-3 | Makita 421945-3 INSULATION COVER, JR181D |
| 3 | 424147-0 | Makita 424147-0 PROTECTOR, JR3050T |
| 4 | 257952-8 | Makita 257952-8 RETAINING RINGSHER, JR3050T |
| 5 | 310285-3 | Makita 310285-3 DRIVING SLEEVE, JR3050T |
| 6 | 256492-3 | Makita 256492-3 SHOULDER PIN 5, JR3070CT |
| 7 | 233345-3 | Makita 233345-3 COMPRESSION SPRING, JR300VT |
| 8 | 268094-3 | Makita 268094-3 PIN3, JR300VT |
| 9 | 331720-8 | Makita 331720-8 GUIDE SLEEVE, JR3050T |
| 10 | 256158-5 | Makita 256158-5 PIN 3, JR3050T |
| 11 | 417791-0 | Makita 417791-0 DRIVING SLEEVE GUIDE, JR181D |
| 12 | 418311-3 | Makita 418311-3 SLEEVE, JR181D |
| 13 | 345214-7 | Makita 345214-7 PUSH PLATE, JR300VT |
| 14 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 15 | 231687-9 | Makita 231687-9 Torsion Spring 17 for JR300VT |
| 16 | 213151-2 | Makita 213151-2 OIL SEAL 14, 6935FD |
| 17 | 213174-0 | Makita 213174-0 X Ring 14 JR3050T |
| 18 | 154813-2 | Makita 154813-2 GEAR HOUSING COVER COMPLETE, JR181D |
| 19 | 418806-6 | Makita 418806-6 CAP, JR3050T |
| 20 | 631689-9 | Makita 631689-9 LED CIRCUIT, JR181D |
| 21 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 22 | 232221-8 | Makita 232221-8 LEAF SPRING, JR3050T |
| 23 | 162236-0 | Makita 162236-0 SHIFT BUTTON, JR3050T |
| 24 | 421946-1 | Makita 421946-1 SEAL RING, JR181D |
| 25 | 345480-6 | Makita 345480-6 SLIDE PLATE, JR3050T |
| 26 | 214170-1 | Makita 214170-1 Plane Bearing 14A for JR3060T |
| 27 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 28 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 29 | 168405-1 | Makita 168405-1 Slider Complete for JR3050T BJR181 DJR181 |
| 30 | 214170-1 | Makita 214170-1 Plane Bearing 14A for JR3060T |
| 31 | 341462-6 | Makita 341462-6 PLATE, JR300VT |
| 32 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 33 | 265148-7 | Makita 265148-7 TORX SOCKET HEAD SCREW M5X14, JR3050 |
| 34 | 344795-8 | Makita 344795-8 PLATE C, JR180D |
| 35 | 265148-7 | Makita 265148-7 TORX SOCKET HEAD SCREW M5X14, JR3050 |
| 36 | 344795-8 | Makita 344795-8 PLATE C, JR180D |
| 37 | 212959-1 | Makita 212959-1 NEEDLE BEARING, JR182D |
| 38 | 125423-2 | Makita 125423-2 GEAR ASSEMBLY |
| 39 | 212080-6 | Makita 212080-6 NEEDLE BEARING 1012 |
| 40 | 253797-2 | Makita 253797-2 FLAT WASHER 14, JR3030 |
| 41 | 232222-6 | Makita 232222-6 LEAF SPRING B, JR3050T |
| 42 | 345479-1 | Makita 345479-1 SHOE GUIDE, JR3050T |
| 43 | 265165-7 | Makita 265165-7 TORX SOCKET C.S HEAD SCREW, JR3050T |
| 44 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 45 | 154812-4 | Makita 154812-4 GEAR HOUSING COMPLETE, JR181D |
| 46 | 912207-5 | Makita 912207-5 COUNTERSUNK HEAD SCREW M5*10, DK1804 |
| 47 | 951057-3 | Makita 951057-3 SPRING PIN 3-12 |
| 48 | 313127-0 | Makita 313127-0 JOINT, JR181D |
| 49 | 233455-6 | Makita 233455-6 COMPRESSION SPRING 7, JR181D |
| 50 | 262561-0 | Makita 262561-0 SLEEVE 6, JR181D |
| 51 | 281218-4 | Makita 281218-4 HOOK, JR181D |
| 52 | 264002-2 | Makita 264002-2 SQUARE NUT M5, JR181D |
| 54 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 55 | 210102-6 | Makita 210102-6 Ball Bearing for 6001DDW JR3050T |
| 56 | 961016-9 | Makita 961016-9 STOP RING E-10 JR180D |
| 57 | 911225-0 | Makita 911225-0 PAN HEAD SCREW M5X16 WM, JR300VT |
| 58 | 285726-7 | Makita 285726-7 BEARING RETAINER 63, JR181D |
| 60 | 519176-7 | Makita 519176-7 ARMATURE ASSY, JR181D |
| 61 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 62 | 419333-6 | Makita 419333-6 BAFFLE PLATE, JR181D |
| 63 | 638107-8 | Makita 638107-8 YOKE UNITE, MT560 |
| 64 | 419327-1 | Makita 419327-1 COVER, JR181D |
| 65 | 419330-2 | Makita 419330-2 MOTOR HOUSING, JR181D |
| 66 | 266292-3 | Makita 266292-3 TAPPING SCREW 4*65, SS610D |
| 67 | 643941-3 | Makita 643941-3 Brush Holder Cap for BJR181 |
| 68 | 194435-6 | Makita 194435-6 CB-441 Carbon Brushes BHS630 BHR202 BSR730 BJR181 BSS610 |
| 69 | ||
| 70 | 815E72-0 | |
| 71 | 187485-8 | Makita 187485-8 HANDLE SET, BJR181, TEC. 91780 |
| 72 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 73 | 419336-0 | Makita 419336-0 SWITCH LEVER, JR181D |
| 74 | 650647-6 | Makita 650647-6 Switch TEC.91780 for BJR181 DJR181 |
| 75 | 232152-1 | Makita 232152-1 Leaf Spring for JR181D |
| 76 | 419334-4 | Makita 419334-4 LOCK OFF BUTTON, JR181D |
| 77 | 631690-4 | Makita 631690-4 POWER SUPPLY CIRCUIT, JR181D |
| 78 | 638914-9 | Makita 638914-9 Brush Holder Complete for BJR181 BJR240 JR140D JR180D |
| 79 | 911006-2 | Makita 911006-2 PAN HEAD SCREW M3*8, HR240D |
| 80 | 689116-0 | Makita 689116-0 HEAT SINK, JR181D |
| 81 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 82 | 187485-8 | Makita 187485-8 HANDLE SET, BJR181, TEC. 91780 |
| 53 | 125321-0 | Makita 125321-0 HOOK ASSEMBLY, JR181D |
| 59 | 241869-5 | Makita 241869-5 FAN 55, JR181D |
