Makita DHW080
Makita DHW080: exploded parts diagram, 2 sheets, 95 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DHW080: 95 positions on 2 sheets
Sheet 1: Makita DHW080 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 2 | 458336-5 | |
| 3 | 458332-3 | |
| 4 | 232471-5 | |
| 5 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 6 | 459380-5 | |
| 7 | 183M37-1 | |
| 8 | 456837-7 | Makita 456837-7 SWITCH DIAL 50 |
| 9 | 268292-9 | Makita 268292-9 PIN 4 |
| 10 | 213176-6 | Makita 213176-6 O-RING 14, M442 |
| 11 | 651382-9 | Makita 651382-9 SWITCH 1703.4702, DVC750L |
| 12 | 347530-3 | |
| 13 | 422411-3 | |
| 14 | 213527-3 | Makita 213527-3 O RING 38 HM0860C |
| 16 | 257926-9 | Makita 257926-9 STOP RING E-2.0BPT350,BFR440 |
| 17 | 327333-1 | |
| 18 | 347513-3 | |
| 19 | 232435-9 | |
| 20 | 620B17-5 | |
| 21 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 22 | 183M55-9 | |
| 23 | 644809-6 | Makita 644809-6 TERMINAL |
| 24 | 183M55-9 | |
| 25 | 855Y74-4 | |
| 28 | 422250-1 | |
| 29 | 458326-8 | |
| 30 | 422409-0 | |
| 31 | 629414-0 | |
| 32 | 458327-6 | |
| 33 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 34 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 35 | 519570-3 | |
| 36 | 922233-6 | Makita 922233-6 HEX SOCKET HEAD BOLT M5X2 |
| 37 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 38 | 161823-2 | |
| 39 | 922233-6 | Makita 922233-6 HEX SOCKET HEAD BOLT M5X2 |
| 41 | 422409-0 | |
| 42 | 183M37-1 | |
| 43 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 44 | 855Y66-3 | |
| 100 | 286212-1 | Makita 286212-1 CAP 20, LS1013 |

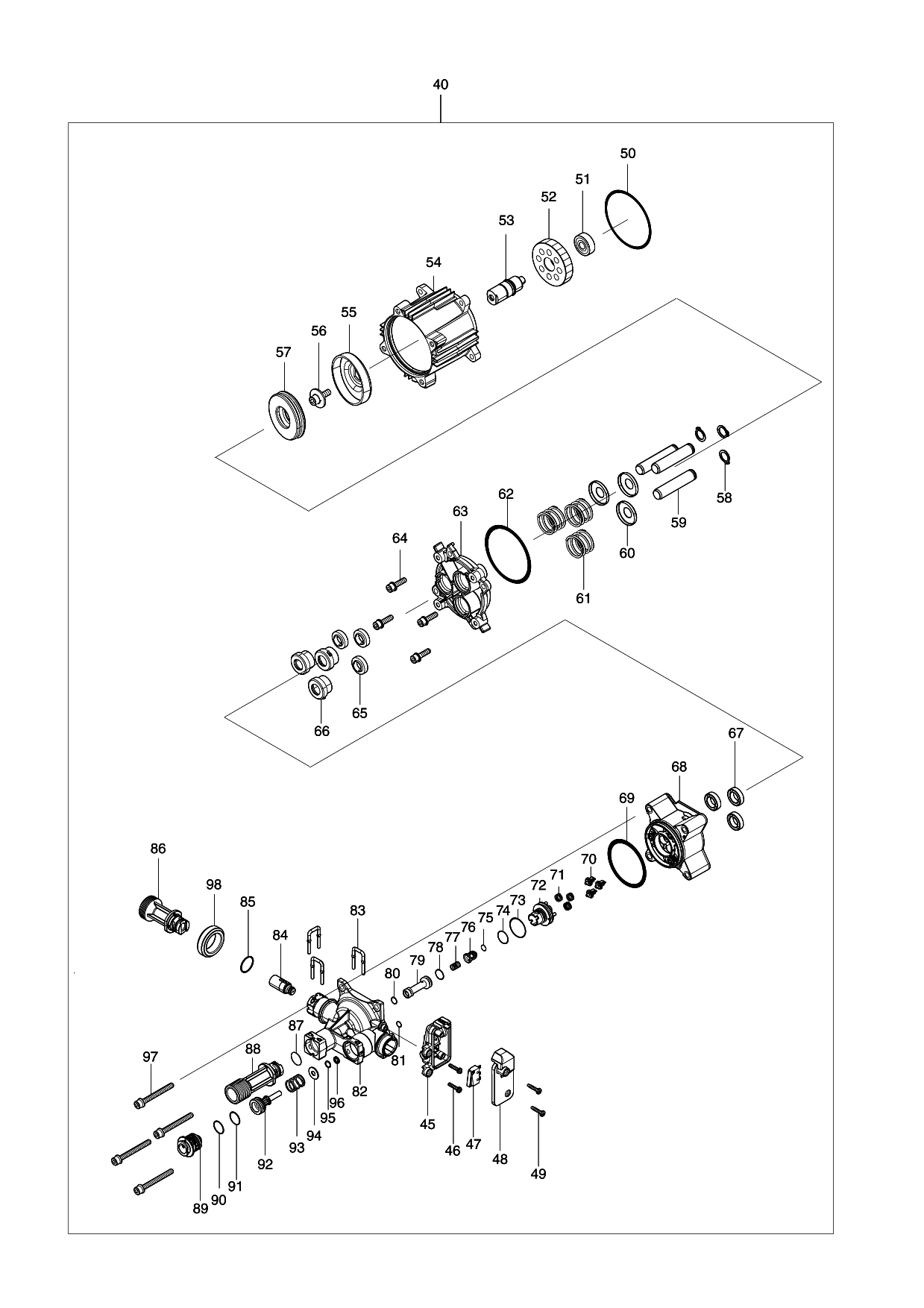

Sheet 2: Makita DHW080 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 45 | 183M00-4 | |
| 46 | 911028-2 | Makita 911028-2 PAN HEAD SCREW M3X16 |
| 47 | 632N61-2 | |
| 48 | 183M00-4 | |
| 49 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 50 | 213706-3 | Makita 213706-3 O RING 67 |
| 51 | 210032-1 | |
| 52 | 221597-8 | |
| 53 | 327076-5 | |
| 54 | 161821-6 | |
| 55 | 347341-6 | |
| 56 | 265A34-8 | |
| 57 | 210176-7 | |
| 58 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 59 | 327075-7 | |
| 60 | 347340-8 | |
| 61 | 232434-1 | |
| 62 | 213706-3 | Makita 213706-3 O RING 67 |
| 63 | 319670-7 | |
| 64 | 922233-6 | Makita 922233-6 HEX SOCKET HEAD BOLT M5X2 |
| 65 | 213861-1 | |
| 66 | 458323-4 | |
| 67 | 422254-3 | |
| 68 | 161820-8 | |
| 69 | 213656-2 | Makita 213656-2 O-RING 53, HM0830 |
| 70 | 458320-0 | |
| 71 | 232432-5 | |
| 72 | 458321-8 | |
| 73 | 213379-2 | Makita 213379-2 O-RING 21, HR4002 |
| 74 | 213238-0 | |
| 75 | 213005-3 | Makita 213005-3 O RING 5, 5277NB |
| 76 | 458322-6 | |
| 77 | 232433-3 | |
| 78 | 213055-8 | Makita 213055-8 O RING 10 |
| 79 | 458309-8 | |
| 80 | 213011-8 | Makita 213011-8 O RING 7, LS1216 |
| 81 | 213005-3 | Makita 213005-3 O RING 5, 5277NB |
| 82 | 319784-2 | |
| 83 | 327074-9 | |
| 84 | 126765-7 | |
| 85 | 213176-6 | Makita 213176-6 O-RING 14, M442 |
| 86 | 458316-1 | |
| 87 | 213176-6 | Makita 213176-6 O-RING 14, M442 |
| 88 | 458315-3 | |
| 89 | 458310-3 | |
| 90 | 213223-3 | Makita 213223-3 O RING 16 |
| 91 | 213154-6 | Makita 213154-6 O RING 14 |
| 92 | 458311-1 | |
| 93 | 232429-4 | |
| 94 | 253407-1 | |
| 95 | 213005-3 | Makita 213005-3 O RING 5, 5277NB |
| 96 | 253408-9 | |
| 97 | 265A33-0 | |
| 98 | 422409-0 |
