Makita DHS900
Makita DHS900: exploded parts diagram, 1 sheet, 113 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DHS900: 113 positions on 1 sheet

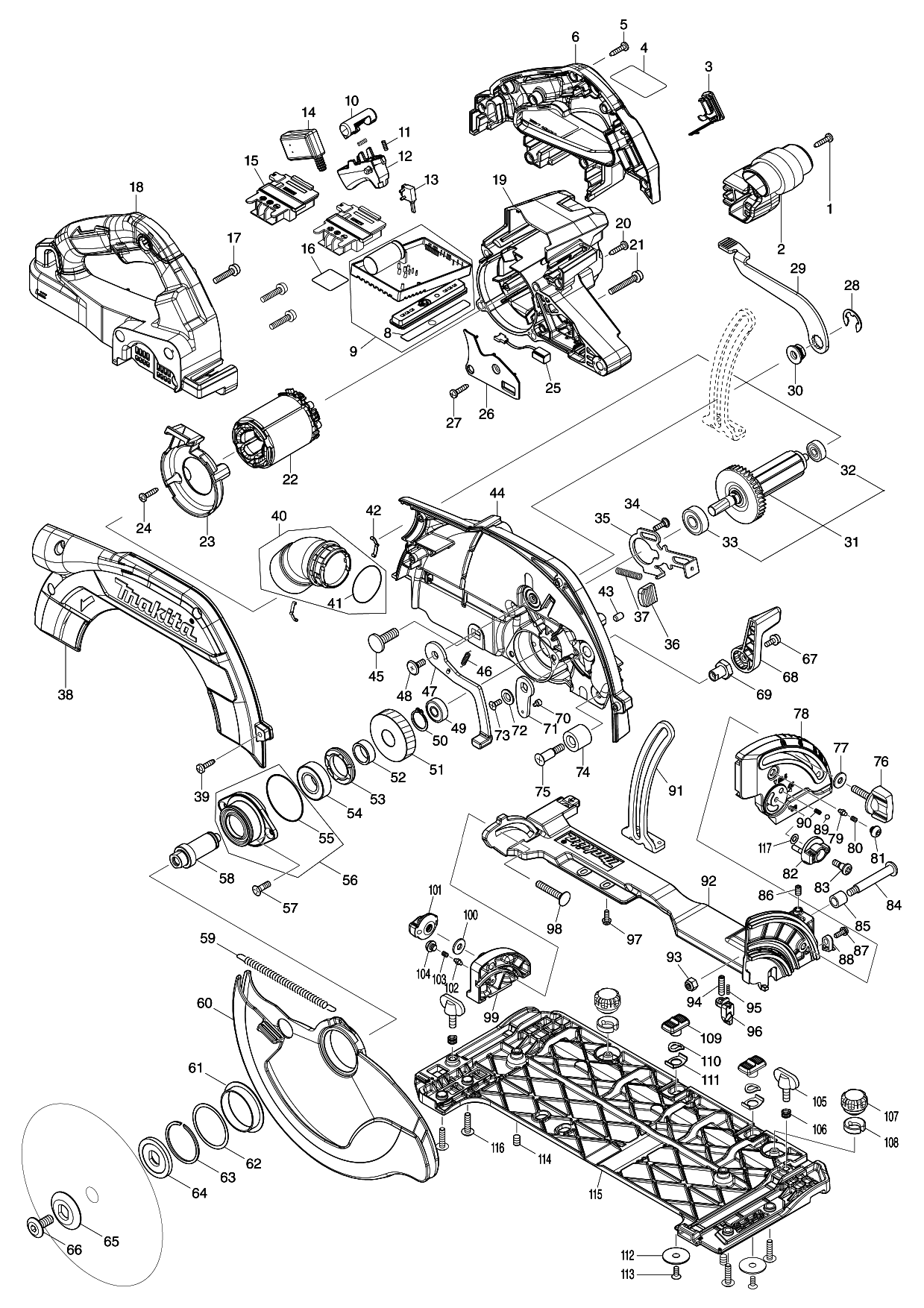

Sheet 1: Makita DHS900 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 2 | 459828-7 | |
| 3 | 140F99-0 | |
| 4 | 856L73-1 | |
| 5 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 6 | 183N39-3 | |
| 8 | 813T74-0 | |
| 10 | 419704-7 | Makita 419704-7 LOCK OFF BUTTONKP0810C |
| 11 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 12 | 459829-5 | |
| 13 | 632M92-5 | |
| 14 | 651083-9 | Makita 651083-9 SWITCH |
| 15 | 643874-2 | Makita 643874-2 Terminal |
| 16 | 856L79-9 | |
| 17 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 18 | 183N39-3 | |
| 19 | 459823-7 | |
| 20 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 21 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 22 | 629462-9 | |
| 23 | 459826-1 | |
| 24 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 25 | 620936-3 | |
| 26 | 459827-9 | |
| 27 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 28 | 257953-6 | Makita 257953-6 BOWSTOP RING E-12, 5007MG |
| 29 | 271453-2 | |
| 30 | 252262-8 | |
| 31 | 519602-6 | |
| 32 | 210022-4 | Makita 210022-4 BALL BEARING 626DDW, 9526NB |
| 33 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 34 | 251529-1 | |
| 35 | 347575-1 | |
| 36 | 286039-9 | |
| 37 | 233084-5 | Makita 233084-5 COMPRESSION SPRING 12 FOR HR2410 |
| 38 | 319860-2 | |
| 39 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 41 | 213444-7 | |
| 42 | 232227-6 | Makita 232227-6 LEAF SPRINGBTP130 |
| 43 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 44 | 140P83-5 | |
| 45 | 266396-1 | Makita 266396-1 FLAT HAND SQUARE NECK BOLT, 5007MG |
| 46 | 232563-0 | |
| 47 | 162686-9 | |
| 48 | 265A60-7 | |
| 49 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 50 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 51 | 226934-1 | |
| 52 | 257451-0 | |
| 53 | 285809-3 | Makita 285809-3 BEARING RETAINER 23-36, N5900B |
| 54 | 210301-0 | Makita 210301-0 BALL BEARING 6003DDW |
| 55 | 213623-7 | Makita 213623-7 O-RING 46, LF1000 |
| 57 | 265034-2 | Makita 265034-2 COUNTERSUNK HEAD SCREW M5*16, 5606B |
| 58 | 327192-3 | |
| 59 | 232562-2 | |
| 60 | 319861-0 | |
| 61 | 459830-0 | |
| 62 | 267337-0 | Makita 267337-0 FLAT WASHER 40BTP130 |
| 63 | 257452-8 | |
| 64 | 224360-8 | Makita 224360-8 INNER FLANCE 40 FOR |
| 65 | 224600-4 | |
| 66 | 265A59-2 | |
| 67 | 911113-1 | Makita 911113-1 PAN HEAD SCREW M4*10 WR, LS1040 |
| 68 | 271451-6 | |
| 69 | 252275-9 | |
| 70 | 265A82-7 | |
| 71 | 347576-9 | |
| 72 | 347577-7 | |
| 73 | 265135-6 | Makita 265135-6 COUNTERSUNK HEAD SCREW M4*10 |
| 74 | 262185-2 | |
| 75 | 251572-0 | |
| 76 | 265776-8 | Makita 265776-8 THUMB SCREW M5*33, SP6000 |
| 77 | 253111-2 | Makita 253111-2 FLAT WASHER 6 |
| 78 | 319865-2 | |
| 79 | 263041-9 | |
| 80 | 231234-6 | Makita 231234-6 COMPRESSION SPRING 3.5 |
| 81 | 266559-9 | |
| 82 | 450704-8 | Makita 450704-8 DIAL 27 |
| 83 | 251370-2 | Makita 251370-2 PAN HEAD SCREW M5, 5007MG |
| 84 | 251528-3 | Makita 251528-3 PAN HEAD SCREW M6, HS0600 |
| 85 | 257580-9 | Makita 257580-9 SLEEVE 8 |
| 86 | 266229-0 | Makita 266229-0 HEX.SOCKET SET SCREW M5*8, 5007MG |
| 87 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 88 | 419632-6 | Makita 419632-6 POSITION PLATESP6000 |
| 89 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 90 | 233314-4 | Makita 233314-4 COMPRESSION SPRING 4, 5007MG |
| 91 | 347574-3 | |
| 92 | 140P89-3 | |
| 93 | 252014-7 | Makita 252014-7 HEX LOCK NUT M6*10, N5900B |
| 94 | 265A83-5 | |
| 95 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 96 | 412210-1 | |
| 97 | 265A84-3 | |
| 98 | 266332-7 | |
| 99 | 319866-0 | |
| 100 | 253111-2 | Makita 253111-2 FLAT WASHER 6 |
| 101 | 252270-9 | |
| 102 | 263041-9 | |
| 103 | 231234-6 | Makita 231234-6 COMPRESSION SPRING 3.5 |
| 104 | 266559-9 | |
| 105 | 265701-9 | Makita 265701-9 THUMB SCREW M6X14, 5604R |
| 106 | 233376-2 | Makita 233376-2 Compression Spring 8 for MT950 9557NB |
| 107 | 265775-0 | Makita 265775-0 THUMB SCREW M5*33, SP6000 |
| 108 | 419627-9 | Makita 419627-9 HOLDERSP6000 |
| 109 | 458092-7 | Makita 458092-7 SLIDE LEVER, DSP600 |
| 110 | 253932-2 | Makita 253932-2 WAVE WASHER 10, 2012NB |
| 111 | 345977-5 | Makita 345977-5 PLATE, SP6000 |
| 112 | 345748-0 | Makita 345748-0 LOCK WASHERSP6000 |
| 113 | 912112-6 | Makita 912112-6 Countersunk Screw M4X10 for RP0900 |
| 114 | 266225-8 | Makita 266225-8 HEX.S HEAD SET SCREW M6*8, SS500D |
| 115 | 319862-8 | |
| 116 | 265181-9 | Makita 265181-9 TRUSS HEAD SCREW M5*20 |
| 117 | 253811-4 | Makita 253811-4 FLAT WASHER 5, 5007MG |
