Makita DHS783
Makita DHS783: exploded parts diagram, 1 sheet, 95 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DHS783: 95 positions on 1 sheet

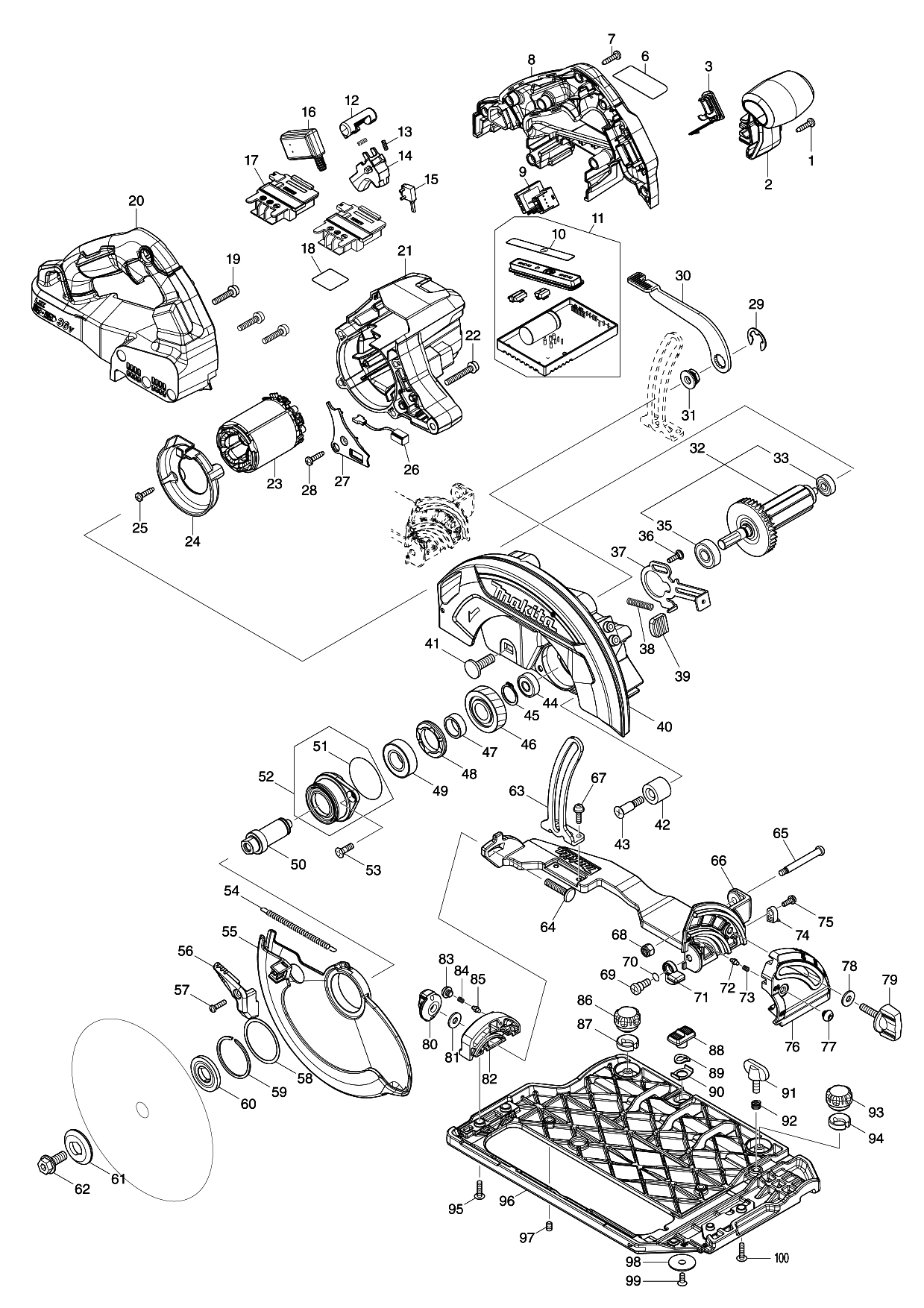

Sheet 1: Makita DHS783 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 2 | 458750-5 | |
| 3 | 140F99-0 | |
| 6 | 855R05-1 | |
| 7 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 8 | 183K52-3 | |
| 9 | 620750-7 | Makita 620750-7 SUB CONTROLLER, DLS111 |
| 10 | 812G25-2 | |
| 12 | 419704-7 | Makita 419704-7 LOCK OFF BUTTONKP0810C |
| 13 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 14 | 458594-3 | |
| 15 | 632M92-5 | |
| 16 | 651083-9 | Makita 651083-9 SWITCH |
| 17 | 643874-2 | Makita 643874-2 Terminal |
| 18 | 855R09-3 | |
| 19 | 911243-8 | Makita 911243-8 PAN HEAD SCREW M5X25, DK1804 |
| 20 | 183K52-3 | |
| 21 | 458746-6 | |
| 22 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 23 | 629375-4 | Makita 629375-4 STATOR DC36V, EHS782 |
| 24 | 458749-0 | |
| 25 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 26 | 620936-3 | |
| 27 | 458751-3 | |
| 28 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 29 | 257953-6 | Makita 257953-6 BOWSTOP RING E-12, 5007MG |
| 30 | 271447-7 | |
| 31 | 252262-8 | |
| 32 | 519534-7 | Makita 519534-7 ROTOR ASS'Y |
| 33 | 210022-4 | Makita 210022-4 BALL BEARING 626DDW, 9526NB |
| 35 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 36 | 251529-1 | |
| 37 | 347441-2 | |
| 38 | 232381-6 | |
| 39 | 286039-9 | |
| 40 | 140F30-6 | |
| 41 | 266396-1 | Makita 266396-1 FLAT HAND SQUARE NECK BOLT, 5007MG |
| 42 | 262185-2 | |
| 43 | 251572-0 | |
| 44 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 45 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 46 | 226838-7 | Makita 226838-7 HELICAL GEAR 37, DHS782 |
| 47 | 257451-0 | |
| 48 | 285809-3 | Makita 285809-3 BEARING RETAINER 23-36, N5900B |
| 49 | 210301-0 | Makita 210301-0 BALL BEARING 6003DDW |
| 50 | 327192-3 | |
| 51 | 213565-5 | Makita 213565-5 O RING 42, 9067 |
| 53 | 265034-2 | Makita 265034-2 COUNTERSUNK HEAD SCREW M5*16, 5606B |
| 54 | 232467-6 | |
| 55 | 319740-2 | Makita 319740-2 SAFETY COVER, DHS782 |
| 56 | 271450-8 | |
| 57 | 265178-8 | Makita 265178-8 PAN HEAD SCREW M4X16, BTP130 |
| 58 | 267337-0 | Makita 267337-0 FLAT WASHER 40BTP130 |
| 59 | 257452-8 | |
| 60 | 224593-5 | Makita 224593-5 INNER FLANGE 35 |
| 61 | 224409-4 | Makita 224409-4 35 Outer Flange 35 for 5008MG |
| 62 | 266283-4 | Makita 266283-4 Hex. Socket Hex Bolt M8X20, 5007MG |
| 63 | 347532-9 | |
| 64 | 251920-3 | Makita 251920-3 R.H. SQUARE NECK BOLT M6*30, 1900B |
| 65 | 265118-6 | Makita 265118-6 PAN HEAD SCREW M5, MT580 |
| 66 | 319829-6 | |
| 67 | 911516-9 | Makita 911516-9 PAN HEAD SCREW M4X12, 6935FD |
| 68 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 69 | 251267-5 | Makita 251267-5 PAN HEAD SCREW M6, LS1013 |
| 70 | 213026-5 | Makita 213026-5 O RING 7, SA7000C |
| 71 | 319827-0 | |
| 72 | 263041-9 | |
| 73 | 231234-6 | Makita 231234-6 COMPRESSION SPRING 3.5 |
| 74 | 419632-6 | Makita 419632-6 POSITION PLATESP6000 |
| 75 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 76 | 319830-1 | |
| 77 | 266559-9 | |
| 78 | 253111-2 | Makita 253111-2 FLAT WASHER 6 |
| 79 | 265776-8 | Makita 265776-8 THUMB SCREW M5*33, SP6000 |
| 80 | 252270-9 | |
| 81 | 253111-2 | Makita 253111-2 FLAT WASHER 6 |
| 82 | 319831-9 | |
| 83 | 266559-9 | |
| 84 | 231234-6 | Makita 231234-6 COMPRESSION SPRING 3.5 |
| 85 | 263041-9 | |
| 86 | 265775-0 | Makita 265775-0 THUMB SCREW M5*33, SP6000 |
| 87 | 419627-9 | Makita 419627-9 HOLDERSP6000 |
| 88 | 458092-7 | Makita 458092-7 SLIDE LEVER, DSP600 |
| 89 | 253932-2 | Makita 253932-2 WAVE WASHER 10, 2012NB |
| 90 | 345977-5 | Makita 345977-5 PLATE, SP6000 |
| 91 | 265701-9 | Makita 265701-9 THUMB SCREW M6X14, 5604R |
| 92 | 233376-2 | Makita 233376-2 Compression Spring 8 for MT950 9557NB |
| 93 | 265775-0 | Makita 265775-0 THUMB SCREW M5*33, SP6000 |
| 94 | 419627-9 | Makita 419627-9 HOLDERSP6000 |
| 95 | 265174-6 | |
| 96 | 319828-8 | |
| 97 | 266225-8 | Makita 266225-8 HEX.S HEAD SET SCREW M6*8, SS500D |
| 98 | 345748-0 | Makita 345748-0 LOCK WASHERSP6000 |
| 99 | 912112-6 | Makita 912112-6 Countersunk Screw M4X10 for RP0900 |
| 100 | 265174-6 |
