Makita DHS660: exploded parts diagram, 1 sheet, 77 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DHS660: 77 positions on 1 sheet

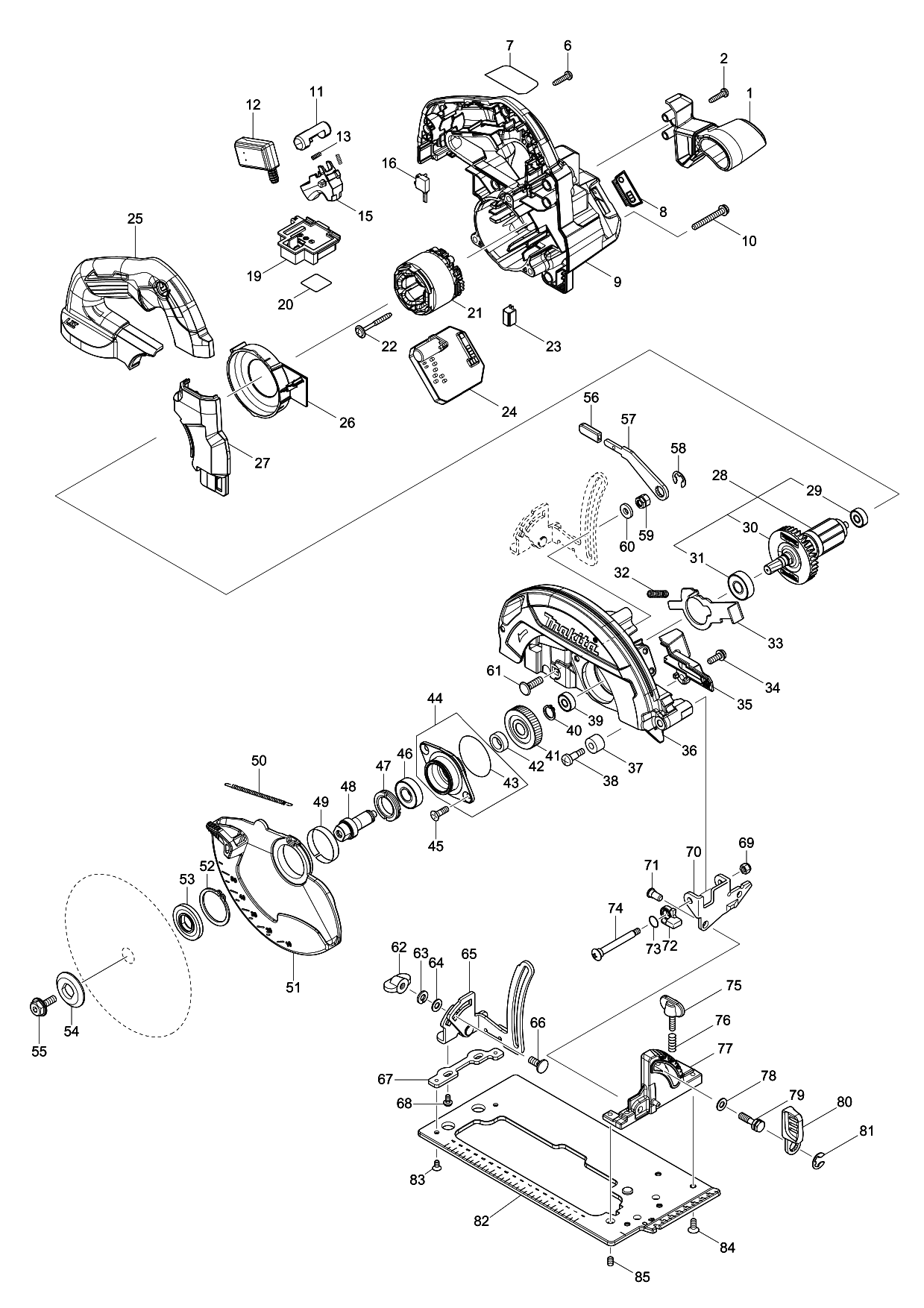

Sheet 1: Makita DHS660 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 458590-1 | |
| 2 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 6 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 7 | 854N75-3 | |
| 8 | 144251-6 | |
| 9 | 140C48-9 | |
| 10 | 911263-2 | Makita 911263-2 PAN HEAD SCREW M5X40 WR, 4100NH |
| 11 | 419704-7 | Makita 419704-7 LOCK OFF BUTTONKP0810C |
| 12 | 651083-9 | Makita 651083-9 SWITCH |
| 13 | 231433-0 | Makita 231433-0 COMPRESSION SPRING 4, 6226D |
| 15 | 458594-3 | |
| 16 | 632L80-6 | |
| 19 | 644809-6 | Makita 644809-6 TERMINAL |
| 20 | 854N80-0 | |
| 21 | 629362-3 | |
| 22 | 251517-8 | |
| 23 | 620936-3 | |
| 24 | 620935-5 | |
| 25 | 458584-6 | |
| 26 | 458586-2 | |
| 27 | 458592-7 | |
| 28 | 519527-4 | Makita 519527-4 ARMATURE ASSY |
| 29 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 31 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 32 | 233117-6 | Makita 233117-6 COMPRESSION SPRING 6, CS550D |
| 33 | 347400-6 | |
| 34 | 911223-4 | Makita 911223-4 PAN HEAD SCREW M5*16, JR3070T |
| 35 | 458589-6 | |
| 36 | 140D07-9 | |
| 37 | 262511-5 | Makita 262511-5 RUBBER SLEEVE 6, LS1040 |
| 38 | 265115-2 | Makita 265115-2 + PAN HEAD SCREW M5 BHS630 |
| 39 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 40 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 41 | 226192-9 | |
| 42 | 257173-2 | Makita 257173-2 RING 12, 5806B |
| 43 | 213512-6 | Makita 213512-6 O-Ring 39 for SS610D |
| 45 | 265034-2 | Makita 265034-2 COUNTERSUNK HEAD SCREW M5*16, 5606B |
| 46 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 47 | 285843-3 | |
| 48 | 327143-6 | |
| 49 | 345469-4 | Makita 345469-4 THICKNESS RING, SS610D |
| 50 | 231832-6 | |
| 51 | 458680-0 | Makita 458680-0 SAFETY COVER, DHS661 |
| 52 | 961152-1 | Makita 961152-1 RETAINING RING (EXT)S-34, SS610D |
| 53 | 224593-5 | Makita 224593-5 INNER FLANGE 35 |
| 54 | 224409-4 | Makita 224409-4 35 Outer Flange 35 for 5008MG |
| 55 | 266925-0 | Makita 266925-0 HEX SOCKET HEAD BOLT M6X18 |
| 56 | 286036-5 | |
| 57 | 347399-5 | |
| 58 | 257982-9 | Makita 257982-9 BOW STOP RING E-8 |
| 59 | 264096-7 | Makita 264096-7 HEX. NUT M6 |
| 60 | 267118-2 | |
| 61 | 266737-1 | Makita 266737-1 FLAT HEAD SQ. NECK BOLT M6X20 |
| 62 | 252631-3 | Makita 252631-3 SCREW M6 |
| 63 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 64 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 65 | 161899-9 | |
| 66 | 265939-6 | Makita 265939-6 CAP SQUARE NECK BOLT M6X1 |
| 67 | 347401-4 | |
| 68 | 265648-7 | |
| 69 | 252103-8 | Makita 252103-8 HEX LOCK NUT M5-8 ROHS, 5604R |
| 70 | 345590-9 | Makita 345590-9 ANGULAR GUIDE BHS630 |
| 71 | 256480-0 | Makita 256480-0 SHOULDER PIN 6-7, MT581 |
| 72 | 318823-5 | Makita 318823-5 STOPPER |
| 73 | 213977-2 | Makita 213977-2 O-RING 7, GA5010 |
| 74 | 266734-7 | Makita 266734-7 TRUSS HEAD SCREW M5 |
| 75 | 251896-4 | Makita 251896-4 THUMB SCREW, SS610D |
| 76 | 231007-7 | Makita 231007-7 COMPRESSION SPRING 6, SS610D |
| 77 | 319715-1 | |
| 78 | 941151-9 | Makita 941151-9 WASHER 6, 5806B |
| 79 | 266735-5 | Makita 266735-5 HEX.BOLT M6X20 |
| 80 | 271446-9 | |
| 81 | 257982-9 | Makita 257982-9 BOW STOP RING E-8 |
| 82 | 347398-7 | |
| 83 | 265085-5 | Makita 265085-5 HEAD SCREW M4X8 5621RD |
| 84 | 912212-2 | Makita 912212-2 COUNTERSUNK HEAD SCREW M5X12, 5740NB |
| 85 | 266436-5 | Makita 266436-5 H.S.SET SCREW(FLAT POINT)M5X8 |
