Makita DHR264
Makita DHR264: exploded parts diagram, 1 sheet, 111 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DHR264: 111 positions on 1 sheet

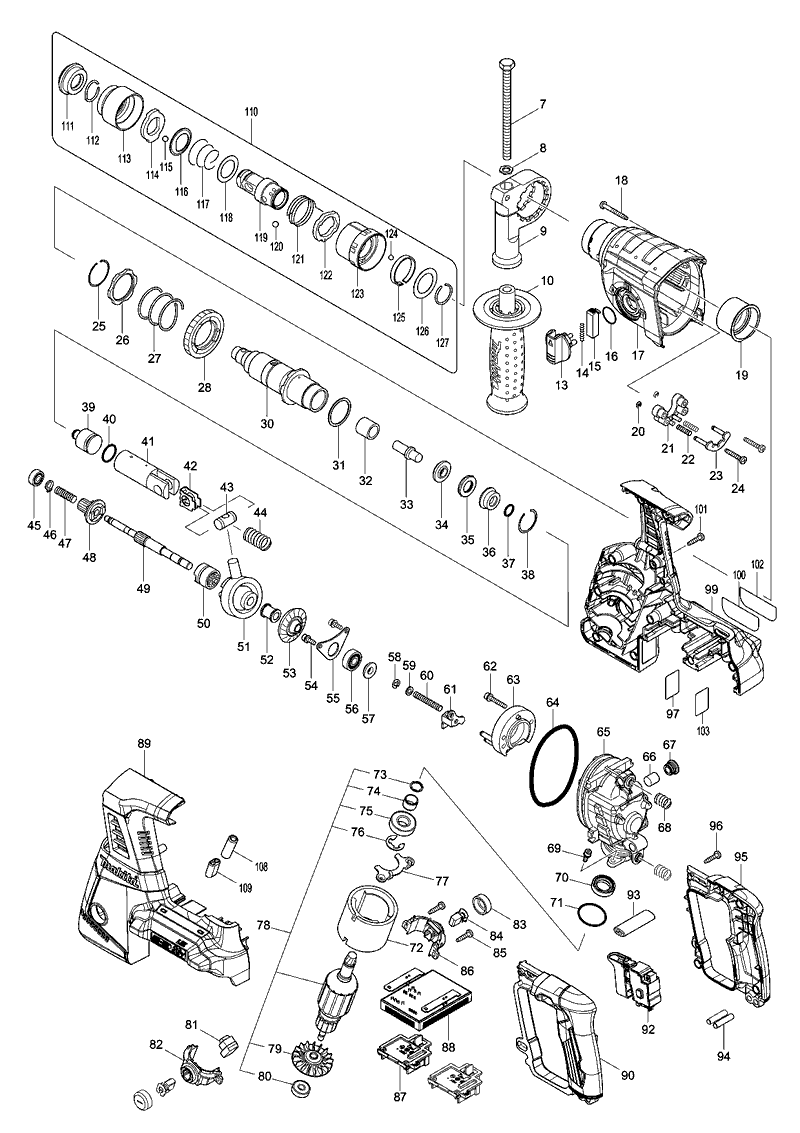

Sheet 1: Makita DHR264 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 7 | 325813-1 | Makita 325813-1 RING 21, HR2610 |
| 8 | 346177-0 | Makita 346177-0 GUIDE WASHER, HR2610 |
| 9 | 233916-6 | Makita 233916-6 C.C. SPRING 21-29, 906020 |
| 10 | 126882-3 | Makita 126882-3 GRIP ASSEMBLY, HR280D |
| 13 | 265625-9 | |
| 14 | 422258-5 | |
| 15 | 458355-1 | |
| 16 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 17 | 458357-7 | |
| 18 | 422255-1 | |
| 19 | 161838-9 | |
| 20 | 266351-3 | Makita 266351-3 TAPPING SCREW 4*35, 9556PB |
| 21 | 144965-7 | Makita 144965-7 GEAR HOUSING COMPLETE, HR280D |
| 22 | 211294-4 | Makita 211294-4 BALL BEARING 6806LLU, HR2610 |
| 23 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 24 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 25 | 347228-2 | Makita 347228-2 LOCK PLATE, HR2651 |
| 26 | 213278-8 | Makita 213278-8 O-RING 17, HR2020 |
| 27 | 135961-6 | Makita 135961-6 CHANGE LEVER ASSY, HR280D |
| 28 | 234264-6 | Makita 234264-6 COMPRESSION SPRING 3 |
| 30 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 31 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 32 | 142972-4 | |
| 33 | 332139-4 | Makita 332139-4 Driving Flange for HR2610 HR2600 HR2300 BHR243 |
| 34 | 227360-7 | Makita 227360-7 Spur Gear 51 for HR2610 HR2600 HR2300 BHR243 |
| 35 | 234148-8 | Makita 234148-8 COMPRESSION SPRING 31, HR2610 |
| 36 | 267153-0 | Makita 267153-0 PLAT WASHER 30, HR2610 |
| 37 | 257932-4 | Makita 257932-4 SPIRO LOCK WASHER 30, 6922K |
| 38 | 267153-0 | Makita 267153-0 PLAT WASHER 30, HR2610 |
| 39 | 325783-4 | Makita 325783-4 SLEEVE 9B, HR2611F |
| 40 | 325789-2 | Makita 325789-2 IMPACT BOLT A, HR2610 |
| 41 | 325792-3 | Makita 325792-3 WASHER 10, HR2611F |
| 42 | 234149-6 | Makita 234149-6 COMPRESSION SPRING 20, HR2610 |
| 43 | 325793-1 | Makita 325793-1 O-RING CASE B, HR2610 |
| 44 | 213073-6 | Makita 213073-6 O Ring 9 HR2475 HR2455 HR2610 HR2611 HR2600 HR2450 HR2440 |
| 45 | 233979-2 | Makita 233979-2 RING SPRING 28, HR2020 |
| 46 | 325784-2 | Makita 325784-2 Striker for HR2610 |
| 47 | 213258-4 | Makita 213258-4 O RING 17.5, HR2610 |
| 48 | 327079-9 | Makita 327079-9 PISTON CYLINDER, HR280D |
| 49 | 346036-8 | Makita 346036-8 GUIDE PLATE, HR261D |
| 50 | 324215-8 | Makita 324215-8 PISTON JOINT, HR2020 |
| 51 | 232449-8 | Makita 232449-8 COMPRESSION SPRING 14, HR280D |
| 52 | 265627-5 | |
| 53 | 347344-0 | |
| 54 | 922148-7 | Makita 922148-7 HEX. SOCKET HEAD BOLHR5211C |
| 55 | 144960-7 | Makita 144960-7 INNER SUPPORT COMPLETE, HR280D |
| 56 | 257336-0 | Makita 257336-0 STOP RING EXT U-6, BHR243 |
| 57 | 253186-1 | Makita 253186-1 FLAT WASHER, MDB10-2 |
| 58 | 226170-9 | Makita 226170-9 SPUR GEAR 10, HR280D |
| 59 | 332125-5 | Makita 332125-5 CLUTCH CAM |
| 60 | 327078-1 | Makita 327078-1 CAM SHAFT, HR280D |
| 61 | 219030-2 | Makita 219030-2 SWASH BEARING 10, HR280D |
| 62 | 257321-3 | Makita 257321-3 RING 8, MT870 |
| 63 | 346538-4 | Makita 346538-4 WEIGHT HOLDER GUIDE |
| 64 | 253077-6 | Makita 253077-6 FLAT WASHER 6 |
| 65 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 66 | 310869-7 | Makita 310869-7 COUNTER WEIGHT, HR280D |
| 67 | 922148-7 | Makita 922148-7 HEX. SOCKET HEAD BOLHR5211C |
| 68 | 319674-9 | Makita 319674-9 BEARING BOX, HR280D |
| 69 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 70 | 347343-2 | Makita 347343-2 BEARING RETAINER B, HR280D |
| 71 | 221599-4 | Makita 221599-4 SPIRAL BEVEL GEAR 37, HR280D |
| 72 | 213850-6 | Makita 213850-6 O RING 74, DHR280 |
| 73 | 256536-9 | Makita 256536-9 FLAT FILLISTER HD PIN 6 |
| 74 | 135962-4 | Makita 135962-4 INNER HOUSING ASSY, HR280D |
| 75 | 232436-7 | Makita 232436-7 COMPRESSION SPRING 10, HR280D |
| 76 | 443153-6 | Makita 443153-6 FELT, HR2610 |
| 77 | 922118-6 | Makita 922118-6 HEX. SOCKET HEAD BOLT M4*12, LS1016L |
| 78 | 213008-7 | Makita 213008-7 O RING 22.4 |
| 79 | 347230-5 | Makita 347230-5 CHANGE PLATE B, HR2651 |
| 80 | 234343-0 | Makita 234343-0 COMPRESSION SPRING 5 |
| 81 | 347229-0 | Makita 347229-0 CHANGE PLATE A, HR2651 |
| 82 | 346536-8 | Makita 346536-8 BEARING RETAINER A |
| 83 | 144964-9 | |
| 84 | 210024-0 | Makita 210024-0 BALL BEARING 608LLU, HR2810 |
| 85 | 253835-0 | Makita 253835-0 FLAT WASHER 8, LS0813F |
| 86 | 519513-5 | Makita 519513-5 ROTOR ASSY, HR280D |
| 87 | 210022-4 | Makita 210022-4 BALL BEARING 626DDW, 9526NB |
| 88 | 629340-3 | Makita 629340-3 Stator for DC36V HR280D |
| 89 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 90 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 92 | ||
| 93 | ||
| 94 | ||
| 95 | ||
| 96 | ||
| 97 | 135963-2 | Makita 135963-2 HOOK ASSY, HR280D |
| 99 | ||
| 100 | ||
| 101 | ||
| 102 | ||
| 103 | 264002-2 | Makita 264002-2 SQUARE NUT M5, JR181D |
| 108 | 422256-9 | Makita 422256-9 RUBBER RING 10, HR280D |
| 109 | 257438-2 | Makita 257438-2 SLEEVE 10, HR280D |
| 111 | 620549-0 | Makita 620549-0 LED CIRCUIT |
| 112 | 183J31-5 | Makita 183J31-5 HOUSING SET, HR280D |
| 113 | 233598-4 | Makita 233598-4 TORSION SPRING 6 |
| 114 | 313226-8 | Makita 313226-8 OPENER, HR242D |
| 115 | 644809-6 | Makita 644809-6 TERMINAL |
| 116 | 854J01-8 | |
| 117 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 118 | 183J29-2 | Makita 183J29-2 HANDLE SET, HR280D |
| 119 | 453124-5 | Makita 453124-5 F/R CHANGE LEVER |
| 120 | 651366-7 | Makita 651366-7 Switch C3JW-6B-24 for HR280D |
| 121 | 632L95-3 | Makita 632L95-3 LEAD UNIT, HR280D |
| 122 | 183J29-2 | Makita 183J29-2 HANDLE SET, HR280D |
| 123 | 135966-6 | Makita 135966-6 TOOL HOLDER ASSY, HR2601 |
| 124 | ||
| 125 | ||
| 126 | ||
| 127 |
