Makita DHR243
Makita DHR243: exploded parts diagram, 1 sheet, 112 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DHR243: 112 positions on 1 sheet

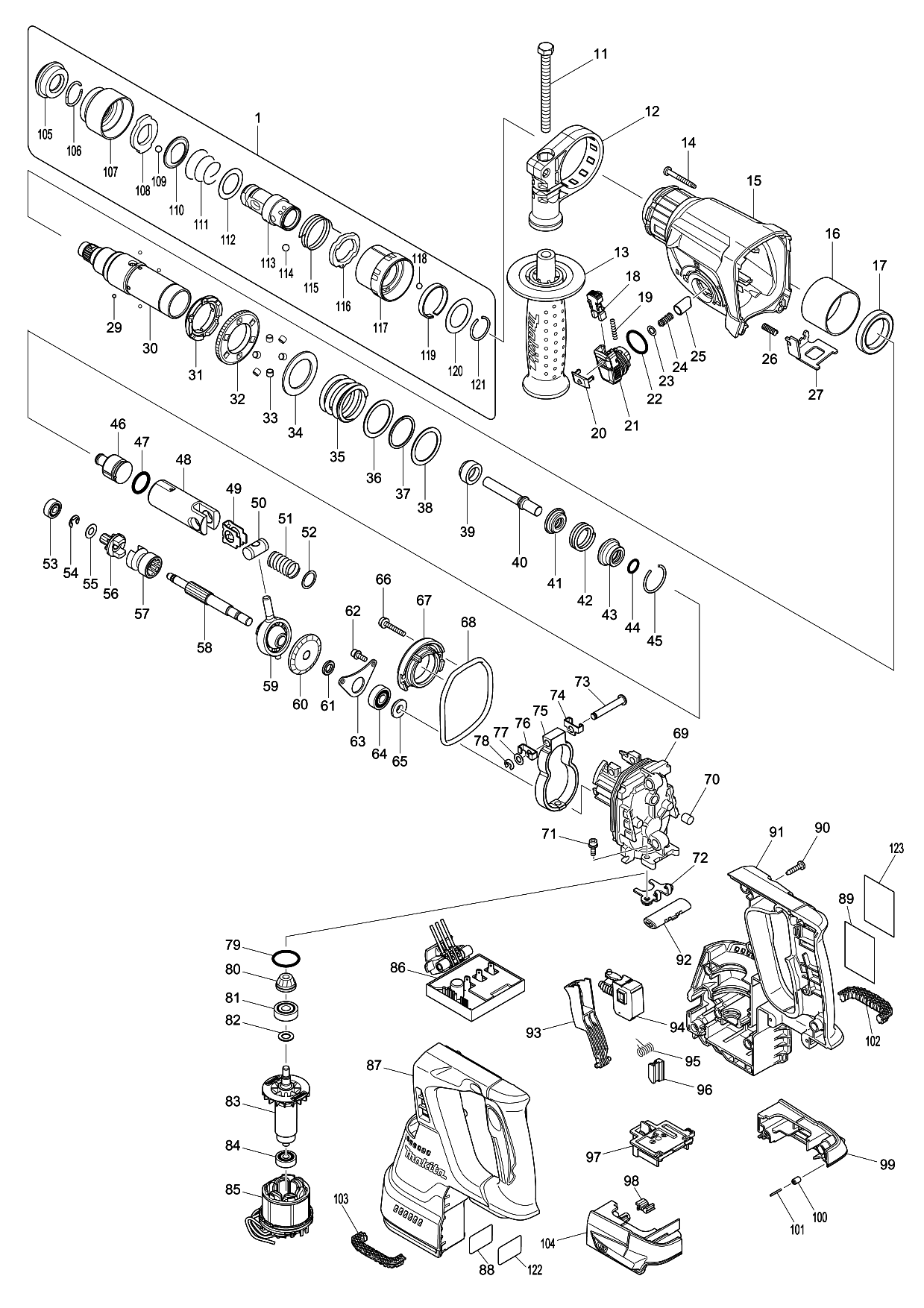

Sheet 1: Makita DHR243 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 11 | 266745-2 | Makita 266745-2 HEX.BOLT M8X90 |
| 12 | 453129-5 | Makita 453129-5 GRIP BASE |
| 13 | 158057-6 | Makita 158057-6 Grip 36 Complete for HR1830FT |
| 14 | 266351-3 | Makita 266351-3 TAPPING SCREW 4*35, 9556PB |
| 15 | 144354-6 | Makita 144354-6 GEAR HOUSING COMPLETE |
| 16 | 331890-3 | Makita 331890-3 CUP SLEEVE, HR2610 |
| 17 | 211294-4 | Makita 211294-4 BALL BEARING 6806LLU, HR2610 |
| 18 | 454112-5 | Makita 454112-5 LOCK BUTTON |
| 19 | 234264-6 | Makita 234264-6 COMPRESSION SPRING 3 |
| 20 | 453131-8 | Makita 453131-8 CHANGE LEVER COVER, HR242D |
| 21 | 453125-3 | Makita 453125-3 Change Lever BHR242 BHR243 DHR242 DHR243 |
| 22 | 213381-5 | Makita 213381-5 O RING 21, HR2610 |
| 23 | 253308-3 | Makita 253308-3 THIN WASHER 6, HR2610 |
| 24 | 234147-0 | Makita 234147-0 COMPRESSION SPRING 5, HR2610 |
| 25 | 326850-8 | Makita 326850-8 Push Corn TEC.B4855 for HR2610 HR2621 LXRH01 BHR242 |
| 26 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 27 | 346537-6 | Makita 346537-6 LOCK PLATE |
| 29 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 30 | 140266-1 | Makita 140266-1 Tool Holder Complete for HR2610T HR2611FT BHR243 HR2630T |
| 31 | 332139-4 | Makita 332139-4 Driving Flange for HR2610 HR2600 HR2300 BHR243 |
| 32 | 227360-7 | Makita 227360-7 Spur Gear 51 for HR2610 HR2600 HR2300 BHR243 |
| 33 | ||
| 34 | ||
| 35 | 234148-8 | Makita 234148-8 COMPRESSION SPRING 31, HR2610 |
| 36 | 267153-0 | Makita 267153-0 PLAT WASHER 30, HR2610 |
| 37 | 257932-4 | Makita 257932-4 SPIRO LOCK WASHER 30, 6922K |
| 38 | 267153-0 | Makita 267153-0 PLAT WASHER 30, HR2610 |
| 39 | 325783-4 | Makita 325783-4 SLEEVE 9B, HR2611F |
| 40 | 325791-5 | Makita 325791-5 Impact Bolt B for HR2610T |
| 41 | 325792-3 | Makita 325792-3 WASHER 10, HR2611F |
| 42 | 234149-6 | Makita 234149-6 COMPRESSION SPRING 20, HR2610 |
| 43 | 325793-1 | Makita 325793-1 O-RING CASE B, HR2610 |
| 44 | 213073-6 | Makita 213073-6 O Ring 9 HR2475 HR2455 HR2610 HR2611 HR2600 HR2450 HR2440 |
| 45 | 233979-2 | Makita 233979-2 RING SPRING 28, HR2020 |
| 46 | 326139-4 | Makita 326139-4 STRIKER |
| 47 | 213258-4 | Makita 213258-4 O RING 17.5, HR2610 |
| 48 | 310345-1 | Makita 310345-1 Piston Cylinder for HP2610 |
| 49 | 346036-8 | Makita 346036-8 GUIDE PLATE, HR261D |
| 50 | 324215-8 | Makita 324215-8 PISTON JOINT, HR2020 |
| 51 | 234098-7 | Makita 234098-7 COMPRESSION SPRING 14, HR2610 |
| 52 | 267447-3 | Makita 267447-3 FLAT WASHER 14, HR2610 |
| 53 | 211012-0 | Makita 211012-0 Ball Bearing 606ZZ, 9523NB |
| 54 | 257336-0 | Makita 257336-0 STOP RING EXT U-6, BHR243 |
| 55 | 253186-1 | Makita 253186-1 FLAT WASHER, MDB10-2 |
| 56 | 227231-8 | Makita 227231-8 SPUR GEAR 10, HR2610 |
| 57 | 326849-3 | Makita 326849-3 Clutch Cam A, TEC.B4855 HR2610 HR2610T BHR243 DHR243 |
| 58 | 326140-9 | Makita 326140-9 CAM SHAFT |
| 59 | 219020-5 | Makita 219020-5 Swash Bearing 10 HR2610 |
| 60 | 227588-7 | Makita 227588-7 SPIRAL BEVEL GEAR 32 |
| 61 | 257323-9 | Makita 257323-9 RING 8 |
| 62 | 922118-6 | Makita 922118-6 HEX. SOCKET HEAD BOLT M4*12, LS1016L |
| 63 | 346038-4 | Makita 346038-4 BEARING RETAINER B, HR261D |
| 64 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 65 | 324212-4 | Makita 324212-4 RING 8, HR2020 |
| 66 | 922147-9 | Makita 922147-9 HEX. SOCKET HEAD BOLT M4X |
| 67 | 141230-5 | Makita 141230-5 INNER SUPPORT COMPLETE |
| 68 | 213767-3 | Makita 213767-3 O-RING 75 |
| 69 | 318810-4 | Makita 318810-4 INNER HOUSING |
| 70 | 443153-6 | Makita 443153-6 FELT, HR2610 |
| 71 | 922118-6 | Makita 922118-6 HEX. SOCKET HEAD BOLT M4*12, LS1016L |
| 72 | 346536-8 | Makita 346536-8 BEARING RETAINER A |
| 73 | 256536-9 | Makita 256536-9 FLAT FILLISTER HD PIN 6 |
| 74 | 346538-4 | Makita 346538-4 WEIGHT HOLDER GUIDE |
| 75 | 313224-2 | Makita 313224-2 COUNTER WEIGHT |
| 76 | 346538-4 | Makita 346538-4 WEIGHT HOLDER GUIDE |
| 77 | 253726-5 | Makita 253726-5 FLAT WASHER 6, LS0713 |
| 78 | 961018-5 | Makita 961018-5 STOP RING(EXT)E-5, 4304Z |
| 79 | 213008-7 | Makita 213008-7 O RING 22.4 |
| 80 | 141458-5 | Makita 141458-5 SPIRAL BEVEL GEAR 11 COMPLETE |
| 81 | 210024-0 | Makita 210024-0 BALL BEARING 608LLU, HR2810 |
| 82 | 253835-0 | Makita 253835-0 FLAT WASHER 8, LS0813F |
| 83 | 619293-4 | OLDN Makita 619293-4 Rotor HR242D BHR243 DHR243 |
| 84 | 210022-4 | Makita 210022-4 BALL BEARING 626DDW, 9526NB |
| 85 | 529187-4 | Makita 529187-4 Stator Ass'y HR242D |
| 86 | 620241-8 | Makita 620241-8 Controller for BHR242 BHR243 |
| 87 | 183C02-0 | Makita 183C02-0 HOUSING SET |
| 88 | 815B50-2 | |
| 89 | 815B44-7 | |
| 90 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 91 | 183C02-0 | Makita 183C02-0 HOUSING SET |
| 92 | 453124-5 | Makita 453124-5 F/R CHANGE LEVER |
| 93 | 453123-7 | Makita 453123-7 SWITCH LEVER |
| 94 | 650709-0 | Makita 650709-0 SWITCH |
| 95 | 233598-4 | Makita 233598-4 TORSION SPRING 6 |
| 96 | 313226-8 | Makita 313226-8 OPENER, HR242D |
| 97 | 644808-8 | Makita 644808-8 Terminal DSC162 DGD8000 DUR183 |
| 98 | 424476-1 | Makita 424476-1 CUSHION |
| 99 | 187377-1 | Makita 187377-1 BATTERY HOUSING SET |
| 100 | 263036-2 | Makita 263036-2 RUBBER PIN 5BTW251 |
| 101 | 268184-2 | Makita 268184-2 PIN 1.5BTW251 |
| 102 | 424473-7 | Makita 424473-7 CUSHION RUBBER |
| 103 | 424473-7 | Makita 424473-7 CUSHION RUBBER |
| 104 | 187377-1 | Makita 187377-1 BATTERY HOUSING SET |
| 105 | 286263-4 | Makita 286263-4 Cap 35 HR2020, HR2460, HR2470, HR2470T, HR3611FT |
| 106 | 233940-9 | Makita 233940-9 RING SPRING 19, HR1830FT |
| 107 | 418217-5 | Makita 418217-5 CHUCK COVER, HR245FT |
| 108 | 345333-9 | Makita 345333-9 STOPPER, HR2450FT |
| 109 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 110 | 345187-4 | Makita 345187-4 GUIDE WASHER, HR2020 |
| 111 | 233916-6 | Makita 233916-6 C.C. SPRING 21-29, 906020 |
| 112 | 267279-8 | Makita 267279-8 FLAT WASHER 21, HR2450 |
| 113 | 324355-2 | Makita 324355-2 TOOL HOLDER, HR2450T |
| 114 | 216013-3 | Makita 216013-3 STEEL BALL 6.0, HR245FT |
| 115 | 231669-1 | Makita 231669-1 TORSION SPRING, HR2450 |
| 116 | 345334-7 | Makita 345334-7 CHANGE RING, HR245FT |
| 117 | 418218-3 | Makita 418218-3 CHANGE COVER, HR245FTT |
| 118 | 216018-3 | Makita 216018-3 STEEL BALL 5.0, HR2450FT |
| 119 | 345335-5 | Makita 345335-5 LEAF SPRING, HR245FT |
| 120 | 267270-6 | Makita 267270-6 FLAT WASHER 24, HR245FT |
| 121 | 233924-7 | Makita 233924-7 RING SPRING, HR245FT |
| 122 | 893072-0 | |
| 123 | 890994-5 | Makita 890994-5 CLEAR LABEL |
