All parts of Makita DHR183: 82 positions on 1 sheet

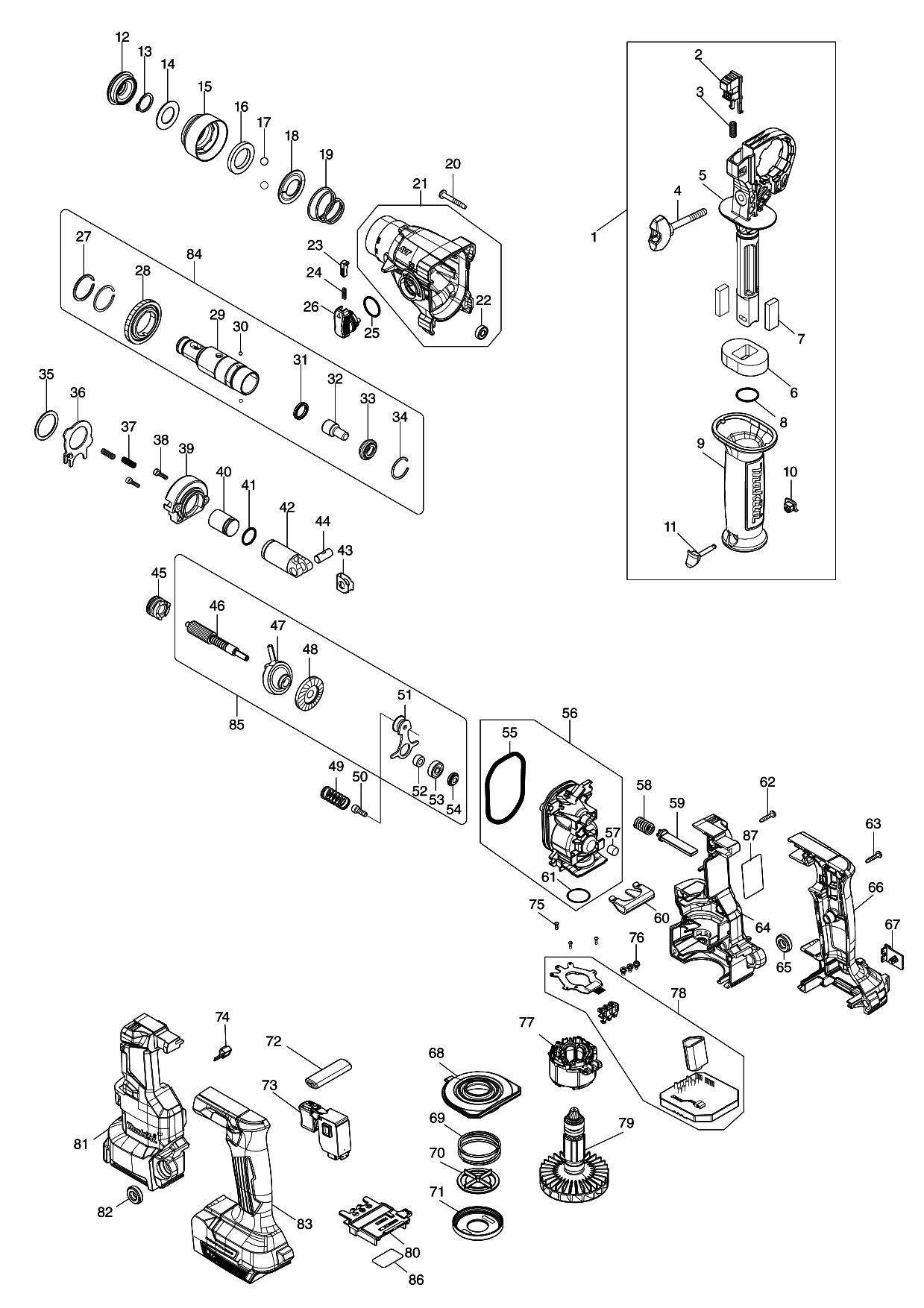

Sheet 1: Makita DHR183 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 413N19-8 | |
| 3 | 233360-7 | Makita 233360-7 COMPRESSION SPRING 4, MT952 |
| 4 | 265625-9 | |
| 5 | 413N18-0 | |
| 6 | 422A19-9 | |
| 7 | 422A20-4 | |
| 8 | 213262-3 | Makita 213262-3 O RING 18 |
| 9 | 413N20-3 | |
| 10 | 422255-1 | |
| 11 | 162C55-2 | |
| 12 | 286037-3 | Makita 286037-3 CAP 34 |
| 13 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 14 | 253377-4 | Makita 253377-4 FLAT WASHER 17 , HR166D |
| 15 | 457214-6 | |
| 16 | 257416-2 | Makita 257416-2 RING 21 , HR166D |
| 17 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 18 | 346177-0 | Makita 346177-0 GUIDE WASHER, HR2610 |
| 19 | 232347-6 | Makita 232347-6 CONICAL COMPRESSION SPRING , HR166D |
| 20 | 266050-7 | Makita 266050-7 TAPPING SCREW, 6827 |
| 22 | 211157-4 | Makita 211157-4 BALL BEARING 695ZZ, DUR187_8 |
| 23 | 161568-2 | Makita 161568-2 LOCK BUTTON COMPLETE, HR166D |
| 24 | 232344-2 | Makita 232344-2 COMPRESSION SPRING 35 , HR166D |
| 25 | 213278-8 | Makita 213278-8 O-RING 17, HR2020 |
| 26 | 161569-0 | Makita 161569-0 CHANGE LEVER COMPLETE, HR166D |
| 27 | 961135-1 | Makita 961135-1 RETAINING (EXT)WR-25 HR1830/F |
| 28 | 227A13-4 | |
| 29 | 327B25-4 | |
| 30 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 31 | 213183-9 | Makita 213183-9 X-Ring 13 for HR183FT |
| 32 | 326843-5 | Makita 326843-5 IMPACT BOLT , HR166D |
| 33 | 326842-7 | Makita 326842-7 RING 10 , HR166D |
| 34 | 232343-4 | Makita 232343-4 RING SPRING 23, HR166D |
| 35 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 36 | 347B03-8 | |
| 37 | 232802-8 | |
| 38 | 265910-0 | Makita 265910-0 Hexagonal Socket Head Bolt M3X12 |
| 39 | 141N19-5 | |
| 40 | 327007-4 | Makita 327007-4 STRIKER, HR171D |
| 41 | 213128-7 | Makita 213128-7 O-RING 12 HR2450 |
| 42 | 319510-9 | Makita 319510-9 PISTON CYLNDER |
| 43 | 347B05-4 | |
| 44 | 326846-9 | Makita 326846-9 PISTON JOINT, HR166D |
| 45 | 327B24-6 | |
| 46 | 227A12-6 | |
| 47 | 219033-6 | |
| 48 | 227A14-2 | |
| 49 | 232801-0 | |
| 50 | 265353-6 | Makita 265353-6 HEX. SOCKET HEAD BOLT M4X12, HR2610 |
| 51 | 141N20-0 | |
| 52 | 257890-4 | |
| 53 | 210065-6 | Makita 210065-6 BALL BEARING 625ZZ |
| 54 | 326847-7 | Makita 326847-7 RING 5 , HR166D |
| 55 | 213A29-5 | |
| 57 | 443153-6 | Makita 443153-6 FELT, HR2610 |
| 58 | 232782-8 | |
| 59 | 413N16-4 | |
| 60 | 347A85-4 | |
| 61 | 213325-5 | Makita 213325-5 O RING19, TD0100 |
| 62 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 63 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 64 | 183X92-9 | |
| 65 | 422A09-2 | |
| 66 | 183X68-6 | |
| 67 | 422A08-4 | |
| 68 | 413N60-1 | |
| 69 | 232796-7 | |
| 70 | 413N14-8 | |
| 71 | 413N15-6 | |
| 72 | 454980-6 | Makita 454980-6 F/R CHANGE LEVER |
| 73 | 650689-0 | Makita 650689-0 Switch DF032DWAE DF032DZ BDF4569 BTD129 |
| 74 | 620K85-2 | |
| 75 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 76 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 77 | 629C18-6 | |
| 78 | 620L24-8 | |
| 79 | 619816-8 | |
| 80 | 643874-2 | Makita 643874-2 Terminal |
| 81 | 183X92-9 | |
| 82 | 422A09-2 | |
| 83 | 183X68-6 | |
| 86 | 8588S0-3 | |
| 87 | 8588R3-0 |
