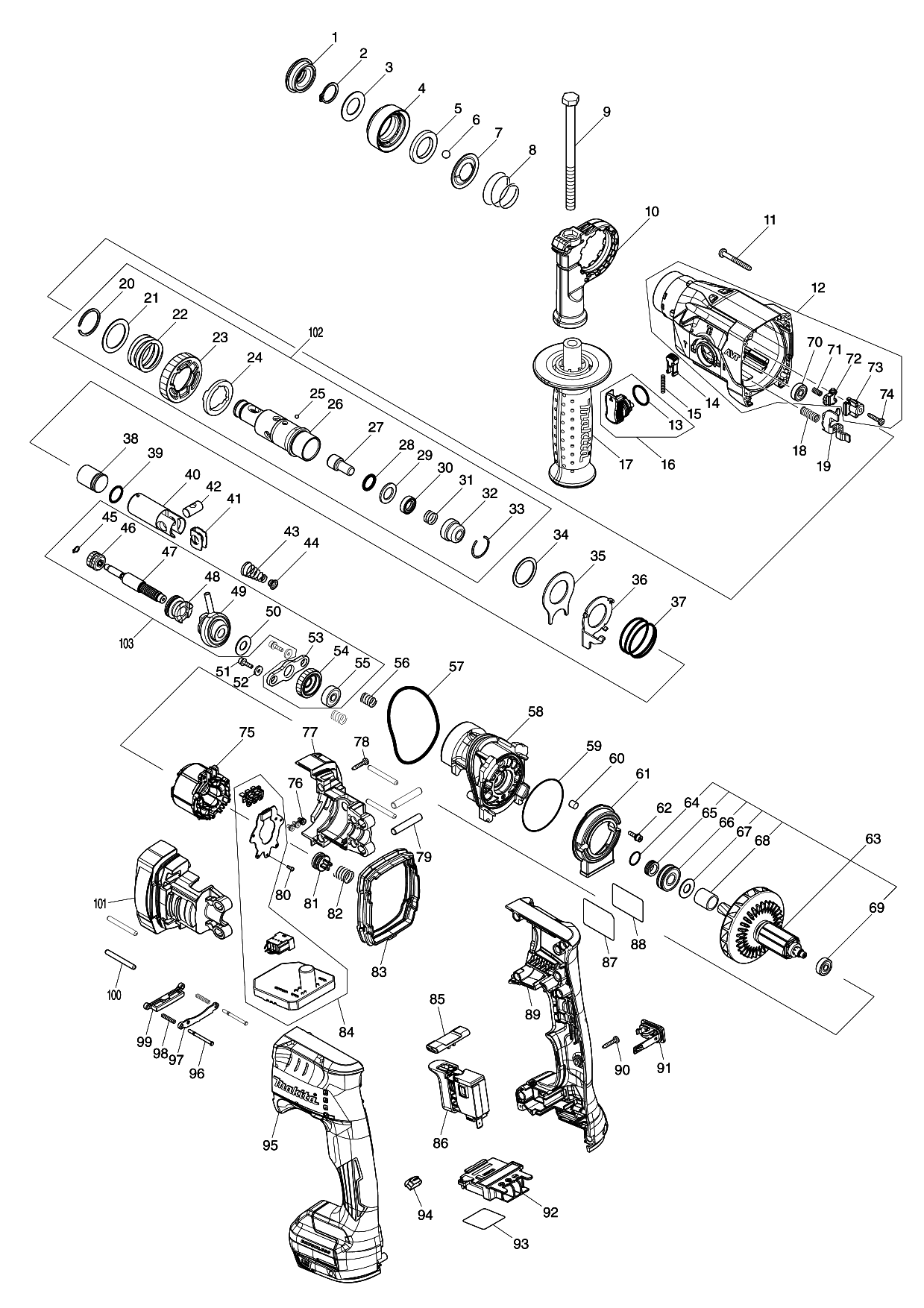

Sheet 1: Makita DHR182 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 286037-3 | Makita 286037-3 CAP 34 |
| 2 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 3 | 253377-4 | Makita 253377-4 FLAT WASHER 17 , HR166D |
| 4 | 458845-4 | Makita 458845-4 CHUCK COVER HR182D |
| 5 | 257416-2 | Makita 257416-2 RING 21 , HR166D |
| 6 | 216022-2 | Makita 216022-2 Steel Ball 7.0 for HR2412 |
| 7 | 346177-0 | Makita 346177-0 GUIDE WASHER, HR2610 |
| 8 | 232347-6 | Makita 232347-6 CONICAL COMPRESSION SPRING , HR166D |
| 9 | 921923-8 | Makita 921923-8 HEX.BOLT M8X120, HR2020 |
| 10 | 417911-6 | Makita 417911-6 GRIP BASE, HR1830FT |
| 11 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
| 13 | 213278-8 | Makita 213278-8 O-RING 17, HR2020 |
| 14 | 458851-9 | Makita 458851-9 LOCK LEVER, HR182D |
| 15 | 234264-6 | Makita 234264-6 COMPRESSION SPRING 3 |
| 17 | 158057-6 | Makita 158057-6 Grip 36 Complete for HR1830FT |
| 18 | 232473-1 | |
| 19 | 347463-2 | Makita 347463-2 CHANGE PLATE B, HR182D |
| 20 | 961135-1 | Makita 961135-1 RETAINING (EXT)WR-25 HR1830/F |
| 21 | 267304-5 | Makita 267304-5 FLAT WASHER 25, HR1830FT |
| 22 | 232360-4 | Makita 232360-4 COMPRESSION SPRING 25, HR1841F |
| 23 | 226854-9 | Makita 226854-9 SPUR GEAR 44, HR182D |
| 24 | 327039-1 | Makita 327039-1 DRIVING FLANGE, HR1841F |
| 25 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 26 | 326886-7 | Makita 326886-7 TOOL HOLDER, HR1841F |
| 27 | 326887-5 | Makita 326887-5 IMPACT BOLT, HR1841F |
| 28 | 213117-2 | Makita 213117-2 O RING 11 |
| 29 | 253380-5 | Makita 253380-5 FLAT WASHER 13, HR1841F |
| 30 | 326888-3 | Makita 326888-3 RING 10, HR1841F |
| 31 | 232357-3 | Makita 232357-3 COMPRESSION SPRING 10A, HR1841F |
| 32 | 327038-3 | Makita 327038-3 CUP SLEEVE, HR1841F |
| 33 | 233942-5 | Makita 233942-5 RING SPRING22, HR183FT |
| 34 | 267175-0 | Makita 267175-0 FLAT WASHER 24, 6935FD |
| 35 | 345681-6 | Makita 345681-6 JOINT PLATE, HR1830FT |
| 36 | 347462-4 | |
| 37 | 233458-0 | Makita 233458-0 COMPRESSION SPRING 32, HR1830FT |
| 38 | 327215-7 | |
| 39 | 213832-8 | Makita 213832-8 O RING 3, HR1841F |
| 40 | 326890-6 | Makita 326890-6 PISTON CYLINDER, HR1841F |
| 41 | 347127-8 | Makita 347127-8 GUIDE PLATE, HR1841F |
| 42 | 324612-8 | Makita 324612-8 PISTON JOINT, HR1830T |
| 43 | 232361-2 | Makita 232361-2 CONICAL COMPRESSION SPRING 6/13, HR1841F |
| 44 | 347130-9 | Makita 347130-9 SPRING GUIDE, HR1841F |
| 45 | 961008-8 | Makita 961008-8 RETAINING RING S-5 |
| 46 | 226853-1 | Makita 226853-1 SPUR GEAR 12, HR182D |
| 47 | 327216-5 | Makita 327216-5 CAM SHAFT, HR182D |
| 48 | 327217-3 | Makita 327217-3 CLUTCH CAM, HR182D |
| 49 | 219029-7 | Makita 219029-7 SWASCH BEARING 9, HR1841F |
| 50 | 253733-8 | Makita 253733-8 FLAT WASHER 9, HR2432 |
| 51 | 251510-2 | Makita 251510-2 H.S.H. BOLT M3*12 WITH WRM, HR166D |
| 52 | 253381-3 | Makita 253381-3 FLAT WASHER 3, HR1841F |
| 53 | 347129-4 | Makita 347129-4 SPRING PLATE, HR1841F |
| 54 | 221496-4 | Makita 221496-4 HELICAL GEAR 23, HR1841F |
| 55 | 211016-2 | Makita 211016-2 BALL BEARING 626LLB |
| 56 | 232359-9 | Makita 232359-9 COMPRESSION SPRING 7, HR1841F |
| 57 | 213833-6 | Makita 213833-6 O RING 60, HR1841F |
| 58 | 140F85-1 | Makita 140F85-1 INNER HOUSING COMPLETE , HR182D |
| 59 | 213641-5 | Makita 213641-5 O-RING 51 |
| 60 | 443138-2 | Makita 443138-2 Filter for HR3210FCT |
| 61 | 458848-8 | Makita 458848-8 AIR DUCT, HR182D |
| 62 | 251510-2 | Makita 251510-2 H.S.H. BOLT M3*12 WITH WRM, HR166D |
| 63 | 519549-4 | Makita 519549-4 ROTOR ASS'Y, HR182D |
| 64 | 213118-0 | Makita 213118-0 O RING 12, 5277NB |
| 65 | 327227-0 | |
| 66 | 210162-8 | Makita 210162-8 BALL BEARING 609LLU, HR1841F |
| 67 | 267231-6 | Makita 267231-6 FLAT WASHER 9, HR2020 |
| 68 | 458841-2 | |
| 69 | 210035-5 | |
| 70 | 210035-5 | |
| 71 | 232474-9 | |
| 72 | 310913-0 | |
| 73 | 458846-2 | |
| 74 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 75 | 629393-2 | Makita 629393-2 STATOR DC18V, HR182D |
| 76 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 77 | 183L14-7 | Makita 183L14-7 MOTOR HOUSING L/R, HR182D |
| 78 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 79 | 268076-5 | Makita 268076-5 PIN 6, LF1000 |
| 80 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 81 | 458847-0 | |
| 82 | 232358-1 | Makita 232358-1 COMPRESSION SPRING 10B, HR1841F |
| 83 | 422354-9 | Makita 422354-9 BELLOWS, HR182D |
| 84 | 620995-7 | Makita 620995-7 CONTROLLER, HR181D |
| 85 | 458844-6 | |
| 86 | 651380-3 | Makita 651380-3 SWITCH C3JW-6B-25, HR182D |
| 87 | 855F52-0 | |
| 88 | 818N47-2 | |
| 89 | 183L12-1 | Makita 183L12-1 HANDEL SET COMPLETE, HR182D |
| 90 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 91 | 140F99-0 | |
| 92 | 643874-2 | Makita 643874-2 Terminal |
| 93 | 855F59-6 | |
| 94 | 620549-0 | Makita 620549-0 LED CIRCUIT |
| 95 | 183L12-1 | Makita 183L12-1 HANDEL SET COMPLETE, HR182D |
| 96 | 256586-4 | Makita 256586-4 PIN 2,5, HR182D |
| 97 | 458850-1 | |
| 98 | 232475-7 | |
| 99 | 458849-6 | Makita 458849-6 SHATTER, HR182D |
| 100 | 256585-6 | |
| 101 | 183L14-7 | Makita 183L14-7 MOTOR HOUSING L/R, HR182D |
