Makita DHP485
Makita DHP485: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DHP485: 23 positions on 1 sheet

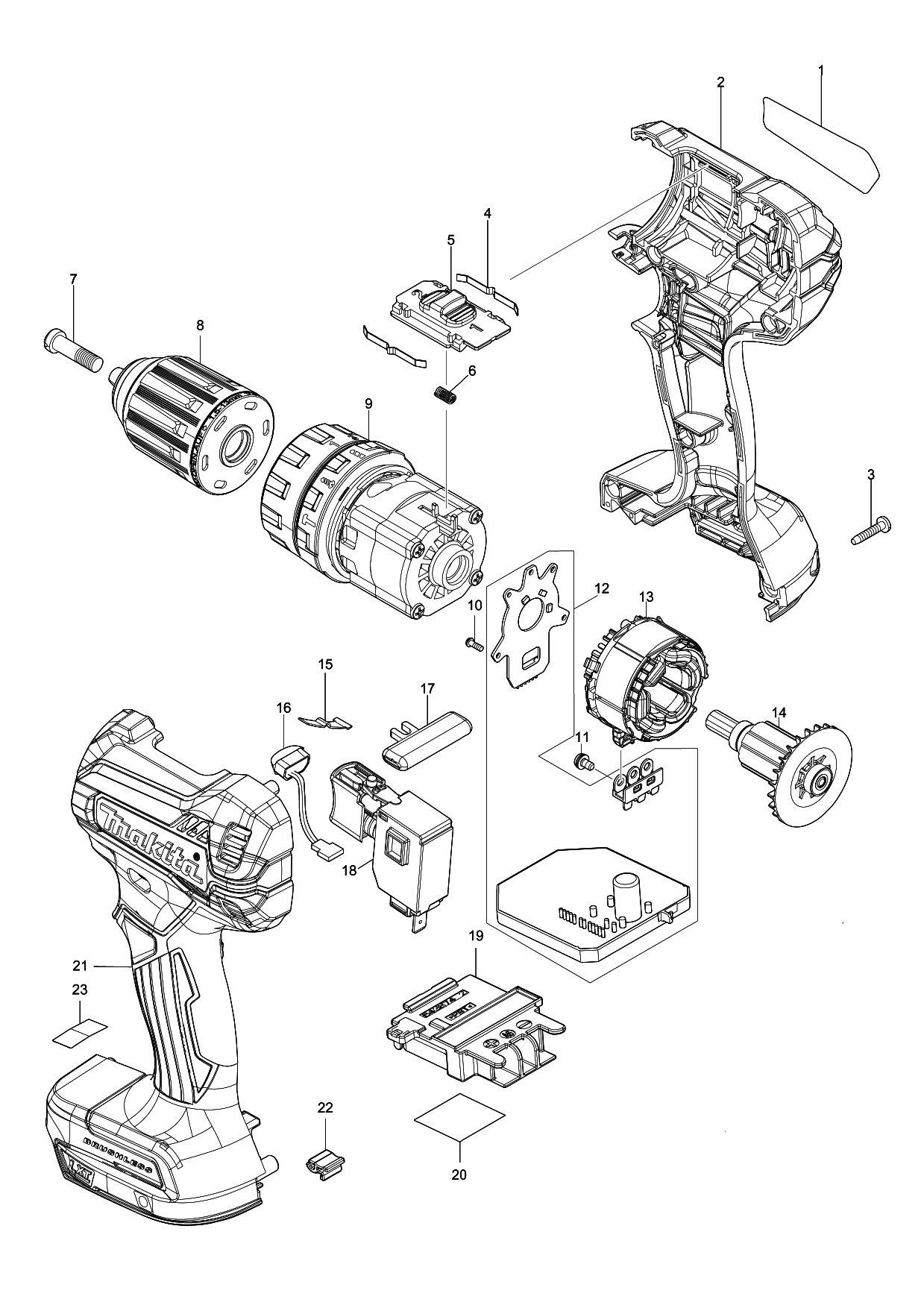

Sheet 1: Makita DHP485 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 854U05-6 | Makita 854U05-6 NAME PLATE DHP485 |
| 2 | 183K32-9 | Makita 183K32-9 HOUSING SET, HP485D |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 232220-0 | Makita 232220-0 LEAF SPRING, HP451D |
| 5 | 458671-1 | |
| 6 | 233438-6 | Makita 233438-6 COMPRESSION SPRING 4, DF441D |
| 7 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 8 | 766027-7 | Makita 766027-7 KEYLESS CHUCK 13MM, 1/2"-20UNF 1,5-13MM |
| 9 | 126961-7 | Makita 126961-7 GEAR ASSEMBLY, HP485D |
| 10 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 11 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 12 | 620964-8 | Makita 620964-8 CONTROLLER,HP485D |
| 13 | 629372-0 | Makita 629372-0 STATOR 18V, DF485D |
| 14 | 619533-0 | Makita 619533-0 ROTOR HP485D |
| 15 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 16 | 620549-0 | Makita 620549-0 LED CIRCUIT |
| 17 | 419041-9 | Makita 419041-9 F/R Change Lever BTD130 |
| 18 | 650710-5 | Makita 650710-5 Switch C3JW-4B for HP480D HP481D |
| 19 | 643874-2 | Makita 643874-2 Terminal |
| 20 | 854U11-1 | |
| 21 | 183K32-9 | Makita 183K32-9 HOUSING SET, HP485D |
| 22 | 424517-3 | Makita 424517-3 CUSHION |
| 23 |
