Bosch DH507

Bosch DH507 demolition hammer: exploded parts diagram, 1 sheet, 8 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DH507: 8 positions on 1 sheet

Bosch DH507 parts list (1 sheet)

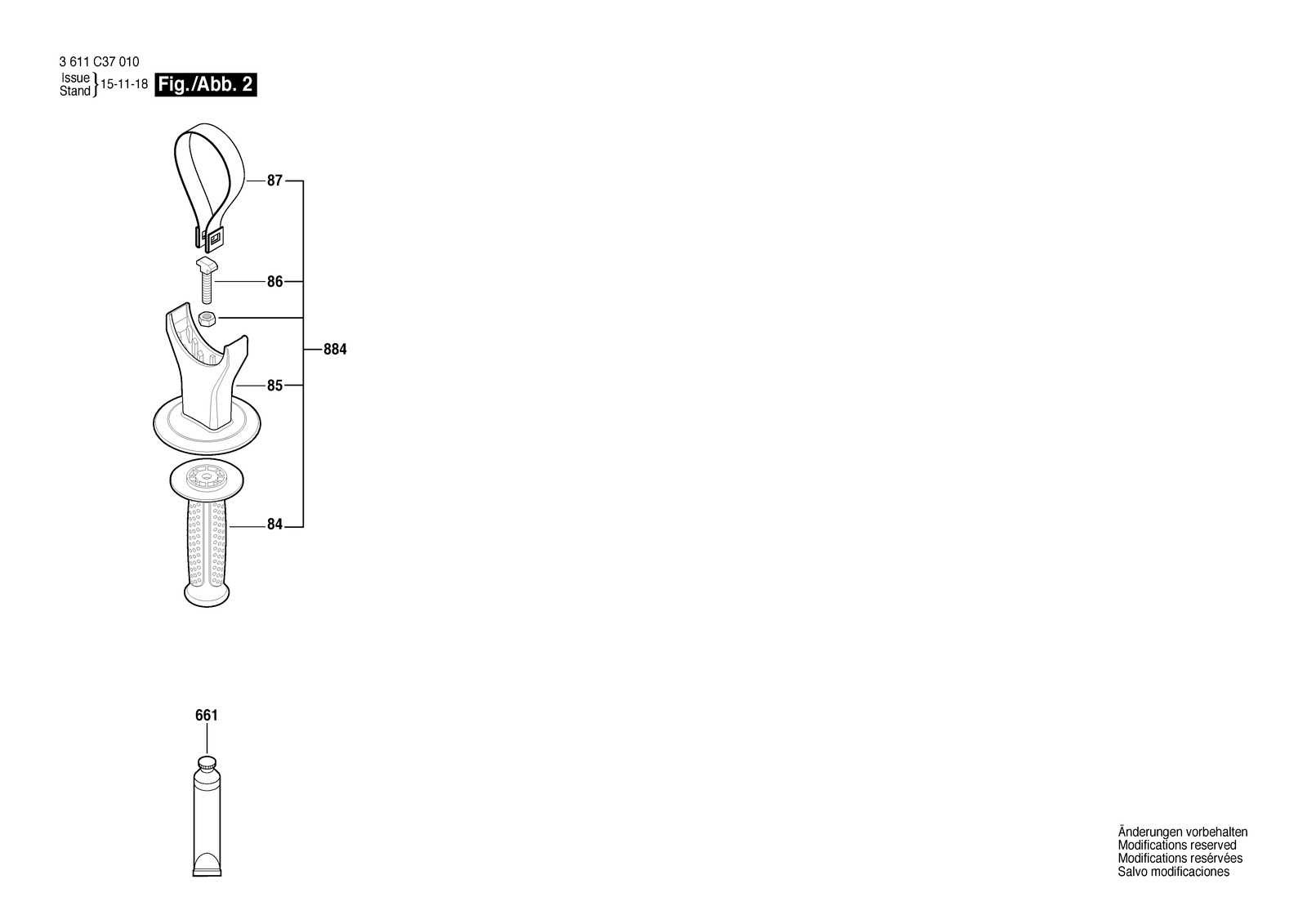

Bosch DH507 parts diagram, sheet 2
No.Part numberPart name
441619P14656Compression Spring
6611615430010Grease Tube 30 Ml
69116054381D1Carrying Case
84160202507HAuxiliary Handle
851619P07774Support clamp
861613490002T-Head Bolt M8X40 MM
871619P07776Clamping Band
8841619P07778Auxiliary Handle
