Makita DGA454
Makita DGA454: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DGA454: 46 positions on 1 sheet

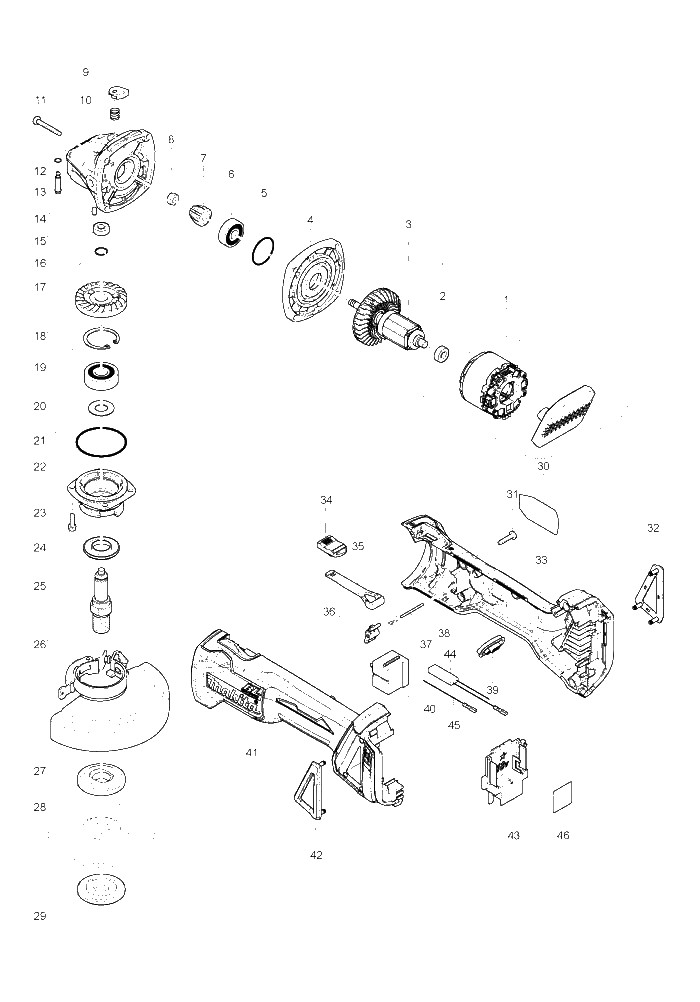

Sheet 1: Makita DGA454 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 629140-1 | Makita 629140-1 STATOR COMPLETE DGA504 |
| 2 | 210034-7 | Makita 210034-7 Ball Bearing for 607LLB BO4556 |
| 3 | 519354-9 | Makita 519354-9 ROTOR ASS'Y |
| 4 | 319214-3 | Makita 319214-3 GEAR HOUSING COVER |
| 5 | 213445-5 | Makita 213445-5 O RING 26, MT952 |
| 6 | 210042-8 | Makita 210042-8 BALL BEARING 629LLB, MT410 |
| 7 | 227541-3 | Makita 227541-3 Spiral Bevel Gear 10 for 9553NB 9554NB 9555NB 9556NB 9557HN |
| 8 | 252186-8 | Makita 252186-8 HEX NUT M6, 9557NB |
| 9 | 417771-6 | Makita 417771-6 Pin Cap for GA5030 9555NB 9558NB BPJ140 |
| 10 | 233072-2 | Makita 233072-2 COMPRESSION SPRING 8, 9523NB |
| 11 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 12 | 213960-9 | Makita 213960-9 O-RING 5, 9556NB |
| 13 | 256546-6 | Makita 256546-6 SHOULDER PIN 4 |
| 14 | 319213-5 | Makita 319213-5 GEAR HOUSING |
| 15 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 16 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 17 | 233950-6 | Makita 233950-6 RING SPRING, GA5010 |
| 18 | 227641-9 | Makita 227641-9 SPIRAL BEVEL GEAR 37 |
| 19 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 20 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 21 | 267113-2 | Makita 267113-2 FLAT WASHER 12, 5007FA |
| 22 | 213622-9 | Makita 213622-9 O-RING 45, 9536NB |
| 23 | 318331-6 | Makita 318331-6 BEARING BOX, 9553NB |
| 24 | 911121-2 | Makita 911121-2 PAN HEAD SCREW M4*14, GA400D |
| 25 | 345464-4 | Makita 345464-4 LABYRINTH RING, 9536NB |
| 26 | 324954-0 | Makita 324954-0 SPINDLE, GA4030 |
| 27 | 123144-0 | Makita 123144-0 Tool-less Wheel Guard 4-1/2" |
| 28 | 224415-9 | Makita 224415-9 Inner Flange M14 |
| 29 | 224554-5 | Makita 224554-5 Outer Blade Locking Flange M14 for 9069 9554 9015 |
| 30 | 850J29-4 | |
| 31 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 32 | 455450-8 | Makita 455450-8 Dust Cover R for DSC250ZK DGA517 DGA454 |
| 33 | 187998-9 | Makita 187998-9 MOTOR HOUSING SET |
| 34 | 455447-7 | Makita 455447-7 SWITCH KNOB |
| 35 | 455446-9 | Makita 455446-9 SWITCH LEVER |
| 36 | 455448-5 | Makita 455448-5 LEVER |
| 37 | 231679-8 | Makita 231679-8 TORSION SPRING 2 |
| 38 | 268330-7 | Makita 268330-7 PIN 2 |
| 39 | 142901-7 | Makita 142901-7 INDICATOR PANEL COMPLETE |
| 40 | 650579-7 | Makita 650579-7 Switch GA400D 9564PCV 9565PCV BGA450 BGA452 BPJ180 |
| 41 | 187998-9 | Makita 187998-9 MOTOR HOUSING SET |
| 42 | 455449-3 | Makita 455449-3 Dust Cover L DGA454/504/508 DSC250ZK |
| 43 | 643899-6 | Makita 643899-6 TERMINAL BCV01 |
| 44 | 632E34-1 | Makita 632E34-1 RESISTOR UNIT |
| 45 | 632E33-3 | Makita 632E33-3 LEAD UNIT |
| 46 | 850J34-1 |
