Bosch DG 355 LCE

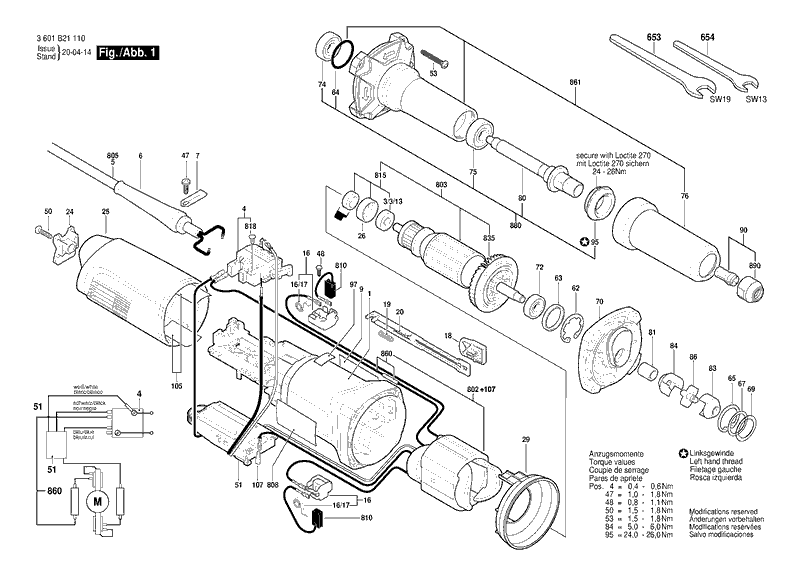

Bosch DG 355 LCE straight grinders: exploded parts diagram, 1 sheet, 55 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DG 355 LCE: 55 positions on 1 sheet
Bosch DG 355 LCE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108224 | Motor Housing |
| 105 | 1601008005 | Insulating Plate |
| 107 | 1600712030 | Insulating Part |
| 16 | 1601323025 | Brush Holder |
| 16/17 | 1604652013 | Spiral Spring |
| 18 | 1602026088 | Switch Handle |
| 19 | 1604611026 | Compression Spring |
| 20 | 1602319010 | Adjusting Slide Black |
| 24 | 1605500227 | Cover |
| 25 | 1605500251 | Housing Cover Dark Blue |
| 26 | 1600206036 | Rubber Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 3/3/13 | 2600905032 | Ball Bearing 7X19X6 |
| 4 | 1607200199 | Switch |
| 47 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 48 | 1613435034 | Lens Head Screw 3X10 St |
| 5 | 1604460336 | Power supply cord Usa/can/sma 2,68M 2 X 1,31MM SJ 16/2 |
| 50 | 2603490022 | Screw 4X16 |
| 51 | 1607233555 | Speed governor |
| 53 | 2603490026 | Lens Head Screw 4X32 |
| 6 | 1600703040 | Grommet |
| 62 | 1600119011 | Retaining clip |
| 63 | 1600206025 | Rubber Ring |
| 64 | 1610210101 | O-Ring 26,0X2,0 MM |
| 65 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 653 | 3607950024 | Single-Head Eng. Wrench SW19 |
| 654 | 3607950025 | Single-Head Eng. Wrench SW13 |
| 67 | 3600150011 | Shim |
| 69 | 1710102601 | Shim 0,10 MM |
| 7 | 1601302017 | Fastening Clamp |
| 70 | 3605700225 | Intermediate Flange |
| 72 | 1600905032 | Groove ball bearing 8X22X7 |
| 74 | 3600905156 | Groove ball bearing 10X26X8 |
| 75 | 3600905157 | Groove ball bearing |
| 76 | 3605500194 | Protective Sleeve |
| 80 | 3603523070 | Grinding Spindle |
| 802 | 3607031719 | Field assembly 110V |
| 803 | 3607030479 | Armature 110V |
| 808 | 160111A3H3 | Nameplate |
| 81 | 3600400034 | Spacer Sleeve |
| 810 | 1607014176 | Carbon-Brush Set |
| 815 | 1607000378 | Parts Set |
| 818 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 83 | 3606445047 | Coupling Half |
| 835 | 1606610129 | Fan |
| 84 | 3606445047 | Coupling Half |
| 86 | 3606337242 | Carrier |
| 860 | 1604448023 | Connecting Cable |
| 861 | 3607031668 | Spindle Housing |
| 880 | 3607031667 | Grinding Spindle |
| 890 | 3603313006 | Round Nut |
| 9 | 3601110554 | Manufacturer's nameplate |
| 90 | 3607030482 | Clamping Unit |
| 95 | 3600328043 | Flange Lefthand Threads |
| 97 | 3601110550 | Warning Plate |
