Makita DFS452
Makita DFS452: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DFS452: 34 positions on 1 sheet

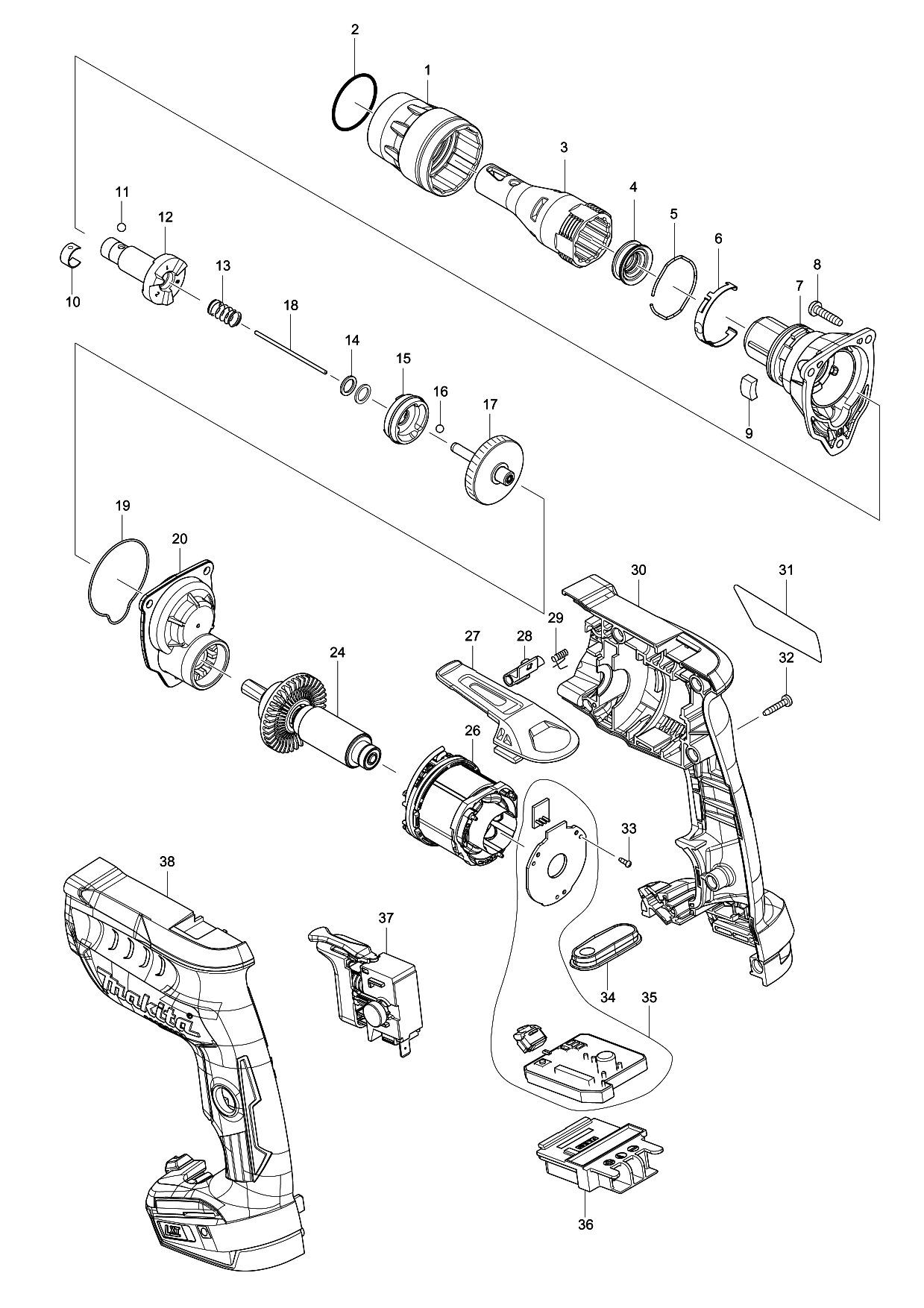

Sheet 1: Makita DFS452 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 455591-0 | Makita 455591-0 Lock Ring |
| 2 | 424235-3 | Makita 424235-3 SEAL RING 30, FS6300 |
| 3 | 158875-2 | Makita 158875-2 Locator S Complete, FS4300 |
| 4 | 424665-8 | Makita 424665-8 Dust Seal Sleeve |
| 5 | 234348-0 | Makita 234348-0 RING SPRING 30 |
| 6 | 232245-4 | Makita 232245-4 LEAF SPRING, FS440D |
| 7 | 142902-5 | Makita 142902-5 GEAR HOUSING COMPLETE |
| 8 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 9 | 423413-2 | Makita 423413-2 RUBBER PLATE, FS4200 |
| 10 | 232050-9 | Makita 232050-9 LEAF SPRING, 6827 |
| 11 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 12 | 142903-3 | Makita 142903-3 SPINDLE 125S COMPLETE |
| 13 | 234121-8 | Makita 234121-8 COMPRESSION SPRING 8, FS4300 |
| 14 | 267202-3 | Makita 267202-3 FLAT WASHER 8, 6827 |
| 15 | 223181-5 | Makita 223181-5 CLUTCH CAM 125S |
| 16 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 17 | 142904-1 | Makita 142904-1 GEAR COMPLETE |
| 18 | 268325-0 | |
| 19 | 424664-0 | Makita 424664-0 SEAL RING DFS452 |
| 20 | 142909-1 | Makita 142909-1 GEAR HOUSING COVER COMPLETE |
| 24 | 519355-7 | Makita 519355-7 Rotor Assembly 18V for XSF03 DFS452 |
| 26 | 629135-4 | Makita 629135-4 Stator for DFS452 DFS250 DFS251 |
| 27 | 162272-6 | Makita 162272-6 HOOK, FS4300 |
| 28 | 142908-3 | Makita 142908-3 LEVER COMPLETE |
| 29 | 233619-2 | |
| 30 | 187993-9 | Makita 187993-9 HOUSING SET |
| 31 | 850H34-9 | Makita 850H34-9 NAME PLATE DFS452 |
| 32 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 33 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 34 | 142905-9 | Makita 142905-9 SWITCH PLATE COMPLETE DFS452 |
| 35 | 620349-8 | Makita 620349-8 CONTROLLER |
| 36 | 643860-3 | Makita 643860-3 Terminal for CL182D DDF480 BTP141 LXGC01 |
| 37 | 650733-3 | Makita 650733-3 SWITCH |
| 38 | 187993-9 | Makita 187993-9 HOUSING SET |
