Makita DFN350
Makita DFN350: exploded parts diagram, 2 sheets, 94 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DFN350: 94 positions on 2 sheets

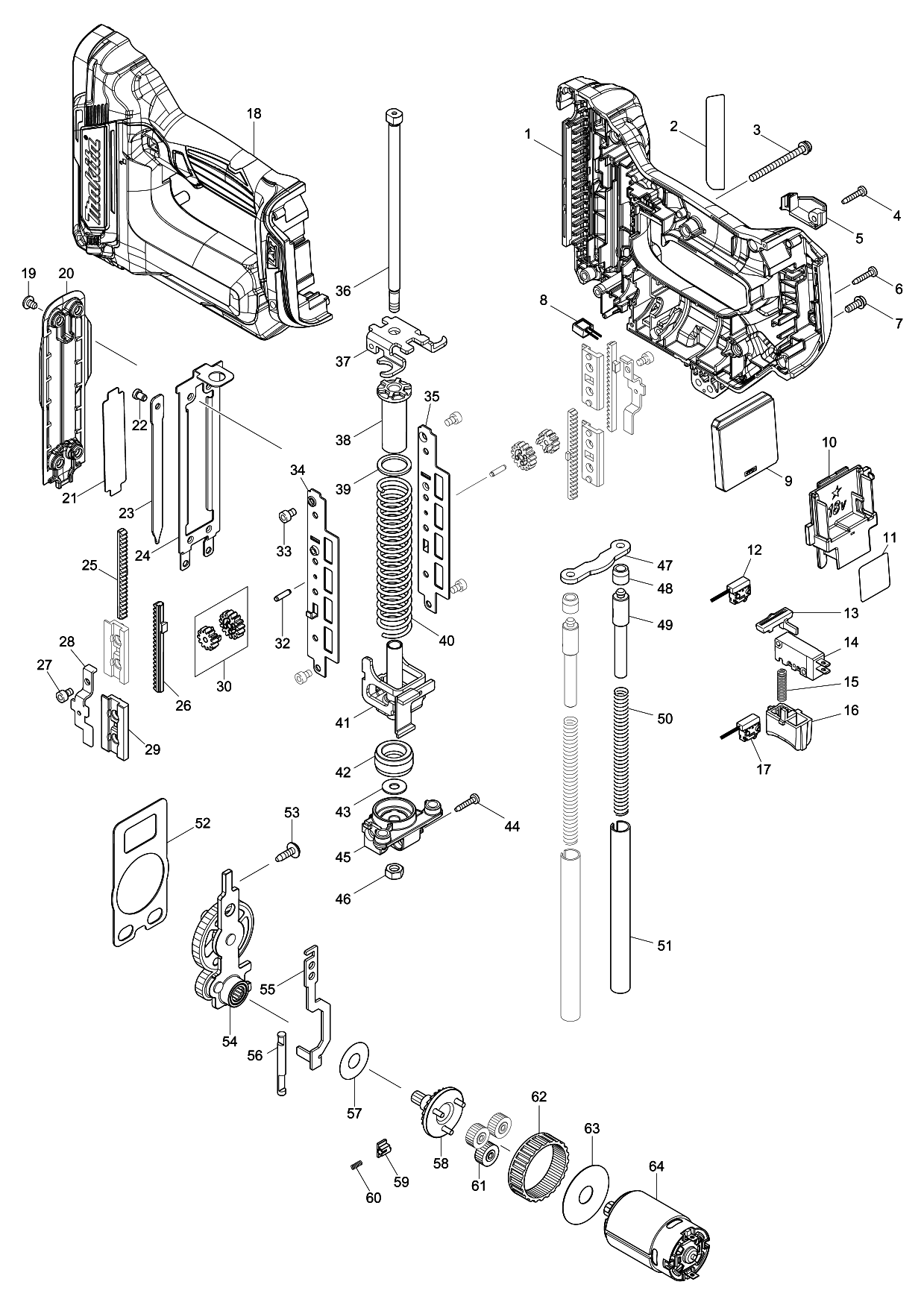

Sheet 1: Makita DFN350 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183L67-6 | |
| 2 | 855T69-7 | |
| 3 | 911173-3 | Makita 911173-3 PAN HEAD SCREW M4X45 |
| 4 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 5 | 457385-9 | Makita 457385-9 HOUSING R COVER |
| 6 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 7 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 8 | 620507-6 | Makita 620507-6 LED CIRCUIT |
| 9 | 632N38-7 | |
| 10 | 643860-3 | Makita 643860-3 Terminal for CL182D DDF480 BTP141 LXGC01 |
| 11 | 855T76-0 | |
| 12 | 632G60-2 | Makita 632G60-2 SWITCH UNIT |
| 13 | 456799-9 | Makita 456799-9 TRIGGER LOCK |
| 14 | 651910-0 | Makita 651910-0 DVC 861L SWITCH |
| 15 | 232370-1 | Makita 232370-1 COMPRESSION SPRING 5 |
| 16 | 457386-7 | Makita 457386-7 TRIGGER |
| 17 | 632K06-2 | Makita 632K06-2 SWITCH UNIT |
| 18 | 183L67-6 | |
| 19 | 915101-0 | Makita 915101-0 BINDING HEAD SCREW M4X6 |
| 20 | 459369-3 | |
| 21 | 347528-0 | |
| 22 | 256882-0 | |
| 23 | 347519-1 | Makita 347519-1 DRIVER, DFN350 |
| 24 | 347521-4 | |
| 25 | 310924-5 | |
| 26 | 310925-3 | Makita 310925-3 COUNTER WEIGHT |
| 27 | 251566-5 | Makita 251566-5 H.S.H BOLT M4X6 WITH W, DPT353 |
| 28 | 347146-4 | Makita 347146-4 PINION GUIDE |
| 29 | 457390-6 | Makita 457390-6 COUNTER WEIGHT HOLDER |
| 30 | 136104-3 | Makita 136104-3 SPUR GEAR ASSEMBLY |
| 32 | 326902-5 | Makita 326902-5 PINION SHAFT |
| 33 | 266199-3 | |
| 34 | 347145-6 | Makita 347145-6 GUIDE RAIL R |
| 35 | 347144-8 | Makita 347144-8 GUIDE RAIL L |
| 36 | 326903-3 | Makita 326903-3 GUIDE BOLT |
| 37 | 347526-4 | |
| 38 | 459311-4 | |
| 39 | 347522-2 | |
| 40 | 232511-9 | |
| 41 | 347524-8 | |
| 42 | 422457-9 | |
| 43 | 253804-1 | Makita 253804-1 FLAT WASHER 6, LS1040 |
| 44 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 45 | 319824-6 | |
| 46 | 252273-3 | |
| 47 | 347527-2 | |
| 48 | 422456-1 | |
| 49 | 326904-1 | Makita 326904-1 WEIGHT |
| 50 | 232363-8 | Makita 232363-8 COMPRESSION SPRING 7 |
| 51 | 327328-4 | |
| 52 | 347525-6 | |
| 53 | 266901-4 | Makita 266901-4 TAPPING SCREW 4*14 |
| 54 | 140K45-3 | Makita 140K45-3 SPUR GEAR 61 COMPLETE, DFN350 |
| 55 | 347139-1 | Makita 347139-1 LOCK ARM |
| 56 | 327327-6 | |
| 57 | 253353-8 | Makita 253353-8 THIN WASHER 10 |
| 58 | 140K48-7 | |
| 59 | 310945-7 | |
| 60 | 232513-5 | |
| 61 | 221961-3 | Makita 221961-3 SPUR GEAR 27 |
| 62 | 227166-3 | Makita 227166-3 INTERNAL GEAR 69BPT350 |
| 63 | 267053-4 | Makita 267053-4 FLAT WASHER 12 |
| 64 | 629408-5 |

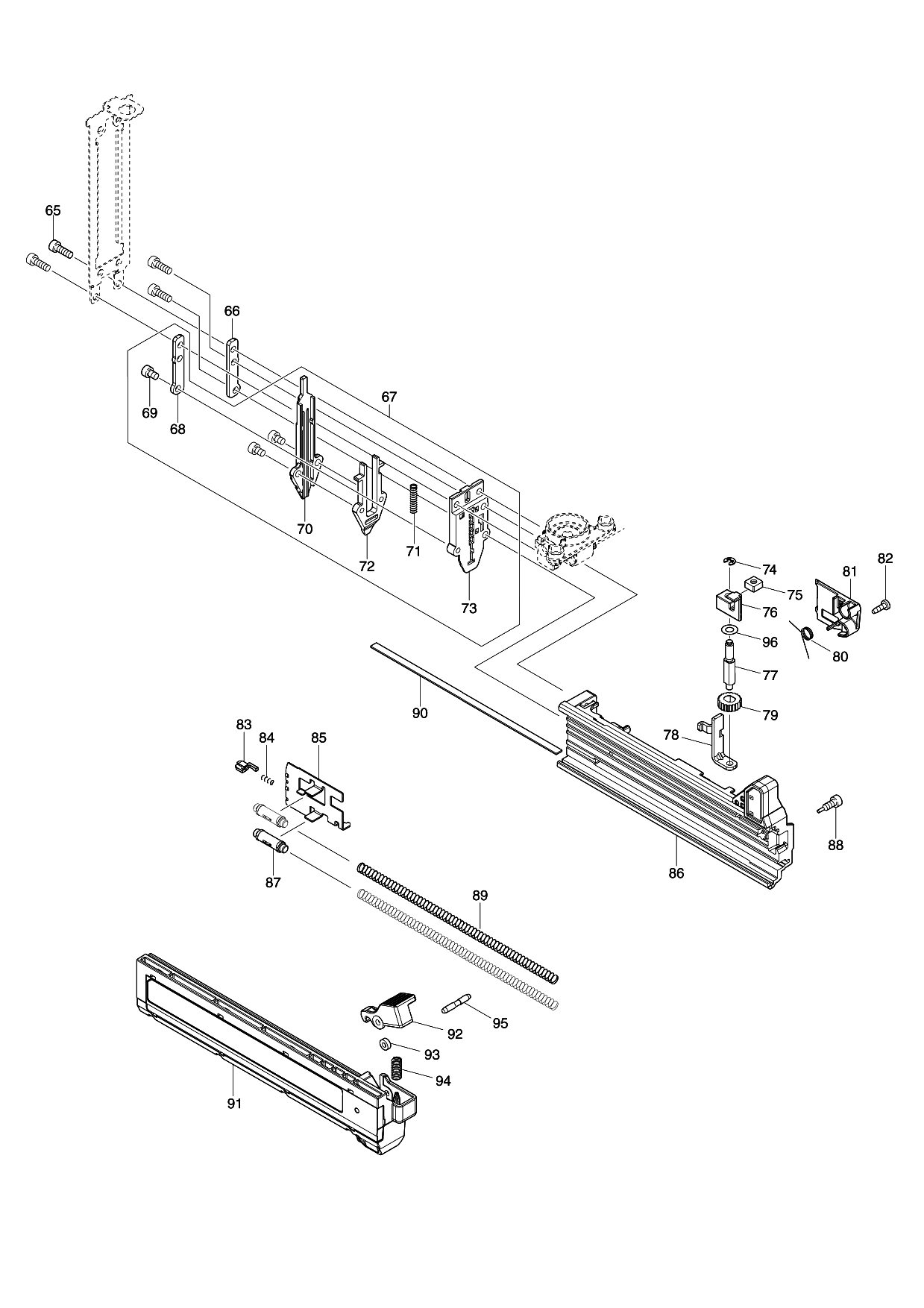

Sheet 2: Makita DFN350 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 65 | 922117-8 | Makita 922117-8 HEX. SOCKET HEAD BOLT M4X |
| 66 | 347523-0 | |
| 68 | 347523-0 | |
| 69 | 922102-1 | Makita 922102-1 HEX. SOCKET HEAD BOLT M4X |
| 70 | 310942-3 | |
| 71 | 232512-7 | |
| 72 | 310943-1 | |
| 73 | 310941-5 | |
| 74 | 961017-7 | Makita 961017-7 STOP RING E-3, 4304Z |
| 75 | 264050-1 | Makita 264050-1 SQUARE NUT M5-8 |
| 76 | 459309-1 | |
| 77 | 327326-8 | |
| 78 | 347529-8 | |
| 79 | 459310-6 | |
| 80 | 232514-3 | |
| 81 | 459312-2 | |
| 82 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 83 | 310176-8 | Makita 310176-8 STOPPERBPT350 |
| 84 | 233018-8 | Makita 233018-8 COMPRESSION SPRING 3 FOR JR3030T |
| 85 | 347520-6 | |
| 86 | 459305-9 | |
| 87 | 459313-0 | |
| 88 | 265A52-6 | |
| 89 | 234325-2 | Makita 234325-2 COMPRESSION SPRING 6 |
| 90 | 346774-2 | Makita 346774-2 NAIL PLATE |
| 91 | 140K97-4 | |
| 92 | 457388-3 | Makita 457388-3 LEVER |
| 93 | 262054-7 | Makita 262054-7 URETHANE RING 3, AN611 |
| 94 | 233117-6 | Makita 233117-6 COMPRESSION SPRING 6, CS550D |
| 95 | 256877-3 | |
| 96 | 253334-2 | Makita 253334-2 THIN WASHER 5 |
