Makita DFL651F: exploded parts diagram, 1 sheet, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DFL651F: 84 positions on 1 sheet

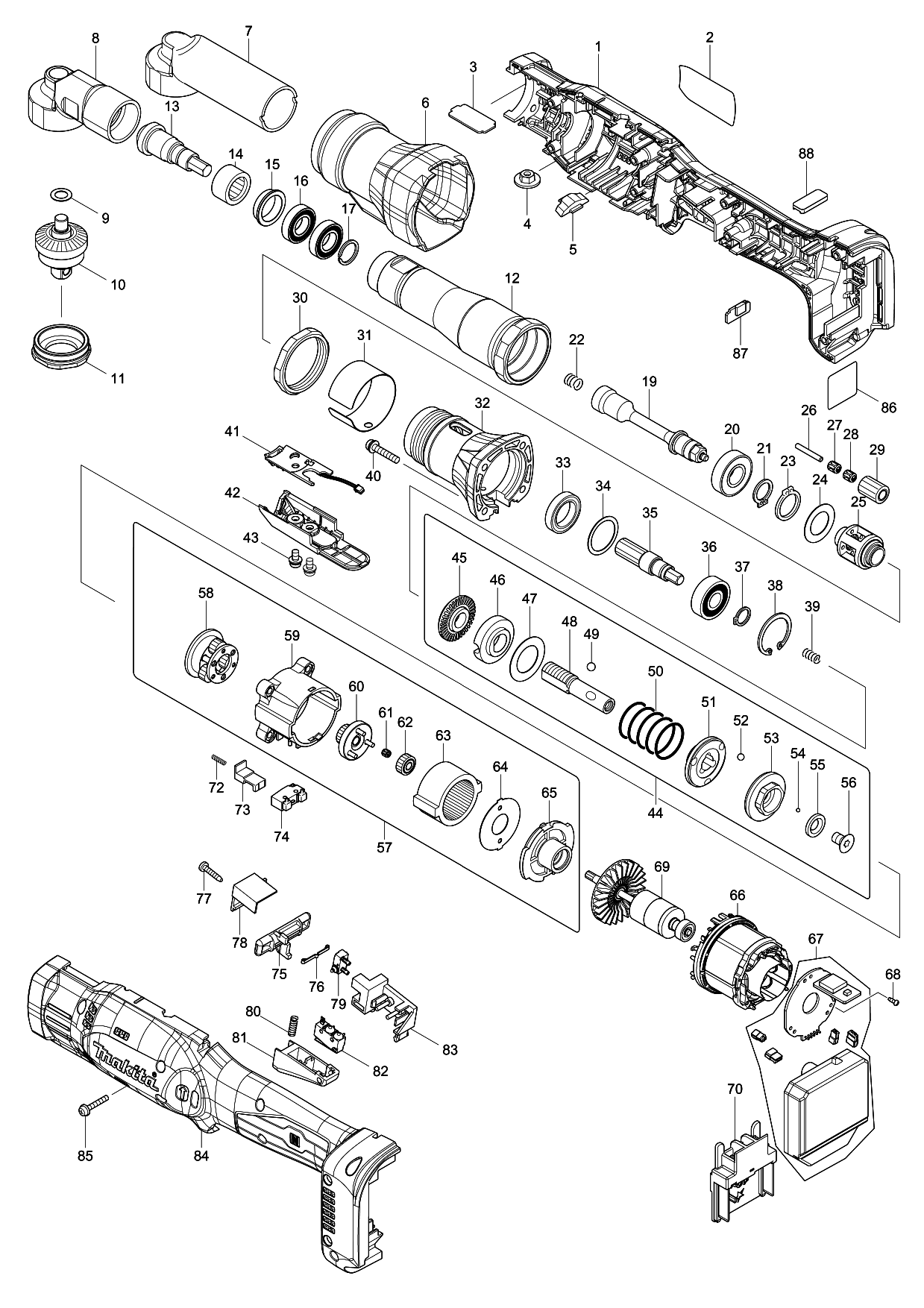

Sheet 1: Makita DFL651F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183C90-7 | Makita 183C90-7 HOUSING SET, DFL651F |
| 2 | 851R21-1 | |
| 3 | 346862-5 | |
| 4 | 252142-8 | Makita 252142-8 HEX NUT FLANCE M5 FOR |
| 5 | 455767-9 | Makita 455767-9 LENS ,DFL650F |
| 6 | 455773-4 | Makita 455773-4 PROTECTOR G |
| 7 | 455771-8 | Makita 455771-8 PROTECTOR E |
| 8 | 143716-5 | Makita 143716-5 ANGLE HEAD COMPLETE DFL651F |
| 9 | 253777-8 | Makita 253777-8 FLAT WASHER 8, MUH304 |
| 10 | 143714-9 | Makita 143714-9 SPINDLE A COMPLETE, DFL651F |
| 11 | 285739-8 | Makita 285739-8 BEARING RETAINER 20-34, DFL650F |
| 12 | 143717-3 | Makita 143717-3 INTERNAL GEAR HOUSING COMPLETE, DFL651F |
| 13 | 221443-5 | Makita 221443-5 SPIRAL BEVEL GEAR 9 DFL651F |
| 14 | 212222-2 | Makita 212222-2 NEEDLE BEARING 1612 |
| 15 | 326709-9 | Makita 326709-9 SPACER DFL651F |
| 16 | 211288-9 | Makita 211288-9 BALL BEARING 6901DDW |
| 17 | 961082-6 | Makita 961082-6 RETAINING RING (EXT)WR12, HR261D |
| 19 | 326708-1 | Makita 326708-1 SHAFT DFL651F |
| 20 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 21 | 961072-9 | Makita 961072-9 RETAINING RING (EXT) S-12, TD020D |
| 22 | 234392-7 | Makita 234392-7 COMPRESSION SPRING 6, DUR650F |
| 23 | 961056-7 | Makita 961056-7 RETAINING RING S-16 |
| 24 | 253749-3 | Makita 253749-3 FLAT WASHER 16 |
| 25 | 326491-0 | Makita 326491-0 CARRIER |
| 26 | 256221-4 | Makita 256221-4 PIN 3 |
| 27 | 212131-5 | Makita 212131-5 NEEDLE CAGE 307 |
| 28 | 212131-5 | Makita 212131-5 NEEDLE CAGE 307 |
| 29 | 227364-9 | Makita 227364-9 SPUR GEAR 14 |
| 30 | 252187-6 | Makita 252187-6 HEX. NUT M36-41 |
| 31 | 346863-3 | Makita 346863-3 RING 38R |
| 32 | 317808-8 | Makita 317808-8 CLUTCH CASE |
| 33 | 211283-9 | Makita 211283-9 BALL BEARING 6803ZZ |
| 34 | 267283-7 | Makita 267283-7 FLAT WASHER 21 |
| 35 | 227365-7 | Makita 227365-7 SPUR GEAR 13 |
| 36 | 211088-7 | Makita 211088-7 BALL BEARING 6000DDW, 9526NB |
| 37 | 961026-6 | Makita 961026-6 RETAINING RING S-10 |
| 38 | 962105-3 | Makita 962105-3 RETAINING RING R-32, GA4030 |
| 39 | 233019-6 | Makita 233019-6 COMPRESSION SPRING 5, BFT040F |
| 40 | 265145-3 | Makita 265145-3 PAN HEAD SCREW M4X22, BFL |
| 41 | 620396-9 | Makita 620396-9 LED CIRCUIT |
| 42 | 455765-3 | Makita 455765-3 SWITCH COVER, DFL650F |
| 43 | 265171-2 | Makita 265171-2 PAN HEAD SCREW M4X8 |
| 45 | 324834-0 | Makita 324834-0 LOCK NUT M12, BFT040F |
| 46 | 158408-3 | Makita 158408-3 ADJUST RING COMPLBFT040F |
| 47 | 267276-4 | Makita 267276-4 FLAT WASHER 18, BFT040F |
| 48 | 324296-2 | Makita 324296-2 SPINDLE, BFT040F |
| 49 | 216018-3 | Makita 216018-3 STEEL BALL 5.0, HR2450FT |
| 50 | 233385-1 | Makita 233385-1 COMPRESSION SPRING 19D, BFT040F |
| 51 | 223146-7 | Makita 223146-7 CAM D, BFT040F |
| 52 | 216024-8 | Makita 216024-8 STEEL BALL 4, LS1016 |
| 53 | 223139-4 | Makita 223139-4 CAM A, BFL |
| 54 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 55 | 267247-1 | Makita 267247-1 FLAT WASHER 7, BFT040F |
| 56 | 266305-0 | Makita 266305-0 TORX C.S.HEAD SCREW M5X10 |
| 58 | 143137-1 | Makita 143137-1 CARRIER COMPLETE, DFL650F |
| 59 | 418004-2 | Makita 418004-2 GEAR CASE, BFT040F |
| 60 | 143052-9 | Makita 143052-9 SPUR GEAR 20 COMPLETE, DFL650F |
| 61 | 212132-3 | Makita 212132-3 NEEDLE CAGE 205, DFL650F |
| 62 | 227366-5 | Makita 227366-5 SPUR GEAR 18, DFL650F |
| 63 | 227048-9 | Makita 227048-9 INTERNAL GEAR 47, BFT040F |
| 64 | 267774-8 | Makita 267774-8 LOCK WASHER, BFT040F |
| 65 | 418003-4 | Makita 418003-4 MOTOR BRACKET, BFT040F |
| 66 | 629151-6 | Makita 629151-6 STATOR 18V |
| 67 | 620493-1 | Makita 620493-1 CONTROLLER, DFL651F |
| 68 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 69 | 619364-7 | Makita 619364-7 ROTOR |
| 70 | 643860-3 | Makita 643860-3 Terminal for CL182D DDF480 BTP141 LXGC01 |
| 72 | 234361-8 | Makita 234361-8 COMPRESSION SPRING 2 |
| 73 | 418002-6 | Makita 418002-6 SWITCH LEVER, BFT040F |
| 74 | 632E35-9 | Makita 632E35-9 SWITCH UNIT, DFL650F |
| 75 | 455766-1 | Makita 455766-1 F/R CHANGE LEVER, DFL650F |
| 76 | 232201-4 | Makita 232201-4 LEAF SPRING |
| 77 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 78 | 418204-4 | Makita 418204-4 COVER |
| 79 | 638276-5 | Makita 638276-5 SWITCH UNIT |
| 80 | 231397-8 | Makita 231397-8 COMPRESSION SPRING 4, 2414NB |
| 81 | 418203-6 | Makita 418203-6 SWITCH LEVER A |
| 82 | 638275-7 | Makita 638275-7 SWITCH UNIT |
| 83 | 418202-8 | Makita 418202-8 SWITCH BASE |
| 84 | 183C90-7 | Makita 183C90-7 HOUSING SET, DFL651F |
| 85 | 265095-2 | Makita 265095-2 PAN HEAD SCREW M3X20 |
| 86 | 851R24-5 | |
| 87 | 620494-9 | Makita 620494-9 USB CIRCUIT DFL651F |
| 88 | 424827-8 | Makita 424827-8 USB COVER DFL651F |
