Makita DF488D: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DF488D: 16 positions on 1 sheet

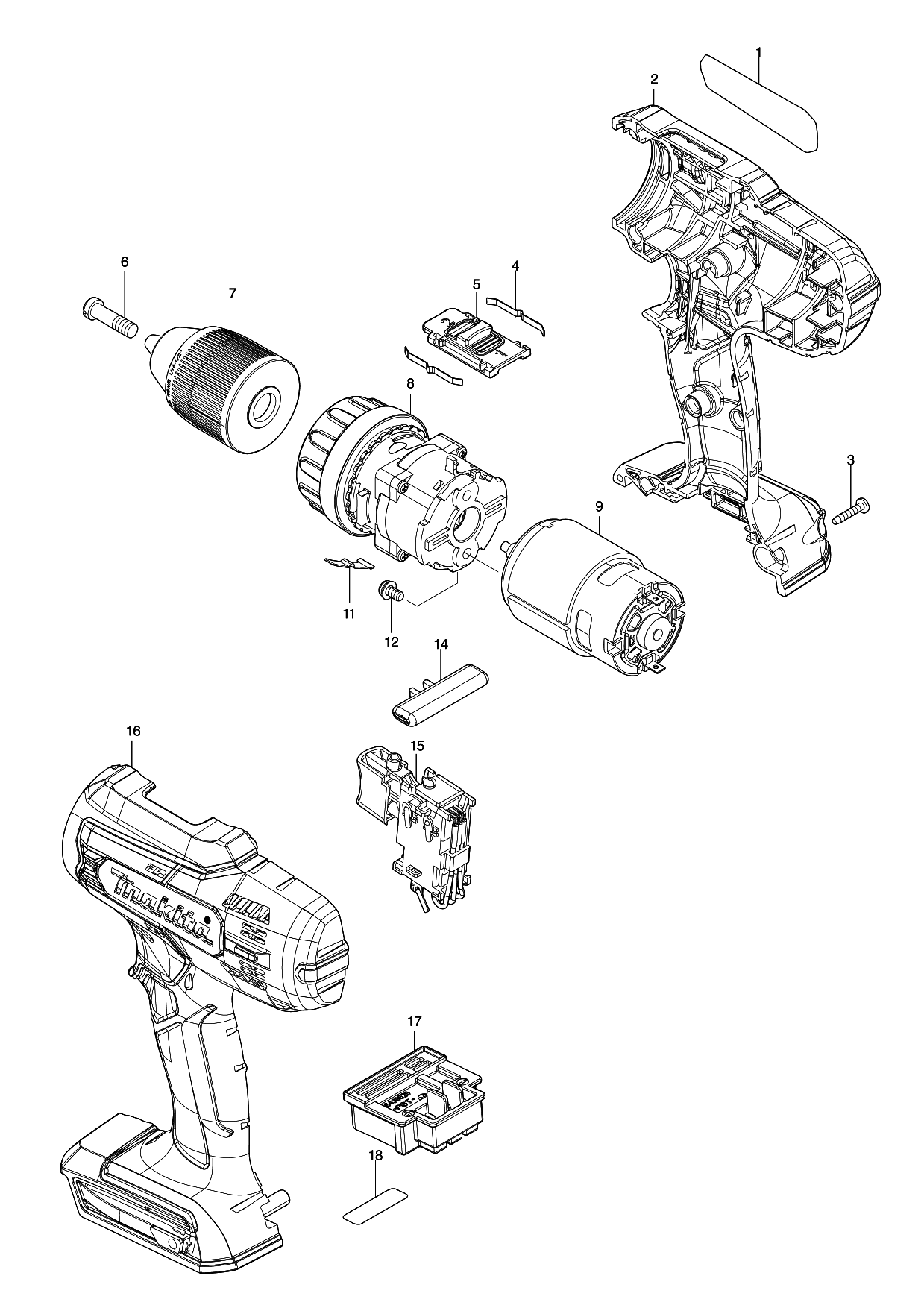

Sheet 1: Makita DF488D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 858A54-5 | |
| 2 | 183R93-1 | |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 232220-0 | Makita 232220-0 LEAF SPRING, HP451D |
| 5 | 127754-5 | |
| 6 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 7 | 766004-9 | |
| 8 | 127734-1 | |
| 9 | 629937-8 | Makita 629937-8 Motor for BDF453 |
| 11 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 12 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 14 | 452399-3 | Makita 452399-3 F/R CHANGE LEVER |
| 15 | 638862-2 | Makia 638862-2 Switch for DF457D HP457D |
| 16 | 183R93-1 | |
| 17 | 643862-9 | |
| 18 | 858A58-7 |
