Makita DF331D
Makita DF331D: exploded parts diagram, 1 sheet, 15 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DF331D: 15 positions on 1 sheet

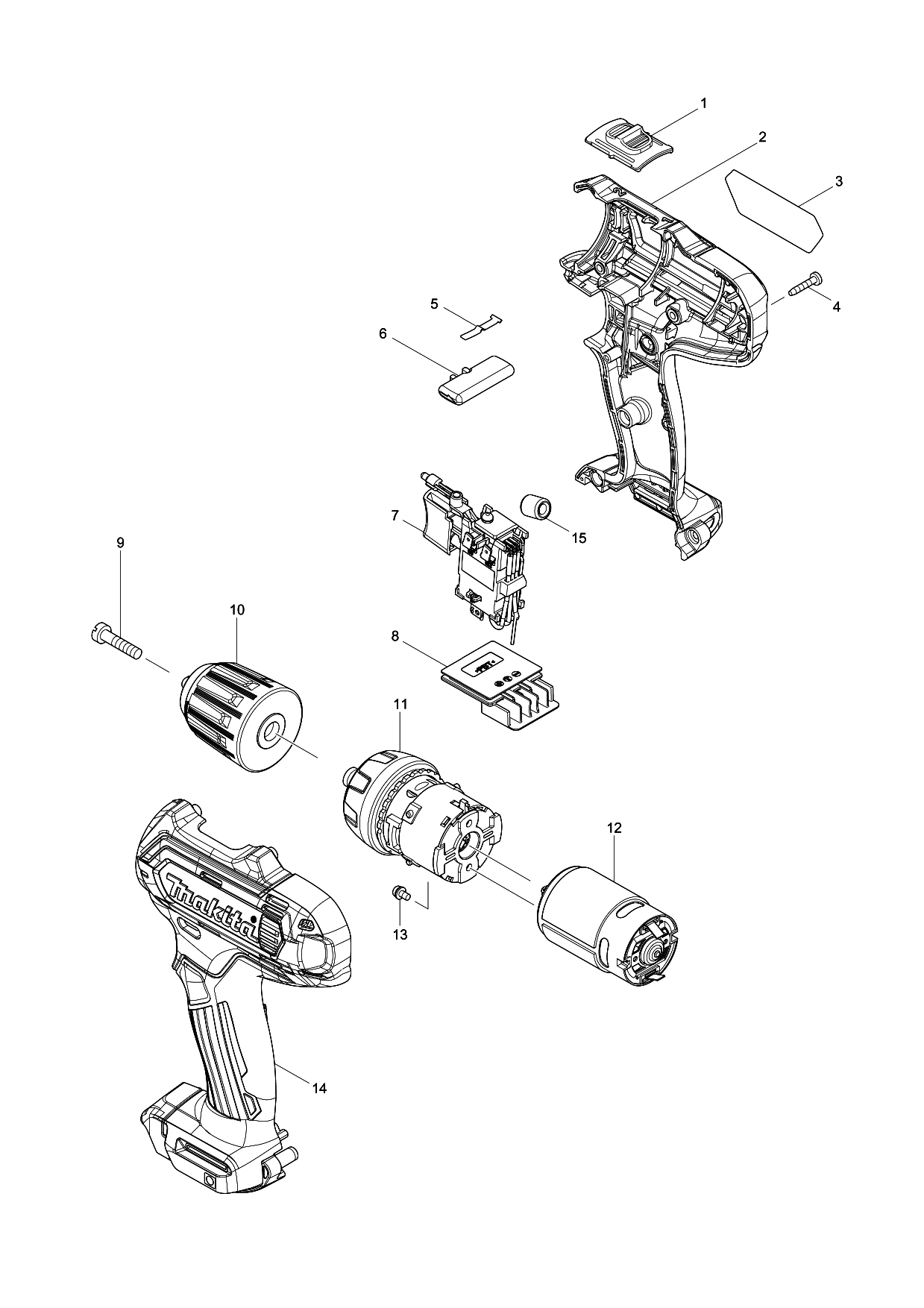

Sheet 1: Makita DF331D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 126233-0 | Makita 126233-0 Speed Change Lever Assembly for DF030D, 330D, HP330D |
| 2 | 183B50-3 | Makita 183B50-3 HOUSING SET |
| 3 | 851H36-8 | Makita 851H36-8 DF331D NAME PLATE |
| 4 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 5 | 232239-9 | Makita 232239-9 Leaf Spring for 4074D |
| 6 | 456039-5 | Makita 456039-5 F/R CHANGE LEVER |
| 7 | 632F42-8 | Makita 632F42-8 Switch for DF031D DF331D HP331D TD110D |
| 8 | 644813-5 | Makita 644813-5 Terminal |
| 9 | 251451-2 | Makita 251451-2 Pan Head Screw M5X22 for 6220D |
| 10 | 763228-8 | Makita 763228-8 Keyless Drill Chuck 10 for DF331D DF331DZ DF330D |
| 11 | 123503-8 | Makita 123503-8 Gear Assembly DF330D DF330DWE DF331 DF331D |
| 12 | 629169-7 | Old code 629169-7 629167-1 |
| 13 | 911003-8 | Makita 911003-8 PAN HEAD SCREW M3X6, 6226D |
| 14 | 183B50-3 | Makita 183B50-3 HOUSING SET |
| 15 | 688164-6 | Makita 688164-6 Line Filter 11*5*10 for CL142D |
