Makita DF330D
Makita DF330D: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DF330D: 16 positions on 1 sheet

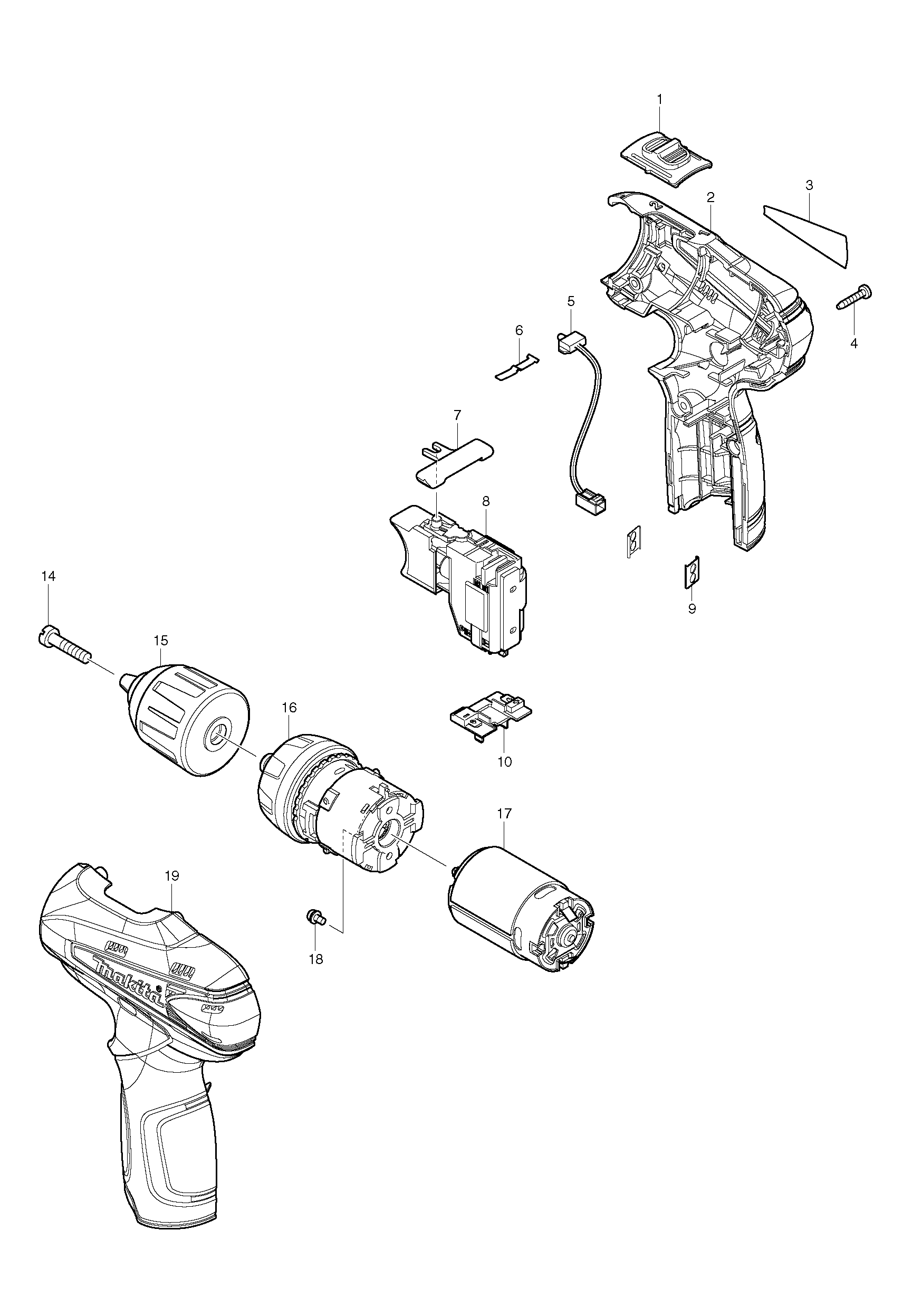

Sheet 1: Makita DF330D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 125461-4 | Makita 125461-4 SPEED CHANGE LEVER ASSMBLY, DF030D |
| 2 | 188498-2 | Makita 188498-2 Housing Set DF030D DF330D |
| 3 | 866201-8 | Makita 866201-8 NAME PLATEDF330D |
| 4 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 5 | 631813-4 | Makita 631813-4 LED CIRCUIT, DF030D |
| 6 | 232239-9 | Makita 232239-9 Leaf Spring for 4074D |
| 7 | 450504-6 | Makita 450504-6 F/R Change Lever, TD090D |
| 8 | 650599-1 | OLDN Makita 650599-1 SWITCH, DF030D |
| 9 | 345998-7 | Makita 345998-7 SET PLATE, DF030D |
| 10 | 643830-2 | Makita 643830-2 TERMINAL, DF030D |
| 14 | 251451-2 | Makita 251451-2 Pan Head Screw M5X22 for 6220D |
| 15 | 766007-3 | |
| 16 | 125539-3 | Makita 125539-3 Gear Assembly for DF330D |
| 17 | 629853-4 | Makita 629853-4 DC Motor DF030D |
| 18 | 911003-8 | Makita 911003-8 PAN HEAD SCREW M3X6, 6226D |
| 19 | 188498-2 | Makita 188498-2 Housing Set DF030D DF330D |
