Makita DF032D
Makita DF032D: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DF032D: 18 positions on 1 sheet

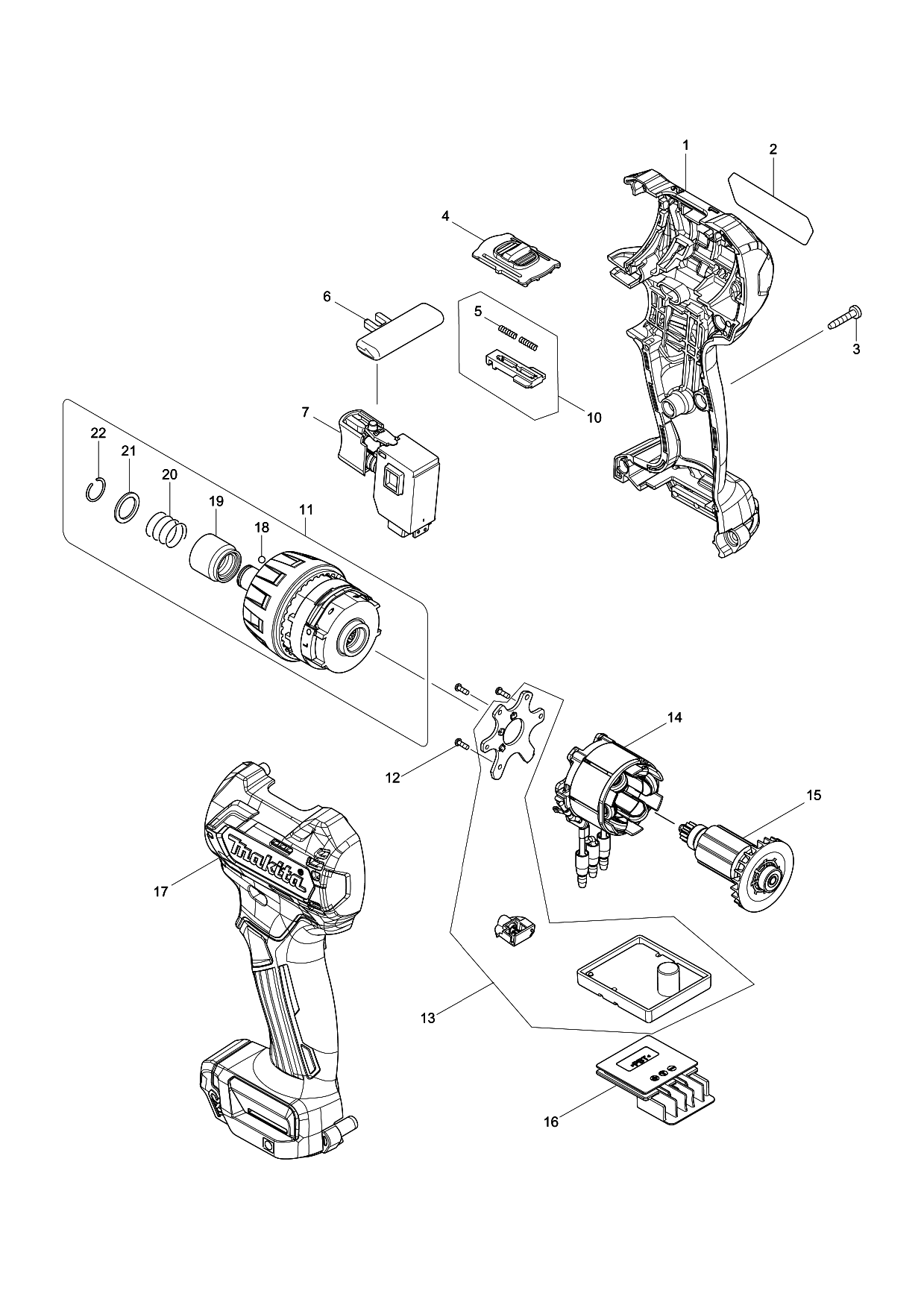

Sheet 1: Makita DF032D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183C34-7 | Makita 183C34-7 HOUSING SET |
| 2 | 851U10-4 | Makita 851U10-4 DF032D NAME PLATE |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 456532-9 | Makita 456532-9 SPEED CHANGE LEVER |
| 5 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 6 | 419041-9 | Makita 419041-9 F/R Change Lever BTD130 |
| 7 | 650689-0 | Makita 650689-0 Switch DF032DWAE DF032DZ BDF4569 BTD129 |
| 12 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 13 | 620487-6 | Makita 620487-6 CONTROLLER |
| 14 | 629178-6 | Makita 629178-6 STATOR |
| 15 | 619393-0 | Makita 619393-0 ROTOR |
| 16 | 644813-5 | Makita 644813-5 Terminal |
| 17 | 183C34-7 | Makita 183C34-7 HOUSING SET |
| 18 | 216019-1 | Makita 216019-1 STEEL BALL 3, TD020D |
| 19 | 326677-6 | Makita 326677-6 BIT SLEEVE |
| 20 | 233005-7 | Makita 233005-7 Compression Spring 13 for 6935FD |
| 21 | 347004-4 | Makita 347004-4 BIT WASHER |
| 22 | 231965-7 | Makita 231965-7 RING SPRING 10, TD090D |
