Bosch DEX 80

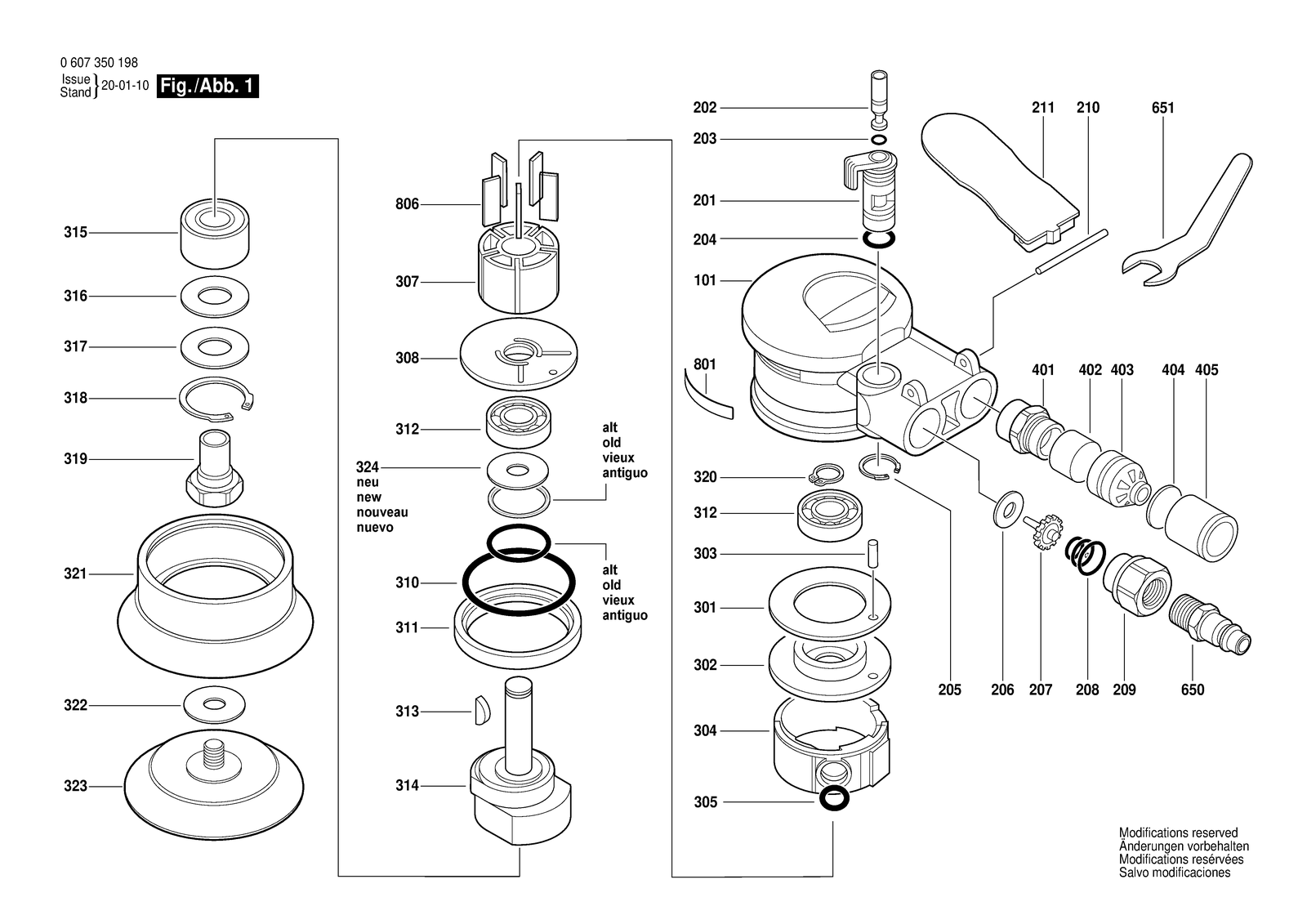

Bosch DEX 80 random orbital sander: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DEX 80: 43 positions on 1 sheet
Bosch DEX 80 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 3609202B17 | Housing |
| 201 | 3609202B18 | Regulator |
| 202 | 3609202B19 | Valve Stem |
| 203 | 3609202B20 | O-Ring |
| 204 | 3609202B21 | O-Ring |
| 205 | 3609202B22 | Spring retaining ring |
| 206 | 3609202B23 | Seal |
| 207 | 3609202B24 | Valve |
| 208 | 3609202B25 | Spring |
| 209 | 3609202B26 | Fitting |
| 210 | 3609202B27 | Spring Pin |
| 211 | 3609202B28 | Trigger |
| 301 | 3609202B29 | Ring |
| 302 | 3609202B30 | Bearing Shell |
| 303 | 3609202B31 | Spring Pin |
| 304 | 3609202B32 | Cylinder |
| 305 | 3609202B33 | O-Ring |
| 307 | 3609202B35 | Rotor |
| 308 | 3609202B36 | Bearing Shell |
| 310 | 3609202B37 | O-Ring |
| 311 | 3609202B38 | Threaded Ring |
| 312 | 3609202B39 | Bearing |
| 313 | 3609202B40 | Woodruff Key |
| 314 | 3609202B41 | Eccentric Shaft |
| 315 | 3609202B42 | Bearing |
| 316 | 3609202B43 | Seal |
| 317 | 3609202B44 | Washer |
| 318 | 3609202B45 | Spring retaining ring |
| 319 | 3609202B46 | Spindle |
| 320 | 3609202B47 | Spring retaining ring |
| 321 | 3609202B48 | Dust Protection |
| 322 | 3609202B49 | Shim washer |
| 323 | 3609202B50 | Backing Pad |
| 324 | 3609202B51 | Seal |
| 401 | 3609202B54 | Flange |
| 402 | 3609202B55 | Sleeve |
| 403 | 3609202B56 | Nozzle |
| 404 | 3609202B57 | Silencer |
| 405 | 3609202B58 | Cover |
| 650 | 3603386062 | Hose fitting |
| 651 | 3607950026 | Single-Head Eng. Wrench |
| 801 | 3601119866 | Nameplate |
| 806 | 3607030481 | Set Of Clutch Plates |
