Makita DES380

Makita DES380: exploded parts diagram, 4 sheets, 55 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DES380: 55 positions on 4 sheets

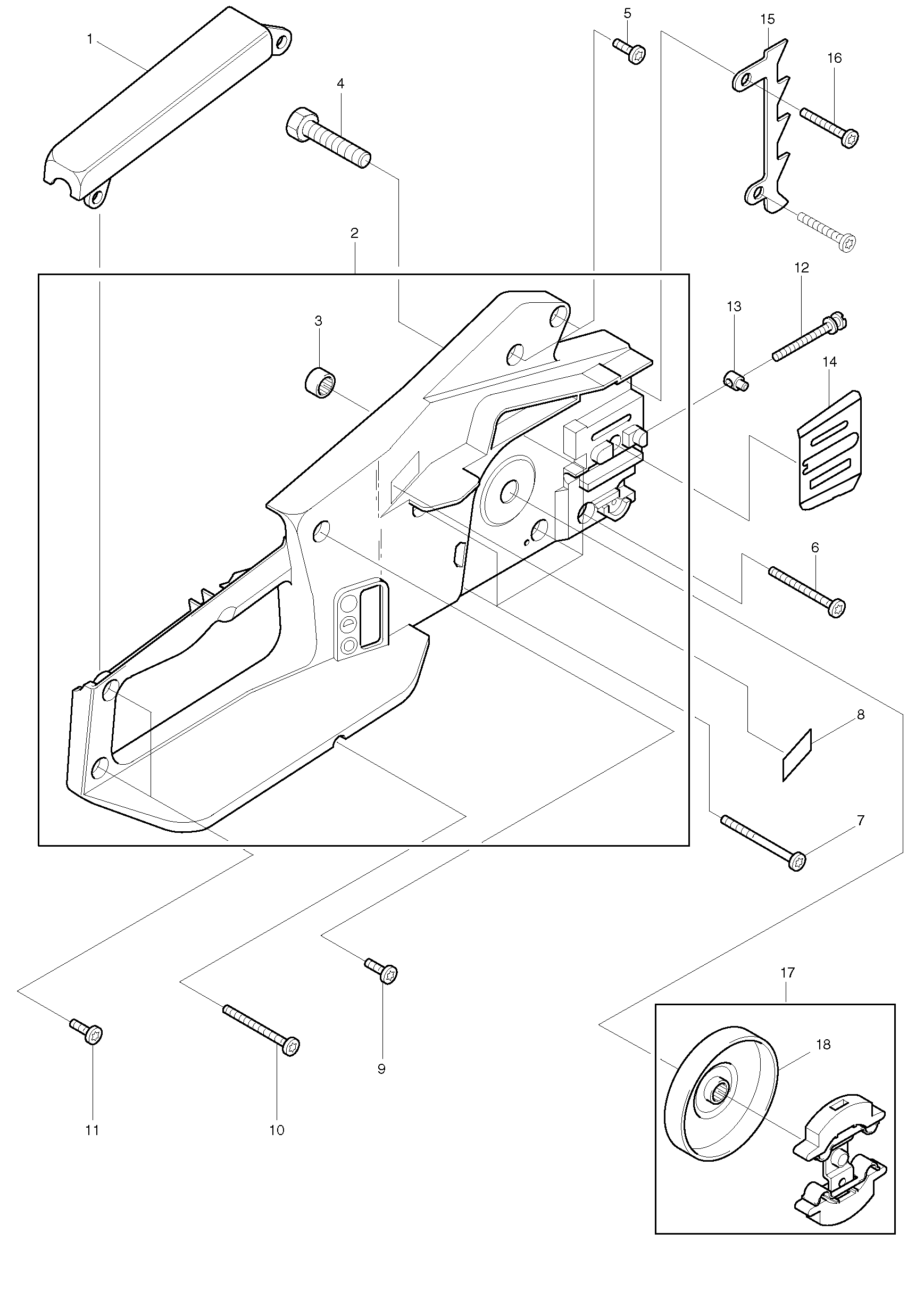

Sheet 1: Makita DES380 parts diagram

Makita DES380 parts diagram, sheet 1
No.Part numberPart name
1205117600Makita 205117600 KANSI
3962300011Makita 962300011 NEULALAAKERI 13X19X12
4021232010Makita 021232010 PULTTI
5913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
6913455454Makita 913455454 RUUVI 5,5X45
7913455554Makita 913455554 RUUVI 5,5X55
8980113614Makita 980113614 KILPI
9913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
10913455454Makita 913455454 RUUVI 5,5X45
11913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
12389213080Makita Set 389213080 Clamp Screw + 001213020 Nut With Pivot
13001213042Makita 001213042 Nut with Pivot
14203111040Makita 203111040 OHJAUSLEVY
15205250010Makita 205250010 TERÄVASTE
16913455304Makita 913455304 RUUVI 5,5X30
18205223101Makita 205223101 KYTKINRUMPUPS-410

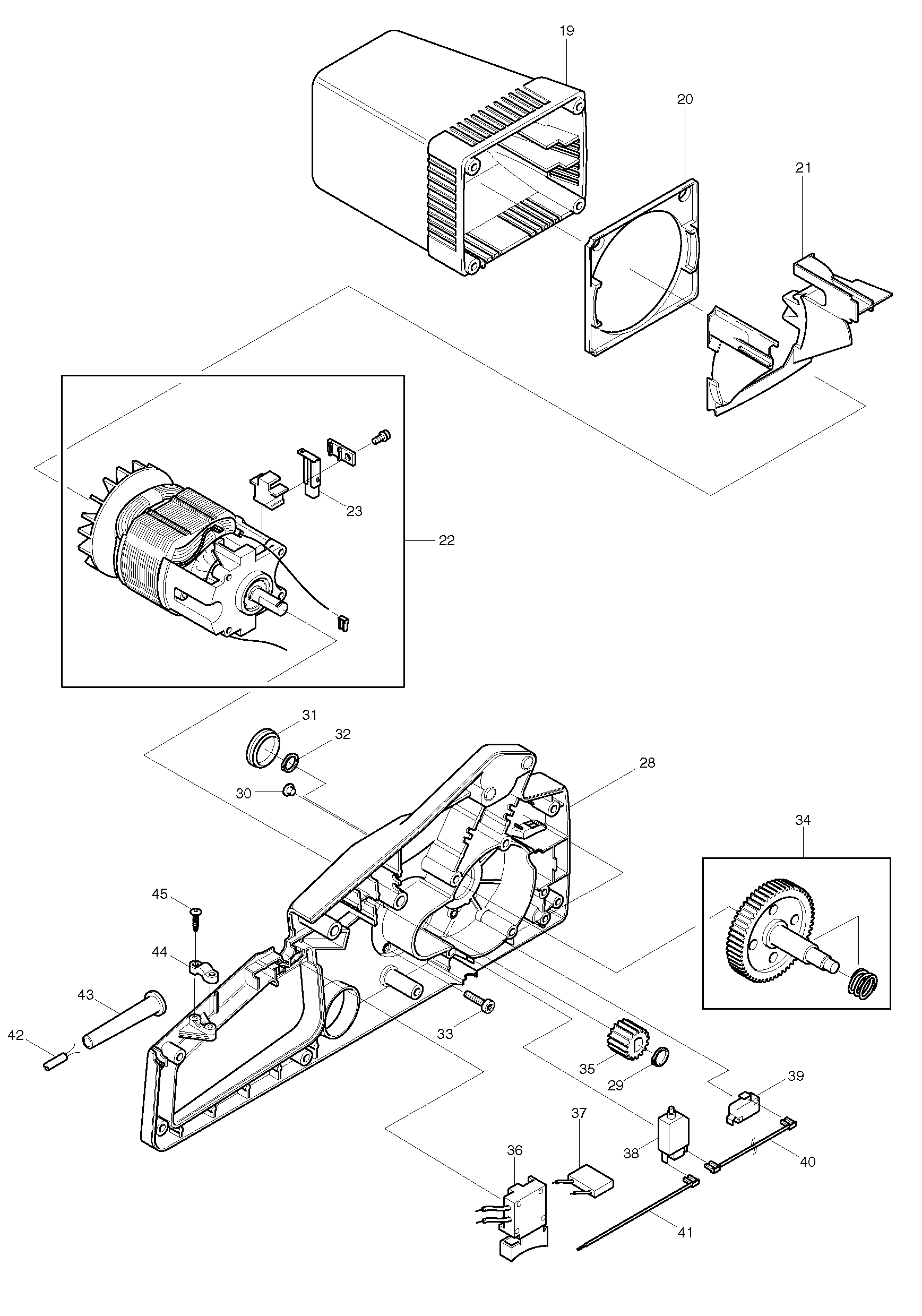

Sheet 2: Makita DES380 parts diagram

Makita DES380 parts diagram, sheet 2
No.Part numberPart name
19203111601Makita 203111601 MOOTTORI KOTELO DES350
20205118020Makita 205118020 TIIVISTE
21203118030
23957800120Makita 957800120 CARBON BRUSH (SET=2PCS.)
28205111632Makita 205111632 KOTELO MOOTTORI PUOL.
29929110100Makita 929110100 RENGAS 10X1
30965451301Makita 965451301 TULPPA
31965451308Makita 965451308 TULPPA
32929109100Makita 929109100 RENGAS 9X1
33908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
34203228002Makita 203228002 HAMMASPYÖRÄ
35203228120Makita 203228120 VETOPYÖRÄ
36975001160Makita 975001160 KYTKIN DES350
37970109870Makita 970109870 HÄIR.POISTAJA
38970001170Makita 970001170 KYTKIN
39970001180Makita 970001180 KYTKIN UC3501A
40970311180Makita 970311180 JOHTO
41970311190Makita 970311190 JOHTO
42970102110Makita 970102110 VERKKOKAAPELI
43204152010Makita 204152010 SUOJA
44203152050Makita 203152050 KEVENNIN
45915635164Makita 915635164 RUUVI UH4830

Sheet 3: Makita DES380 parts diagram

Makita DES380 parts diagram, sheet 3
No.Part numberPart name
46021245003Makita 021245003 ÖLJY PUMPPU TÄYDUC3501A UC3503A
47203245001Makita 203245001 ÖLJYPUMPPUUN KIINIKEC3500A
48915735100Makita 915735100 RUUVI
50205245050Makita 205245050 LIITOSKAPPALE
53963100081Makita 963100081 TIIVISTE
54963228030Makita 963228030 O-RENGAS 28X3
55205114300Makita 205114300 LIITOSPUTKI
56965452380Makita 965452380 BENSALETKU 1M 5,5/3
57965452380Makita 965452380 BENSALETKU 1M 5,5/3

Sheet 4: Makita DES380 parts diagram

Makita DES380 parts diagram, sheet 4
No.Part numberPart name
58205310010Makita 205310010 KAHVA
59205213030Makita 205213030 JOUSI
61980114181Makita 980114181 KYLTTI
63028213501Makita 028213501 JARRUJOUSIPS-410
64980114251Makita 980114251 KILPI
65923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM
66443038631
67528086664
