Makita DES350
Makita DES350: exploded parts diagram, 4 sheets, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DES350: 56 positions on 4 sheets

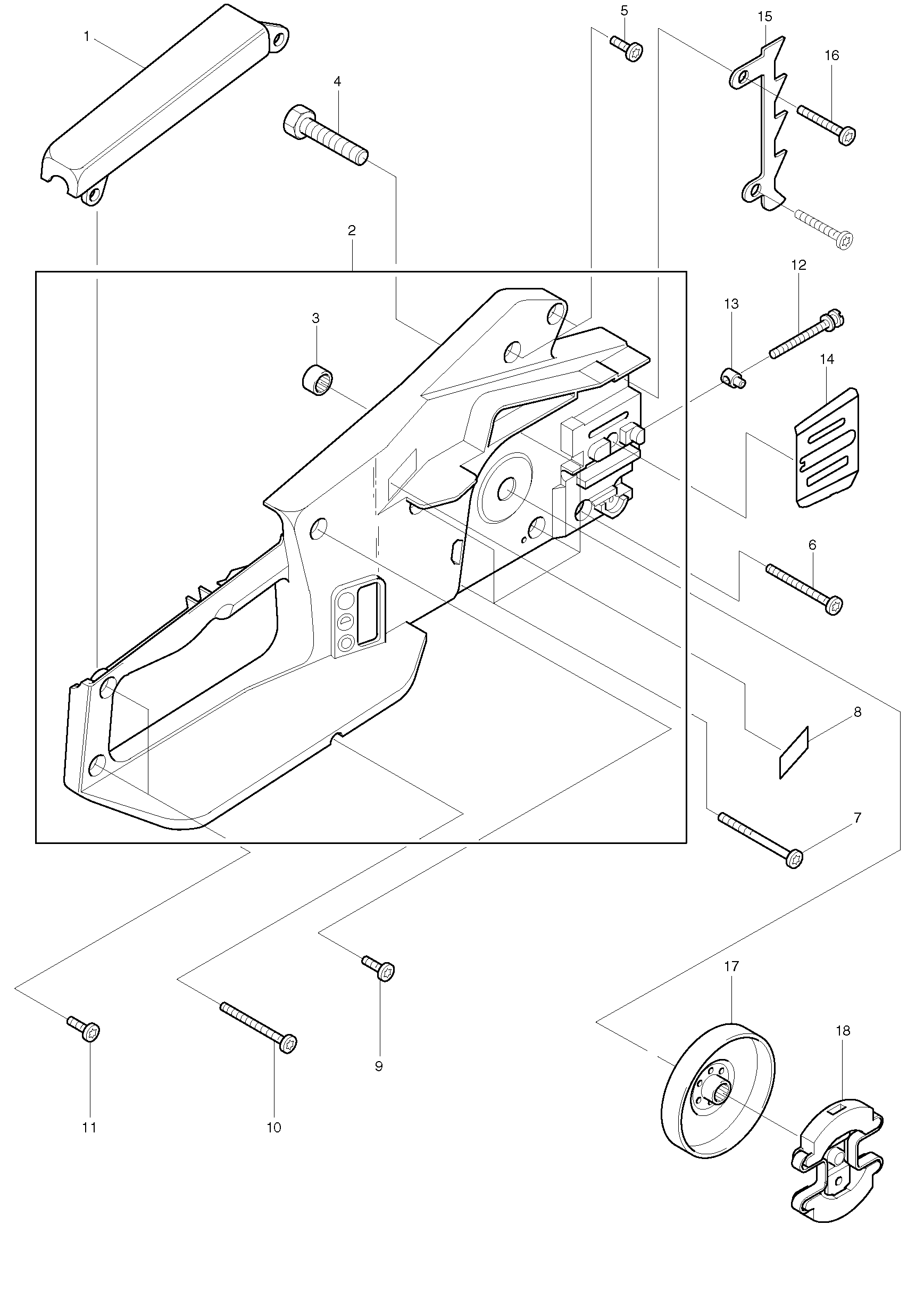

Sheet 1: Makita DES350 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 205117600 | Makita 205117600 KANSI |
| 3 | 962300011 | Makita 962300011 NEULALAAKERI 13X19X12 |
| 4 | 021232010 | Makita 021232010 PULTTI |
| 5 | 913455204 | Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST. |
| 6 | 913455454 | Makita 913455454 RUUVI 5,5X45 |
| 7 | 913455554 | Makita 913455554 RUUVI 5,5X55 |
| 8 | 980113615 | Makita 980113615 KYKLTTI DES350 |
| 9 | 913455204 | Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST. |
| 10 | 913455454 | Makita 913455454 RUUVI 5,5X45 |
| 11 | 913455204 | Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST. |
| 12 | 389213080 | Makita Set 389213080 Clamp Screw + 001213020 Nut With Pivot |
| 13 | 001213042 | Makita 001213042 Nut with Pivot |
| 14 | 203111040 | Makita 203111040 OHJAUSLEVY |
| 15 | 205250010 | Makita 205250010 TERÄVASTE |
| 16 | 913455304 | Makita 913455304 RUUVI 5,5X30 |
| 17 | 028233311 | |
| 18 | 204180000 | Makita 204180000 KYTKIN |
Sheet 2: Makita DES350 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 19 | 203111601 | Makita 203111601 MOOTTORI KOTELO DES350 |
| 20 | 205118020 | Makita 205118020 TIIVISTE |
| 21 | 203118011 | Makita 203118011 OHJAIN |
| 23 | 957113840 | Makita 957113840 HIILI DES350 |
| 24 | 970113941 | |
| 25 | 970114330 | Makita 970114330 BEARING PEDESTAL 10DOLMAR |
| 26 | 905105605 | Makita 905105605 RUUVI M5X60 |
| 27 | 926105001 | Makita 926105001 JOUSI ALUSLEVY 5 |
| 28 | 205111632 | Makita 205111632 KOTELO MOOTTORI PUOL. |
| 29 | 929110100 | Makita 929110100 RENGAS 10X1 |
| 30 | 965451301 | Makita 965451301 TULPPA |
| 31 | 965451308 | Makita 965451308 TULPPA |
| 32 | 929109100 | Makita 929109100 RENGAS 9X1 |
| 33 | 908005165 | Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540 |
| 34 | 203228002 | Makita 203228002 HAMMASPYÖRÄ |
| 35 | 203228120 | Makita 203228120 VETOPYÖRÄ |
| 36 | 975001160 | Makita 975001160 KYTKIN DES350 |
| 37 | 970109870 | Makita 970109870 HÄIR.POISTAJA |
| 42 | 970102110 | Makita 970102110 VERKKOKAAPELI |
| 43 | 204152010 | Makita 204152010 SUOJA |
| 44 | 203152050 | Makita 203152050 KEVENNIN |
| 45 | 915635164 | Makita 915635164 RUUVI UH4830 |

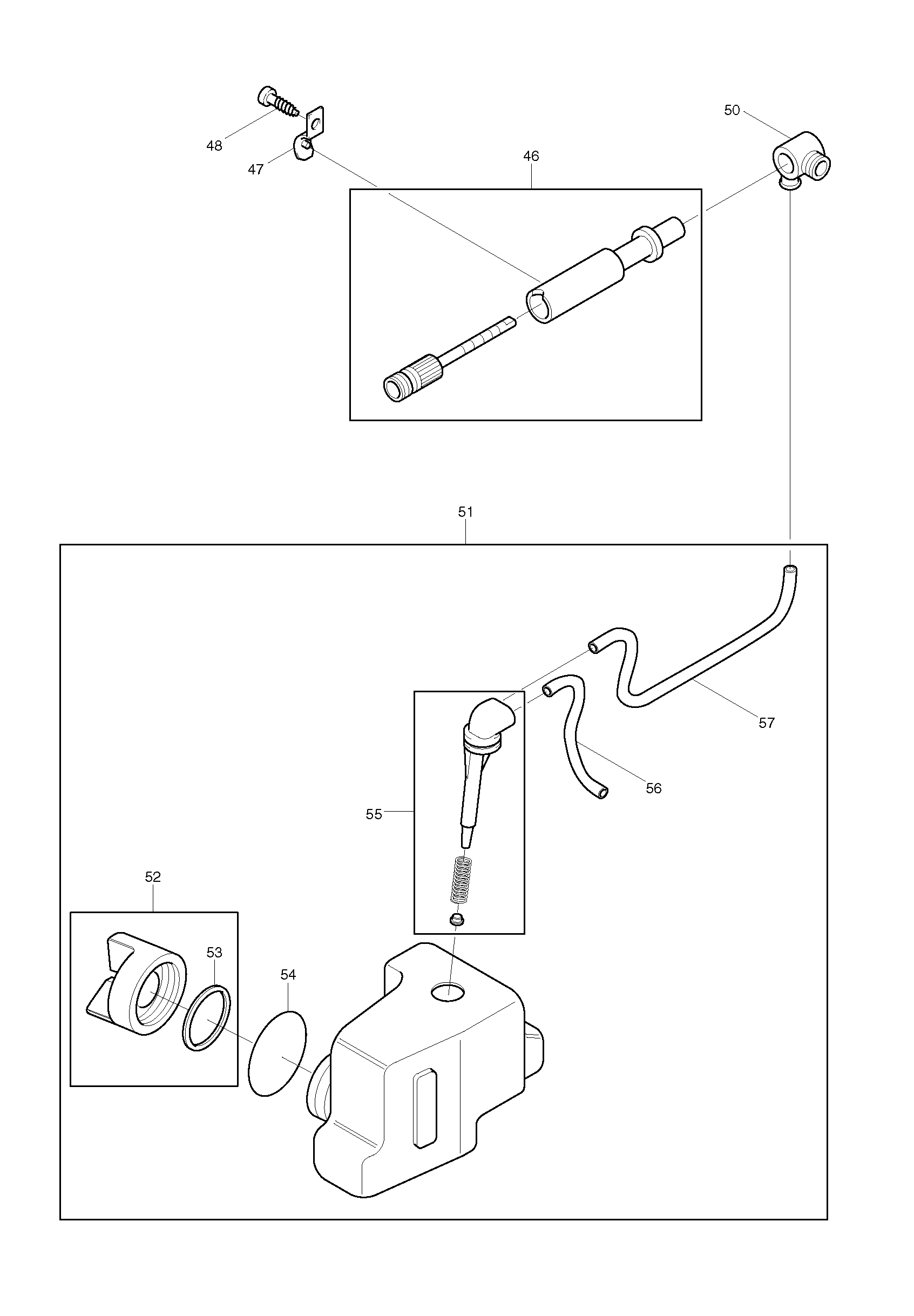

Sheet 3: Makita DES350 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 46 | 021245003 | Makita 021245003 ÖLJY PUMPPU TÄYDUC3501A UC3503A |
| 47 | 203245001 | Makita 203245001 ÖLJYPUMPPUUN KIINIKEC3500A |
| 48 | 915735100 | Makita 915735100 RUUVI |
| 50 | 205245050 | Makita 205245050 LIITOSKAPPALE |
| 53 | 963100081 | Makita 963100081 TIIVISTE |
| 54 | 963228030 | Makita 963228030 O-RENGAS 28X3 |
| 55 | 205114300 | Makita 205114300 LIITOSPUTKI |
| 56 | 965452380 | Makita 965452380 BENSALETKU 1M 5,5/3 |
| 57 | 965452380 | Makita 965452380 BENSALETKU 1M 5,5/3 |

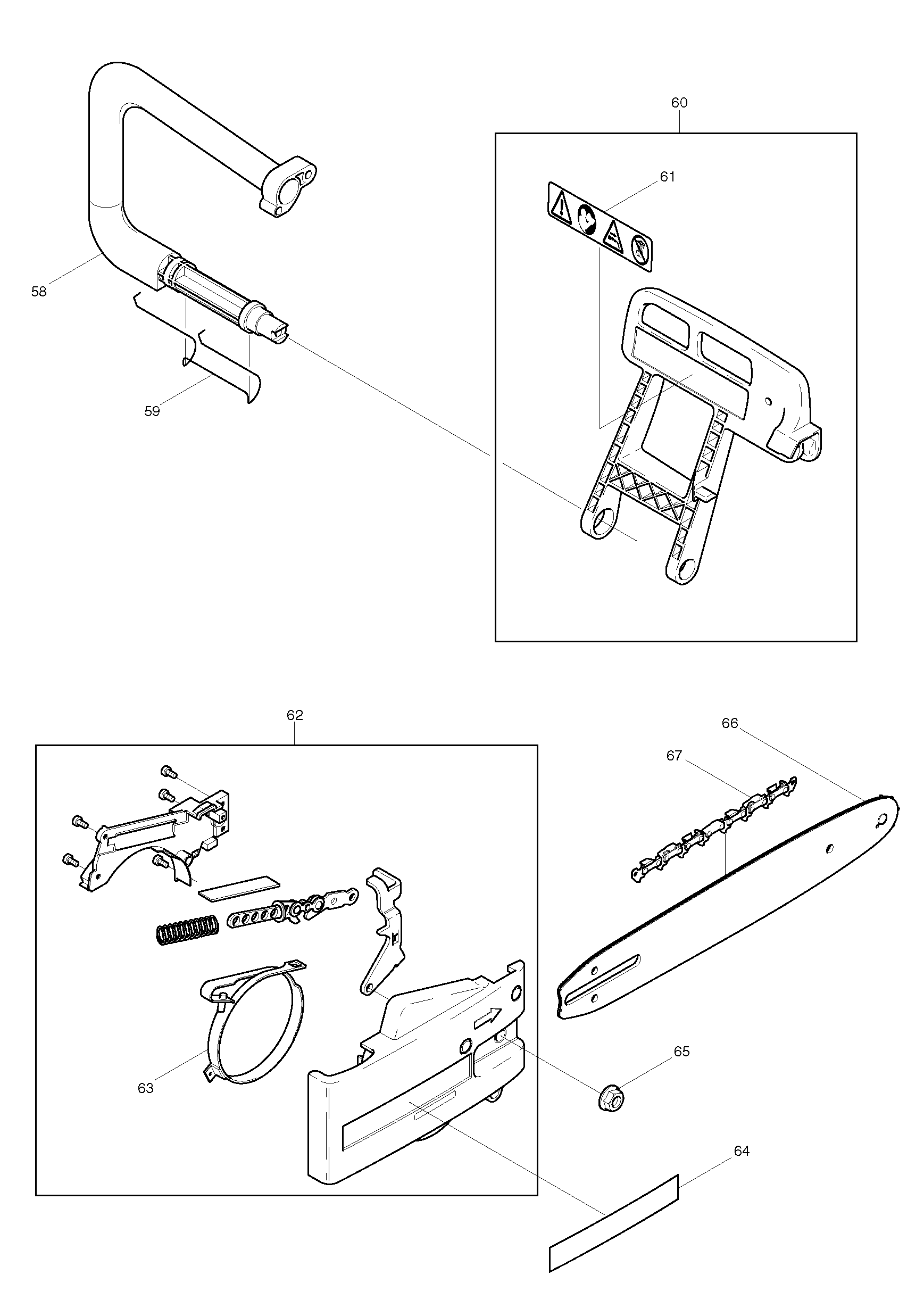

Sheet 4: Makita DES350 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 58 | 205310010 | Makita 205310010 KAHVA |
| 59 | 205213030 | Makita 205213030 JOUSI |
| 61 | 980114181 | Makita 980114181 KYLTTI |
| 63 | 028213501 | Makita 028213501 JARRUJOUSIPS-410 |
| 64 | 980114251 | Makita 980114251 KILPI |
| 65 | 923208004 | Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM |
| 66 | 442035661 | |
| 67 | 528092652 |
