Bosch DDS181

Bosch DDS181 cordless drill driver: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DDS181: 43 positions on 1 sheet

Bosch DDS181 parts list (1 sheet)

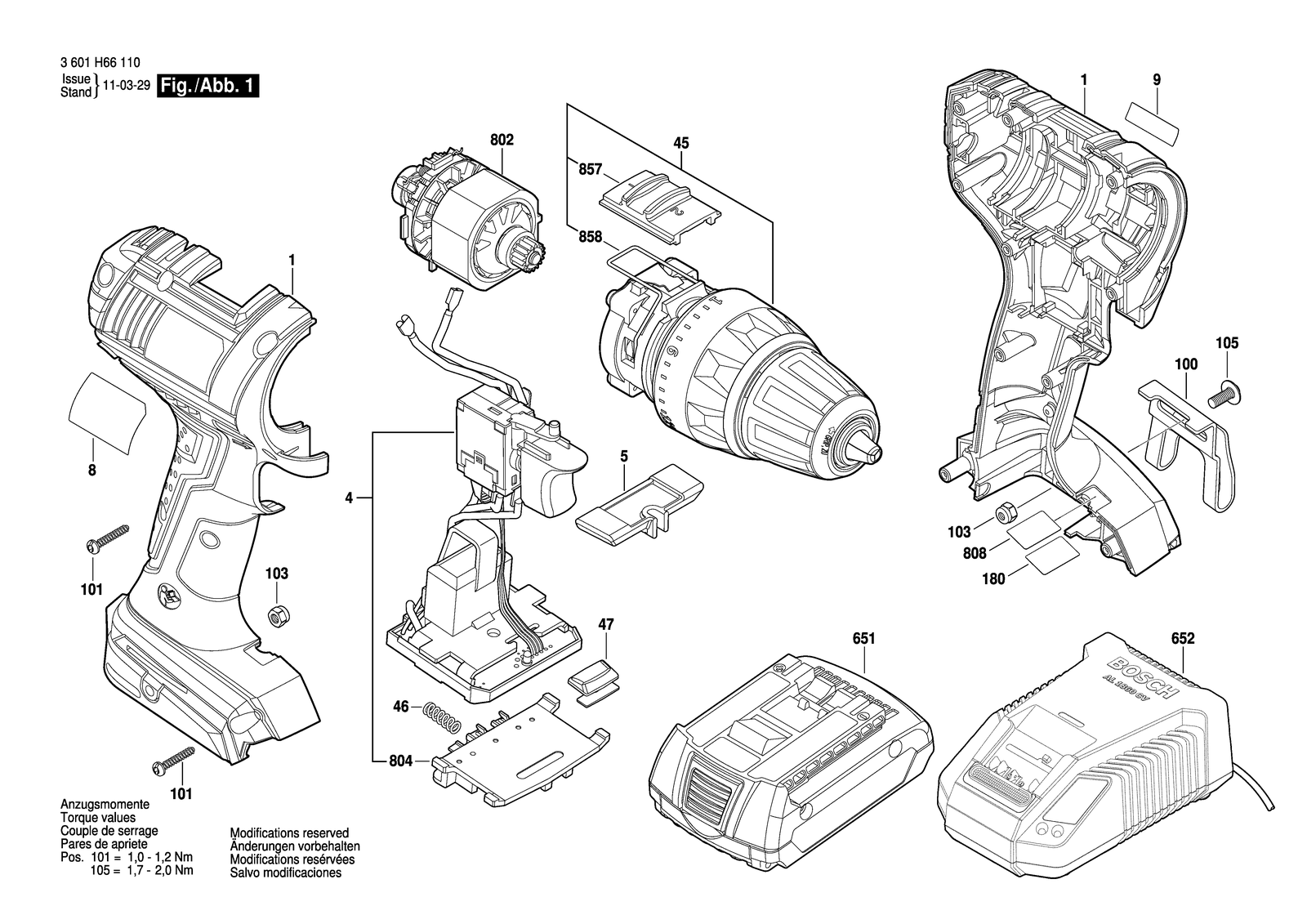

Bosch DDS181 parts diagram, sheet 1
No.Part numberPart name
12609100856Housing
12609100856Housing
1002609110956Clip
1002609110956Clip
1012609110353Torx Oval-Head Screw
1012609110353Torx Oval-Head Screw
1032609110835Nut
1032609110835Nut
1052609110834Screw
1052609110834Screw
1802609133093Reference Plate
1802609133093Reference Plate
41607233444Electronics Module
41607233444Electronics Module
452609199296Gear Box
452609199296Gear Box
461609280477Compression Spring
461609280477Compression Spring
472609100858Lens
472609100858Lens
52609100859Adjusting lever
52609100859Adjusting lever
6511607A350BMBattery Pack BAT612 18V 2.0AH LI Scm
6512607336561Slide-In Accu Package 18V, 1,5AH LI BAT610G
6512607336819Battery Pack Usa BAT620 18V 4,0AH
6511607A350BMBattery Pack BAT612 18V 2.0AH LI Scm
6511607A350MBBattery Pack
6512607336561Slide-In Accu Package 18V, 1,5AH LI BAT610G
6512607336819Battery Pack Usa BAT620 18V 4,0AH
82609133092Warning Label
82609133092Warning Label
8022609199359DC motor 18V
8022609199359DC motor 18V
8041609280478Contact retainer
8041609280478Contact retainer
8082609133094Nameplate
8082610015647Nameplate
8572609100897Switch Slide
8572609100897Switch Slide
8582609111078Switch Spring
8582609111078Switch Spring
92609133091Manufacturer's nameplate Lithium-Ion 18V
92609133091Manufacturer's nameplate Lithium-Ion 18V
