Bosch DDS 3/4" Y-8355

Bosch DDS 3/4" Y-8355 impact wrench: exploded parts diagram, 1 sheet, 54 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DDS 3/4" Y-8355: 54 positions on 1 sheet

Bosch DDS 3/4" Y-8355 parts list (1 sheet)

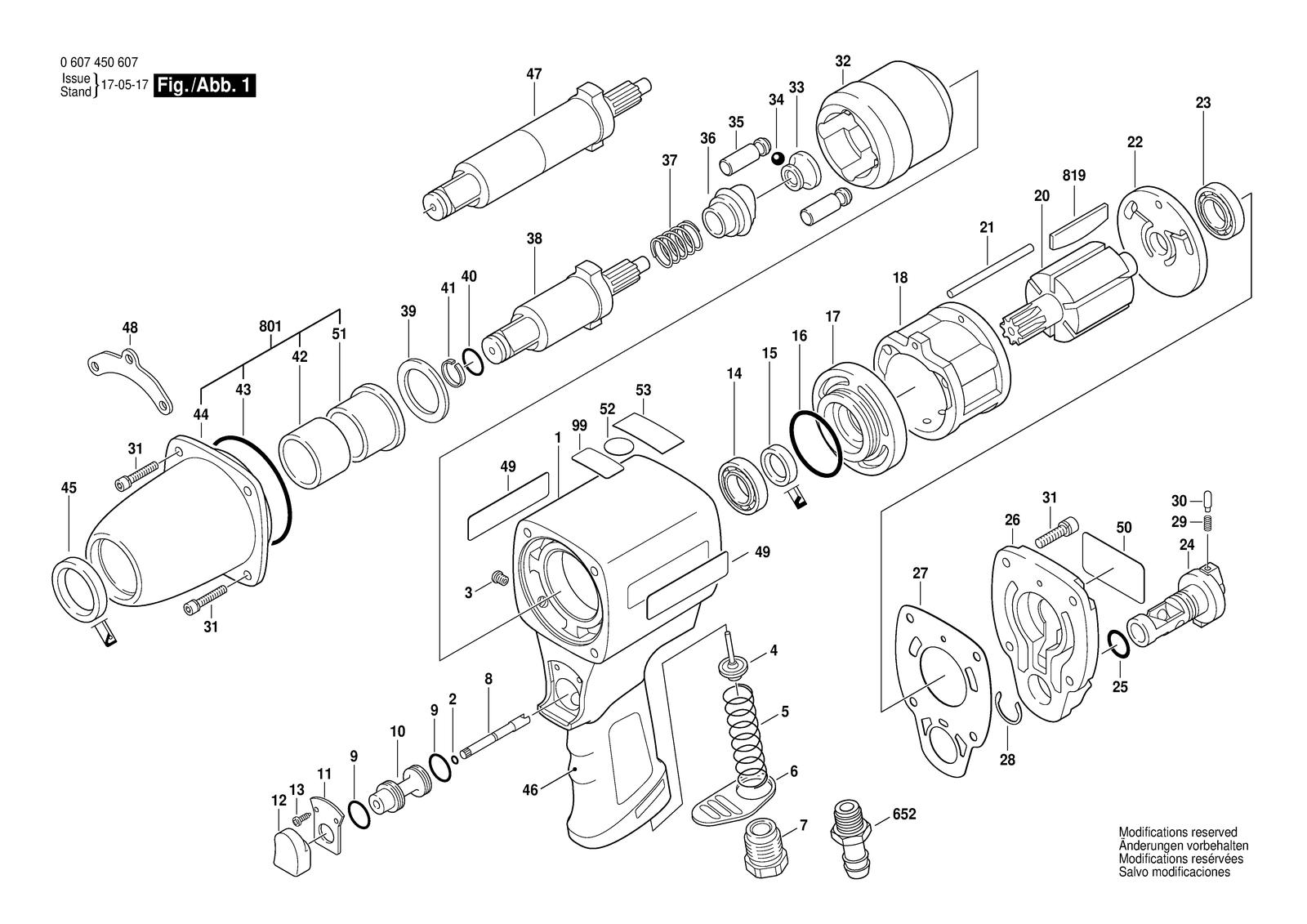

Bosch DDS 3/4" Y-8355 parts diagram, sheet 1
No.Part numberPart name
13609202503Housing
103609202512Valve Bushing
113609202513Sheet metal cover
123609202514Push-Button
133609201398Screw
143609202516Ball Bearing
153609202517Radial Seal
163609202518O-Ring
173609202519Bearing Flange
183609202520Stator
23609201400O-Ring
203609202522Rotor
213609202523Straight Pin
223609202524Bearing Flange
233609201078Groove ball bearing
243609202526Reversing Switch
253609202527O-Ring
263609202528Housing Cover
273609202529Sealing Plate
283609202530Spring retaining ring
293609201407Compression Spring
33609201088Hex Socket Head Cap Screw
303609202415Pin
313609202533Hex Socket Head Cap Screw
323609202534Striker Holder
333609201216Ball guide
343609201054Ball
353609202537Striker Pin
363609201075Carrier
373609202539Compression Spring
383609202540Striker Spindle
393609202541Pressure Disk
43609202506Tappet
403609201049O-Ring
413609201072Retaining snap ring
423609202732Bushing
433609202545O-Ring
443609202733Motor Housing
453609201067Radial Seal
463609202548Handle
473609202549Striker Spindle
483609202550Suspension Loop
493609202657Manufacturer's nameplate
53609202507Compression Spring
503609202660Nameplate
513609202734Bushing
63609202508Connecting Piece
6523609202662Hose fitting
73609202509Fitting
83609202510Intake Valve
8013609202744Parts Set
8193609202736Set Of Clutch Plates
93609202511O-Ring
993601119236Reference Plate
