Bosch DDS 3/4"

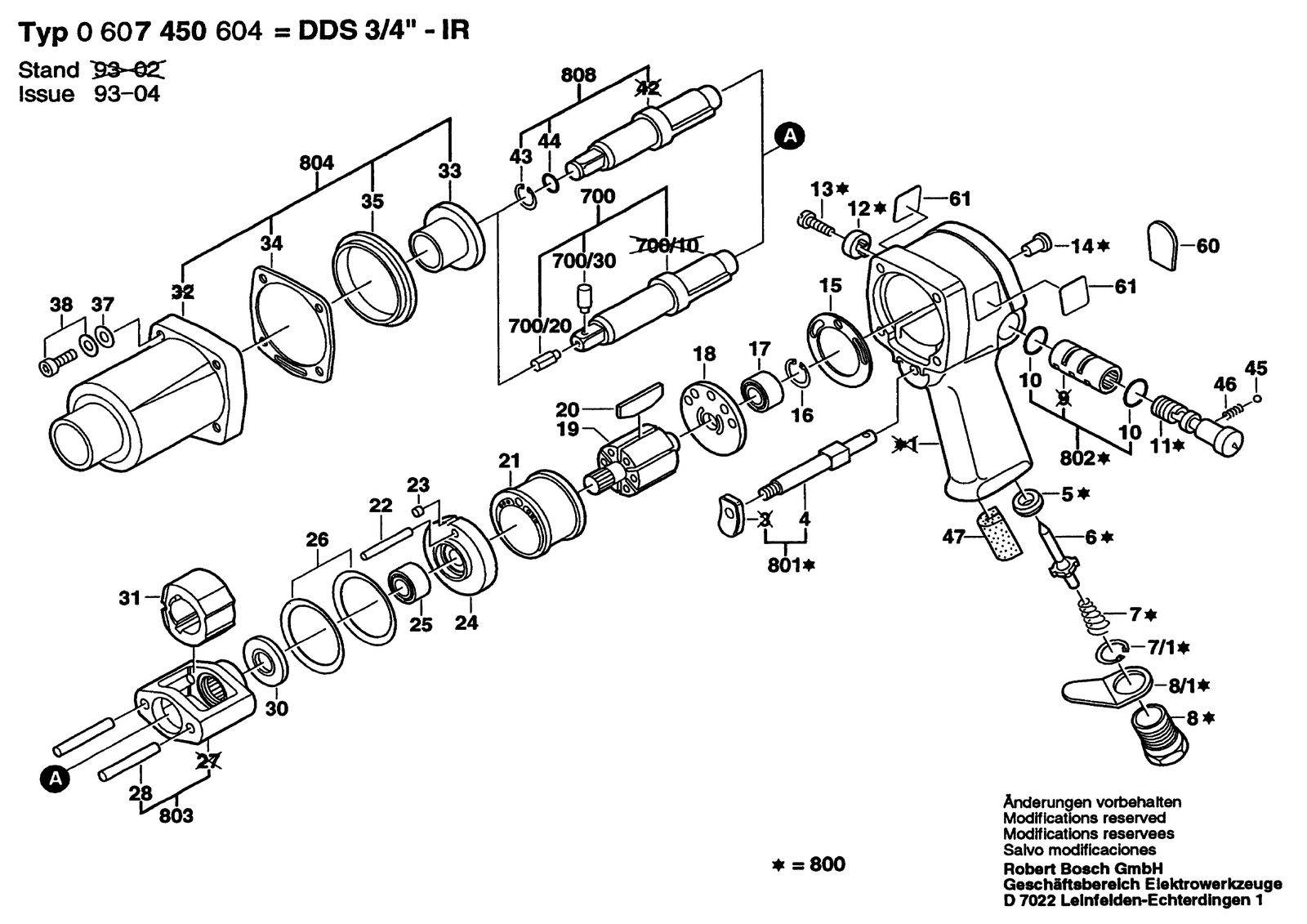

Bosch DDS 3/4" impact wrench: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DDS 3/4": 46 positions on 1 sheet
Bosch DDS 3/4" parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 3609202161 | O-Ring |
| 11 | 3609202162 | Change-Over Switch |
| 12 | 3609202120 | Knurled Disc |
| 13 | 3609202121 | Screw |
| 14 | 3609202122 | Lubricating Nipple |
| 15 | 3609202166 | Seal |
| 16 | 3609202167 | Retaining ring |
| 17 | 3609202168 | Miniature Ball Bearing |
| 18 | 3609202169 | Cover |
| 19 | 3609202170 | Rotor |
| 21 | 3609202172 | Cylinder |
| 22 | 3609202173 | Straight Pin |
| 23 | 3609202174 | Straight Pin |
| 24 | 3609202175 | Cover |
| 25 | 3609202176 | Miniature Ball Bearing |
| 26 | 3609202177 | Disc Spring |
| 28 | 3609202179 | Pin |
| 30 | 3609202180 | Plain Washer |
| 31 | 3609202181 | Hammer Piston |
| 33 | 3609202183 | Reamed Lining |
| 34 | 3609202184 | Seal |
| 35 | 3609202185 | Reamed Lining |
| 37 | 3609202187 | Plain Washer |
| 38 | 3609202188 | Screw |
| 4 | 3609202153 | Pin |
| 43 | 3609202250 | Spring Lock Washer |
| 44 | 3609202251 | O-Ring |
| 45 | 3609202124 | Ball |
| 46 | 3609202119 | Compression Spring |
| 47 | 3609202286 | Central Muffler |
| 5 | 3609202154 | Valve Seat |
| 6 | 3609202155 | Valve Body |
| 60 | 3609201443 | Nameplate |
| 61 | 3609201447 | Manufacturer's nameplate |
| 7 | 3609202156 | Compression Spring |
| 7/1 | 3609202157 | Retaining ring |
| 700 | 3609202271 | Service kit |
| 700/20 | 3609202191 | Straight Pin |
| 700/30 | 3609202192 | Compression Spring |
| 8 | 3609202158 | Fitting |
| 8/1 | 3609202159 | Plate |
| 801 | 3609202267 | Service kit |
| 802 | 3609202268 | Service kit |
| 803 | 3609202269 | Service kit |
| 804 | 3609202270 | Service kit |
| 808 | 3609202272 | Service kit |
