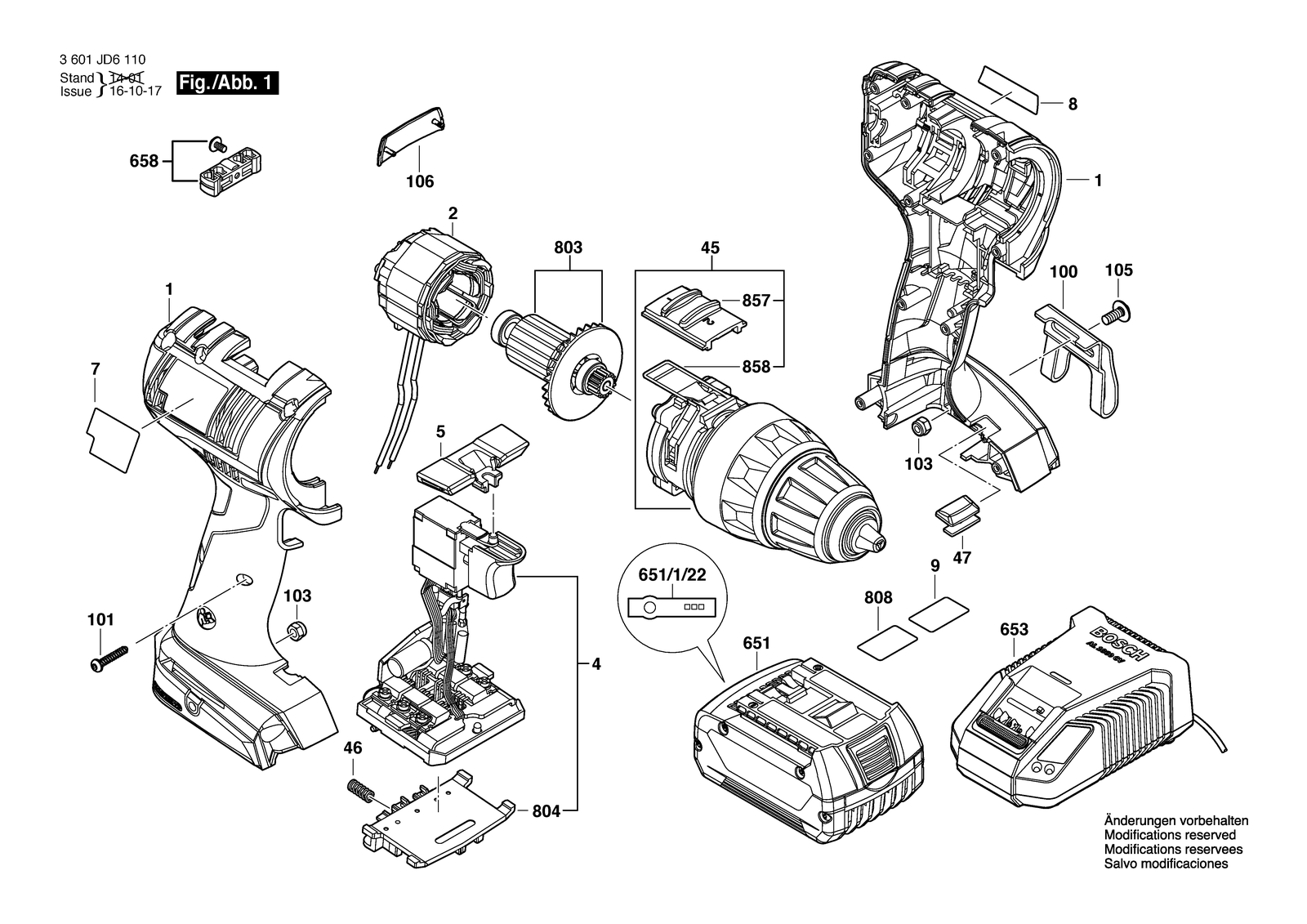

Bosch DDS 182 cordless drill driver: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DDS 182: 46 positions on 1 sheet
Bosch DDS 182 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609101226 | Housing |
| 1 | 2609101226 | Housing |
| 100 | 2609110956 | Clip |
| 100 | 2609110956 | Clip |
| 101 | 2609110353 | Torx Oval-Head Screw |
| 101 | 2609110353 | Torx Oval-Head Screw |
| 103 | 2609110835 | Nut |
| 103 | 2609110835 | Nut |
| 105 | 2609110834 | Screw |
| 105 | 2609110834 | Screw |
| 106 | 2609101409 | Color clip |
| 106 | 2609101409 | Color clip |
| 2 | 1619P08583 | Stator 18V |
| 2 | 1619P08583 | Stator 18V |
| 4 | 1600A001BG | Electronic Module |
| 4 | 1600A001BG | Electronic Module |
| 45 | 2609111566 | Gear Box |
| 45 | 2609111567 | Gear Box |
| 46 | 1609280477 | Compression Spring |
| 46 | 1609280477 | Compression Spring |
| 47 | 2609100858 | Lens |
| 47 | 2609100858 | Lens |
| 5 | 2609101227 | Adjusting lever |
| 5 | 2609101227 | Adjusting lever |
| 651 | 1607A350BM | Battery Pack BAT612 18V 2.0AH LI Scm |
| 651 | 1607A350BM | Battery Pack BAT612 18V 2.0AH LI Scm |
| 651/1/22 | 2601115537 | Sticker |
| 651/1/22 | 2601115537 | Sticker |
| 658 | 2609199748 | Bit holder |
| 658 | 2609199748 | Bit holder |
| 7 | 2609134642 | Warning Label |
| 7 | 2609134642 | Warning Label |
| 8 | 2609134640 | Nameplate |
| 8 | 2609134640 | Nameplate |
| 803 | 2609199671 | Rotor 14,4-18V |
| 803 | 2609199671 | Rotor 14,4-18V |
| 804 | 1609280478 | Contact retainer |
| 804 | 1609280478 | Contact retainer |
| 808 | 2609134652 | Nameplate |
| 808 | 2609134659 | Nameplate |
| 857 | 2609101293 | Switch Slide |
| 857 | 2609101293 | Switch Slide |
| 858 | 2609111078 | Switch Spring |
| 858 | 2609111078 | Switch Spring |
| 9 | 2609134644 | Reference Plate |
| 9 | 2609134644 | Reference Plate |
