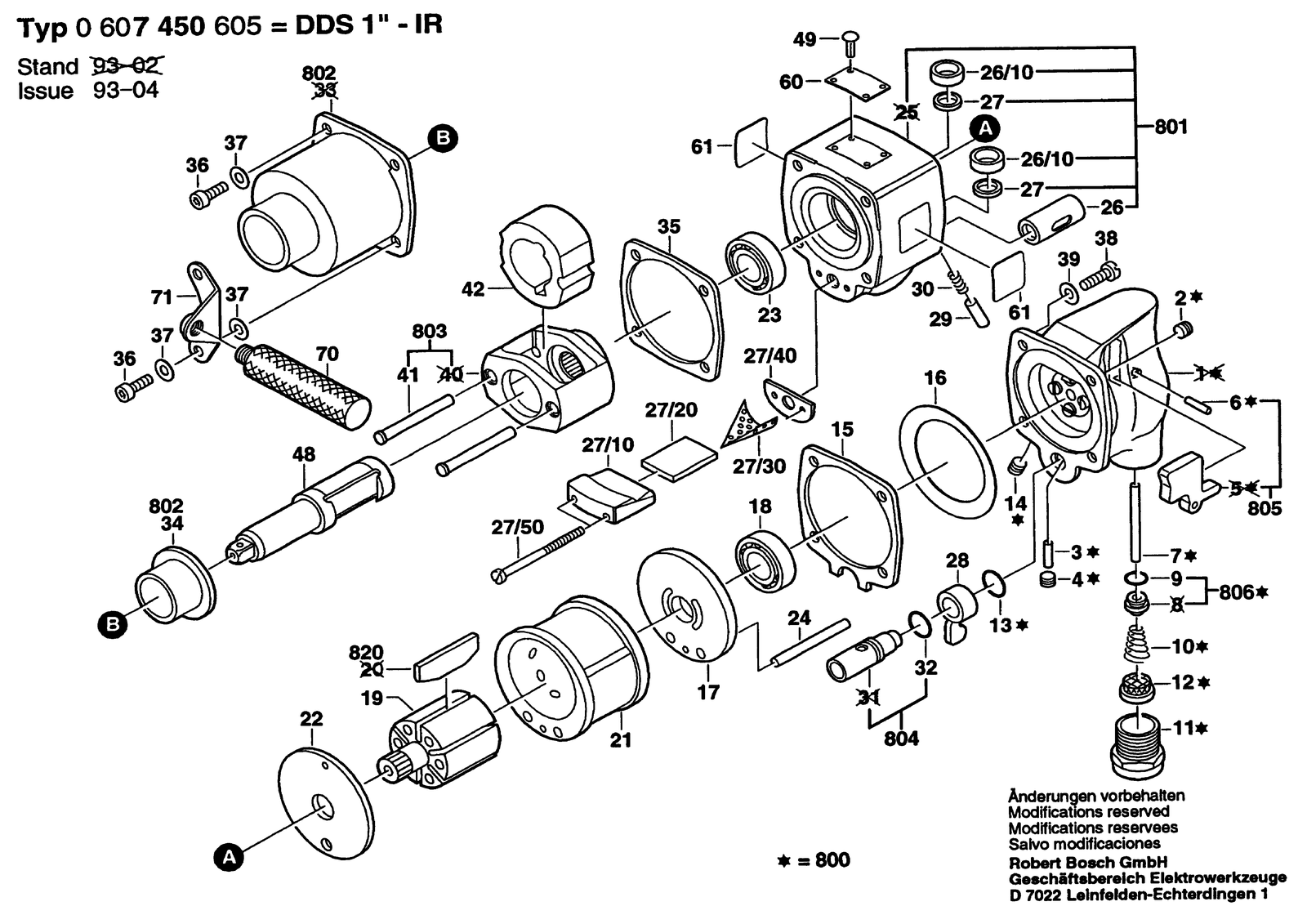

Bosch DDS 1" impact wrench: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DDS 1": 48 positions on 1 sheet
Bosch DDS 1" parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 3609202203 | Compression Spring |
| 11 | 3609202204 | Fitting |
| 12 | 3609202205 | Strainer |
| 13 | 3609202206 | O-Ring |
| 14 | 3609202207 | Oil Drain Plug |
| 15 | 3609202208 | Seal |
| 16 | 3609202209 | Disc Spring |
| 17 | 3609202210 | Cover |
| 18 | 3609202211 | Miniature Ball Bearing |
| 19 | 3609202212 | Rotor |
| 2 | 3609202122 | Lubricating Nipple |
| 21 | 3609202214 | Cylinder |
| 22 | 3609202215 | Cover |
| 23 | 3609202216 | Ball Bearing |
| 24 | 3609202217 | Straight Pin |
| 26 | 3609202219 | Valve Bushing |
| 27 | 3609202221 | Plain Washer |
| 28 | 3609202222 | Changeover Lever |
| 29 | 3609202223 | Straight Pin |
| 3 | 3609202196 | Felt |
| 30 | 3609202224 | Compression Spring |
| 32 | 3609202226 | O-Ring |
| 33 | 3609202227 | Grinding Glass |
| 34 | 3609202228 | Reamed Lining |
| 35 | 3609202229 | Seal |
| 36 | 3609202230 | Screw |
| 37 | 3609202231 | Plain Washer |
| 38 | 3609202232 | Screw |
| 39 | 3609202233 | Plain Washer |
| 4 | 3609202197 | Oil Drain Plug |
| 41 | 3609202235 | Pin |
| 42 | 3609202236 | Hammer Piston |
| 48 | 3609202241 | Striker Spindle |
| 49 | 3609202195 | Grooved Nail |
| 6 | 3609202199 | Pin |
| 60 | 3609201444 | Nameplate |
| 61 | 3609201448 | Manufacturer's nameplate |
| 7 | 3609202200 | Valve Seat |
| 70 | 3609202237 | Handle |
| 71 | 3609202240 | Console |
| 801 | 3609202275 | Service kit |
| 802 | 3609202277 | Service kit |
| 803 | 3609202278 | Service kit |
| 804 | 3609202276 | Service kit |
| 805 | 3609202274 | Service kit |
| 806 | 3609202282 | Service kit |
| 820 | 3609202213 | Set Of Clutch Plates 6 Piece |
| 9 | 3609202202 | O-Ring |
