Bosch DDH 361

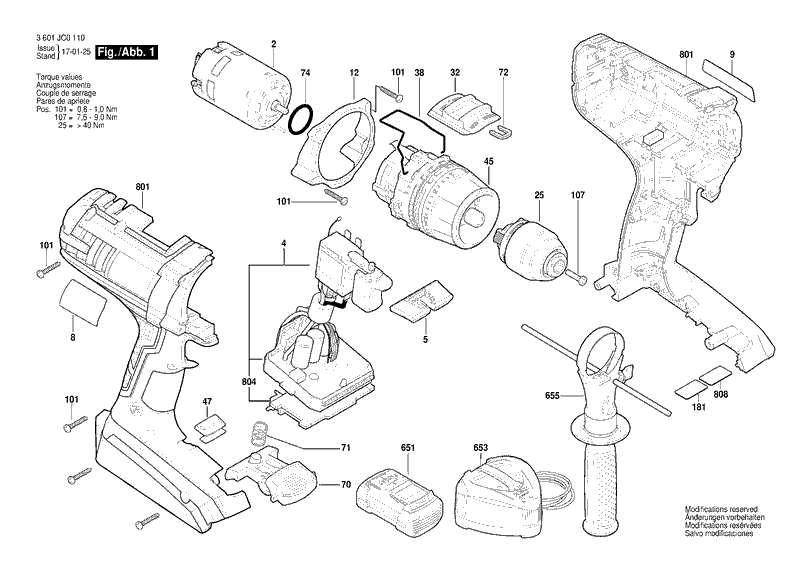

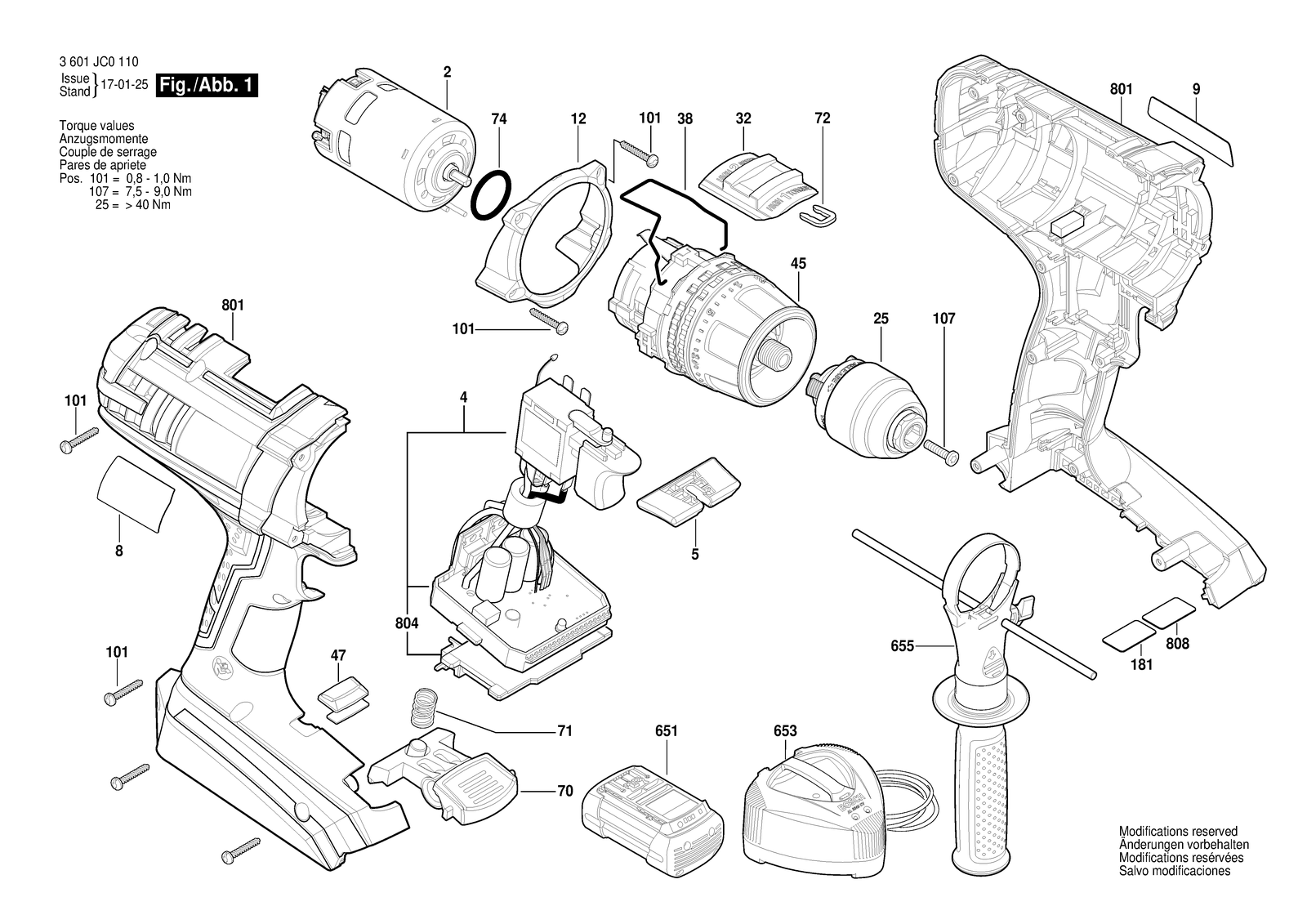

Bosch DDH 361 cordl perc screwdr: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DDH 361: 24 positions on 1 sheet
Bosch DDH 361 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 2609110353 | Torx Oval-Head Screw |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 12 | 2609111024 | Front Cap |
| 181 | 2609134887 | Reference Plate |
| 2 | 1607022647 | DC motor |
| 25 | 2609111104 | Keyless Chuck |
| 32 | 2609100878 | Adjusting lever |
| 38 | 2609111021 | Switch Spring |
| 4 | 1607233511 | Electronics Module |
| 45 | 2609199460 | Gear Box |
| 47 | 2609101350 | Lens |
| 5 | 2609100877 | Adjusting lever |
| 651 | 2607336891 | Slide-In Accu Package BAT838 36V 4,0AH |
| 653 | 2607225905 | Fast Charger Usa/cnd GAL 3680 CV 120/14,4-36V |
| 655 | 2609199583 | Auxiliary Handle |
| 70 | 2609101166 | Push Button Red |
| 71 | 2609111696 | Compression Spring |
| 72 | 2609110537 | Clip |
| 74 | 2609170226 | O-Ring |
| 8 | 2609136117 | Warning Plate |
| 801 | 2609199709 | Housing Section Blue |
| 804 | 1609280425 | Contact retainer |
| 808 | 2609138415 | Nameplate |
| 9 | 2609136119 | Manufacturer's nameplate Lithium ION 36V |
