Bosch DDH 181X cordless drill driver: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DDH 181X: 42 positions on 1 sheet

Bosch DDH 181X parts list (1 sheet)

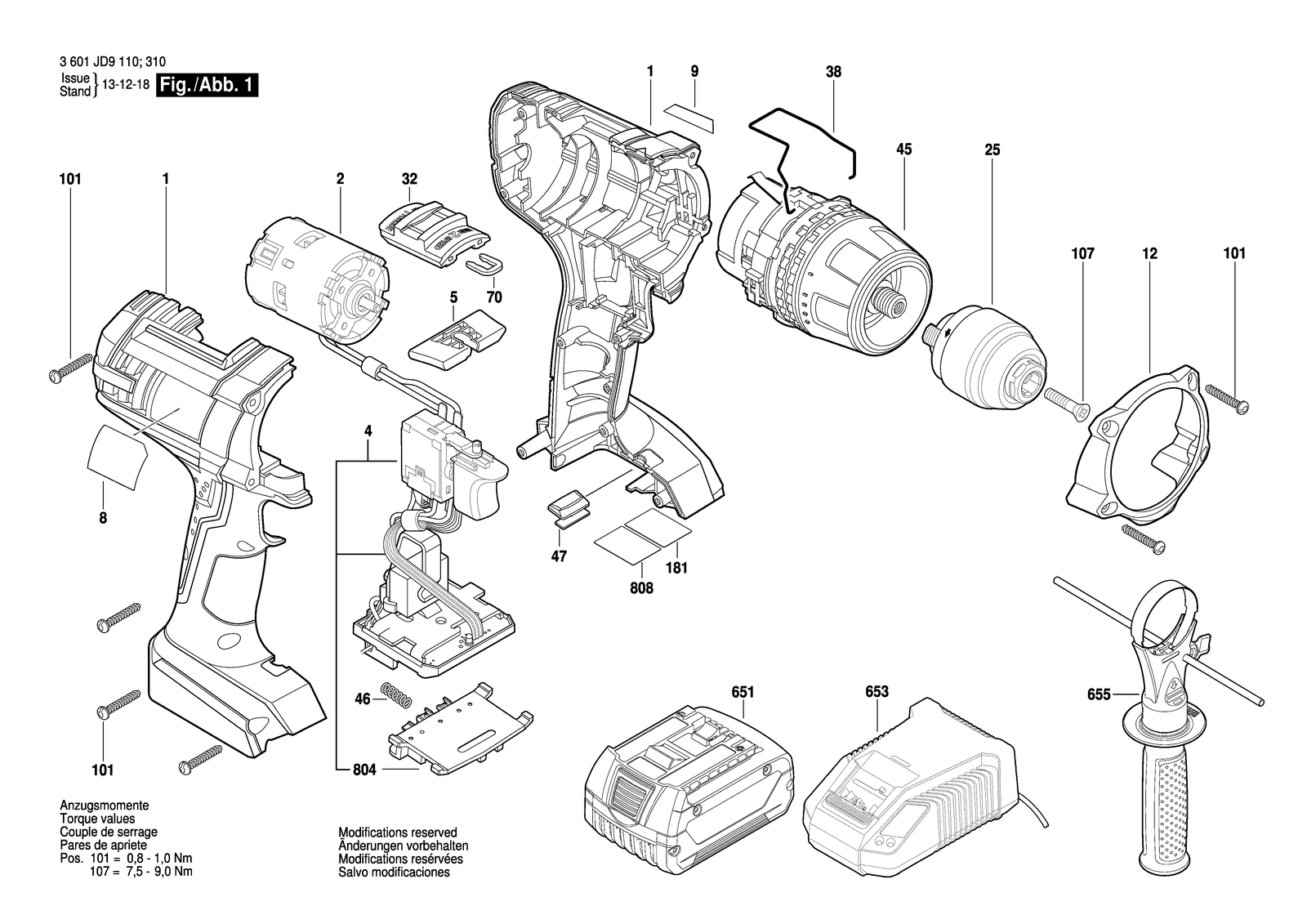

Bosch DDH 181X parts diagram, sheet 1
No.Part numberPart name
12609100874Housing Section
12609100874Housing Section
1012609110353Torx Oval-Head Screw
1012609110353Torx Oval-Head Screw
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
122609111024Front Cap
122609111024Front Cap
1812609134887Reference Plate
1812609134887Reference Plate
21607022609DC motor 18V
21607022609DC motor 18V
252609111104Keyless Chuck
252609111104Keyless Chuck
322609100878Adjusting lever
322609100878Adjusting lever
382609111021Switch Spring
382609111021Switch Spring
41607233583Electronics Module
41607233583Electronics Module
452609199674Gear Box
452609199675Gear Box
461609280477Compression Spring
461609280477Compression Spring
472609101350Lens
472609101350Lens
52609100877Adjusting lever
52609100877Adjusting lever
6512607336819Battery Pack Usa BAT620 18V 4,0AH
6512607336819Battery Pack Usa BAT620 18V 4,0AH
6552609199662Auxiliary Handle
6552609199662Auxiliary Handle
702609110537Clip
702609110537Clip
82609133085Warning Plate
82609133085Warning Plate
8041609280478Contact retainer
8041609280478Contact retainer
8082609134884Nameplate
8082609134886Nameplate
92609132940Nameplate Lithium-Ion 18V
92609132940Nameplate Lithium-Ion 18V
