Makita DDF484
Makita DDF484: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DDF484: 21 positions on 1 sheet

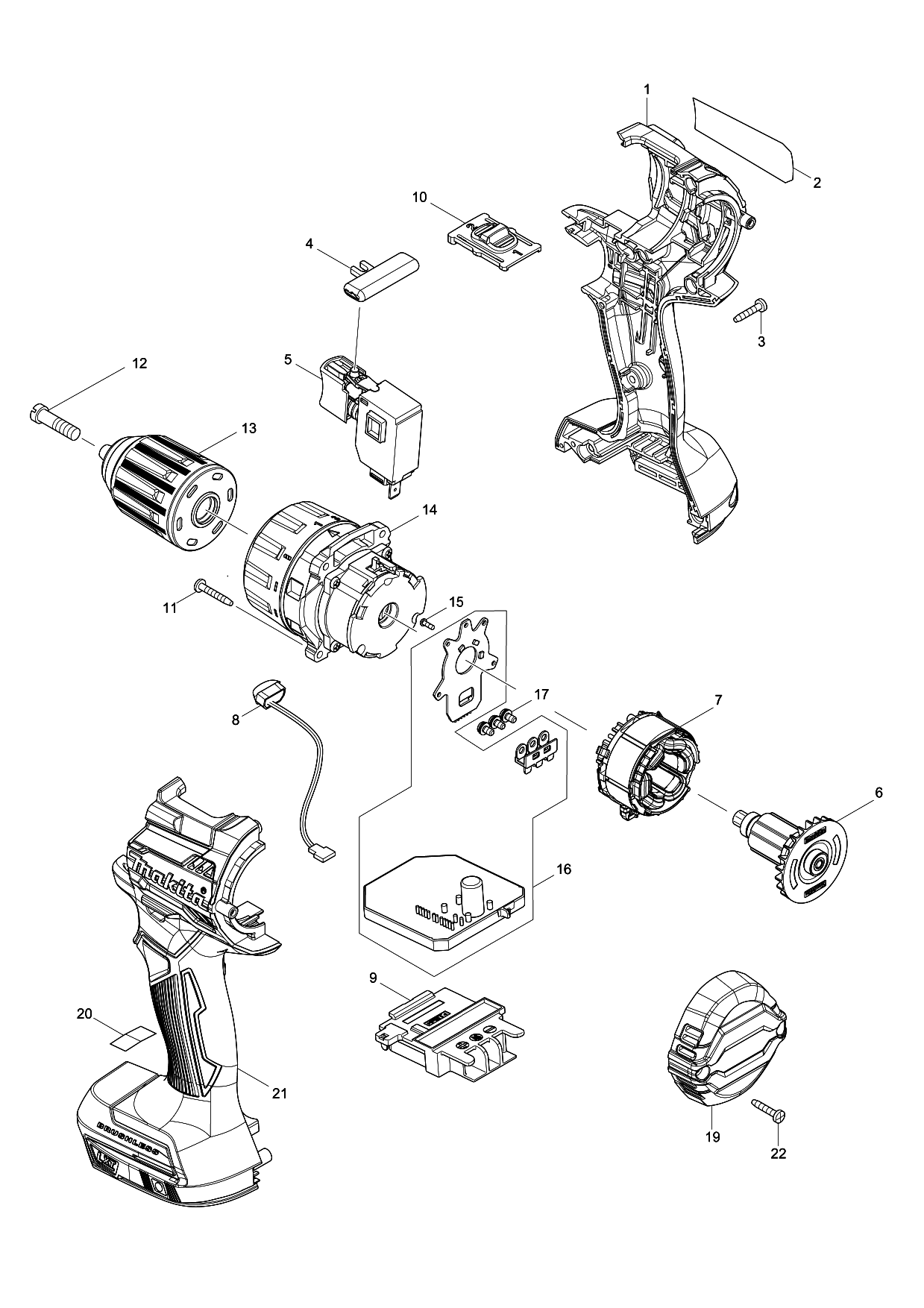

Sheet 1: Makita DDF484 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183E71-3 | Makita 183E71-3 Housing Set for HP484 |
| 2 | 852M14-1 | |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 419041-9 | Makita 419041-9 F/R Change Lever BTD130 |
| 5 | 650710-5 | Makita 650710-5 Switch C3JW-4B for HP480D HP481D |
| 6 | 619406-7 | Makita 619406-7 Rotor for HР484D DHP484 DDF484 |
| 7 | 629225-3 | Makita 629225-3 STATOR 18V |
| 8 | 620549-0 | Makita 620549-0 LED CIRCUIT |
| 9 | 643874-2 | Makita 643874-2 Terminal |
| 10 | 123738-1 | Makita 123738-1 SPEED CHANGE LEVER ASS'Y |
| 11 | 251497-8 | Makita 251497-8 TAPPING SCREW 3*20 |
| 12 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 13 | 766027-7 | Makita 766027-7 KEYLESS CHUCK 13MM, 1/2"-20UNF 1,5-13MM |
| 14 | 123737-3 | OTHR 123737-3 |
| 15 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 16 | 620548-2 | Makita 620548-2 Controller for DF484D |
| 17 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 19 | 456967-4 | Makita 456967-4 REAR COVER |
| 20 | ||
| 21 | 183E71-3 | Makita 183E71-3 Housing Set for HP484 |
| 22 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
