Makita DDF483: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DDF483: 18 positions on 1 sheet

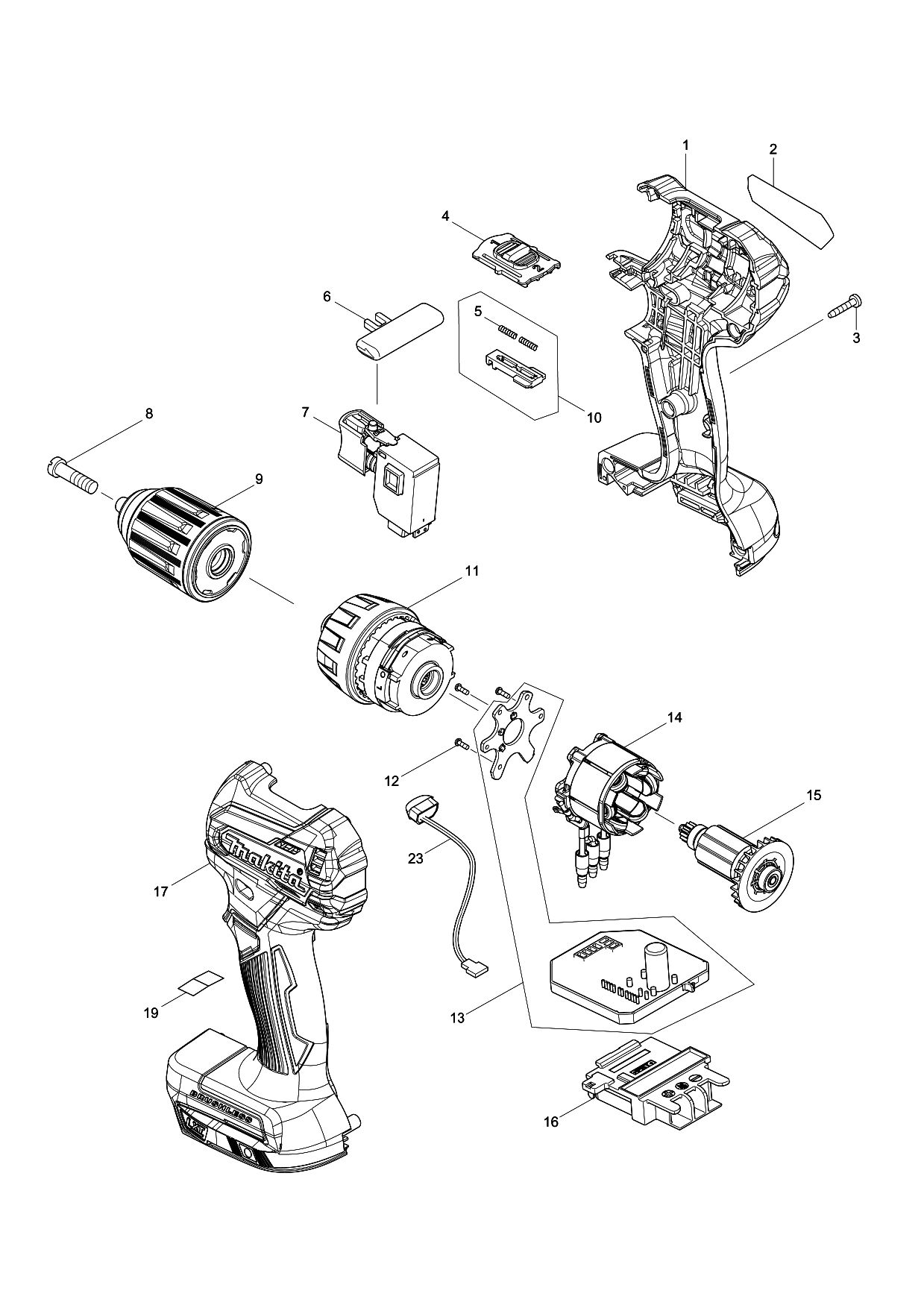

Sheet 1: Makita DDF483 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183E19-5 | Makita 183E19-5 HOUSING SET COMPLETE |
| 2 | 852L71-3 | |
| 3 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 4 | 457020-9 | Makita 457020-9 SPEED CHANGE LEVER |
| 5 | 233025-1 | Makita 233025-1 Compression Spring for JR300VT |
| 6 | 419041-9 | Makita 419041-9 F/R Change Lever BTD130 |
| 7 | 650689-0 | Makita 650689-0 Switch DF032DWAE DF032DZ BDF4569 BTD129 |
| 8 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 9 | 763241-6 | Makita 763241-6 KEYLESS DRILL CHUCK 13 |
| 11 | 123868-8 | Makita 123868-8 Gear Assembly for DDF483 DDF483RTJ DF332 XFD11 |
| 12 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 13 | 620555-5 | Makita 620555-5 CONTROLLER |
| 14 | 629228-7 | Makita 629228-7 STATOR |
| 15 | 619410-6 | Makita 619410-6 Armature Rotor for DHP483 DDF483 |
| 16 | 643874-2 | Makita 643874-2 Terminal |
| 17 | 183E19-5 | Makita 183E19-5 HOUSING SET COMPLETE |
| 19 | ||
| 23 | 620549-0 | Makita 620549-0 LED CIRCUIT |
